4PCS Front Rear Air Suspension Shocks Fits Mercedes W/X164 GL/ML320 350 550 450
Fitment:
- Mercedes-Benz | GL320 | 2007~2009 | 3.0L
- Mercedes-Benz | GL350 | 2010~2012 | 3.0L
- Mercedes-Benz | GL450 | 2007~2009 | 4.7L
- Mercedes-Benz | GL500 | 2008~2012 | 5.5L
- Mercedes-Benz | GL550 | 2008~2012 | 5.5L
- Mercedes-Benz | ML320 | 2007~2009 | 3.0L
- Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
- Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | ML550 | 2008~2011 | 5.5L
- Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L
Item Specifications
Key Words: 2Pairs Front + Rear Air Suspension Shock Struts For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 GL-Class X164 GL320 GL350 GL450 GL550 With Adaptive Damping System
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 92.50(Length)*17.00(Width)*16.00(Height)
- Lower Mounting Isolator Included: No Isolator Required
- Maximum Operating Pressure (psi): 160
- Lower Mount Type: U-Bracket
- Upper Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X164 W164
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: 1643204313,1643204413,1643200731,1643203031,1643203131
- Superseded Part Number: Air Ride Shock Strut,1643201131,1643202031
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout
1643204313,1643204413,
1643204613,1643205813,
1643205913,1643206013
1643200731,1643201131
1643202031,1643202131
1643202731,1643202831
1643203031,1643203131
*Removal & Installation Guideline
Overview of Airmatic suspension, shown on model 164.1 with Airmatic
(air suspension with level adjustment and adaptive damping system ADS)
1 Nuts
2 Pressure line connection

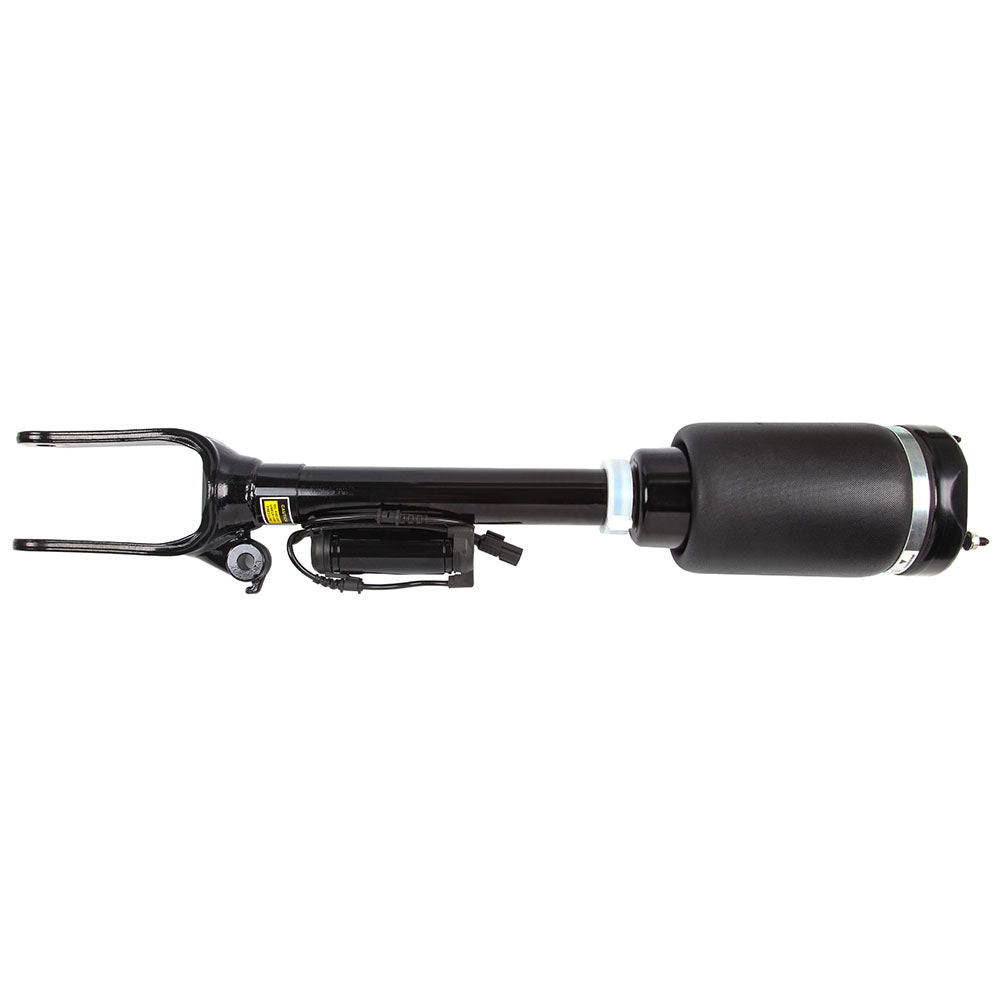

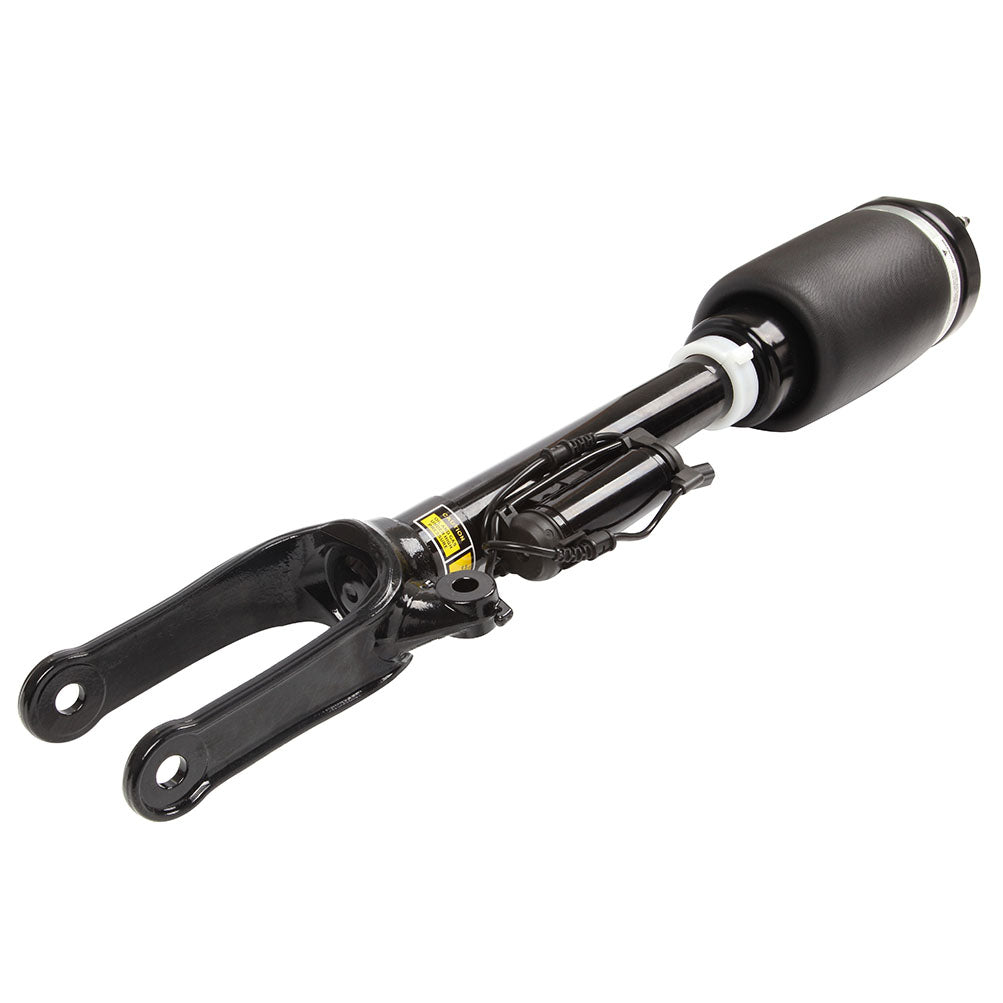

3 Front suspension strut
4 Cable tie
5 Brake hose bracket
6 Brake hose
7 Cable tie
8 ADS line
9 Nut
10 Nut
11 Nut
Y51x1 Left front axle damping valve unit connector
Y52x1 Right front axle damping valve unit connector
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes

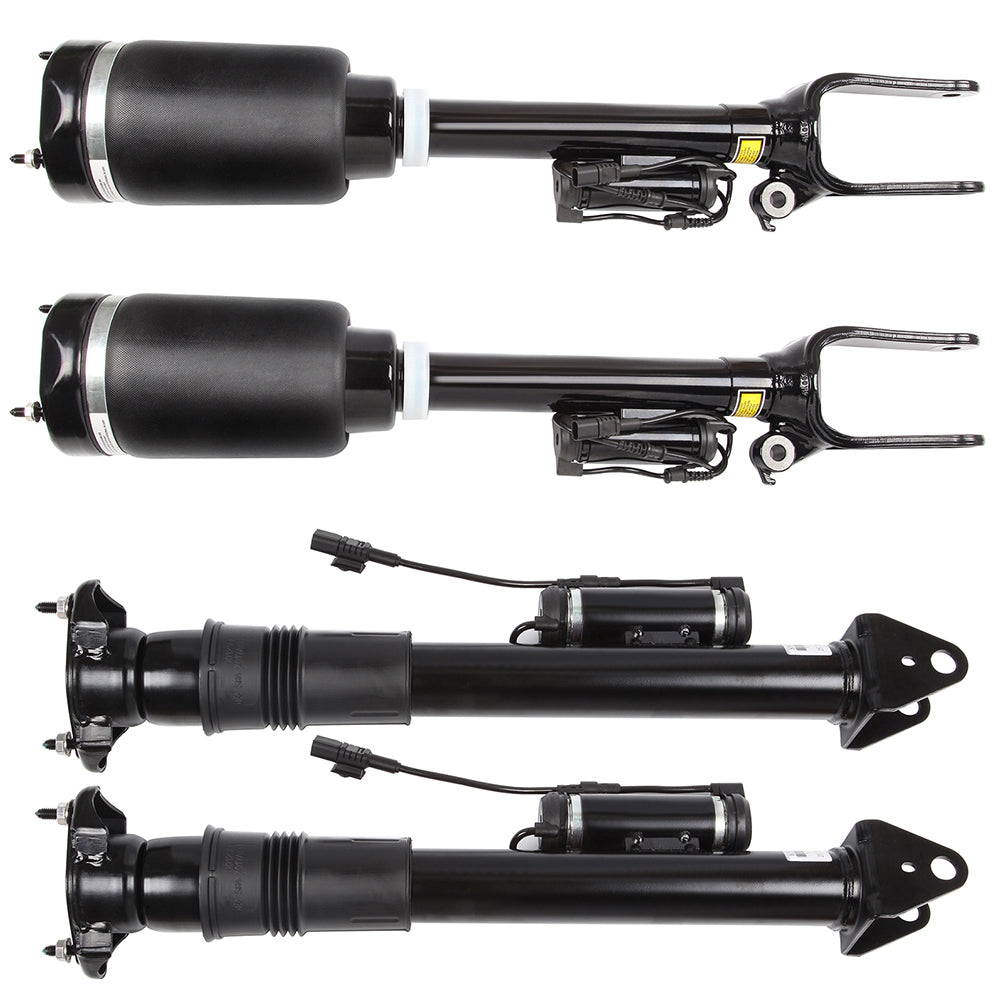

2 Pairs for Front + Rear Left & Right Air Suspension Shock Struts
