4PCS RWD Front Rear Air Suspension Shock For Mercedes W211 E500 CLS500 CLS550
Fitment:
- Mercedes-Benz | CLS350 | 2007~2011 | 3.5L/5.5L
- Mercedes-Benz | CLS500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | CLS550 | 2007~2010 | 5.5L
- Mercedes-Benz | E280 | 2007~2009 | 3.0L
- Mercedes-Benz | E320 | 2003~2009 | 3.0L/3.2L
- Mercedes-Benz | E350 | 2006~2007/2009 | 3.5L
- Mercedes-Benz | E500 | 2003~2009 | 5.0L/5.5L
- Mercedes-Benz | E550 | 2007~2009 | 5.5L
Features and Benefits
Direct Fit Replacement - Guaranteed to fit and function for your specific application
Highest Quality Materials
Quality Tested - built to a strict level of product standards.
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Package: Box
- Single Weight(LB): 61.377
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD/2WD
- Platform: W211
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: 2113200725,2113201225,2113201525,2113200825,2113201325
- OE/OEM Part Number: 2113205513,2113206113,2113209313,2193201113,2113201625
- Superseded Part Number: 2113205413,2113206013,2113209413,2193201213
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove front wheel. (picture 1, 2)
4.Locate and remove upper control arm ball joint nut. (picture 3, 4)
5.Separate ball joint from spindle assembly. (picture 5)
6.Remove sensor lines from brackets. (picture 6)
7.Remove inner fender well screws. (picture 7, 8)
8.Locate and disconnect electrical plug. (picture 9)
9.Loosen lower shock mounting bolt. (picture 10)
10.Disconnect the air line from the top of the strut. (picture 11)
11.Unplug electrical connector. (picture 12)
12.Remove three(3) top mounting bolts. (picture 13, 14, 15)
13.Remove lower shock mounting bolt. (picture 16, 17)
14.Remove shock assembly from vehicle. (picture 18)
15.Removal complete.
Installation Guideline
Installation is in reverse order of air strut removal.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Our items are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes

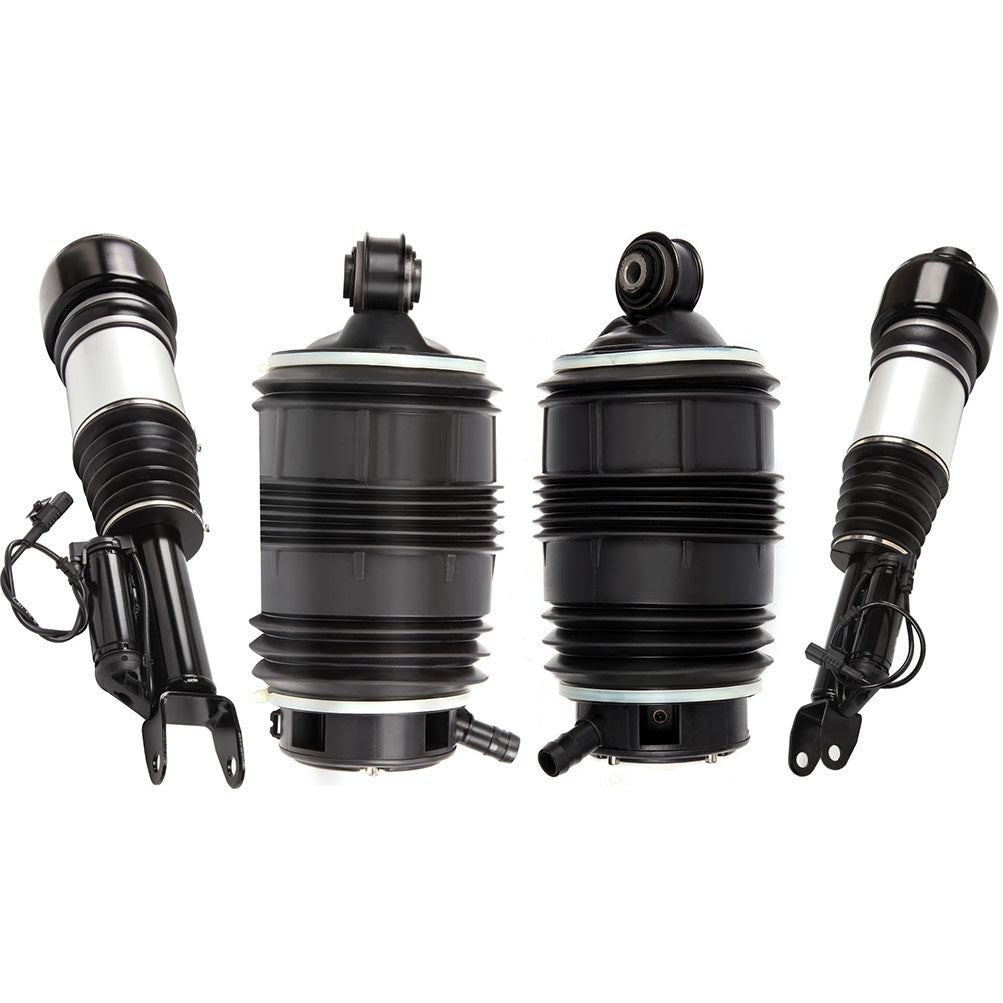

2PCS for Front Left & Right Air Suspension Shock Struts
2PCS for Rear Left & Right Air Suspension Springs
