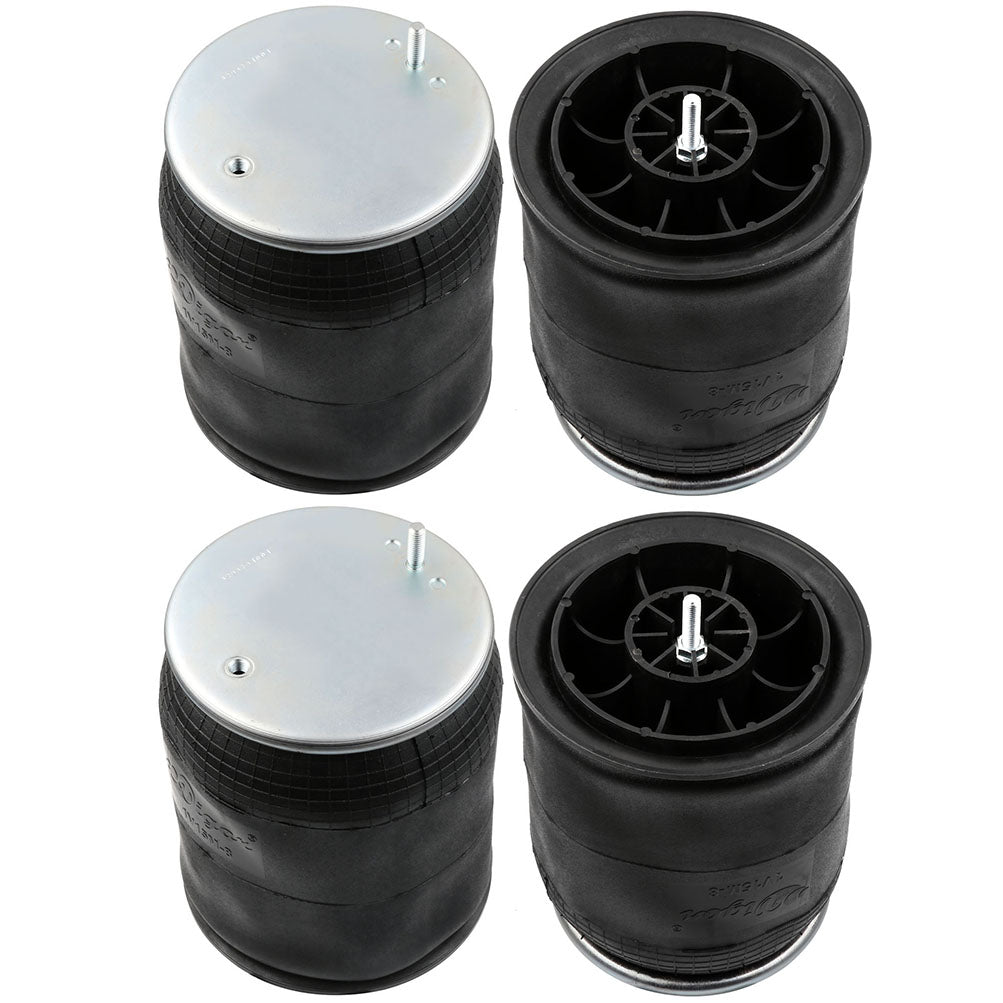

4PCS W01-358-9373 Air Suspension Bag Spring For Goodyear 1R12-403 ContiTech
Features and Benefits
Direct Fit Replacement - Guaranteed to fit and function for your specific application
Highest Quality Materials
Quality Tested - built to a strict level of product standards.
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Package: Box
- Single Weight(LB): 66.139
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required
- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Universal
- Platform: Universal
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: W01-358-9373, 1T15M8, 1T15MT8
- OE/OEM Part Number: 910185P440, 910185P519, 910175P440, 910175P519
- Superseded Part Number: 1R12403, 1S12030, 566241019, 566243097, 566241001, 566241012
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number: W01-358-9373
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.
With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.
2.Using the scan tool, vent the air springs.
3.Remove the air spring retainer.
4.Detach the air spring from the rear axle.
5.Remove the air spring in the following sequence.
1.Disconnect the air spring solenoid electrical connector.
2.Compress the quick connect locking ring and pull out the air tube.
3.Remove the air spring.
Includes
4PCS Air Suspension Spring Bags
