5PCS Front Rear Suspension Shock Air Compressor For Benz 4Matic W220 S430 S500
Fitment:
- Mercedes-Benz | S430 | 2003~2006 | 4.3L
- Mercedes-Benz | S500 | 2003~2004 | 5.0L
Features and Benefits
Direct Fit Replacement - Guaranteed to fit and function for your specific application
Highest Quality Materials
Quality Tested - built to a strict level of product standards.
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Package: Box
- Single Weight(LB): 83.665
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: W220
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: 2203205013,2203202338,220320501360 ,220320501380
- OE/OEM Part Number: 2203201338,2203202138,2203201438,2203202238
- Superseded Part Number: 2113200304,2113200104,2193200004,2203200104
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
- Rear Air Suspension Strut : 2203205013,2203202338,220320501360 ,220320501380
220320501388,A2203205013,A220320501360,A220320501380,A220320501388
Air Suspension Compressor Pump:2113200304 ,2113200104,2193200004,2203200104
22 A220 320 21 38 Air Suspension Strut On Front Axle, Left
22 A220 320 22 38 Air Suspension Strut On Front Axle, Right
25 A220 540 05 10 Wiring Harness Right Front Suspension Strut
25 A220 540 41 33 El.Cable Left Front Suspension Strut
27 A220 320 25 38 Repair Kit Air Suspension Strut
28 A220 330 00 85 Boot Parts Kit
50 A000 327 03 69 Connector
70 A220 327 03 28 Clamp
73 A220 327 02 28 Clamp
75 N 910105 010011 Hexagon Head Bolt Susp. Strut To Clamp, Left And Right M10X40
80 A000 990 49 77 Bolt Clamp To Ball Joint
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove front wheel.
4.Disconnect the shock control cable connector located in the fender well.(picture 1,2,3)
5.Loosen and remove the two(2)bolts holding the bottom of the air strut to the lower bracket.(pictures 4,5)
6.Raise hood and disconnect the air line from the shock assembly.(picture 6)
7.Remove the three(3)nuts holding the top mount of the shock.(picture 7)
8.Separate upper control arm ball joint from the spindle assembly and remove the air strut.(picture 8)
9.Removal complete.
Installation Guideline
1.Installation is in reverse order of air strut removal.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Our items are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.

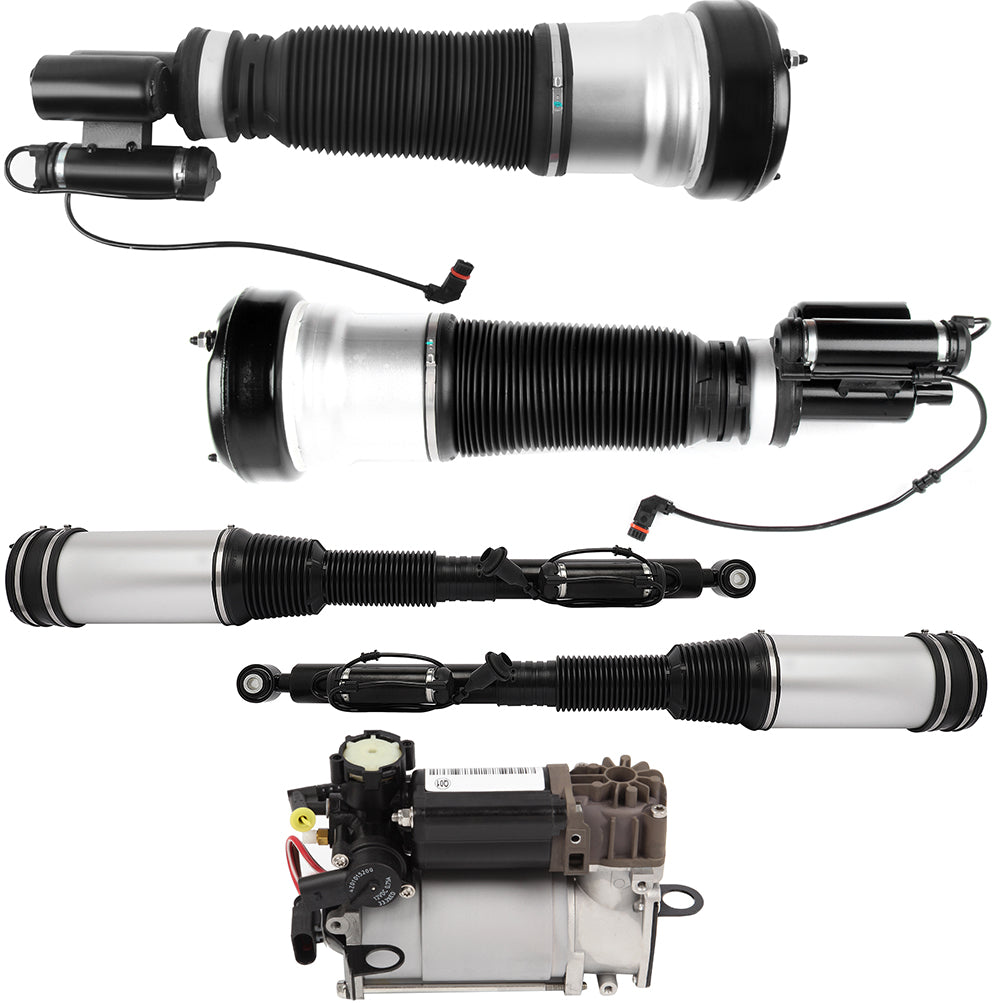

Includes
2PCS for Front Left & Right Air Suspension Shock Struts
2PCS for Rear Left & Right Air Suspension Shock Struts
1PC Air Suspension Compressor Pump
