5PCS RWD Front Rear Air Suspension Shock Compressor For Mercedes S320 S350 S430

Fitment:

• Mercedes-Benz | S350 | 2006 | 3.7L
• Mercedes-Benz | S430 | 2000~2006 | 4.3L
• Mercedes-Benz | S500 | 2000~2006 | 5.0L
• Mercedes-Benz | S55 AMG | 2001~2006 | 5.4L/5.5L
• Mercedes-Benz | S600 | 2001~2006 | 5.5L/5.8L
• Mercedes-Benz | S65 AMG | 2005~2006 | 6.0L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise the vehicle.

3.Remove front wheel.

4.Disconnect the shock control cable connector located in the fender well.(figure 1,2,3)

5.Loosen the two(2)set screws(180 degrees apart)located on the bottom of the shock assembly.(figure 4)

6.Raise hood and disconnect the air line from the shock assembly. Remove the air line fitting from the air hose and discard.(figure 5)

7.Remove the three(3)nuts holding the top mount of the shock.(figure 6)

8.Separate upper control arm ball joint from the spindle assembly and remove the air strut.(figure 7)

9.Removal complete.

Installation Guideline

Please refer to the manual above.

Align vehicle between the columns of the lifting platform and position the four support

plates at the lifting platform support points specified by the vehicle manufacturer.

1.Position the wheels straight ahead.

2.Empty suspension strut (40) affected using the STAR DIAGNOSIS system.

3.Unscrew pressure line connection (40a).

-Residual pressure in strut up to 3.5 bar. If the residual pressure valve (a) is damaged, replace the suspension strut (40).

-Plug the pressure line with blind plug for the duration of the repair operations. If pressure line or its connection fittings are damaged: Repair AIRMATIC pressure line connection.

-For installation:Check pressure line o-ring and replace if necessary.

4.Unscrew nuts (40b) on front end.

-For installation: Fit nuts (40b) and tighten after filling the suspension strut in the ready to drive vehicle.

5.Disconnect left front axle electrical distributor connector (X62/7), right front axle electrical distributor connector (X62/6).

-Connectors of damping valve unit and rpm senso. Press against spring (arrow) to remove.

6.Unscrew bolts (40c) from spring strut (40).

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

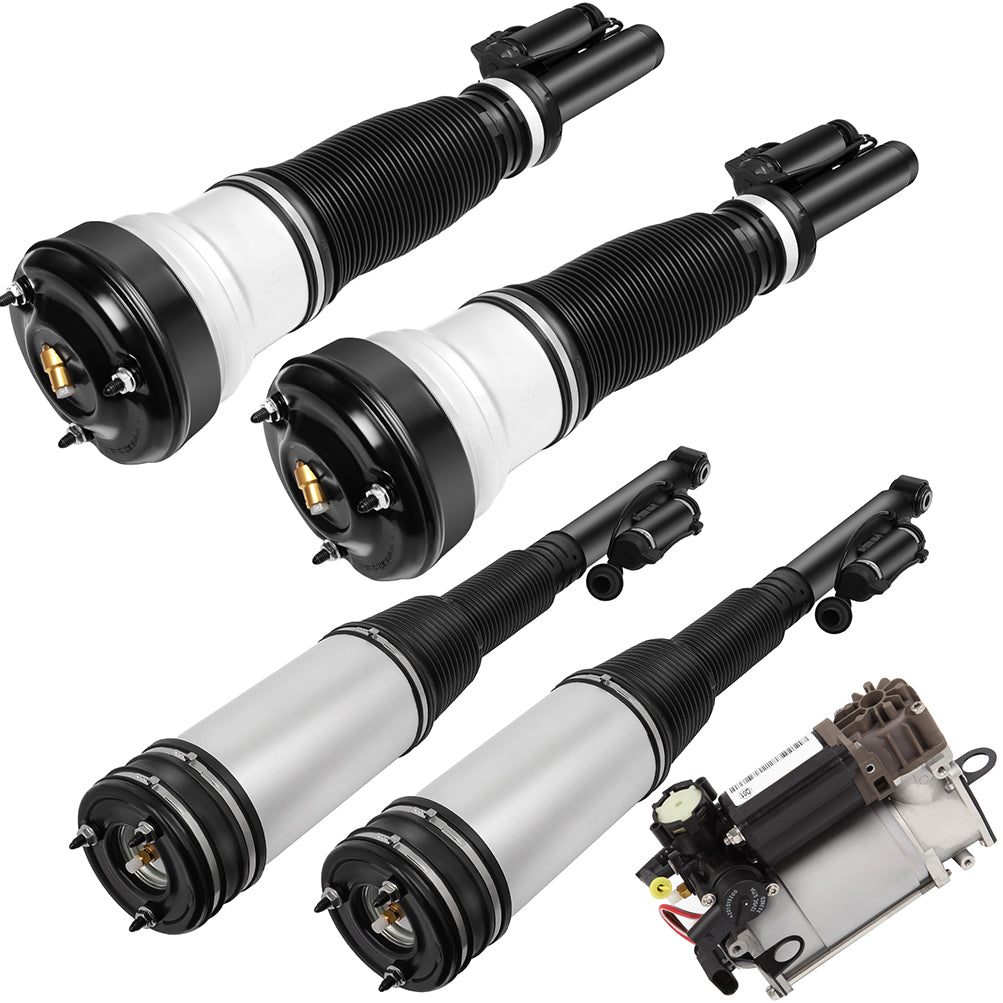

Includes

2PCS for Front Left & Right Air Suspension Shock Struts

2PCS for Rear Left & Right Air Suspension Shock Struts

1PC Air Suspension Compressor Pump
