5PCS RWD Front Rear Air Suspension Shock Compressor For Mercedes S400 S500 S550
Fitment:
- Mercedes-Benz | CL500 | 2007~2013 | 4.7L/5.5L
- Mercedes-Benz | CL550 | 2007~2008 | 5.5L
- Mercedes-Benz | CL600 | 2008~2014 | 5.5L
- Mercedes-Benz | CL63 AMG | 2009~2014 | 5.5L/6.0L/6.3L
- Mercedes-Benz | CL65 AMG | 2008~2014 | 6.0L/6.2L
- Mercedes-Benz | S350 | 2012~2013 | 3.5L
- Mercedes-Benz | S500 | 2007~2011 | 5.5L
- Mercedes-Benz | S550 | 2007~2011 | 5.5L
- Mercedes-Benz | S600 | 2007~2013 | 5.5L
- Mercedes-Benz | S63 AMG | 2008~2013 | 5.5L/6.0L/6.2L/6.3L
- Mercedes-Benz | S65 AMG | 2007~2013 | 6.0L
Features and Benefits
Direct Fit Replacement - Guaranteed to fit and function for your specific application
Highest Quality Materials
Quality Tested - built to a strict level of product standards.
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Package: Box
- Single Weight(LB): 90
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine RWD/2WD
- Platform: W221
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: 2213201704,2213200304,2213200704,2213200904,2213201604
- OE/OEM Part Number: 2213203513,2213204613,2213204913,2213207313,2213207413
- Superseded Part Number: 2213205113,2213205613,2213205813,2213205513,2213205713
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
- Rear Air Suspension Strut : 2213205613,2213205813,2213205513,2213205713
Air Suspension Compressor Pump: 2213201704,2213200304,2213200704,2213200904,2213201604
10 A221 320 04 38 Air Suspension Strut
10 A221 320 05 38 Air Suspension Strut
10 A221 320 17 38 Air Suspension Strut
10 A221 320 18 38 Air Suspension Strut
20 A001 990 32 14 Bolt
30 A221 540 72 08 Wiring Harness
40 A000 327 03 69 Connector
50 A221 320 79 13 Hydropneumatic Spring Leg
50 A221 320 80 13 Hydropneumatic Spring Leg
60 A221 997 03 52 Hose
60 A221 997 04 52 Hose
65 A015 997 82 45 O-Ring
70 N 000000 003047 Hexalobular Bolt
70 N 000000 008043 Hexalobular Bolt
100 A221 330 00 85 Rs Collar
110 N 000000 005267 Nut
120 A221 327 02 95 Reinforcement
130 N 000000 003277 Nut
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Remove front wheel.(pictures 1,2)
3.Remove airline and three(3)upper mount nuts.(pictures 3,4)
4.Locate the air strut's electrical connector and remove retaining clip.(picture 5)
5.Disconnect and separate the two(2)electrical connectors.(pictures 6,7)
6.Cut cable ties and remove brake line bracket and bottom clip.(pictures 8,9,10,11)
7.Locate and loosen lower mount set screws.(picture 12)
8.Loosen upper control arm nut.(picture 13)
9.Separate the upper control arm from the spindle assembly.(pictures 14,15)
10.Pull down on the spindle assembly, and remove the air strut from the vehicle.(pictures 16,17)
11.Removal complete.
Installation Guideline
Installation is in reverse order of air strut removal.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Our items are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.

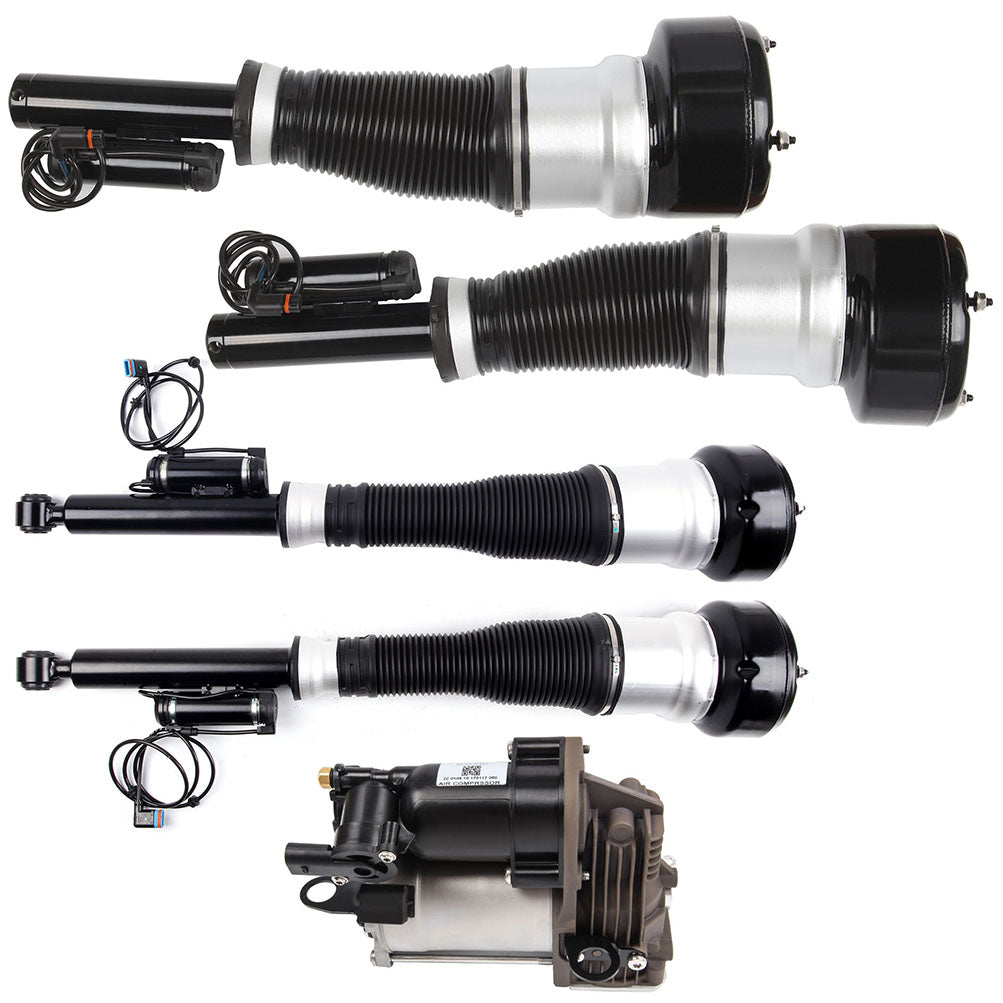

Includes
2PCS for Front Left & Right Air Suspension Shock Struts
2PCS for Rear Left & Right Air Suspension Shock Struts
1PC Air Suspension Compressor Pump
