6PCS Front Rear Air Suspension Shock Rear Spring For Mercedes ML320 GL350 GL450

Fitment:

• Mercedes-Benz | GL320 | 2007~2009 | 3.0L
• Mercedes-Benz | GL350 | 2010~2012 | 3.0L
• Mercedes-Benz | GL450 | 2007~2012 | 4.7L
• Mercedes-Benz | GL500 | 2008~2012 | 5.5L
• Mercedes-Benz | GL550 | 2008~2012 | 5.5L
• Mercedes-Benz | ML320 | 2007~2009 | 3.0L
• Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
• Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
• Mercedes-Benz | ML550 | 2008~2011 | 5.5L
• Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove front wheel.

4.Disconnect the sway bar linkage.(picture 1)

5.Remove the nut from the ball joint and separate from the spindle assembly.(picture 2)

6.Cut the cable tie securing the wire harness mount, then remove the wire harness mount from shock.(picture 3)

7.Disconnect the air line by unscrewing the brass fitting from the strut's top mount.(picture 4)

8.Remove the three(3)upper mount flange nuts.(picture 5)

9.Remove the lower shock mount nut, followed by the bolt and remove the strut from the vehicle.(picture 6)

Air Strut Installation Guideline

1.Install the replacement strut onto the vehicle in the same orientation as removed.

2.Install the lower shock mount bolt and nut, tighten to manufacture's specification.(picture 7, 8)

3.Reattach the spindle assembly and install the nut onto the ball joint, tighten to manufacture's specification.(picture 9,10)

4.Using the supplied cable tie, secure the wire harness mount to the shock.(picture 11,12)

5.Using the supplied hardware, install and tighten the top mounting nuts to manufacture's specification.(picture 13)

6.Remove the air line fitting. To do so, spread the collet open and the remaining fitting will slide off of the air hose.(picture 14)

7.Remove the plastic shipping pin from the air inlet fitting, push the air hose in until fully seated into place(air line will not pull out when inserted properly).(picture 15)

8.Installation complete.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

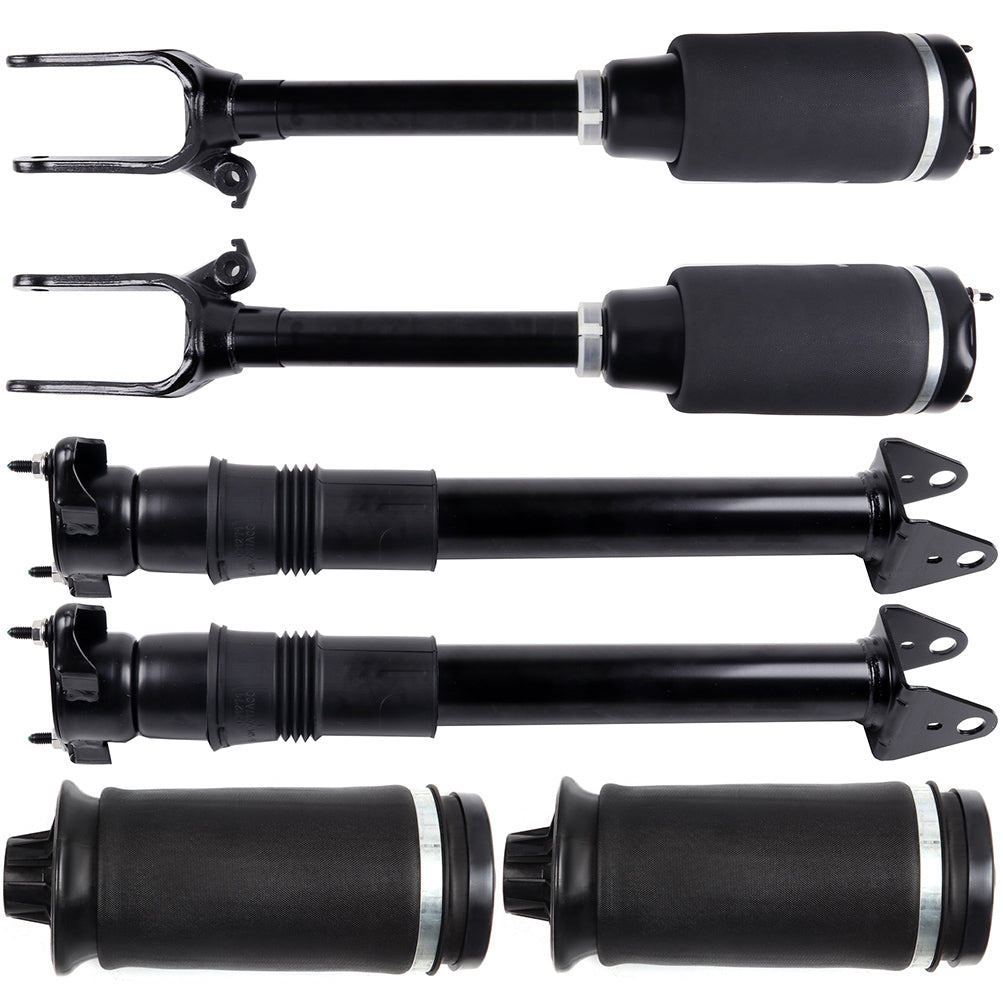

Includes

2PCS Front Left & Right Air Suspension Struts

2PCS Rear Left & Right Air Suspension Shocks

2PCS Rear Left & Right Spring Bags
