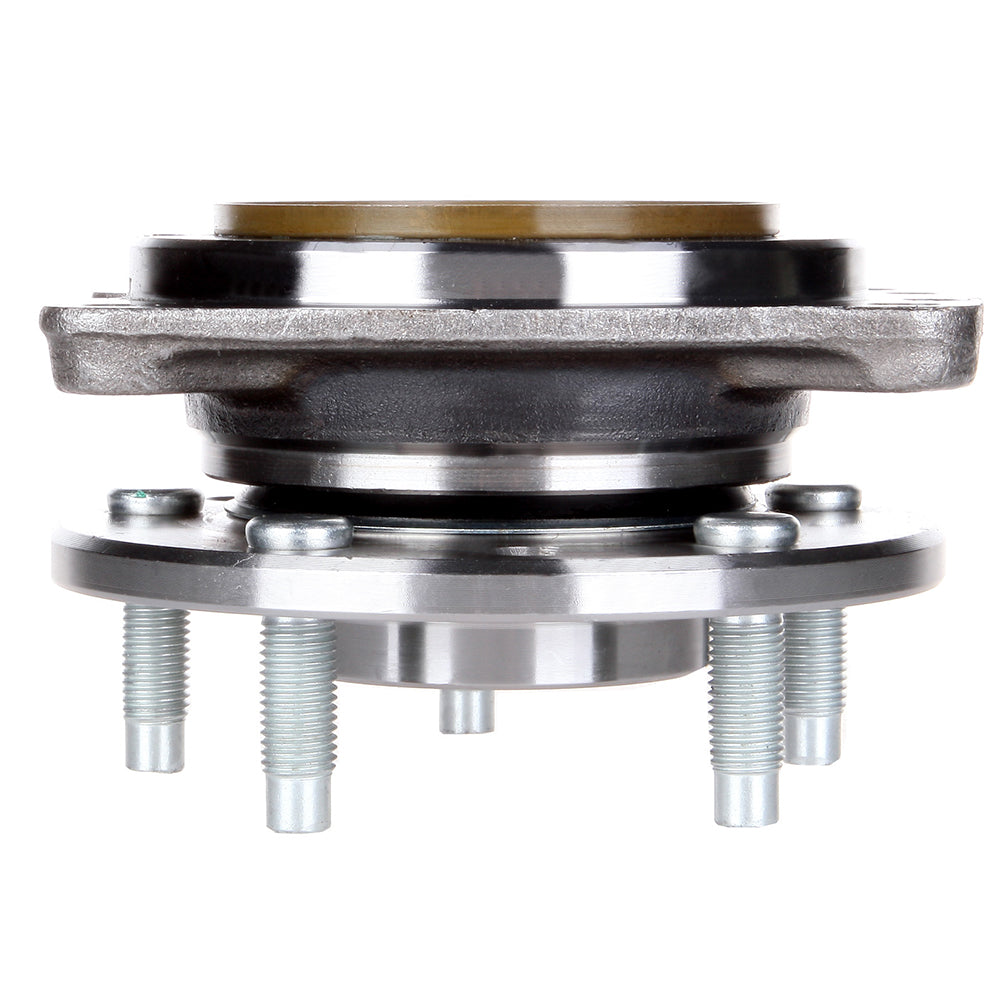

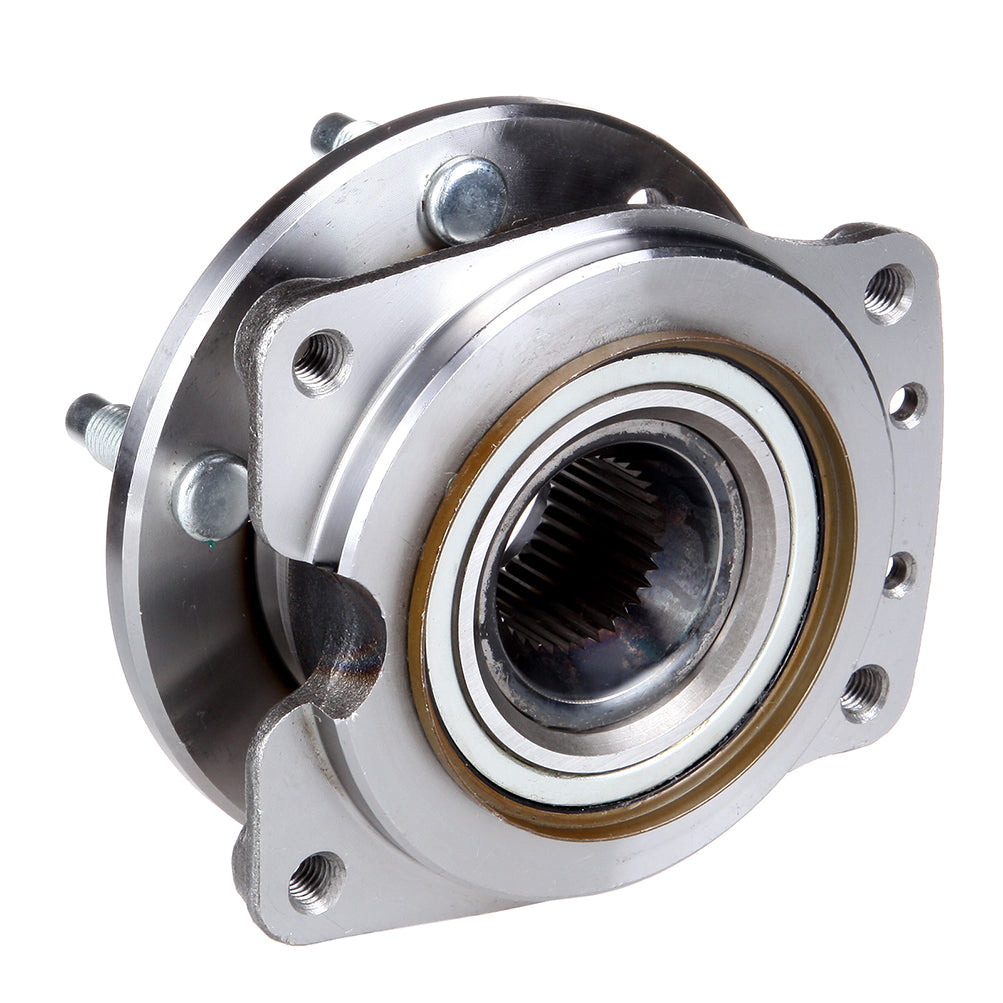

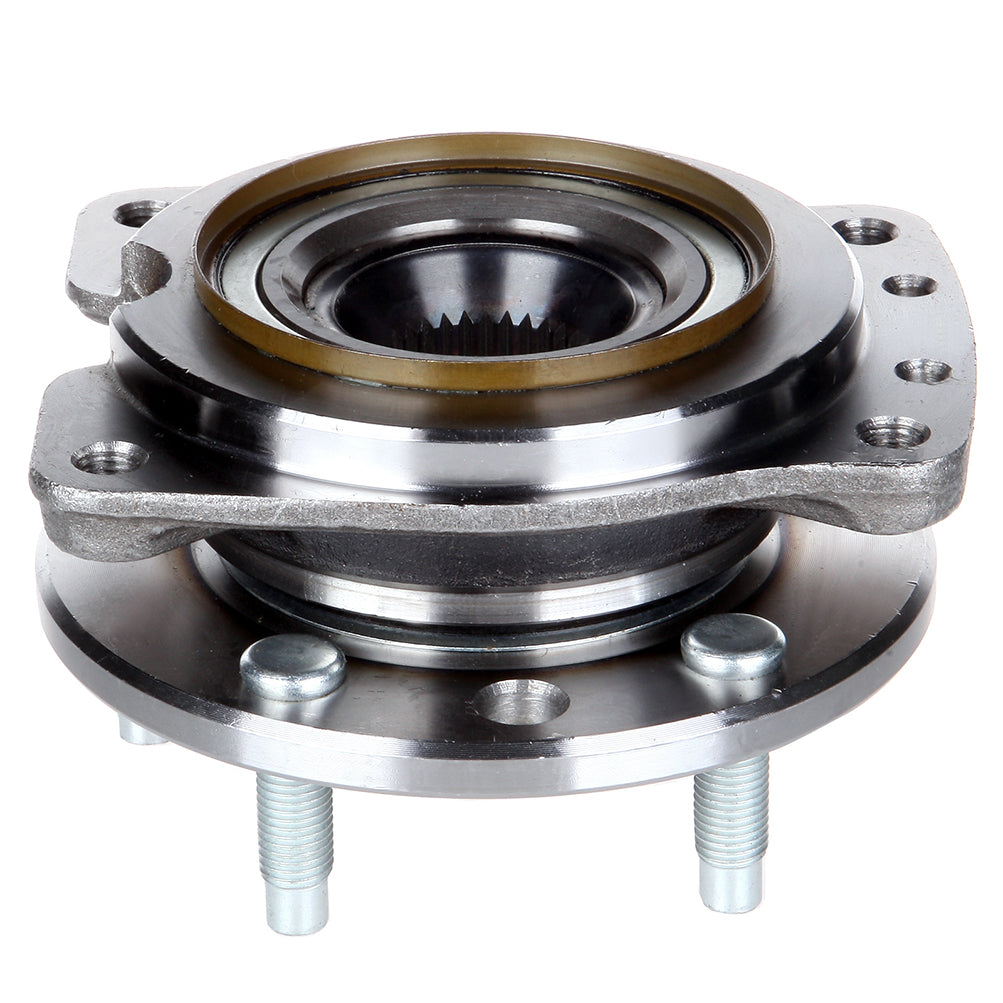

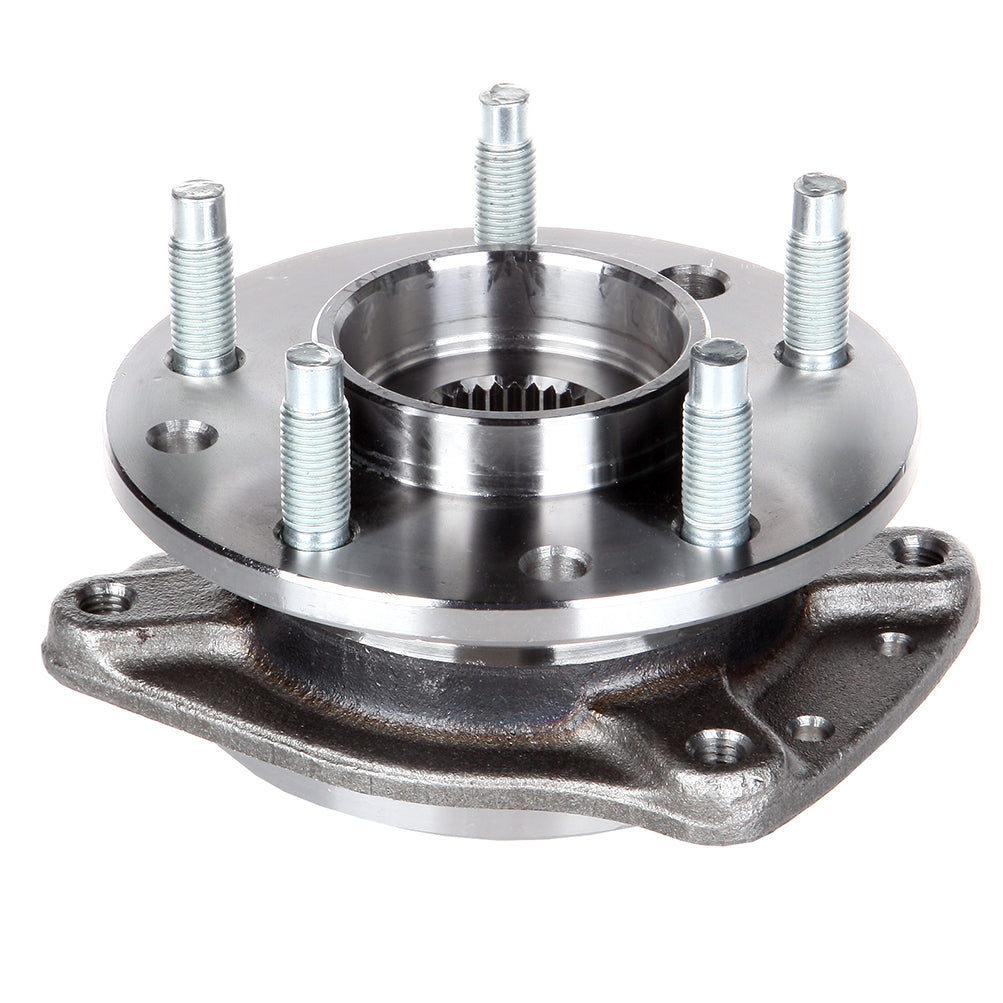

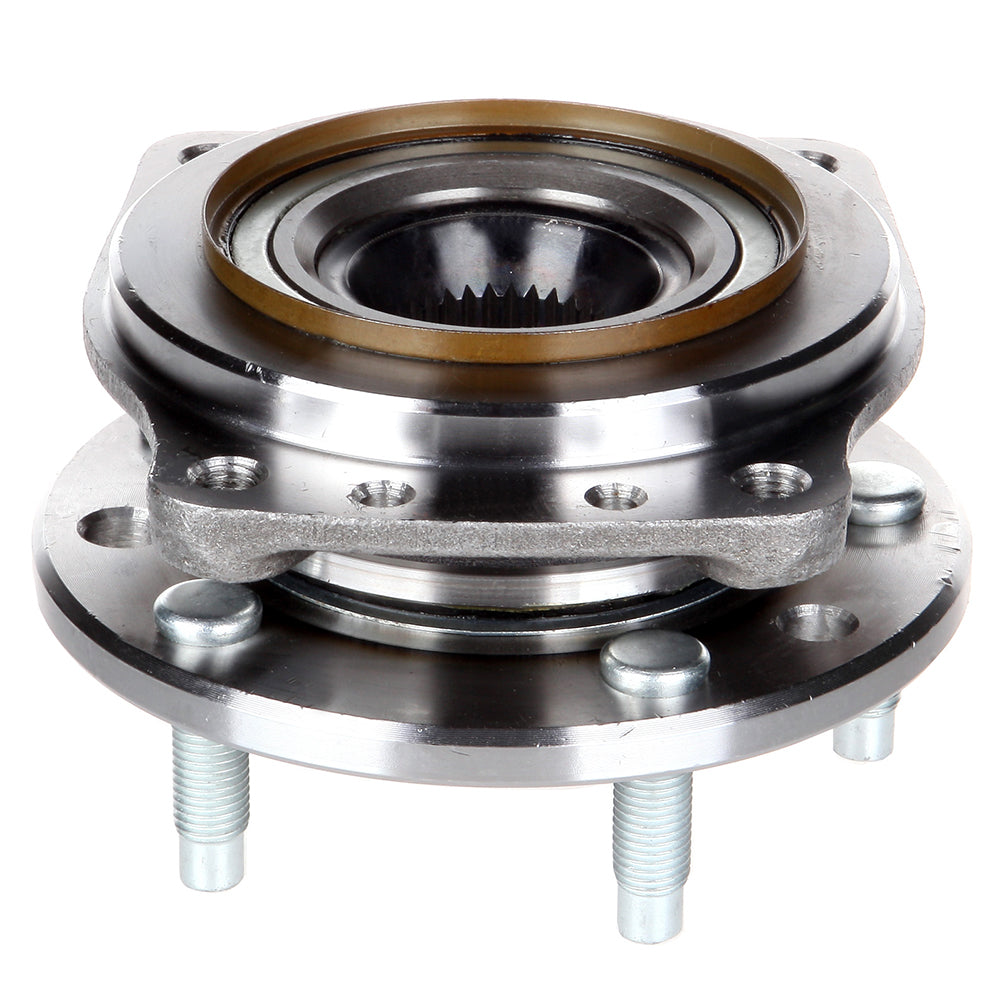

88-96 Buick Regal 92-01 Chevrolet Lumina Front Wheel Hub And Bearing Assembly

Fitment

• Buick | Regal | 1988~1996 | 2.8L/3.1L/3.8L
• Chevrolet | Lumina | 1992~2001 | 2.2L/2.5L/3.1L/3.4L/3.8L
• Chevrolet | Monte Carlo | 1995~1999 | 3.1L/3.4L/3.8L
• Oldsmobile | Cutlass | 1989~1996 | 2.8L/3.1L
• Oldsmobile | Cutlass Supreme | 1989~1997 | 2.3L/2.8L/3.1L/3.4L
• Pontiac | Grand Prix | 1989~1996 | 2.3L/2.8L/3.1L/3.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 33
• Bolt Circle Diameter: 4.48 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.75 In
• Flange Diameter: 5.64 In
• Flange Shape: Rectangular
• Flange Offset: 1.75 In
• Hub Pilot Diameter: 3.55 In
• Other Part Numbers: 7466960, 7466966, 7466967, 7466982, 7466983, 7467140, 7470515,
• Material: steel
• Weight: 9LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513044, WA513044, 7466983, 7467140, 7470515, 7470517, 7470518, 7470625, 7470626

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
