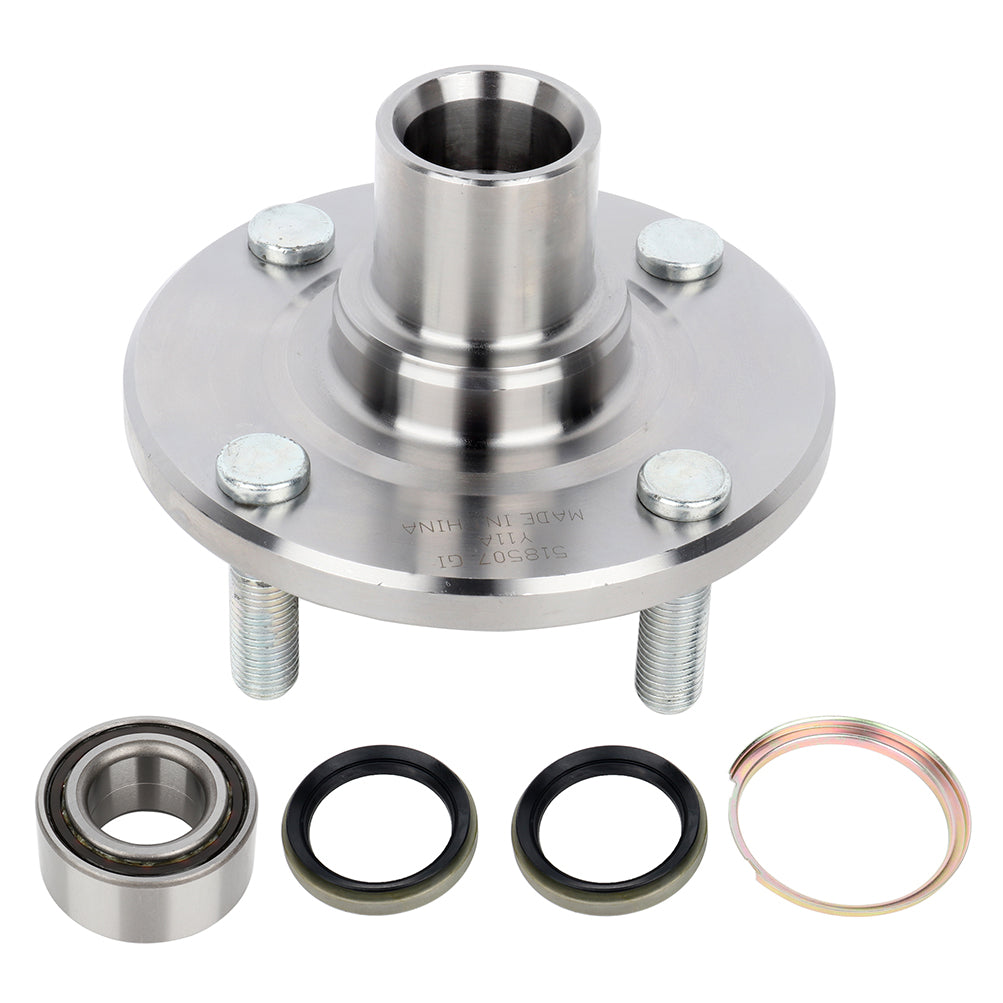

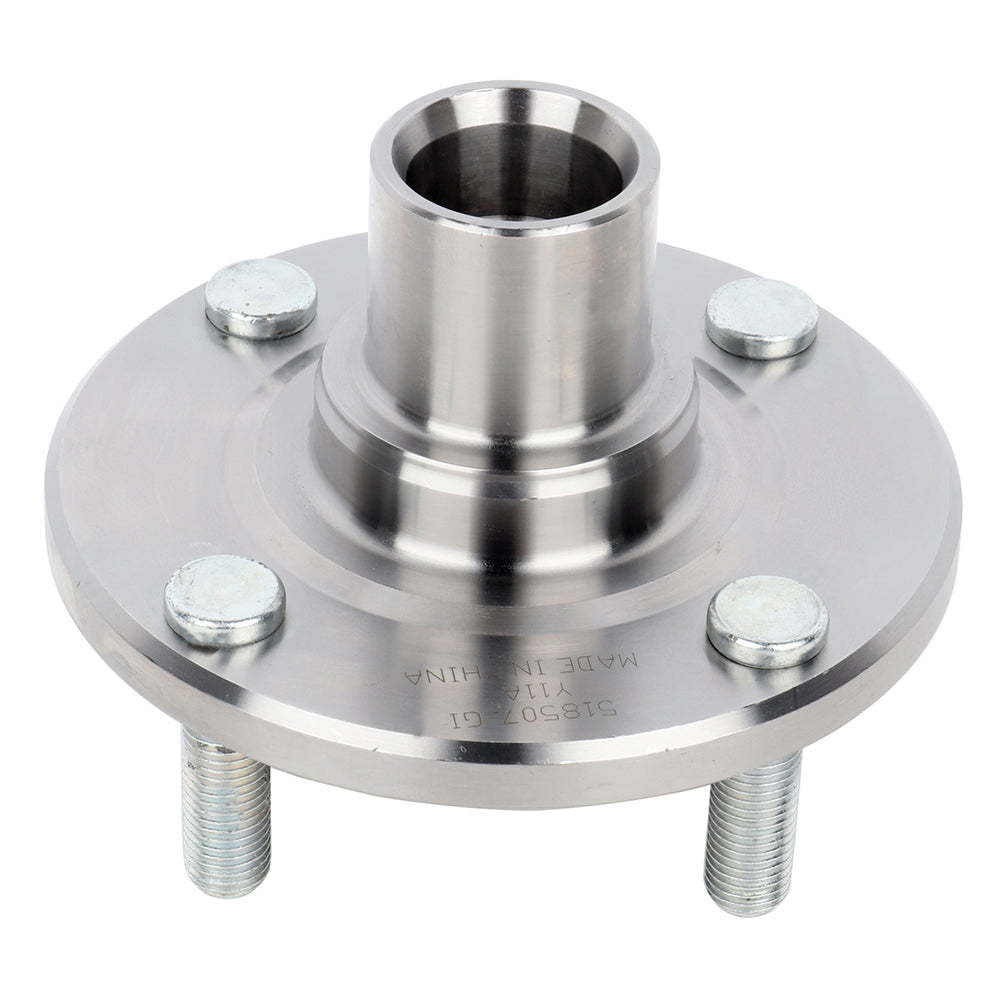

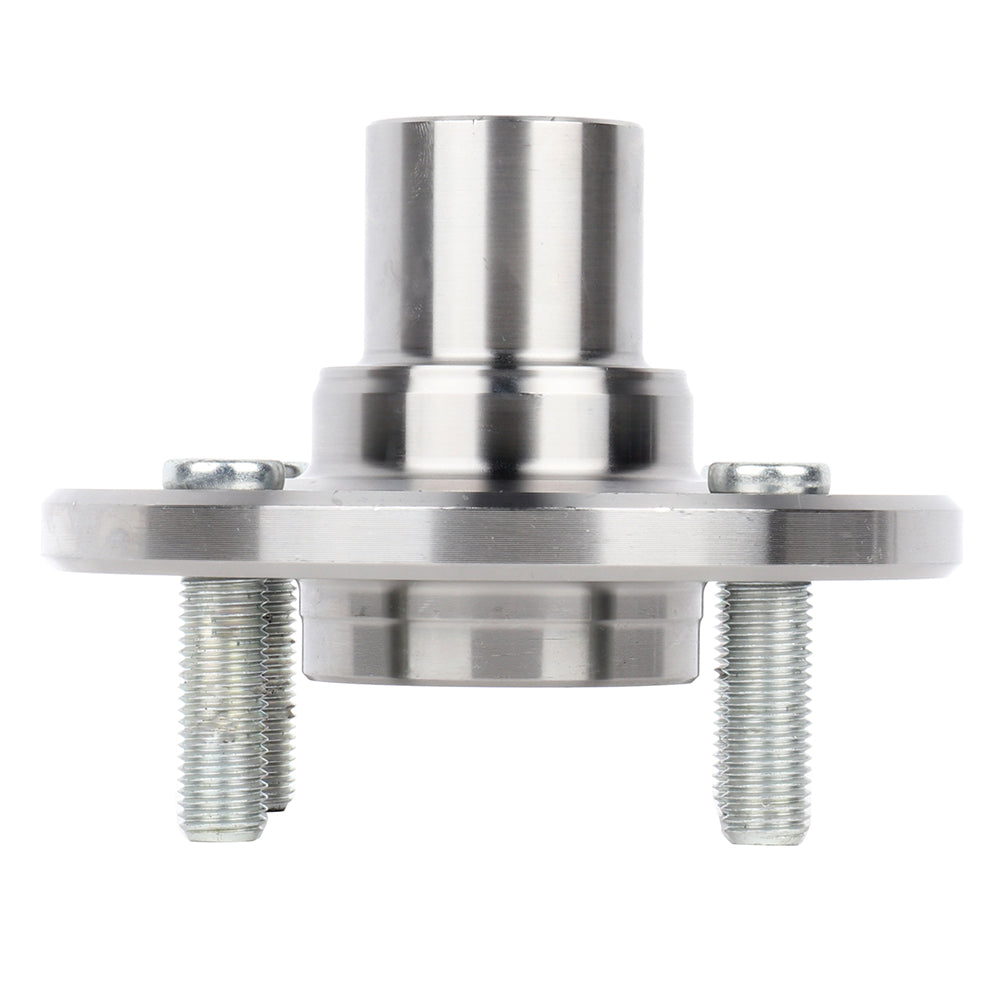

93-97 Geo Prizm 88-02 Toyota Corolla Front Wheel Bearing & Hub Assembly

Fitment

• Chevrolet | Prizm | 1998~2002 | 1.8L
• Geo | Prizm | 1993~1997 | 1.6L/1.8L
• Toyota | Corolla | 1988~2002 | 1.6L/1.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Not has ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: N/A
• Manufacturer Part Number: OFA111381
• Spline Quantity: 26
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.11 In
• Brake Pilot Diameter: 2.106 In
• Flange Diameter: 4.88 In
• Wheel Stud Size: 0.472 In
• Flange Offset: 1.08 In
• Other Part Number: 19312384
• Material: steel
• Weight: 4LB

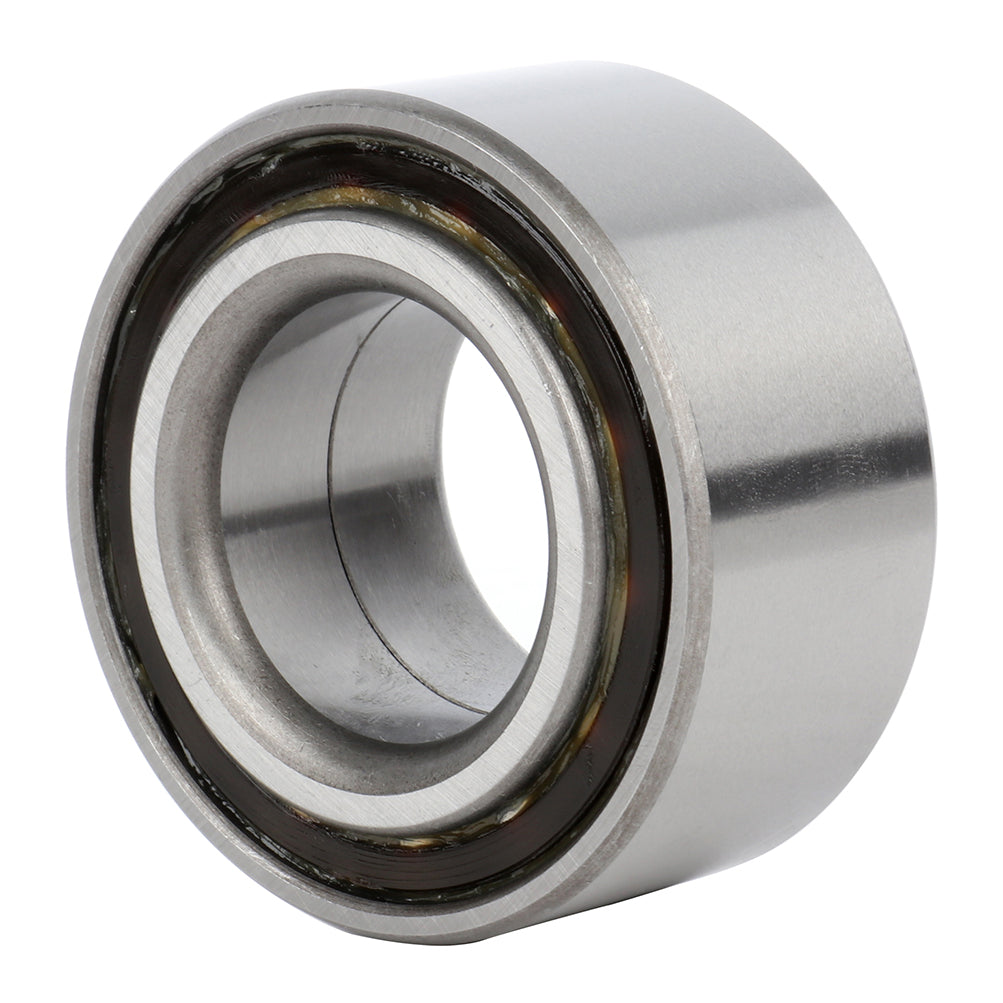

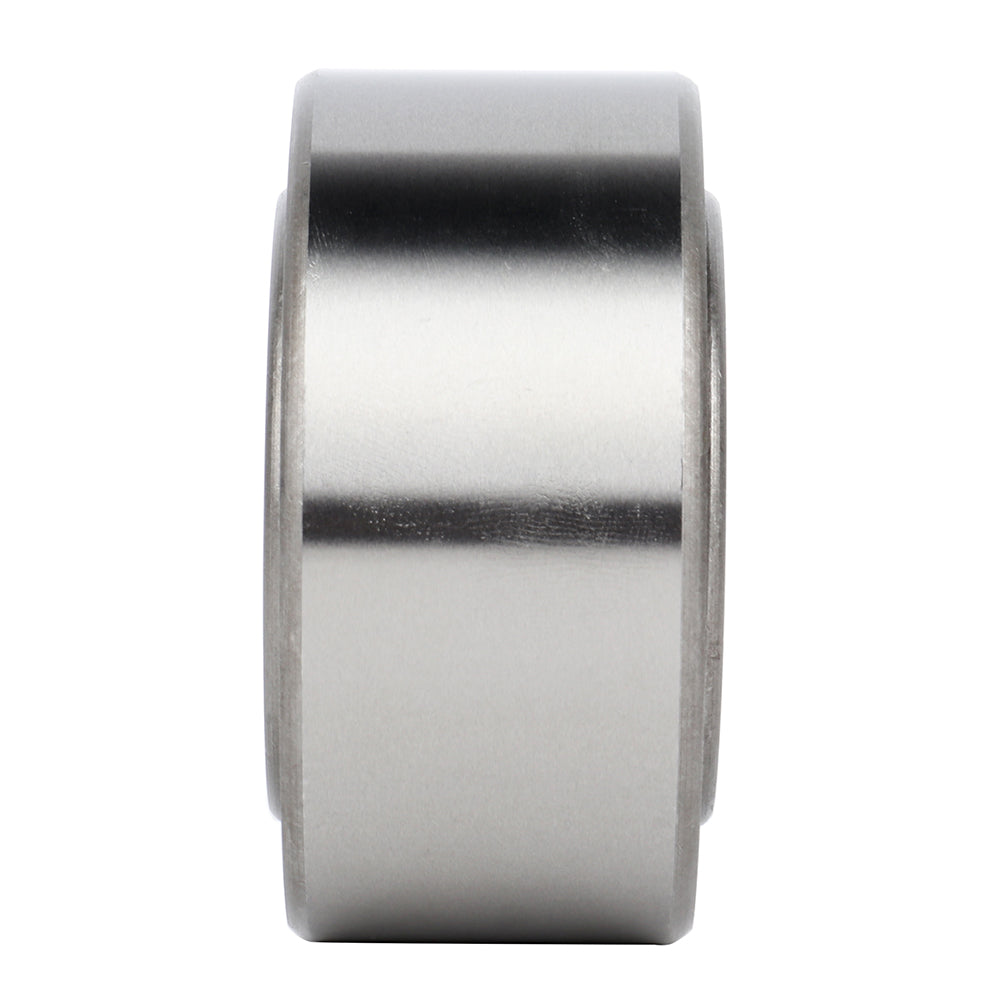

• Include: 1 X wheel bearing
• Replaces dealer part numbers: 518507,WA518507,WB518507,713351,29518507

Removal

Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.

Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.

Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.

Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.

Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.

Remove the engine side cover.

Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.

Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.

Remove the wheel hub and bearing bolts using power tool.

Remove the splash guard and the wheel hub and bearing from the steering knuckle.

Note

• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Do not pull on wheel sensorharness.

Inspection after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing torque.

Include

1 Pcs wheel hub bearing
