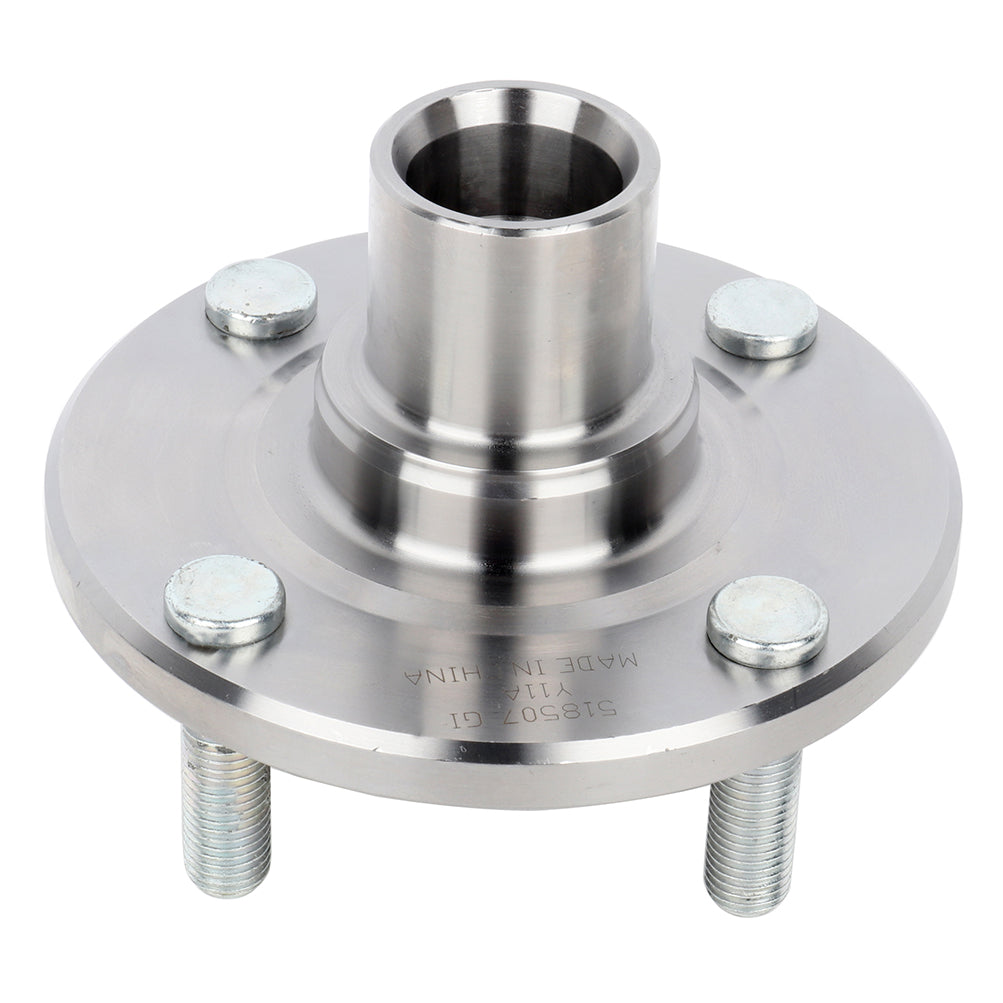

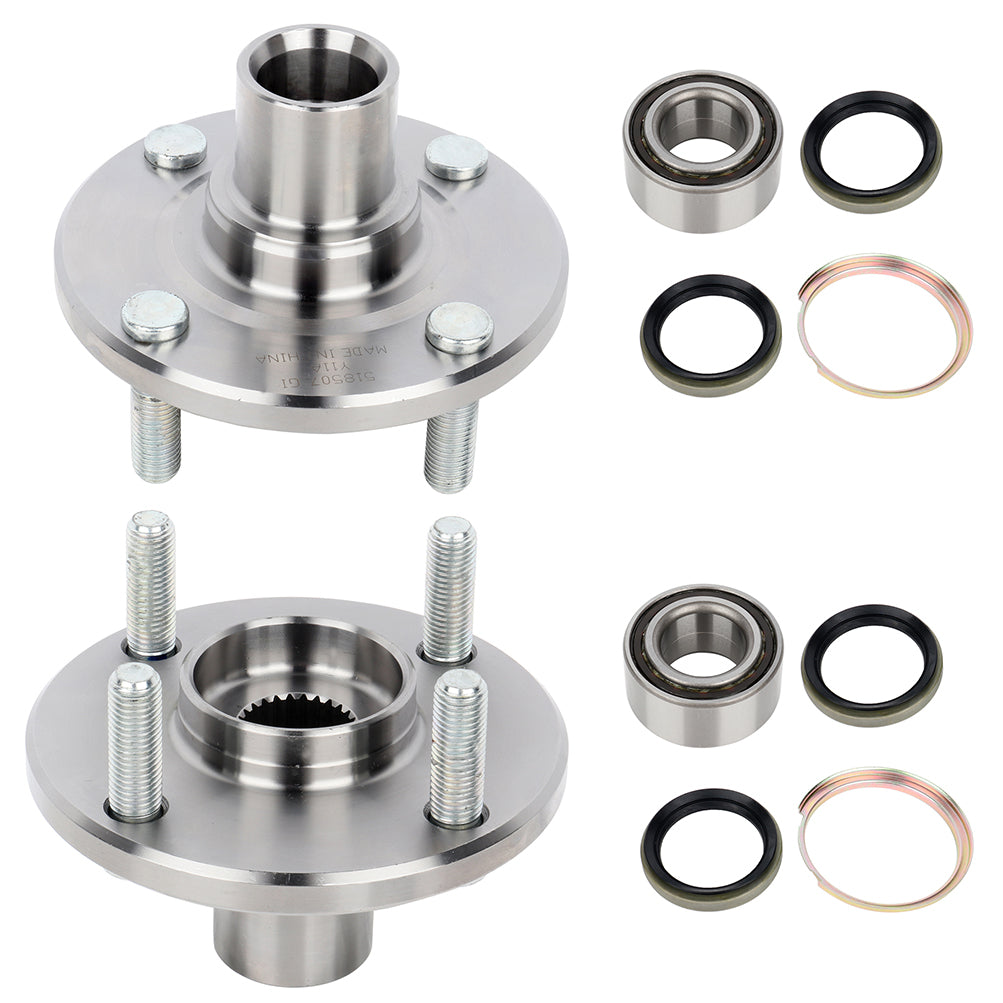

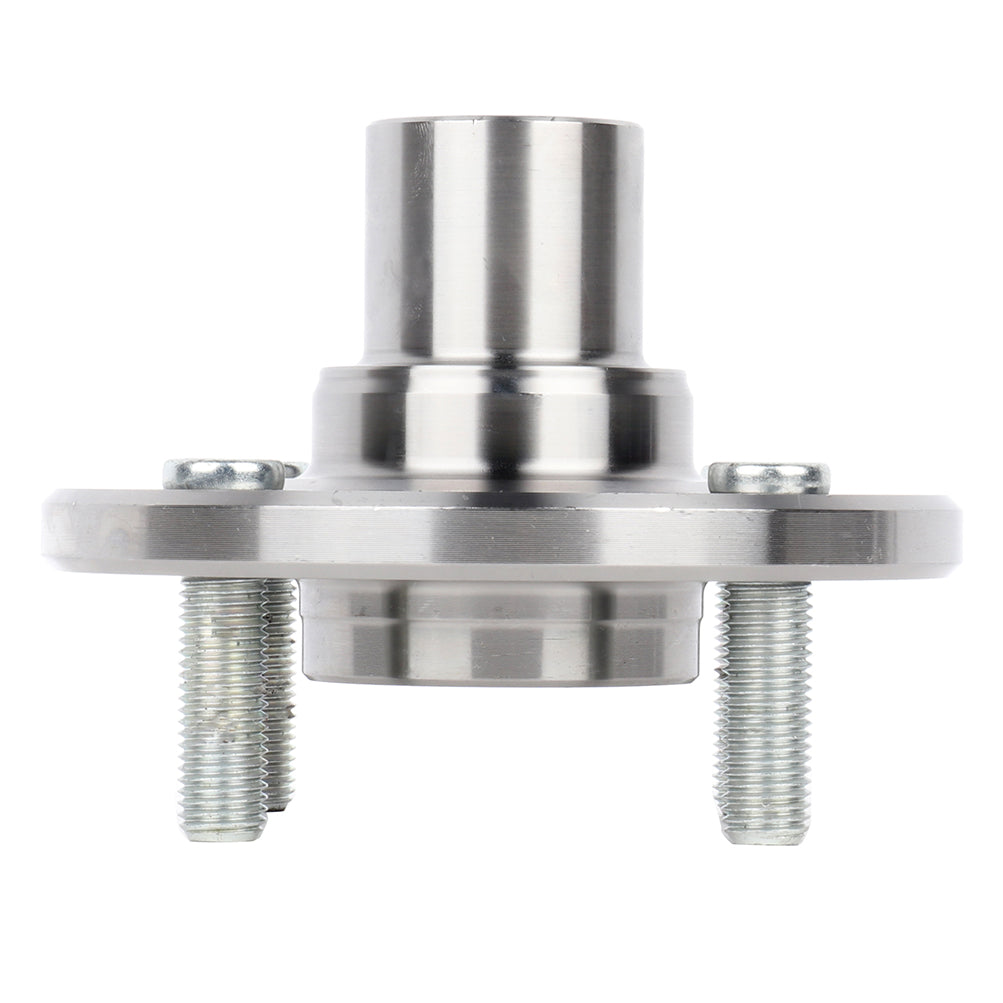

93-97 Geo Prizm 88-02 Toyota Corolla Pair Wheel Bearing Hub Front

Fitment

• Chevrolet | Prizm | 1998~2002 | 1.8L
• Geo | Prizm | 1993~1997 | 1.6L/1.8L
• Toyota | Corolla | 1988~2002 | 1.6L/1.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Not has an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: N/A
• Spline Quantity: 26
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.11 In
• Brake Pilot Diameter: 2.106 In
• Flange Diameter: 4.88 In
• Wheel Stud Size: 0.472 In
• Flange Offset: 1.08 In
• Other Part Number: 19312384
• Material: steel
• Weight: 8LB

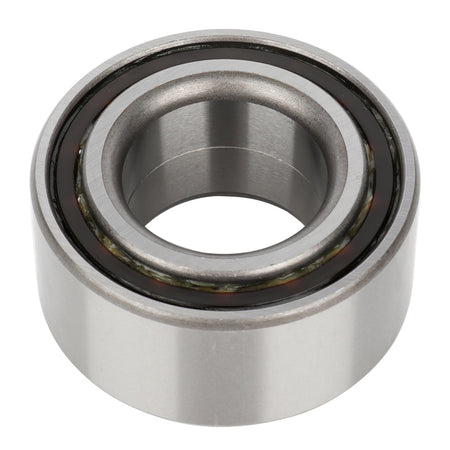

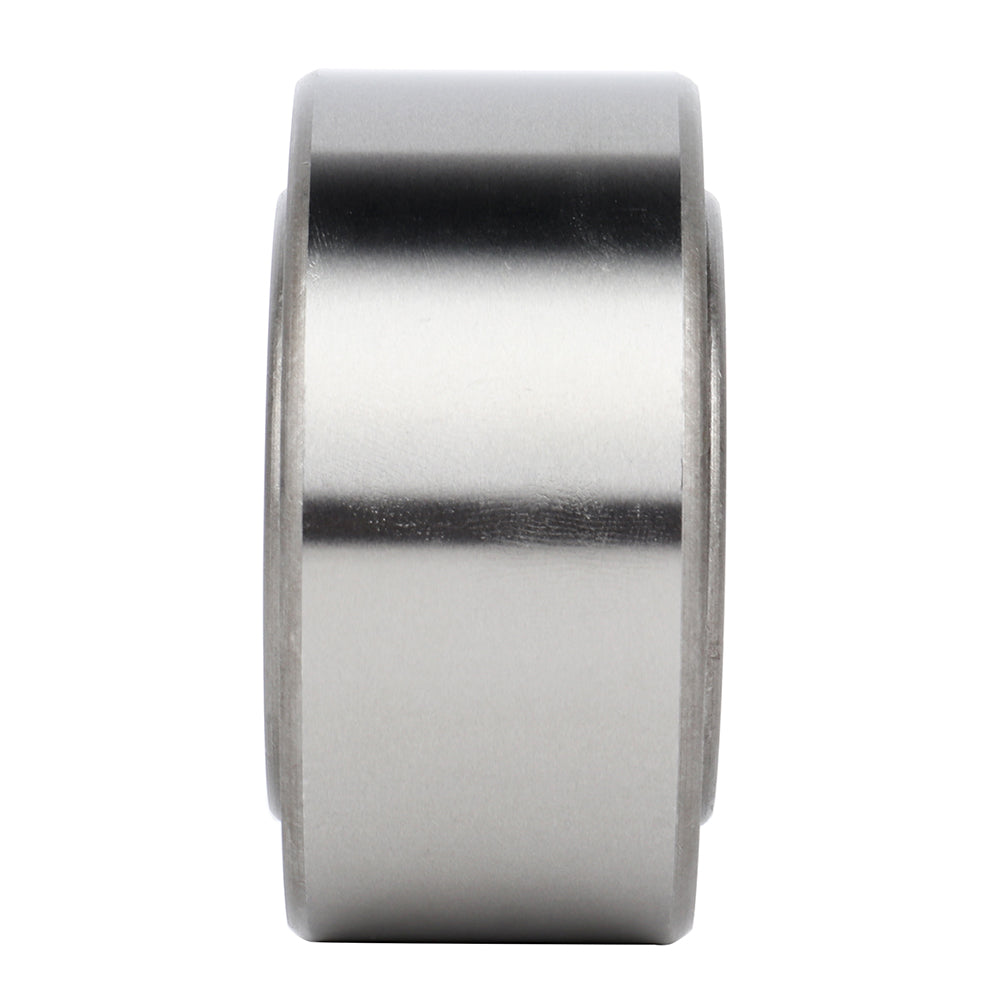

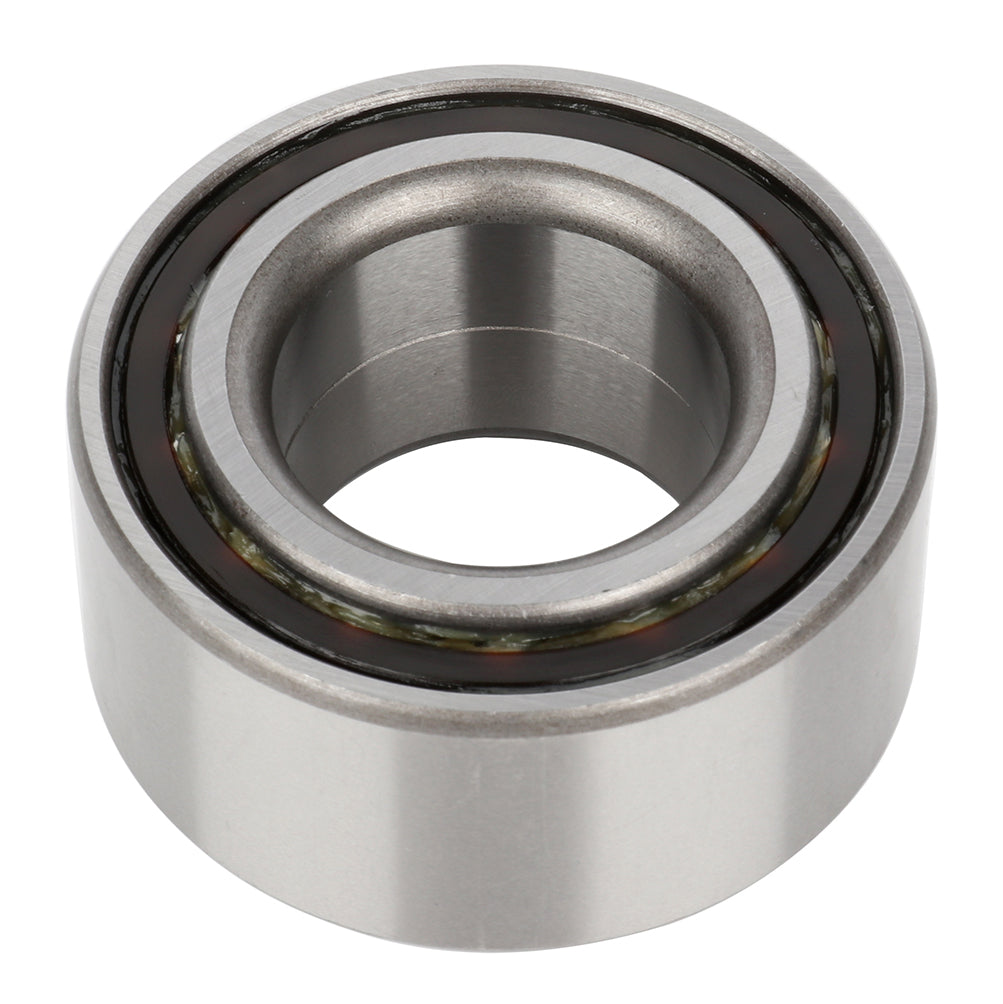

• include: 2 X wheel bearing
• Replaces dealer part numbers: 518507, WA518507, WB518507, 713351, 29518507

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
