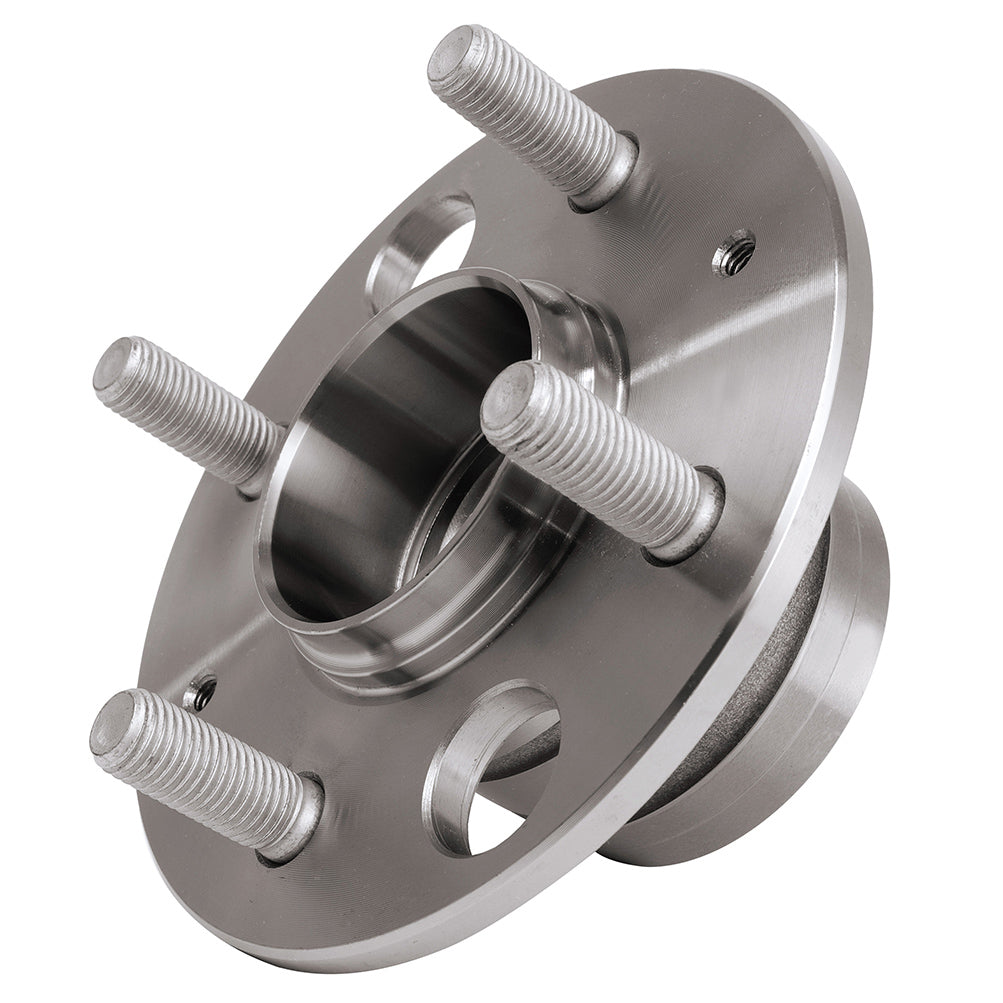

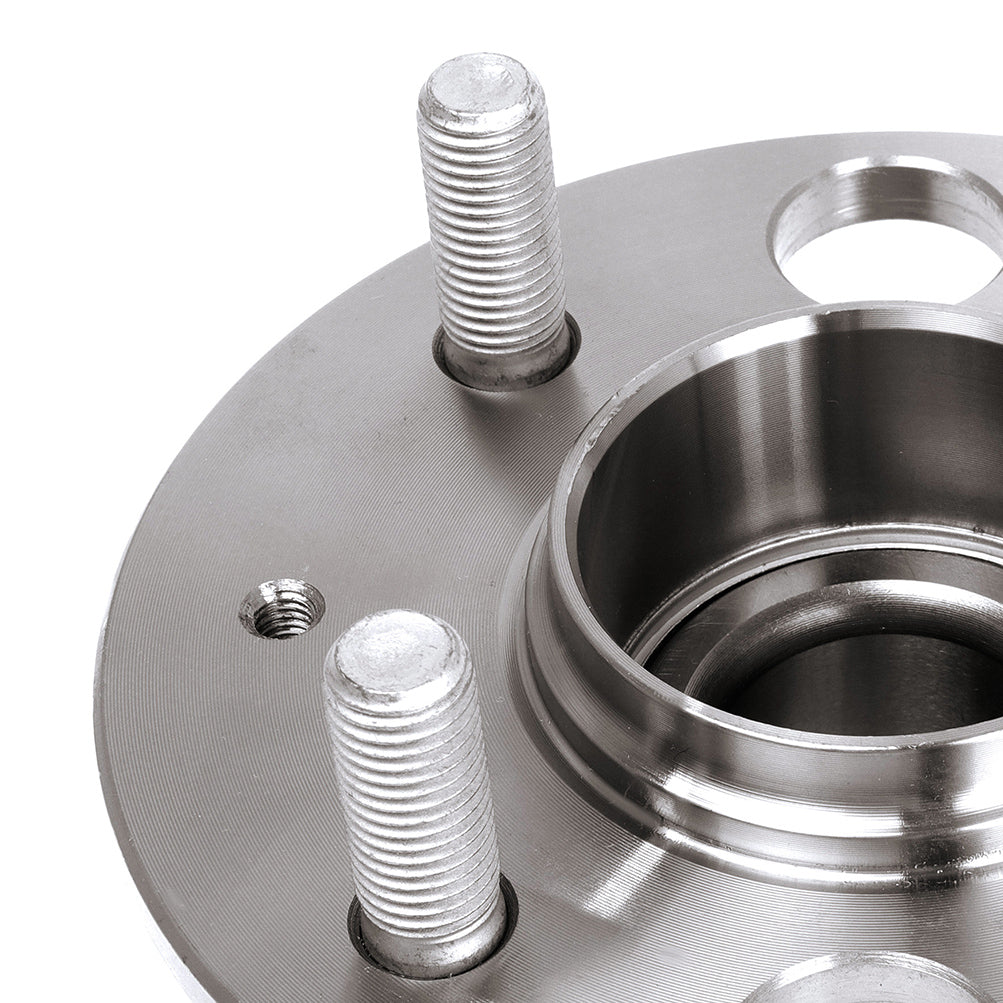

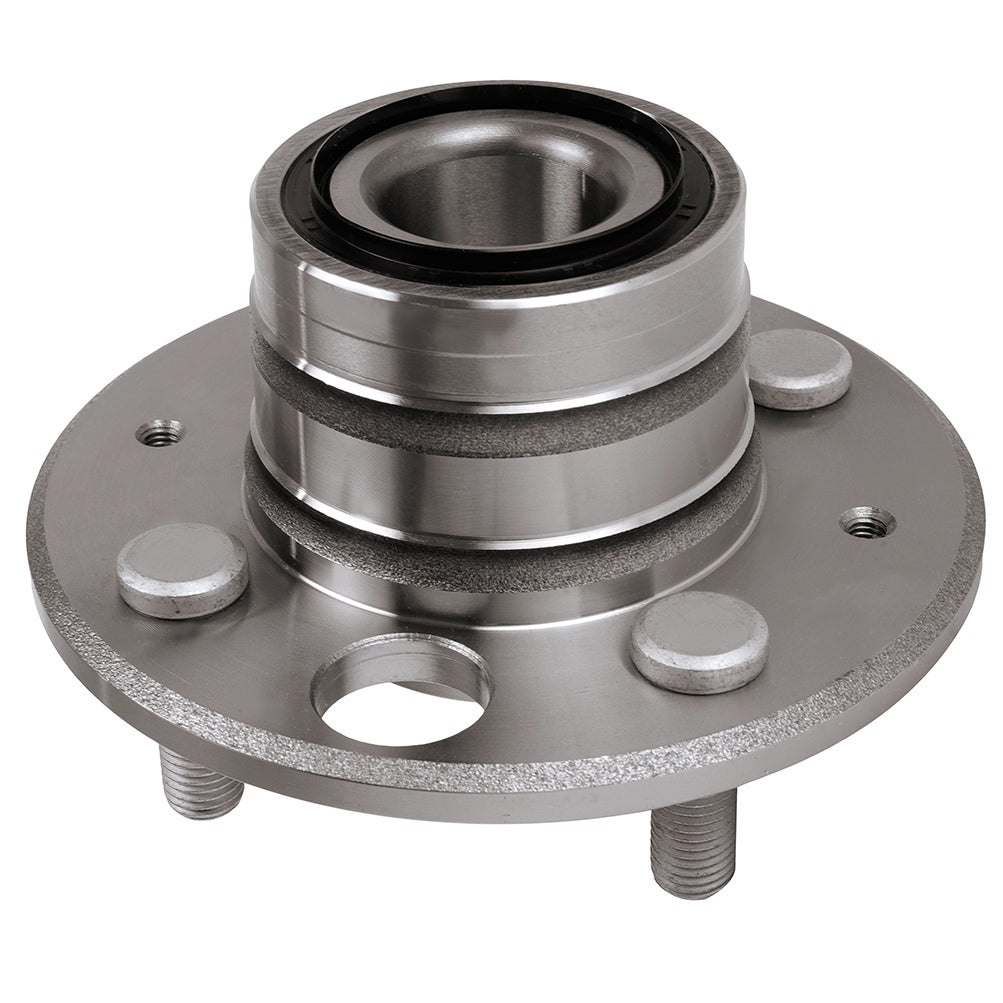

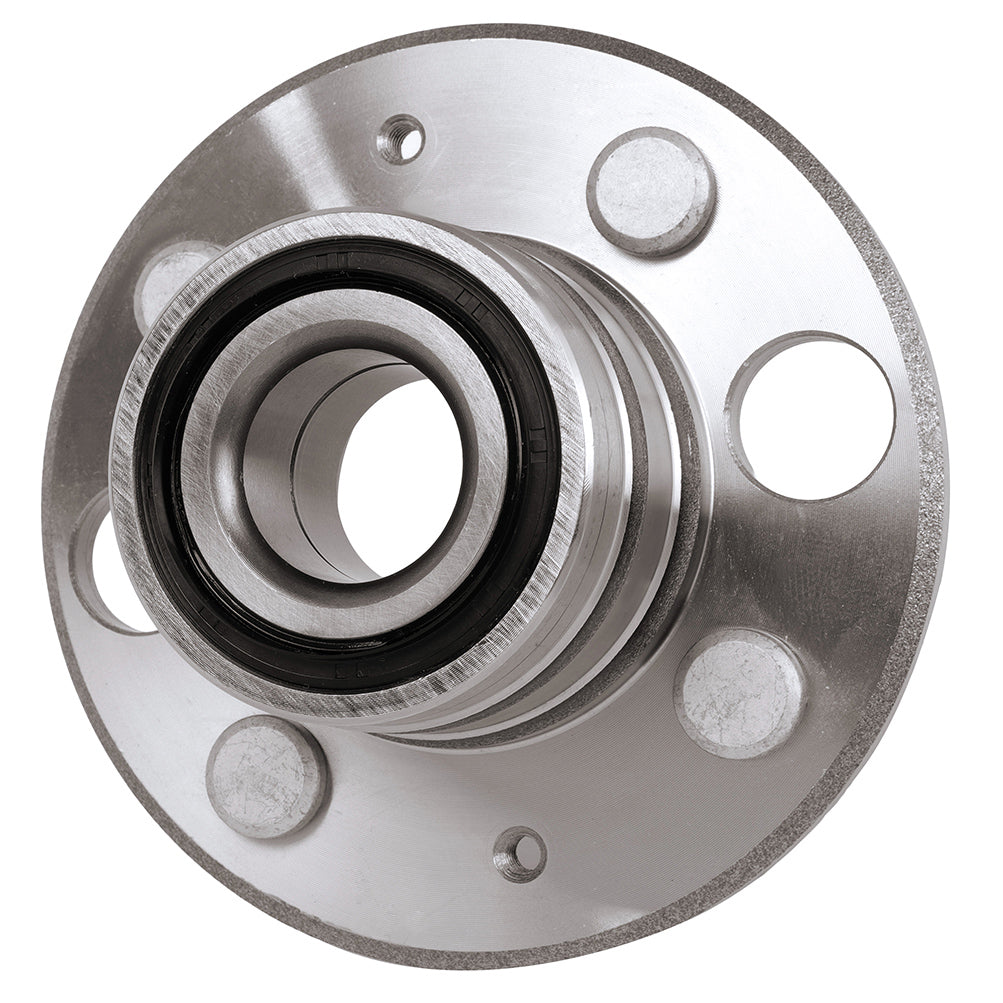

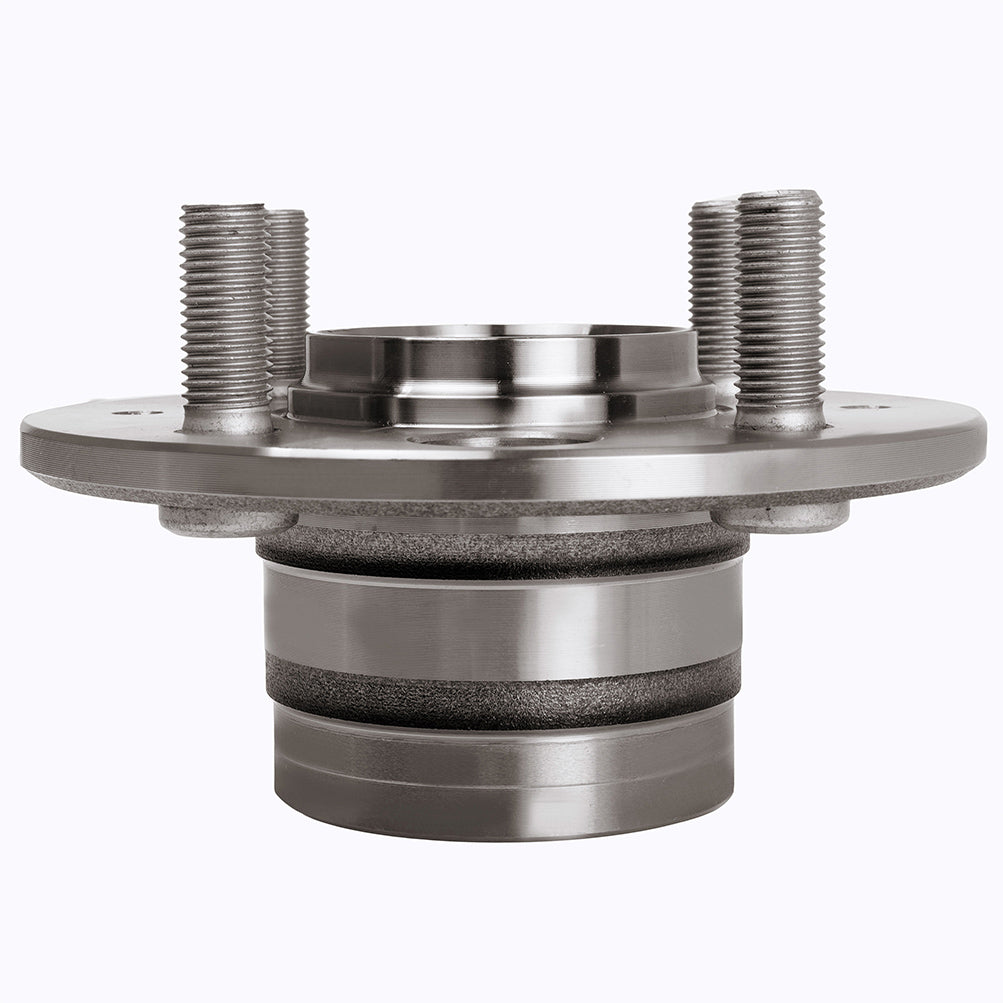

94-97 Acura Integra 92-00 Honda Civic Rear Wheel Hub Bearing Assembly

Fitment

• Acura | Integra | 1994~1997 | 1.8L
• Honda | Civic | 1992~1995/1999~2000 | 1.5L/1.6L
• Honda | Civic del Sol | 1993~1997 | 1.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Not has an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: N/A
• Manufacturer Part Number: OFA065739
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.89 In
• Wheel Pilot Diameter: 2.19 In
• Brake Pilot Diameter: 2.379 In
• Flange Diameter: 5.3 In
• Other Part Number: 42200SR3A01, 42200SR3A02, 42200SR3A03, 42200SR3A04, 42200SR3A05,
• Material: steel
• Weight: 4LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512034,WA512034,42200SR3A01, 42200SR3A02, 42200SR3A03, 42200SR3A04, 42200SR3A05, 42200SR3A06, 42200ST7C01

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
