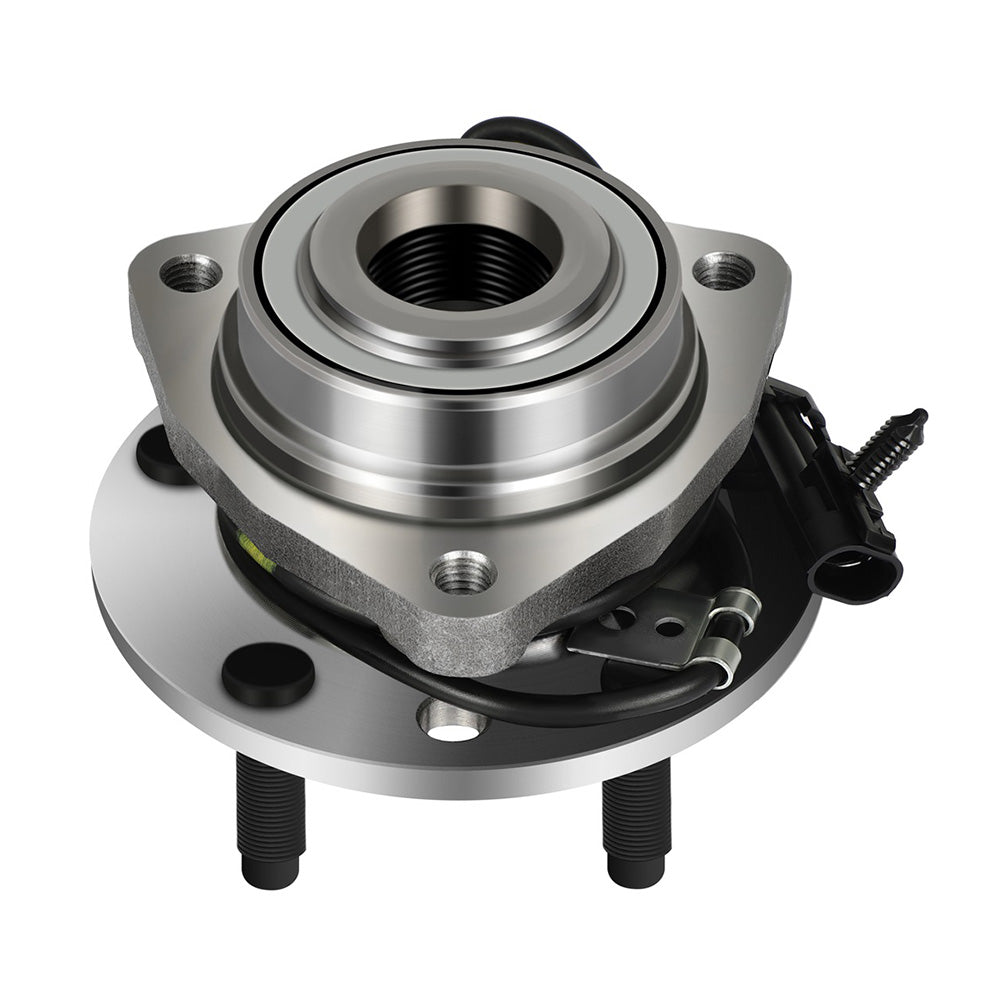

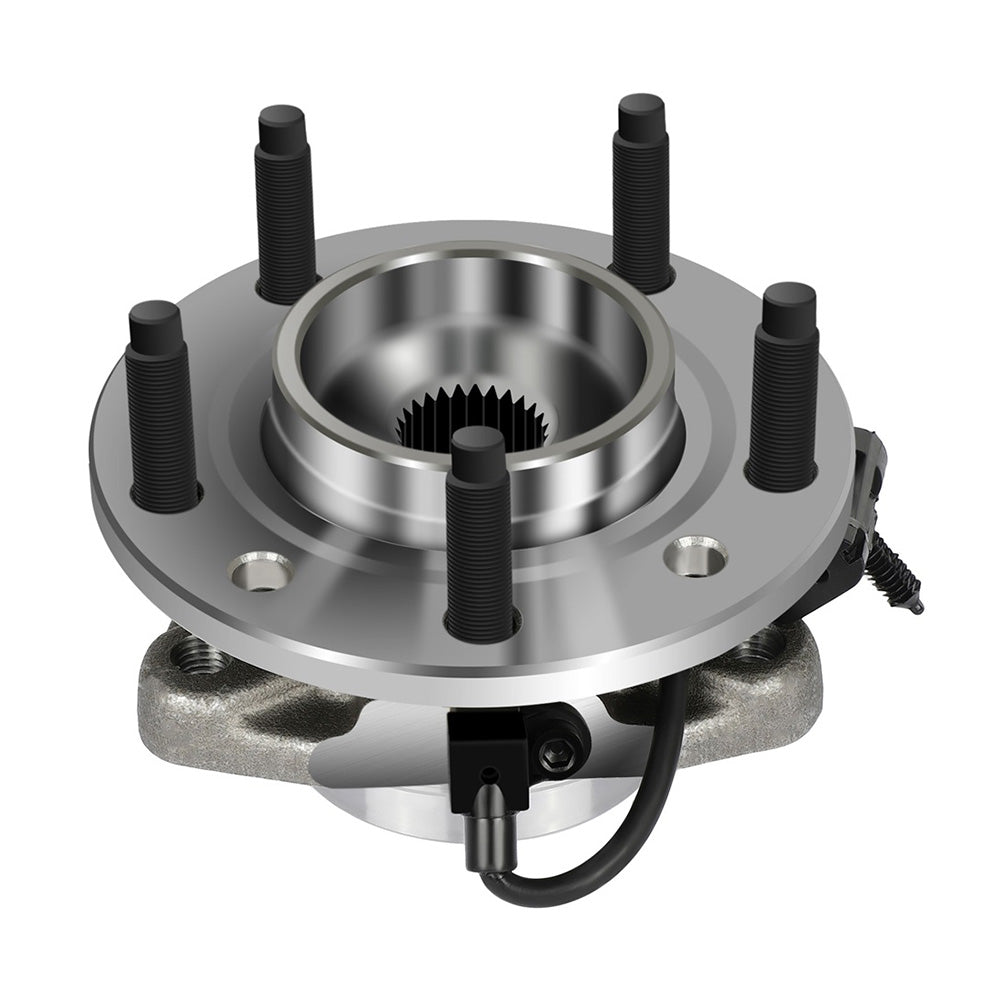

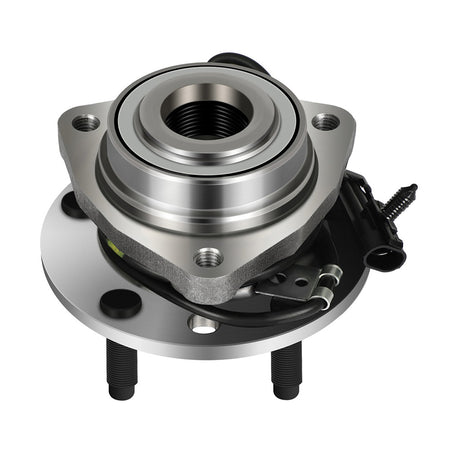

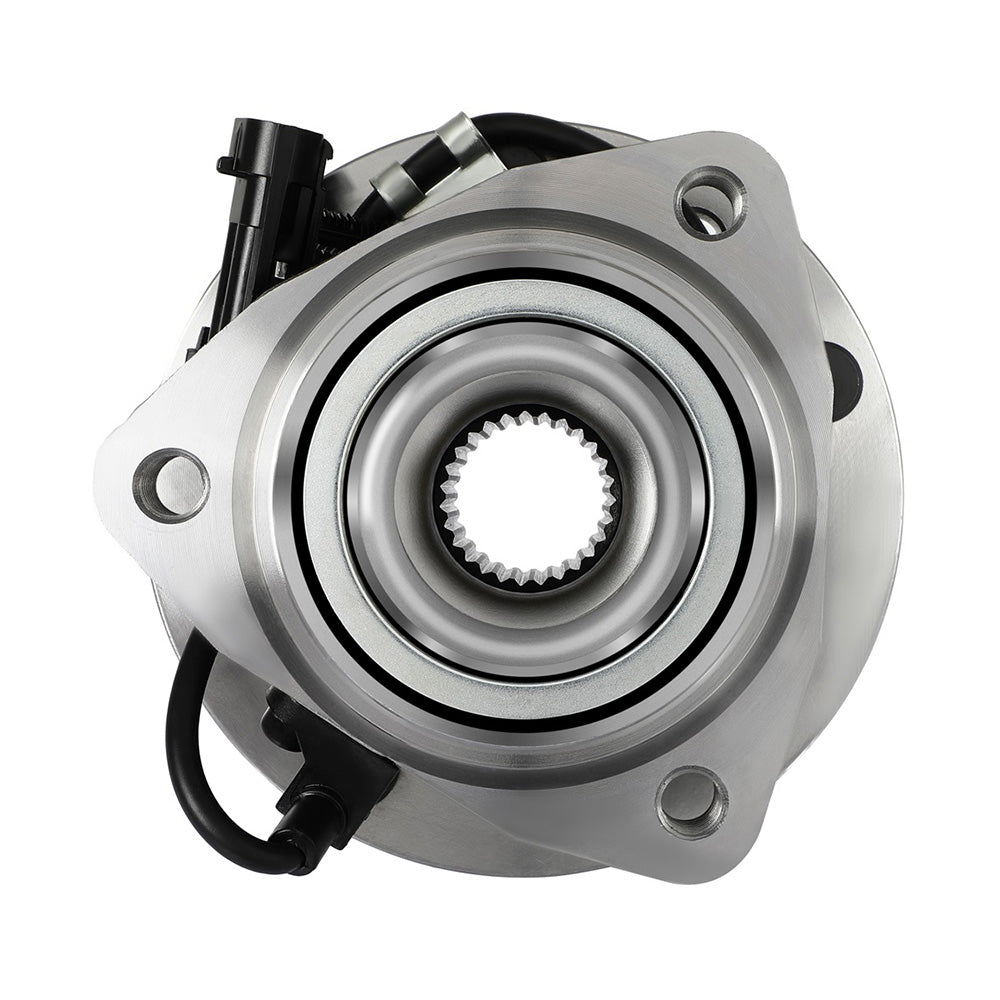

97-03 GMC Jimmy 97-04 GMC Sonoma 2 Front wheel bearings Hub

Fitment

• Chevrolet | Blazer | 1997~2005 | 4.2L/4.3L
• Chevrolet | S10 | 1997~2004 | 2.2L/4.3L
• GMC | Jimmy | 1997~2003/2005 | 4.3L
• GMC | Sonoma | 1997~2004 | 2.2L/4.3L
• Isuzu | Hombre | 1998~2000 | 2.2L/4.3L
• Oldsmobile | Bravada | 1997~2001 | 4.3L

Product Specifics

• Position: Driver Side or Passenger Side Front
• Warranty: 12 months
• Material: steel

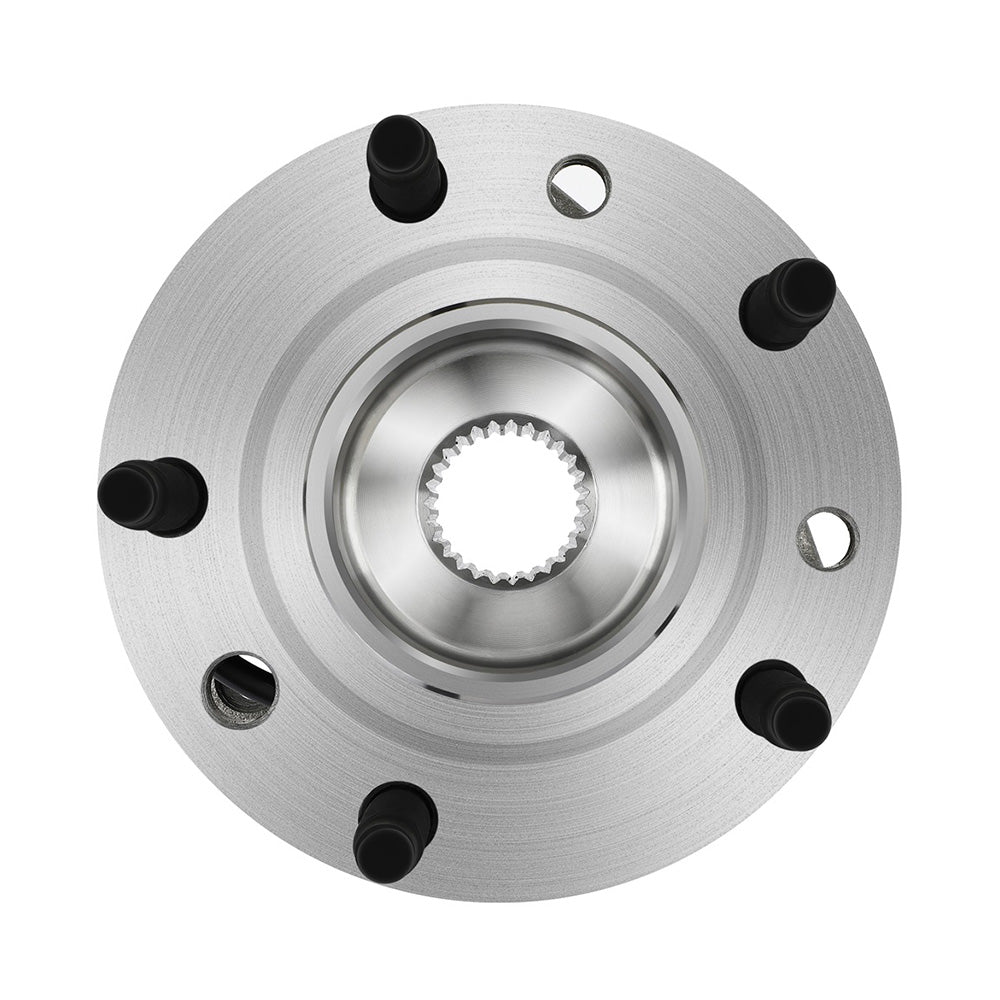

• Bolt Quantity: 5 Bolts

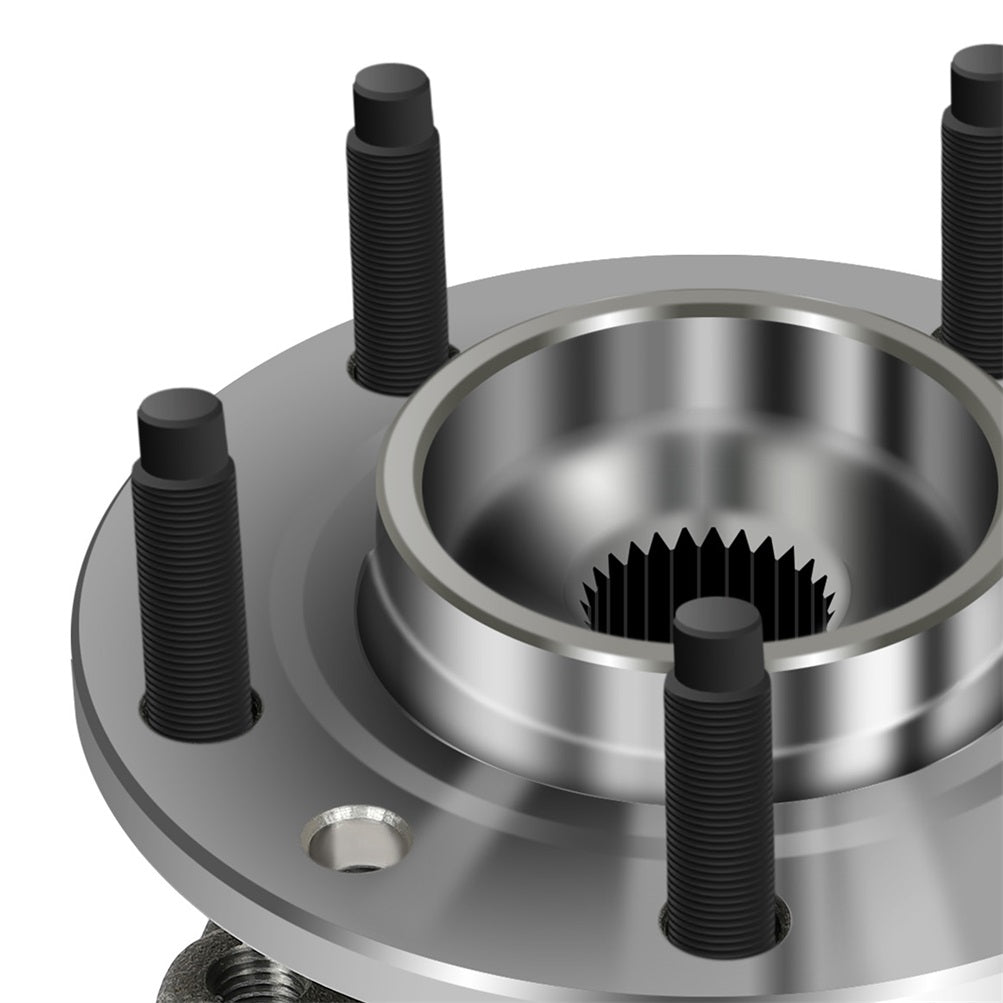

• Number of Splines: 27
• Flange Bolt Hole qty: 3

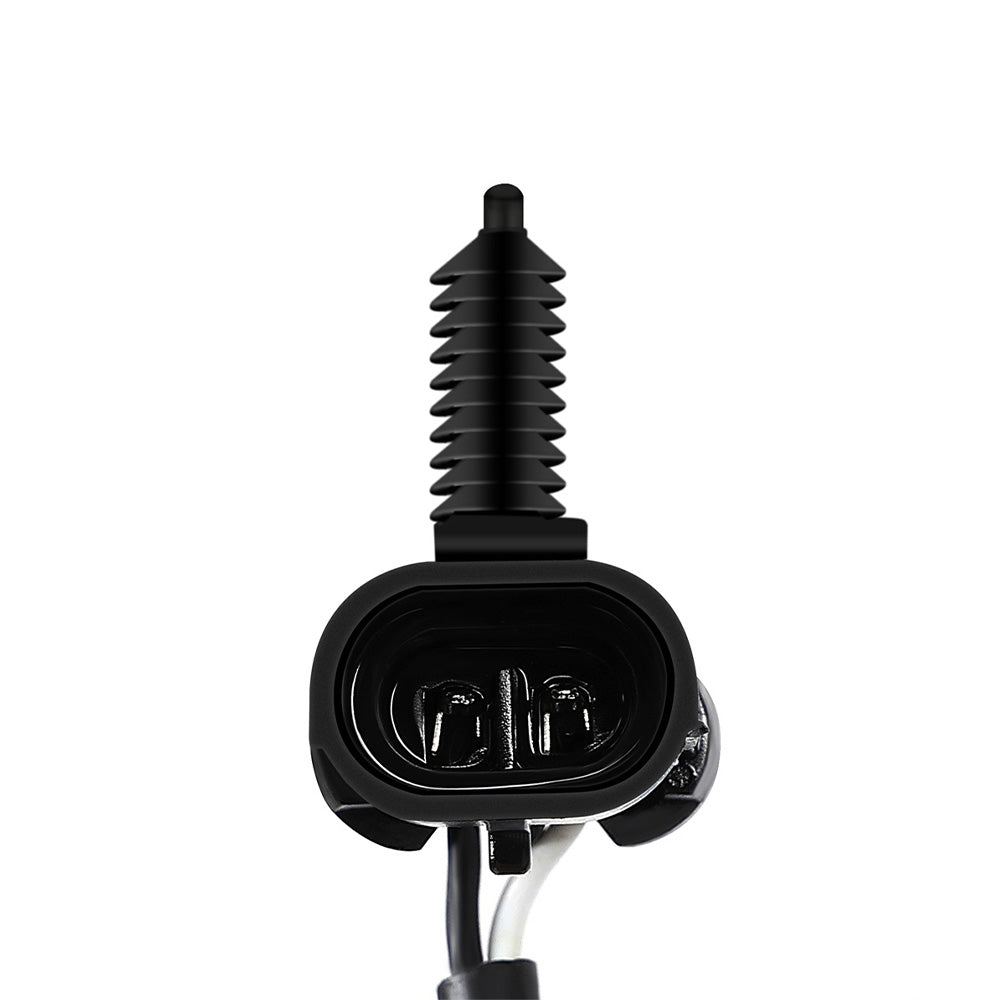

• Include ABS sensor: Yes(Has ABS with Integral Sensor)
• Surface Finish: Polished, Rust Protected
• Flange Shape: Triangle

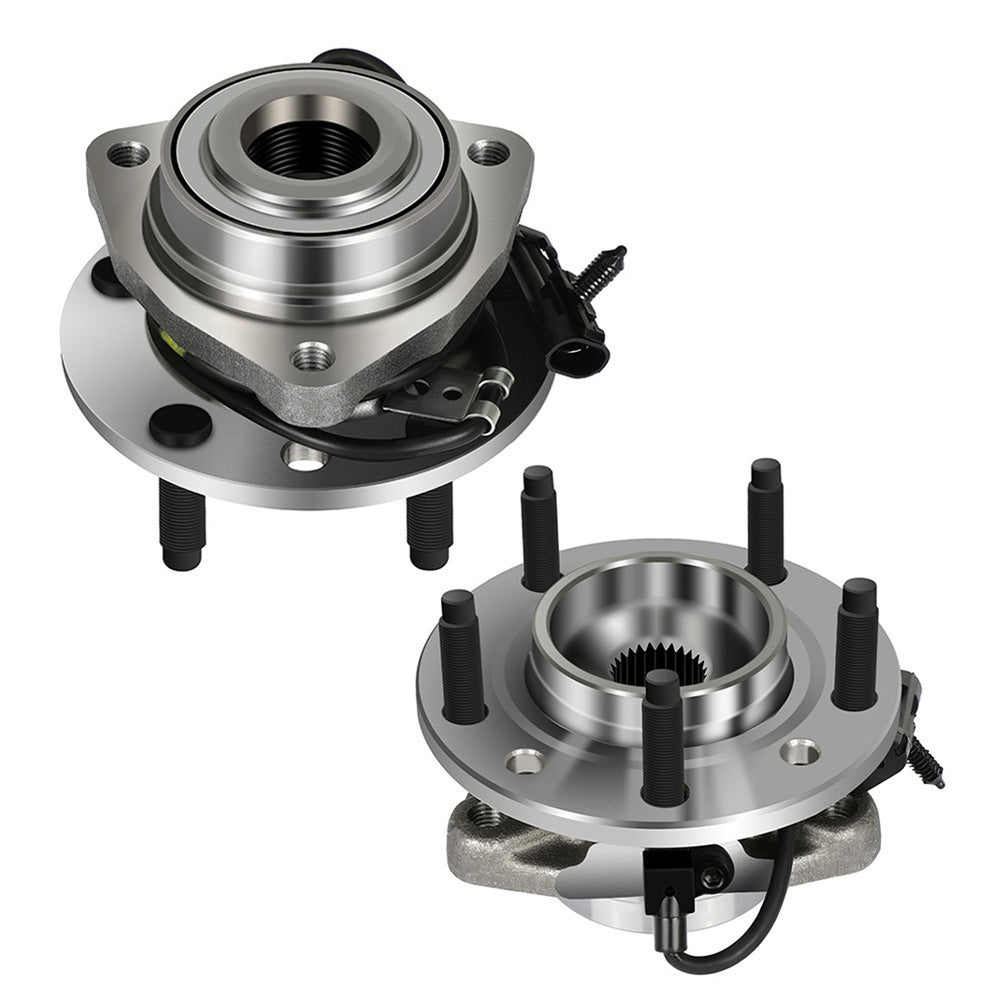

• Packing include: (2)wheel bearings
• Weight: 7.72kg
• Flange Offset: 47.3MM
• Flange Diameter: 144.5MM
• Bolt Circle Diameter: 120.65MM
• Brake Pilot Diameter: 70.6MM
• Hub Pilot Diameter: 83.5MM
• Wheel Pilot Diameter: 70.1MM
• Bolt Size: M12X1.75
• Alternate/OEM Part Number(s): 7467139 7470537 7470607 8124130450 12413045 12413046
• Replaces dealer part numbers: 513124713124513124BR930097PBR930097WB13124,12413045

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
