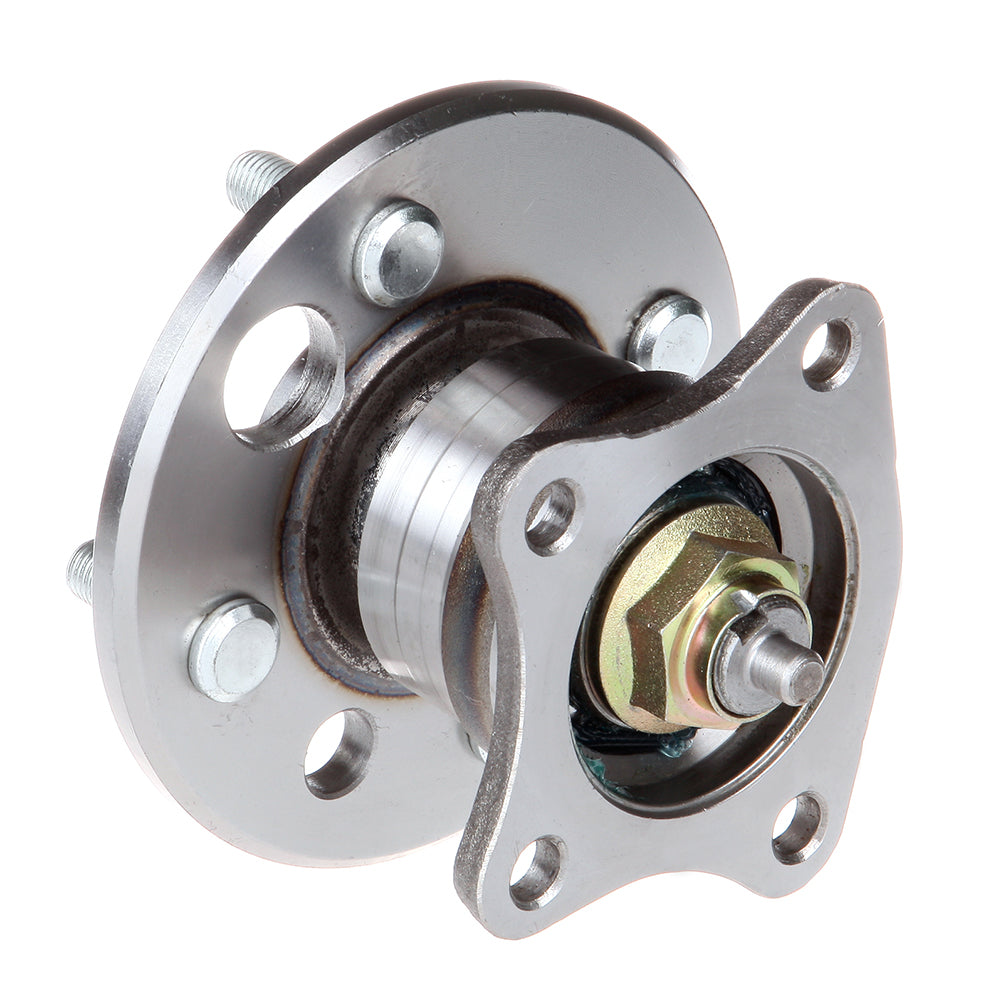

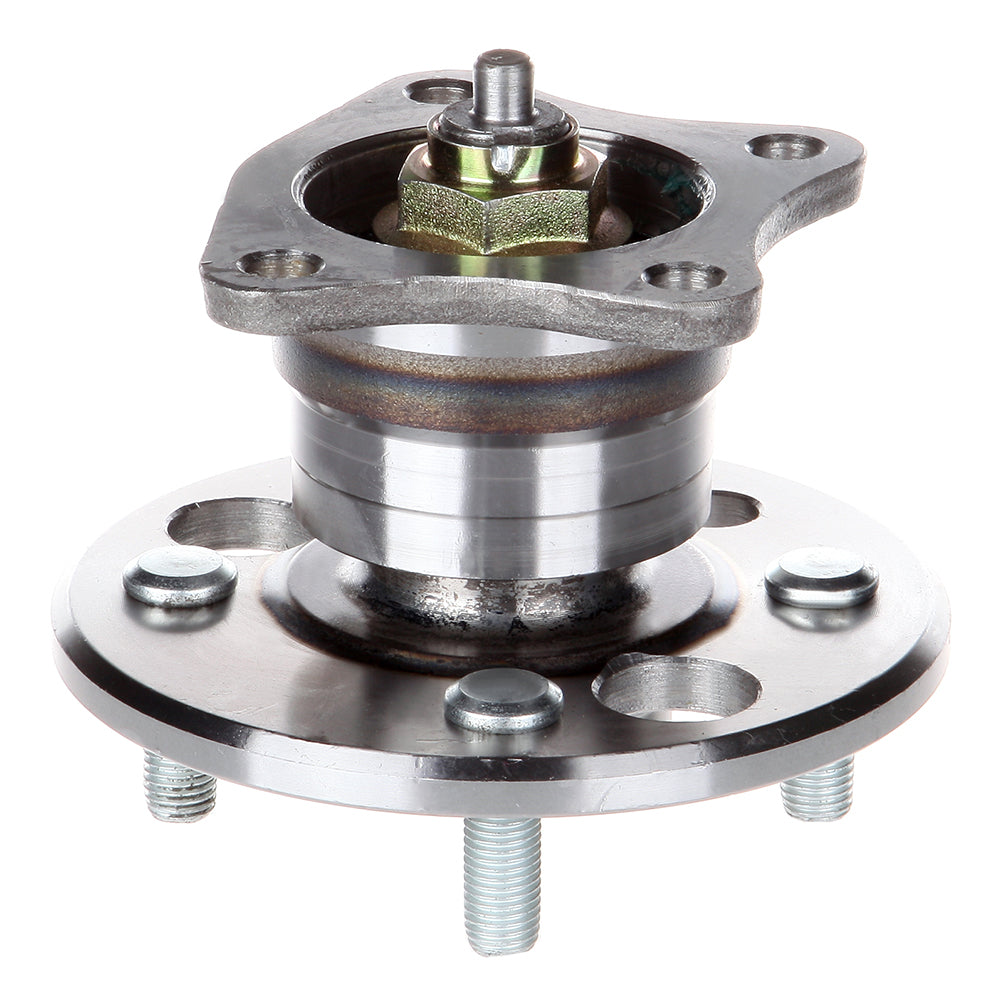

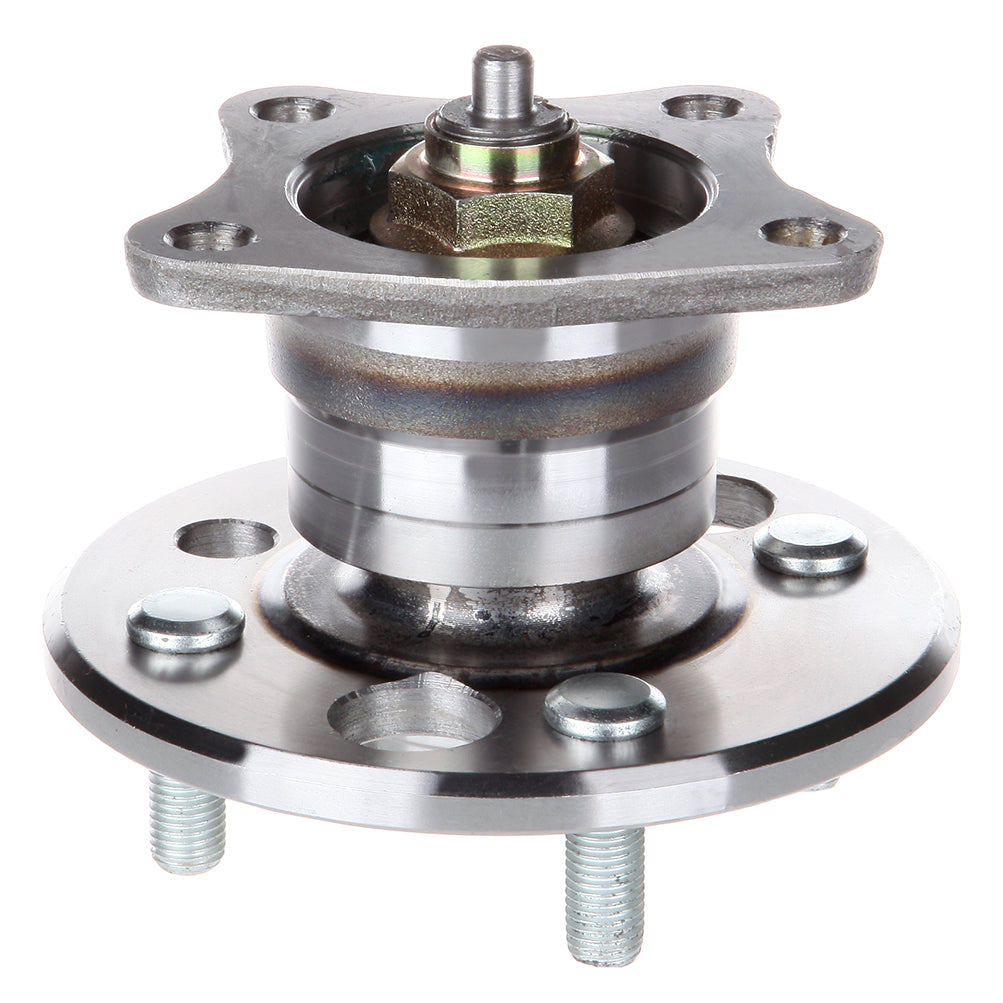

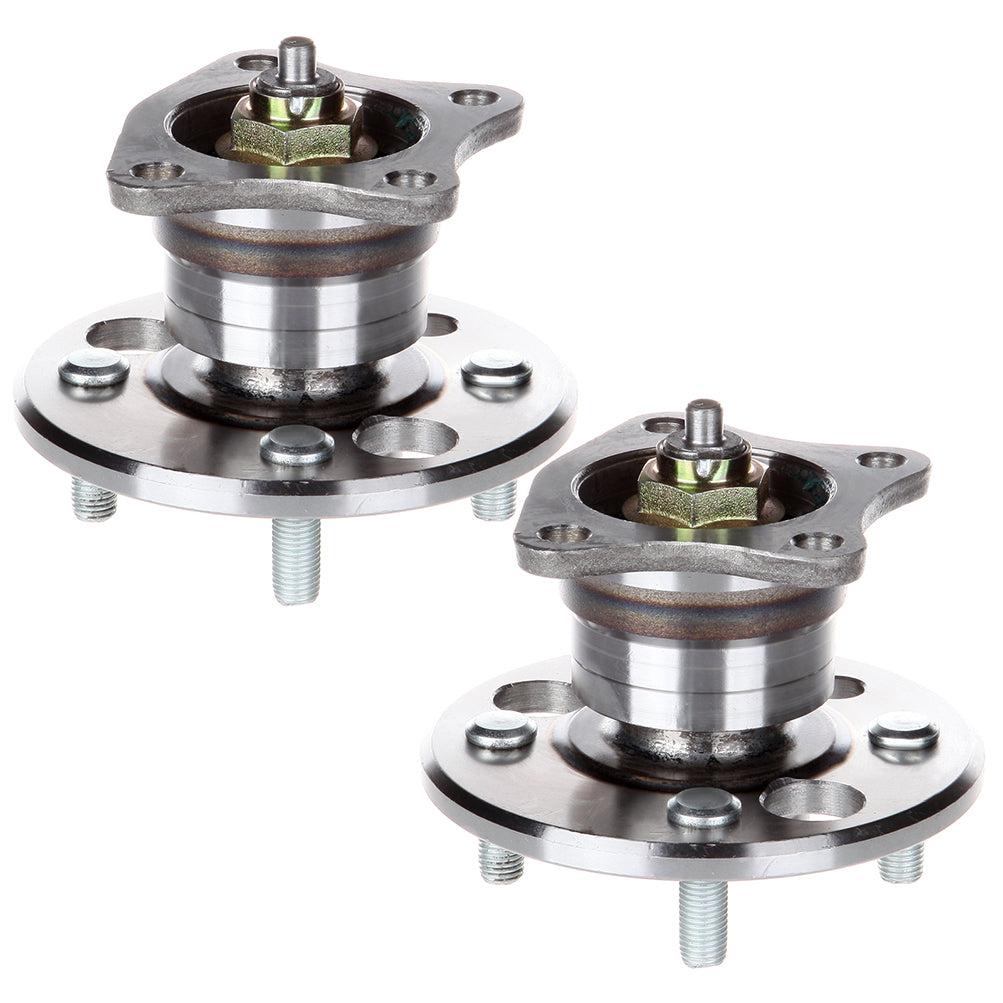

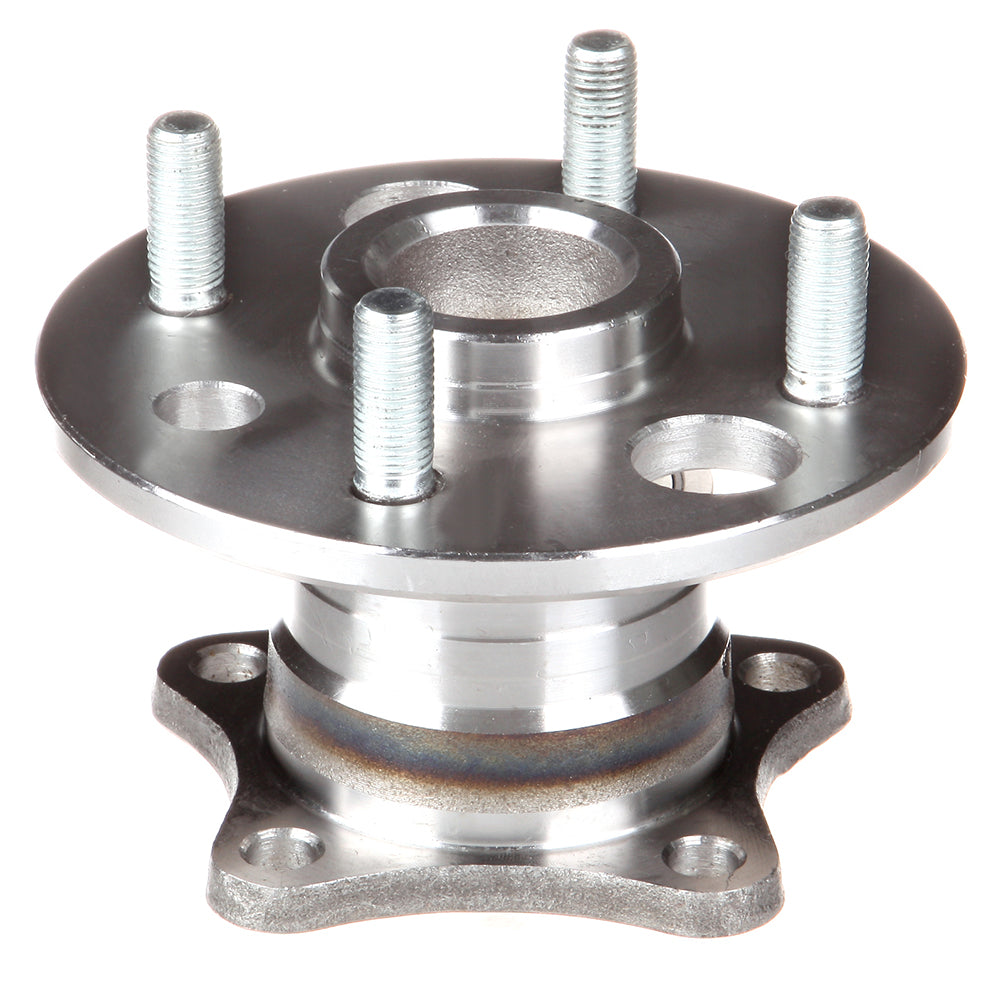

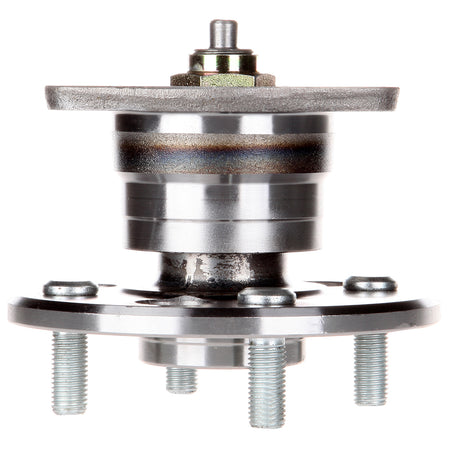

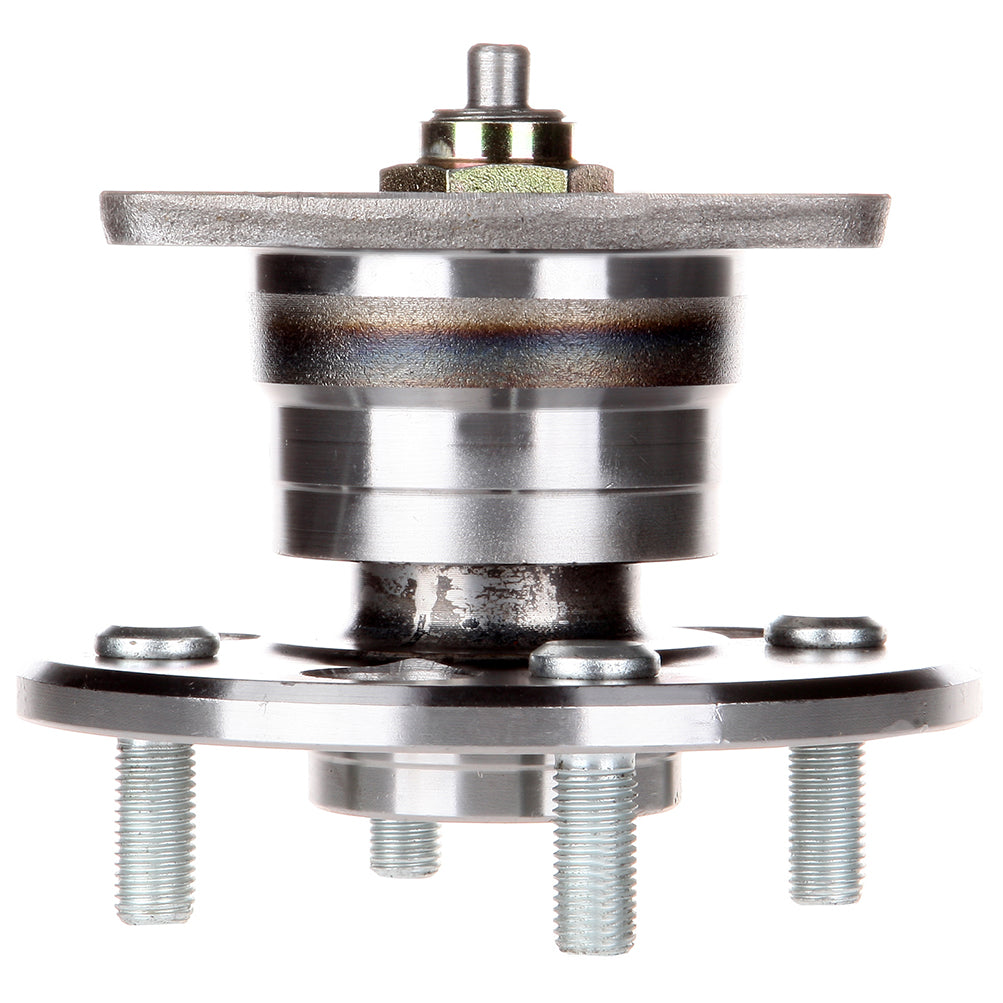

98-02 Chevrolet Prizm 93-02 Toyota Corolla 2 Rear Wheel Bearing & Hub 4 Lug

Fitment

• Chevrolet | Prizm | 1998~2002 | 1.8L
• Geo | Prizm | 1993~1997 | 1.6L/1.8L
• Toyota | Corolla | 1993~2002 | 1.6L/1.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Not has ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.11 In
• Brake Pilot Diameter: 2.145 In
• Flange Diameter: 5.46 In
• Flange Shape: Offset Trapezoid
• Flange Offset: 2.91 In
• Hub Pilot Diameter: 2.4 In
• Other Part Number: 4240912010, 4240912020, 4240919015, 4241002020, 4241012090,
• Material: steel
• Weight: 13LB
• Include: 2 X wheel bearing
• Replaces dealer part numbers: 512018,4240912020, 4240919015, 4241002020, 4241012090, 4320250J55, 7466994, 7470531, 7470532, 93852713

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
