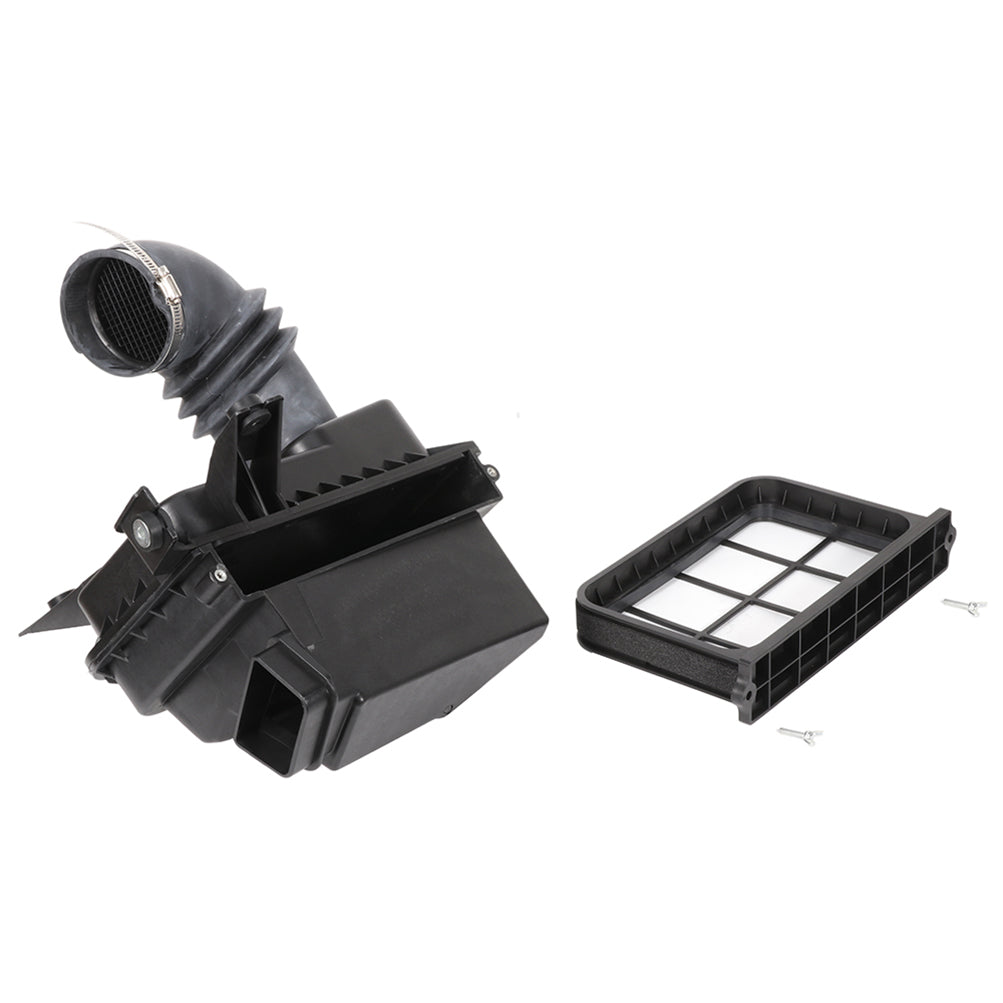

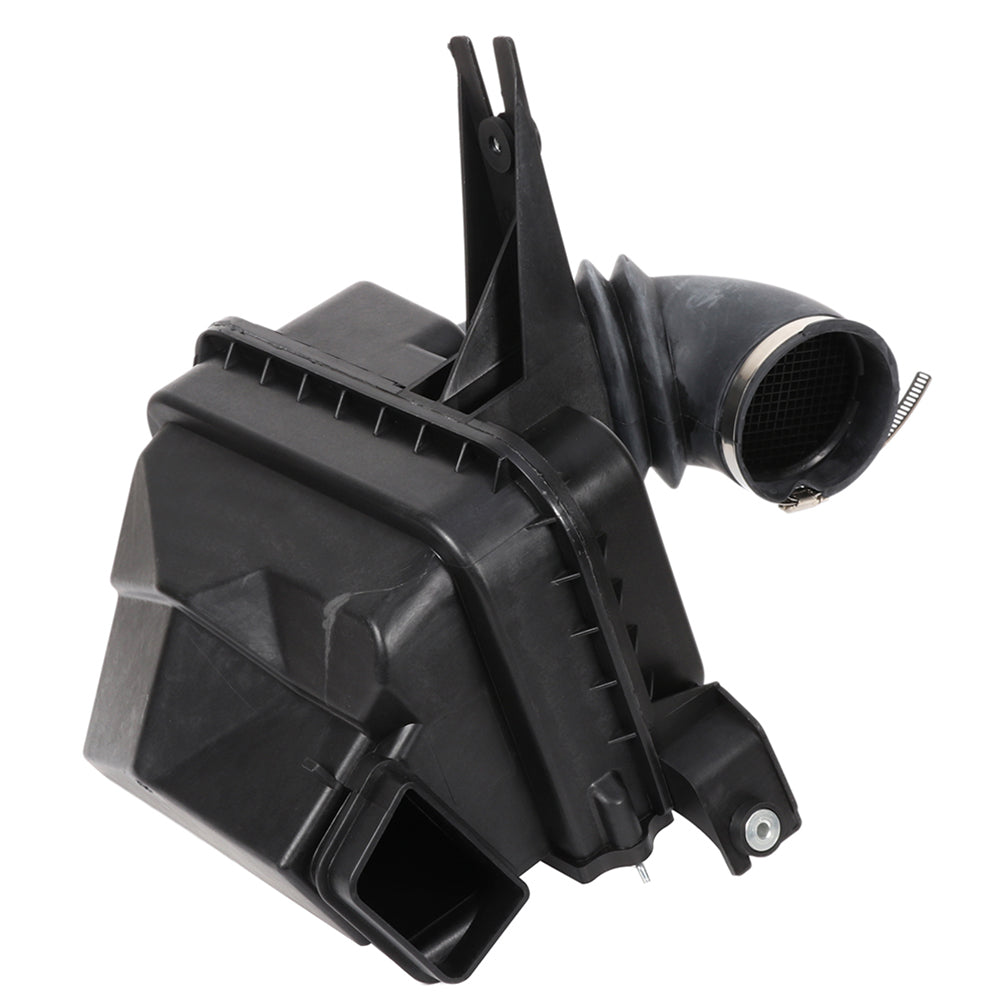

Air Cleaner Filter Box for Ford Focus 2005 2006 2007 2008 2009 4S4Z9600AB
Fitment:
- Ford | Focus | 2005~2009 | 2.0L
Air Cleaner Filter Box for Ford Focus 2005 2006 2007 2008 2009 4S419600AB
Brand New Air Cleaner Filter Box, W/O Air Filter
Special features
1. To avoid this part from cracking or breaking, please install with caution.
2. Easy to install Direct replacement for a proper fit Manufactured to strict engineering quality standards
Product Specifics
- Placement on Vehicle: Front
- UPC: Does not apply
- Interchange Part Number: 4S4Z9600AB,4S4Z 9600 BA,4S4Z 9600 AA,6S4Z 9600 A
- Superseded Part Number: 319-00640,FO3990100,4S4Z9600AB,4S4Z9600AC,6S4Z9600A
- Ship from: Ontario,California
- Manufacturer Warranty: 1 Year
- Color: Black
- Weight: 2.36KG
- Length,width and height: 40.5x34.5x38cm
- Application: For Ford Focus
- Package include: 1pc Air Cleaner Box
- Air Box Filter Included: No
- Fitment Type: Direct Replacement
- Material: Plastic
The air filter housing can be replaced as follows
1. Disconnect and removing the upper air resonator assembly.
2. Disconnect the MAF sensor wiring harness
3. Remove the MAF sensor pipe clamp-to-frame bolt
4. Remove the 8 screws and the Left hand fender well splash shield
5. Remove the air inlet tube bolt
6. Loosen the clamp and remove the inlet pipe
7. Remove the rearward air cleaner-to-frame bolts
8. Remove the forward air cleaner-to-frame bolt
9. Remove the sealed air cleaner housing and MAF sensor pipe as an assembly
Includes
1 Air Cleaner Filter Box W/O Air Filter
