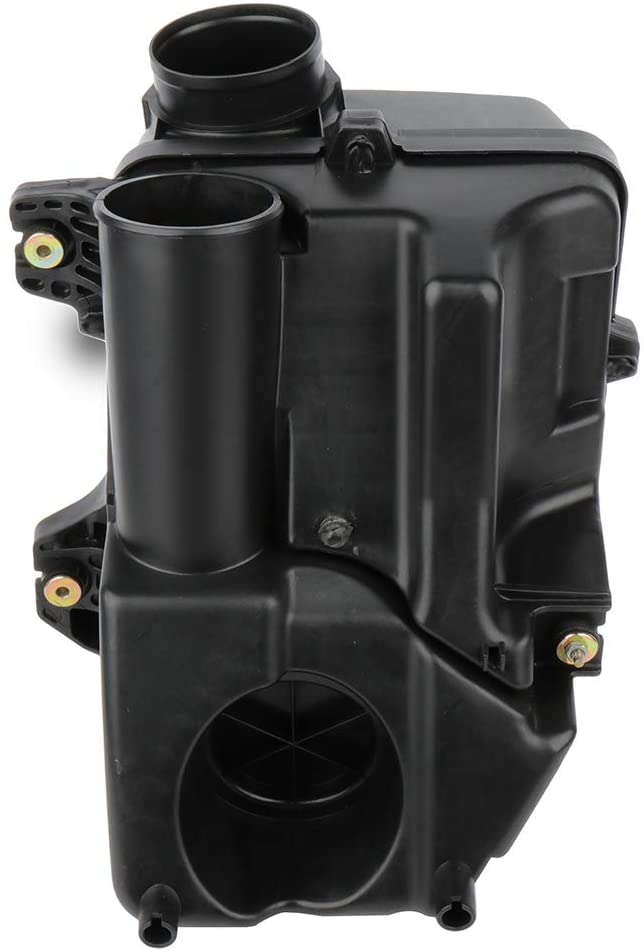

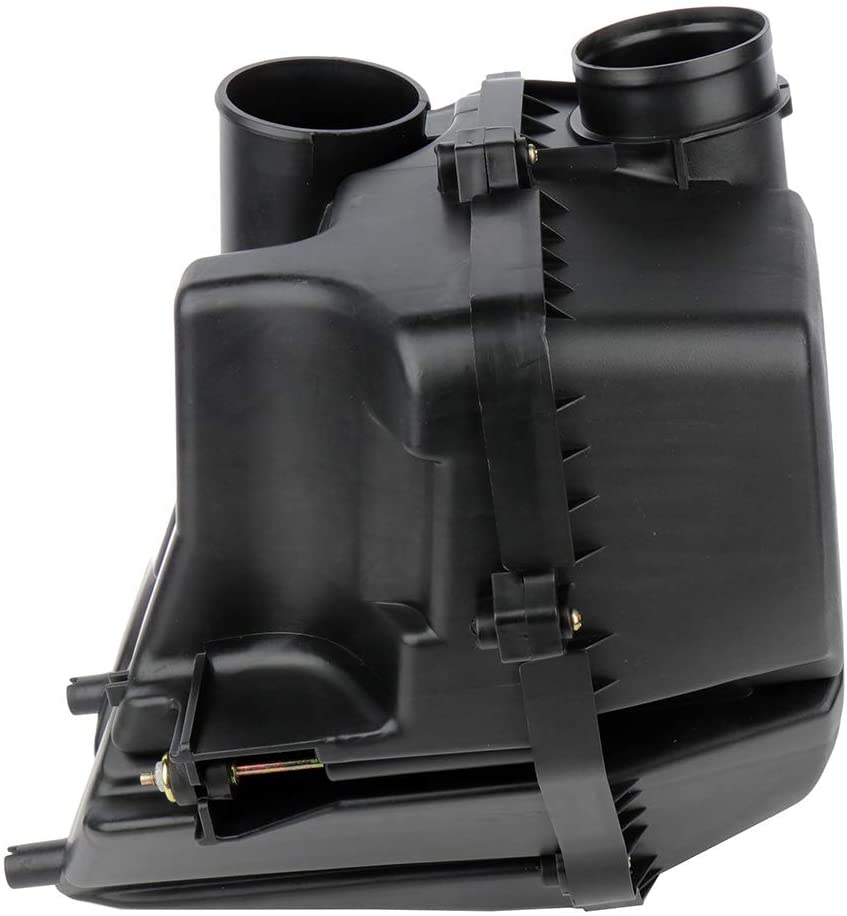

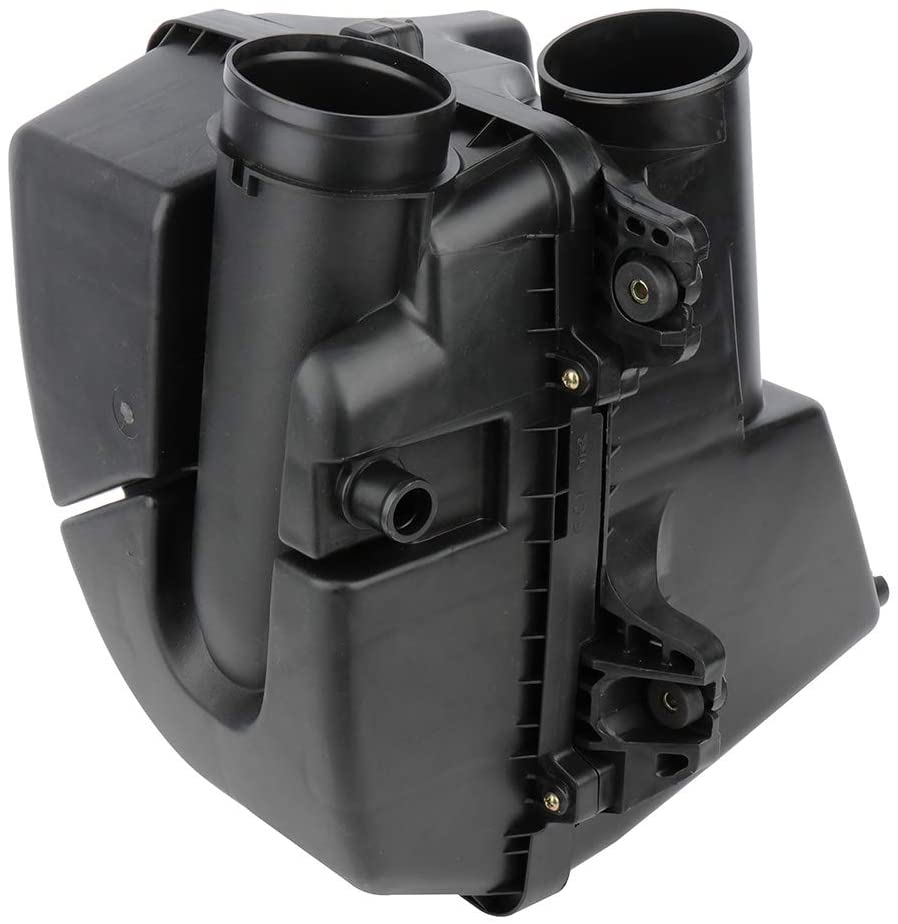

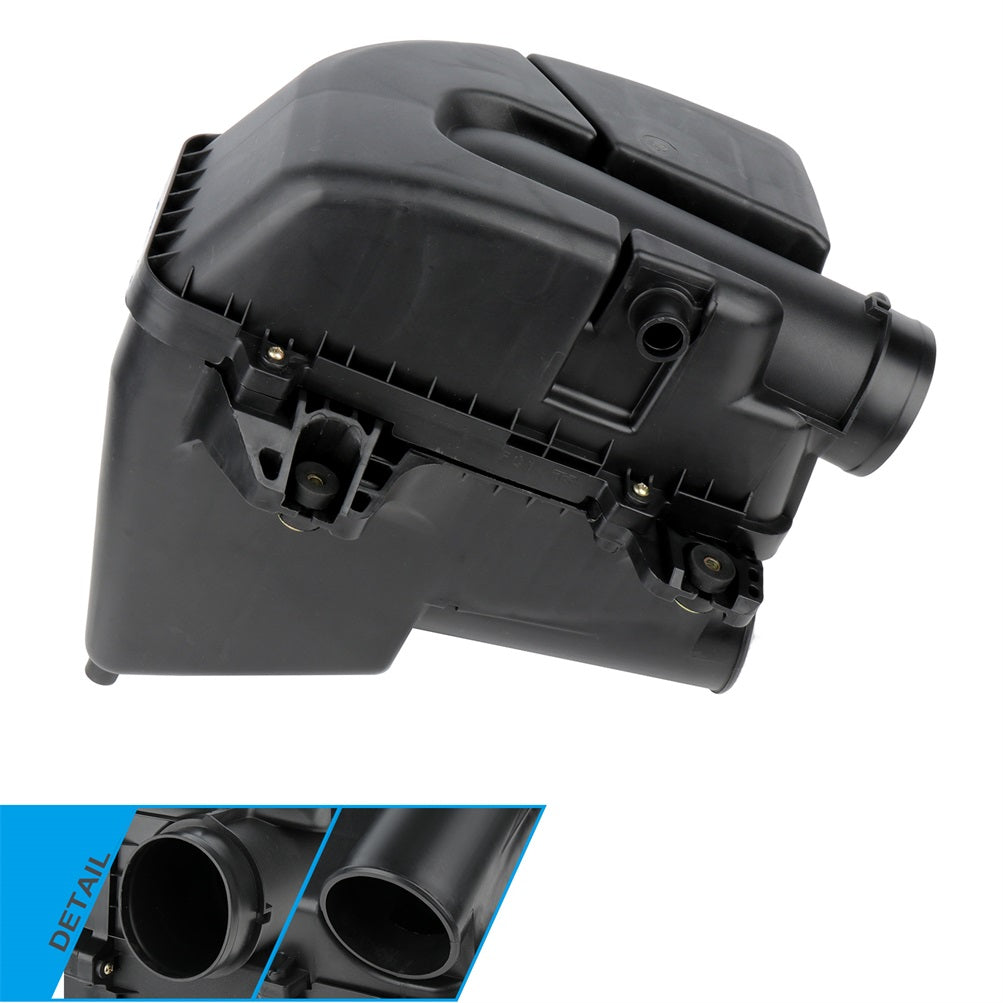

Air Cleaner Filter Intake Box For Honda CR-V 2002 2003 2004 06172-PNA-307

Fitment:

• Honda | CR-V | 2002~2004 | 2.4L

Air Cleaner Filter Intake Box For Honda CR-V 2002 2003 2004 06172-PNA-307

Brand New Air Cleaner Filter Box, W/O Air Filter

Special features

1. To avoid this part from cracking or breaking, please install with caution.

2. Easy to install Direct replacement for a proper fit Manufactured to strict engineering quality standards

The air filter housing can be replaced as follows

1. Disconnect and removing the upper air resonator assembly.

2. Disconnect the MAF sensor wiring harness

3. Remove the MAF sensor pipe clamp-to-frame bolt

4. Remove the 8 screws and the Left hand fender well splash shield

5. Remove the air inlet tube bolt

6. Loosen the clamp and remove the inlet pipe

7. Remove the rearward air cleaner-to-frame bolts

8. Remove the forward air cleaner-to-frame bolt

9. Remove the sealed air cleaner housing and MAF sensor pipe as an assembly

Includes

1 Air Cleaner Filter Box W/O Air Filter
