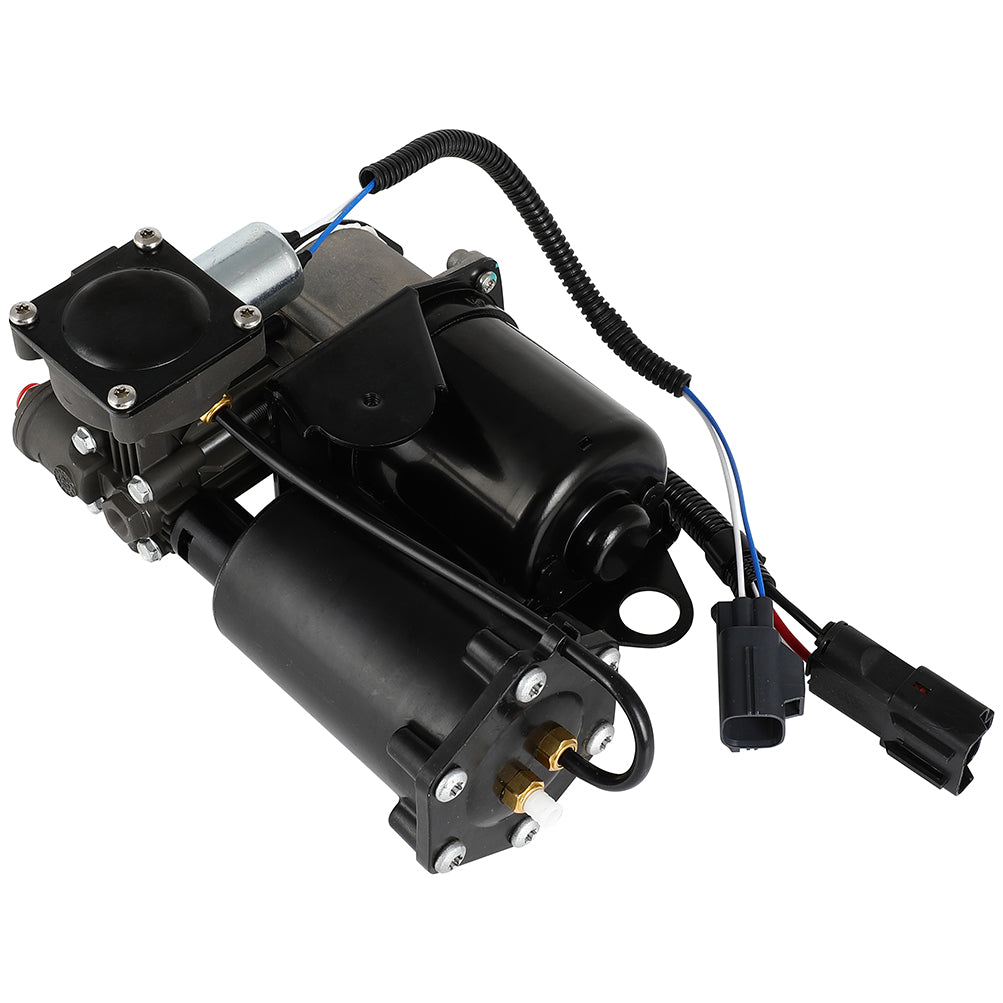

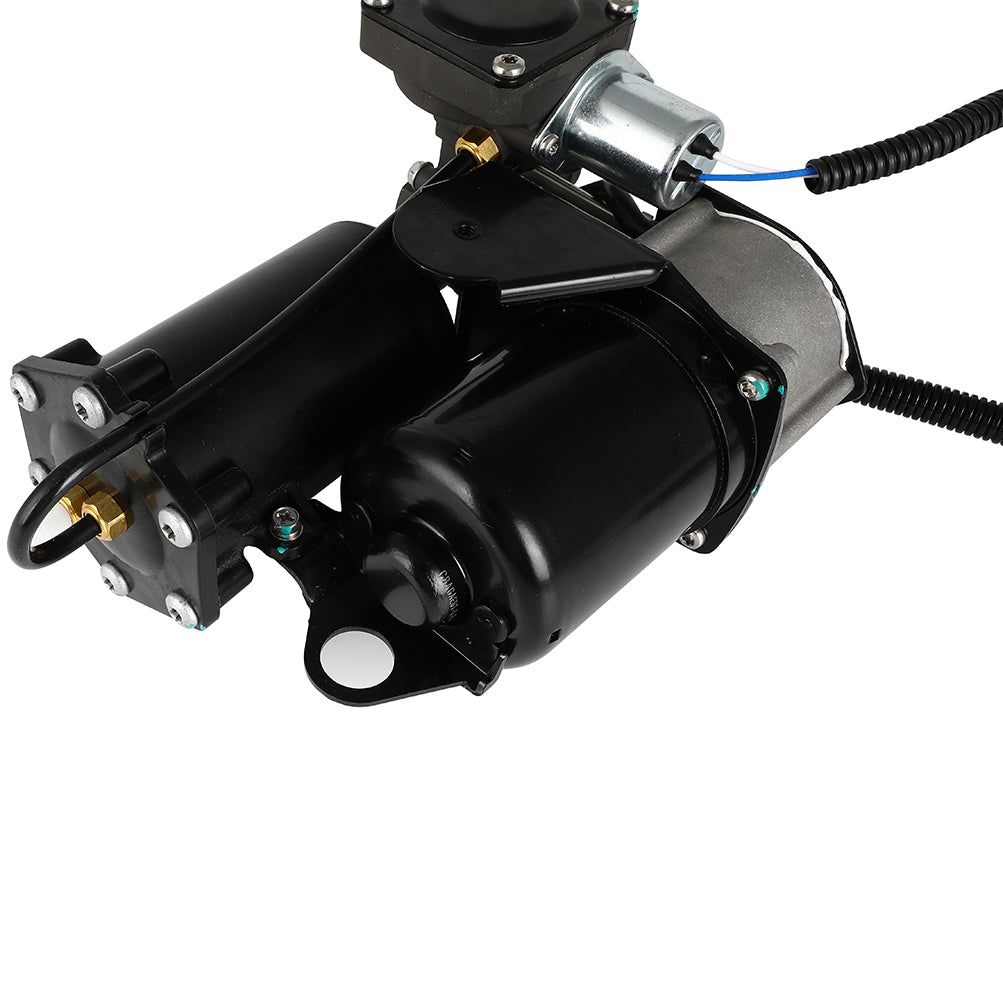

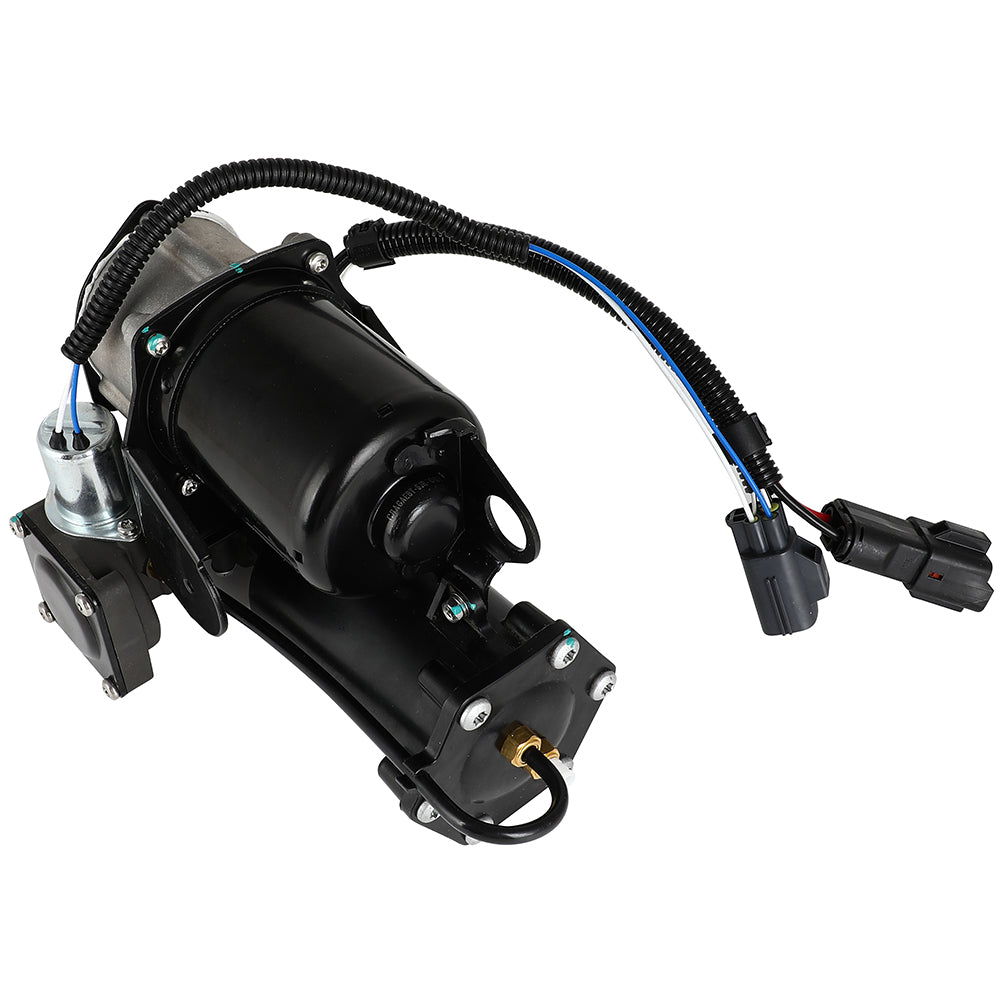

Air Suspension Compressor For 05-09 Land Rover LR3, 10-14 Land Rover LR4(949-900)
Fitment:
- Land Rover | LR3 | 2005~2009 | 4.0L/4.4L
- Land Rover | LR4 | 2010~2014 | 3.0L/5.0L
- Land Rover | Range Rover Sport | 2006~2014 | 3.0L/4.2L/4.4L/5.0L
Product Specifics
- Size: Single Dimension(CM) 31.00(length)*17.00(width)*17.00(height)
- Single Weight(KG): 4.20
- Included Hardware: Compressor
- Instruction Manual: No
- Recommended Use: Other
- Drive Layout: Front Engine RWD & 4WD
- Package: Box
- Note: No Instruction Included
- Color: Silver+Black
- Type: Air Suspension Compressor
- Custom Bundle: No
- Return Policy: 30 Days Free Return Or Exchange
- Manufacturer Warranty: 1 Year
- Quantity Sold: Sold individually Or Wholesale
- Fitment Type: Direct Replacement
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Voltage: 12V
- Amperage Rating: 40
- Maximum Pressure: 300
- Features: Sealed
- UPC: Does not apply
- Superseded Part Number: LR010376,LR011837,LR061888
- Interchange part Number:LR023964, LR044360, LR061663, LR045251, LR072537, LR015303, LR061888, LR010376, LR011837, YWB500220, 949-900
Signs that your air compressor needs to be replaced include
¡¤ Vehicle sagging
¡¤ Air shock/air compressor works erratically or not at all
¡¤ Unusual sounds coming from an air compressor
¡¤ Without a proper suspension, your vehicle will not be safe to drive, so if you think that your air suspension air compressor has failed, or is failing, you should have it checked and replaced if necessary.
Note Before Installation
1. To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2. Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Air Suspension Compressor Installation Instructions
1. Set the steering to straight ahead.
2. Raise the vehicle.
3. Remove the protective shroud from under the rear of the vehicle to access the compressor.

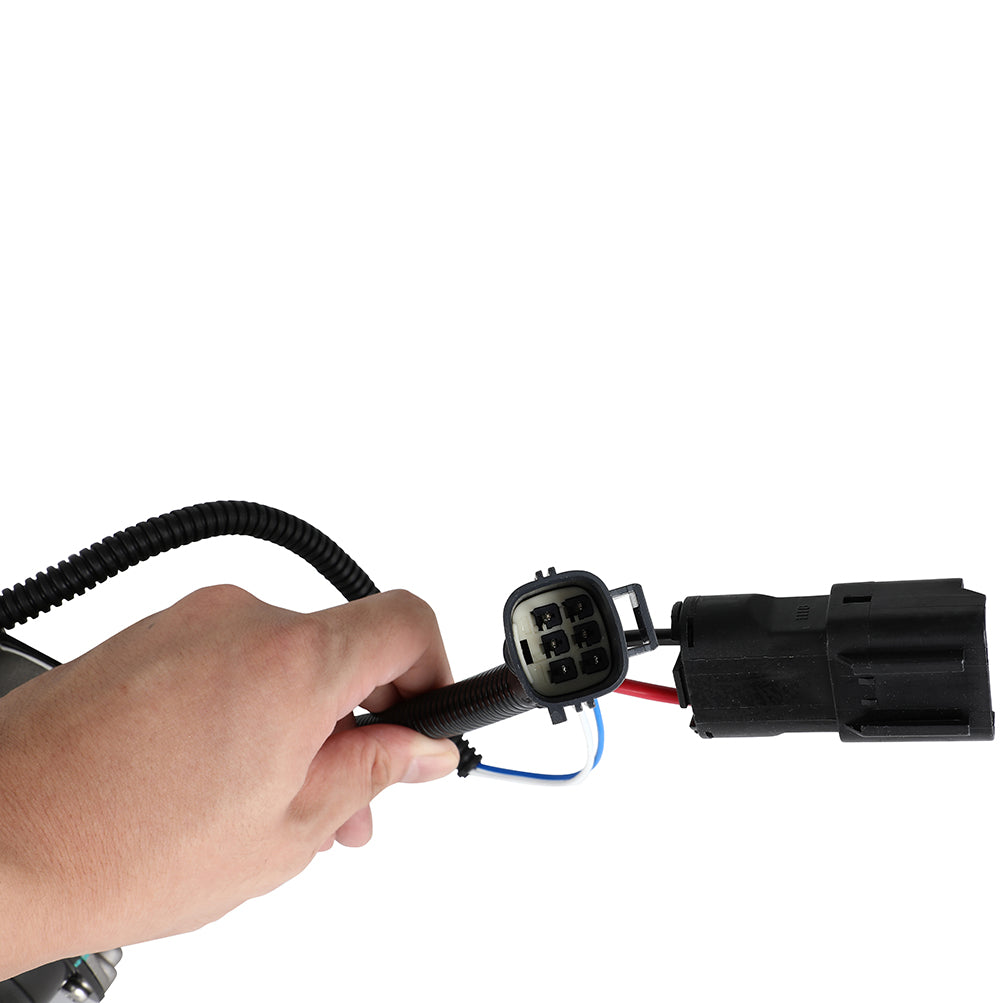

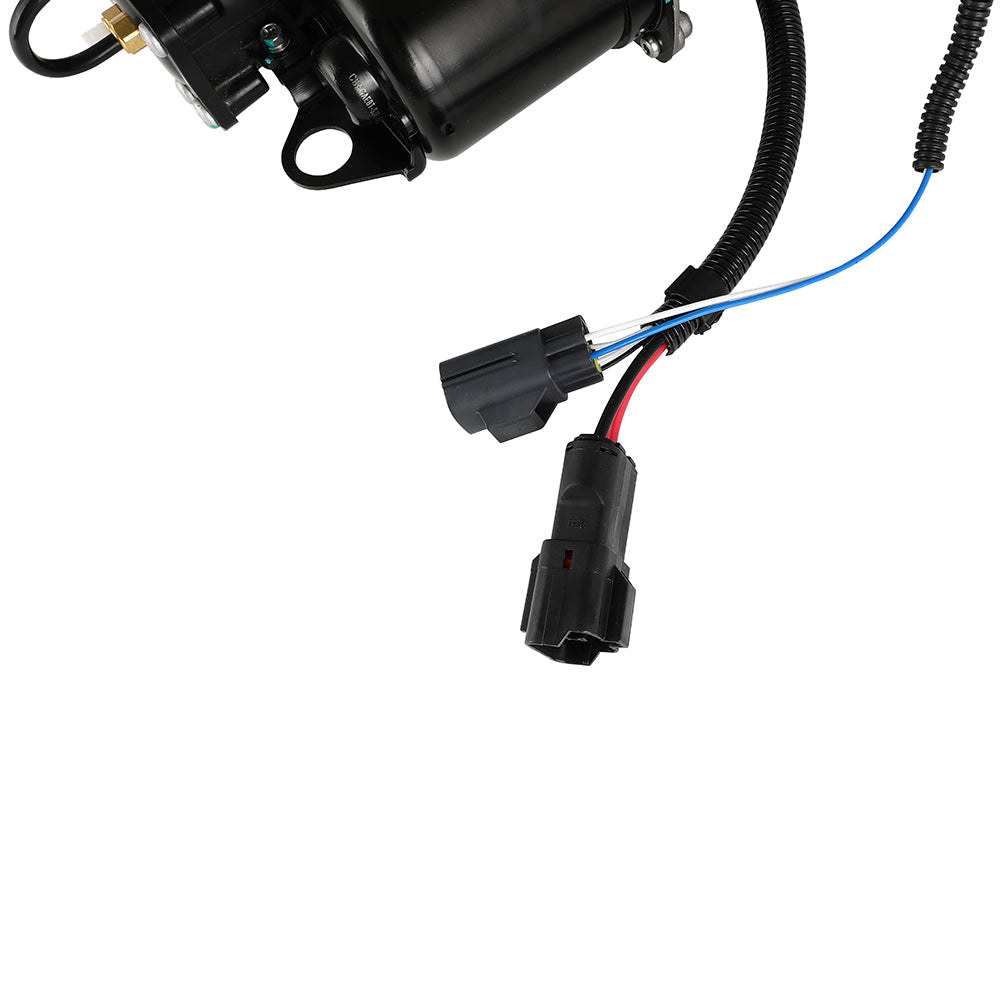

4. Disconnect the three electrical connectors from the valve block and compressor assembly.
5. Disconnect the rubber intake hose.
6. Disconnect the red and blue air lines from the valve block(note: Black line does not have to be disconnected).
7. Remove the four outer mounting nuts that secure the compressor bracket assembly to the vehicle.
8. Remove the entire compressor assembly from the vehicle.
Note
- These air suspensions are aftermarket ones. They will replace the original air shock. Please double confirm the
compatibility as well as the OEM number before purchasing.
-Instruction is not included. Professional installation is recommended
-Unbeatable Price
Quality Warranty: 12 Months
Includes
1Pcs Air Suspension Compressor
