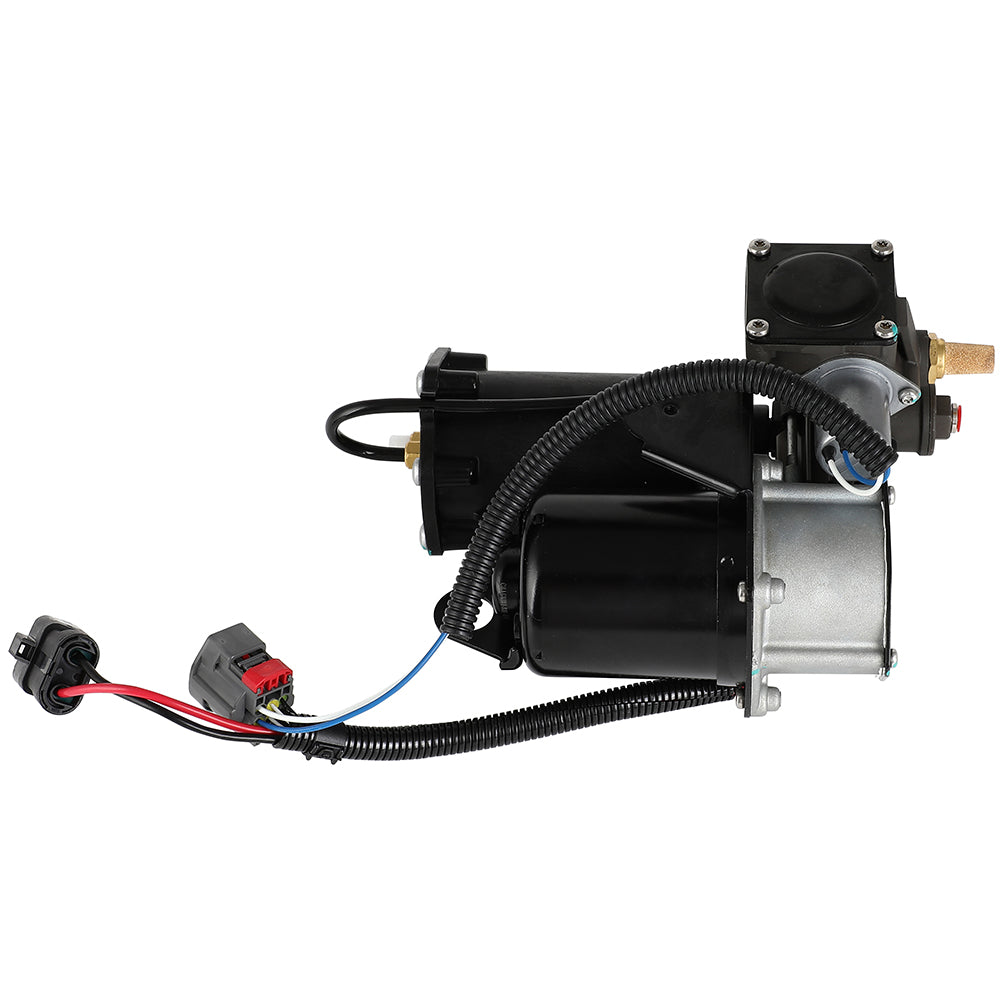

Air Suspension Compressor Pump For Land Rover Range Rover L322 2006-2012

Fitment:

• Land Rover | Range Rover | 2006~2012 | 4.2L/4.4L/5.0L

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight.

2.Raise vehicle.

3.Remove the front skid plate from underneath the vehicle to expose the air suspension¡¯s compressor.

4.Locate and remove the air line from the compressor. Remove the air line fitting from the air line and discard.

5.Locate and remove the two(2)electrical connectors from the compressor.

6.Pinch and slide the clamp off of the fitting to remove the larger rubber hose from the compressor.

7.Locate and remove the three(3)mounting nuts holding the compressor to the vehicle.

8.Remove the compressor and mounting hardware from the vehicle.

Installation is in reverse order of air suspension compressor pump removal.

Note

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Instruction is not included. Professional installation is recommended.

Contact us please for whatever we can help.

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
