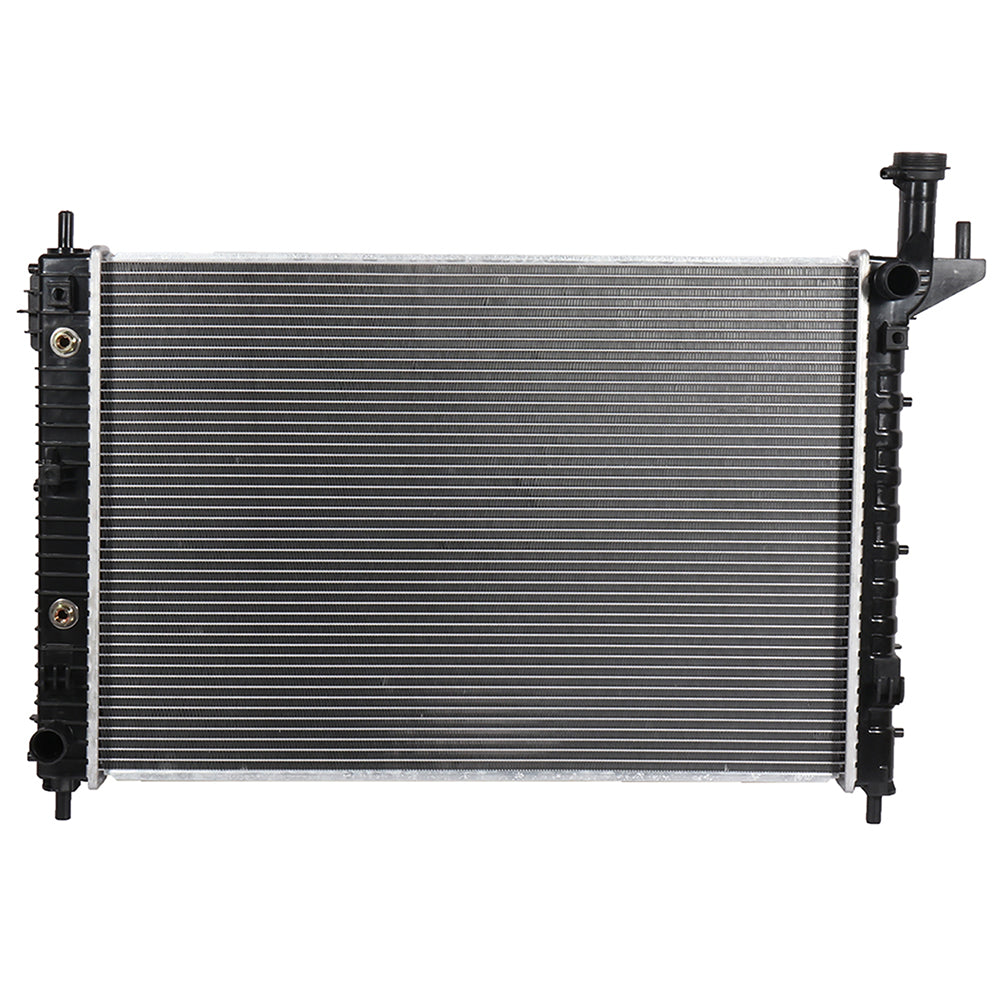

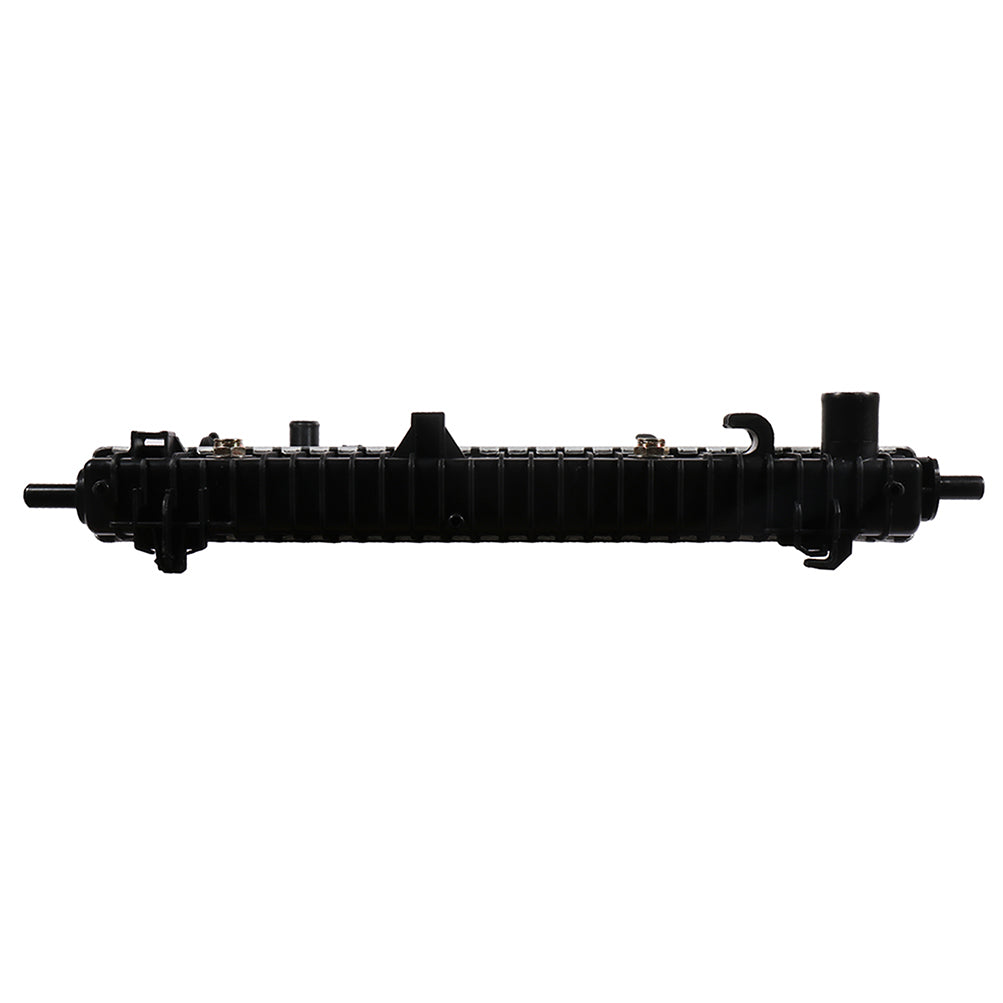

Aluminum Radiator for 08-17 Buick Enclave 09-17 Chevrolet Traverse 3.6L (CU13007)

Fitment

• Buick | Enclave | 2008~2017 | 3.6L
• Chevrolet | Traverse | 2009~2017 | 3.6L
• GMC | Acadia | 2007~2016 | 3.6L
• GMC | Acadia Limited | 2017 | 3.6L
• Saturn | Outlook | 2007~2010 | 3.6L

Features

• 100% Leak Tested, Direct Replacement
• Suitable for securing hoses in plumbing and automotive applications
• Built with high-density multi-lowered fins for maximum cooling efficiency
• OE design to ensure exact fit, form, and function for an easy drop-in installation

Product Specifics

• Warranty: 1 Year
• Interchange Part Number: CU13007, Engine Rad, Replacement Radiator,1.03in.Core Thickness
• Custom Bundle: No
• Modified Item: No
• Fitment Type: Direct Replacement
• Placement on Vehicle: Front
• Type: Radiator
• Material: Aluminum
• Core Material: Aluminum
• Tank Material: Plastic
• Quantity: 1PC Radiator
• Core Length: 18.82in.
• Core Height: 27.56in.
• Core Thickness: 1.03in.
• Inlet Diameter: 1 1/3in.
• Outlet Diameter: 1 1/3in.
• Other Part Number: 20841738,20957467,22893857,RK1528,GM3010512,GM3010513
• Superseded Part Number: 13007, engine radiator, new, cooling radiator, air radiator, car rad
• Radiator Cap: As the Picture shows
• Style: Crossflow
• Row Count: 1 Row
• Engine Oil Cooler Included: No
• Color: Black or Silver
• Notes: Please verify whether the item fits your vehicle or not by compatibility
• Transmission Type: Automatic Transmission
• Hardware Included: Nuts, Oil Cooler Fittings
• Transmission Oil Cooler Included: Yes

• Start the vehicle, to rise to normal temperature. Slowly open the tank cover, and the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, and flush the water tank, until out of clear water, suitable for any water cycle system.
• After cleaning, after waiting for pipeline rehabilitation add fluid to the water tank, and inject new coolant and water purification.

• Disconnect the battery.
• Drain the radiator fluid into a suitable container
• Remove the old radiator
• Take off any plastic covers around the radiator.
• Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
• Disconnect the radiator hoses from the radiator
• Disconnect the transmission cooling lines from the bottom of the radiator.
• Remove any clamps, brackets, or screws holding the radiator inside its frame.
• Lift the radiator up and out of the car.

• Slide the new radiator into place.
• Connect any clamps or brackets that hold the radiator in place.
• Connect the transmission cooling lines carefully.
• Connect the engine cooling hoses to the radiator.
• Replace the fan and fan shroud.
• Reconnect the fan's electrical connection.
• Replace the plastic covers.
• Fill the radiator with fluid.
• Check your work to make sure that there are no leaks.
• (Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)

Note

Please keep children and pets away when replacing the radiator

1. In project operation, the vehicle's normal temperature is 60 to 80 degrees.

2. Add detergent if the tank is too full and can take some antifreeze.

Includes

1pc of brand new radiator
