Camshaft Alignment Timing Tool Kit And Double Vanos For BMW M52TU /M54 /M56

Fitment:

• BMW | 320i | 2001~2003 | 2.2L
• BMW | 323Ci | 2000 | 2.5L
• BMW | 323i | 1997~2001 | 2.5L
• BMW | 323ti | 1999~2000 | 2.5L
• BMW | 325Ci | 2001~2006 | 2.5L
• BMW | 325i | 2001~2005 | 2.5L
• BMW | 325xi | 2001~2005 | 2.5L
• BMW | 328Ci | 2000 | 2.8L
• BMW | 328i | 1997~2000 | 2.8L
• BMW | 525i | 2001~2004 | 2.5L
• BMW | 528i | 1998~2000 | 2.8L
• BMW | X3 | 2004~2006 | 2.5L
• BMW | Z3 | 1997~2002 | 1.9L/2.0L/2.2L/2.5L/2.8L/3.0L/3.2L
• BMW | Z4 | 2004~2006 | 2.5L

Note

The color of the blow case may be varied, you may receive the item with blue or red case. It won't affect function.

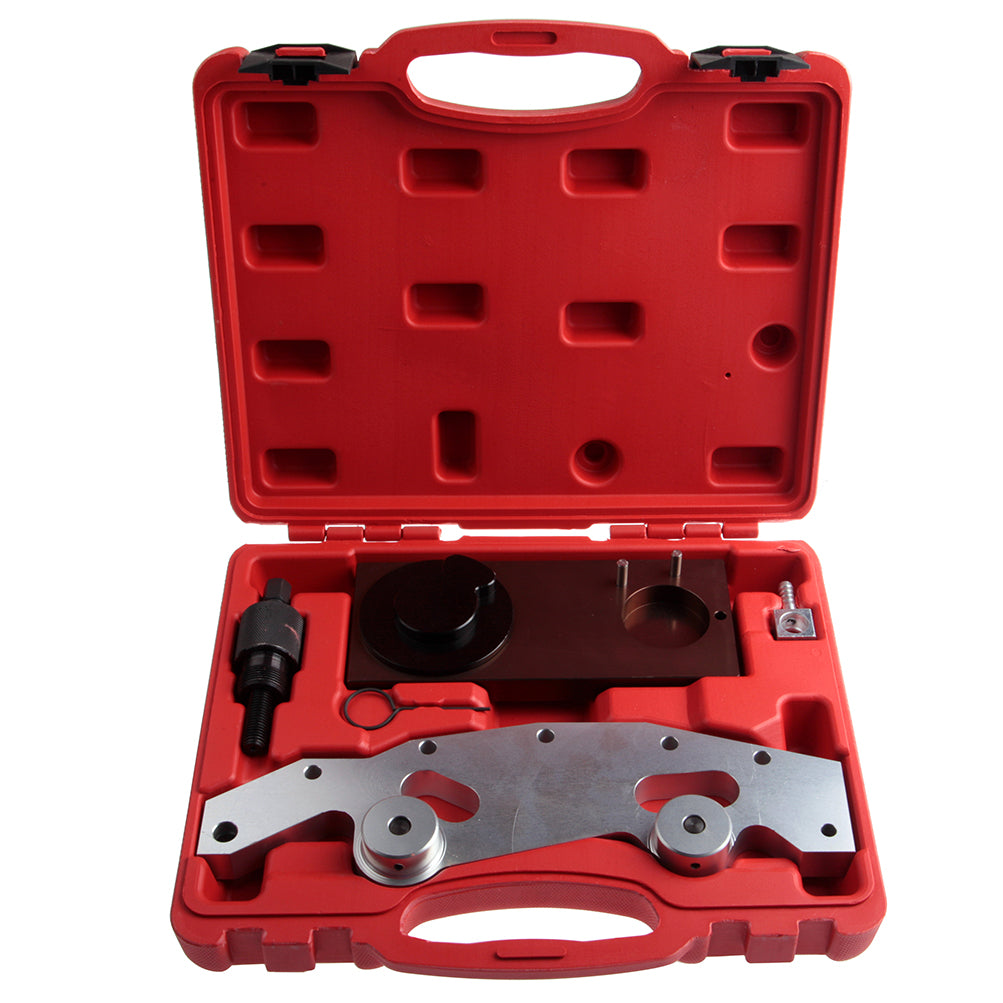

Contains the tools necessary to assemble and properly time the double VANOS camshaft adjustment unit found in 1998 and later 6 cylinder engines.

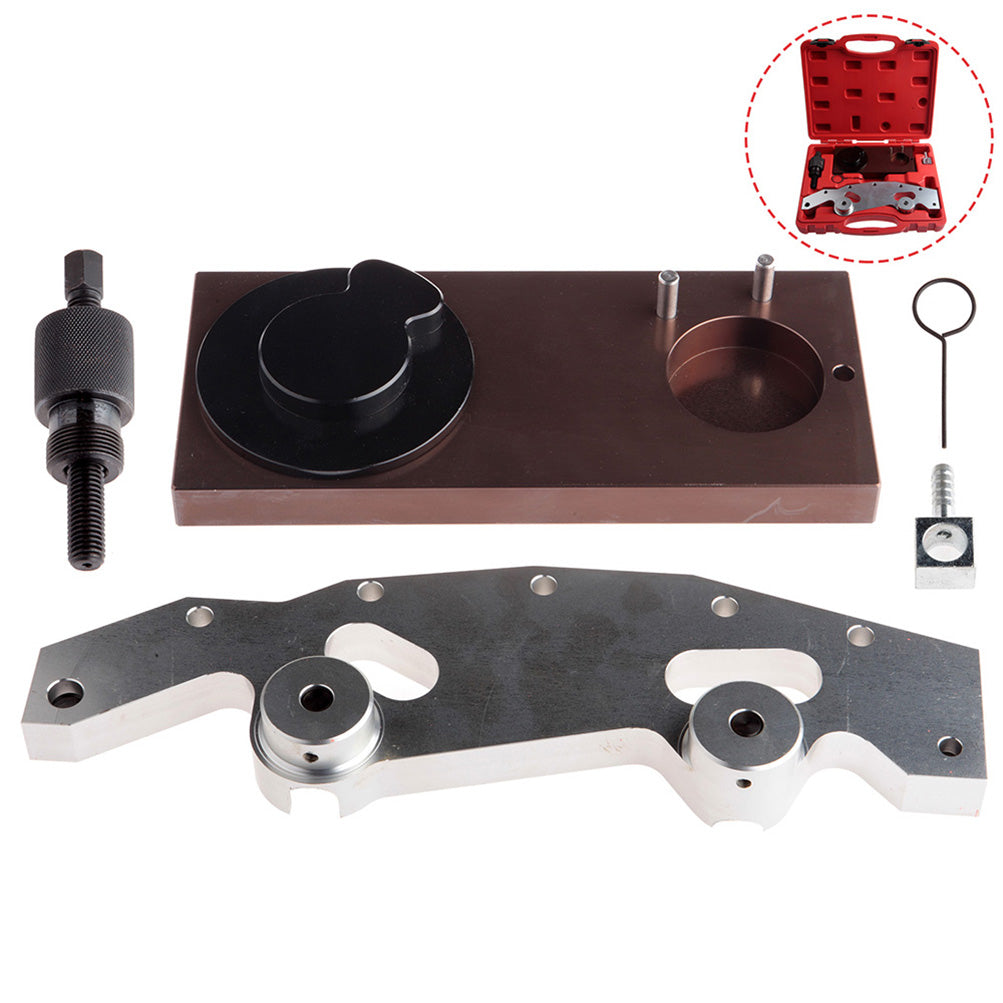

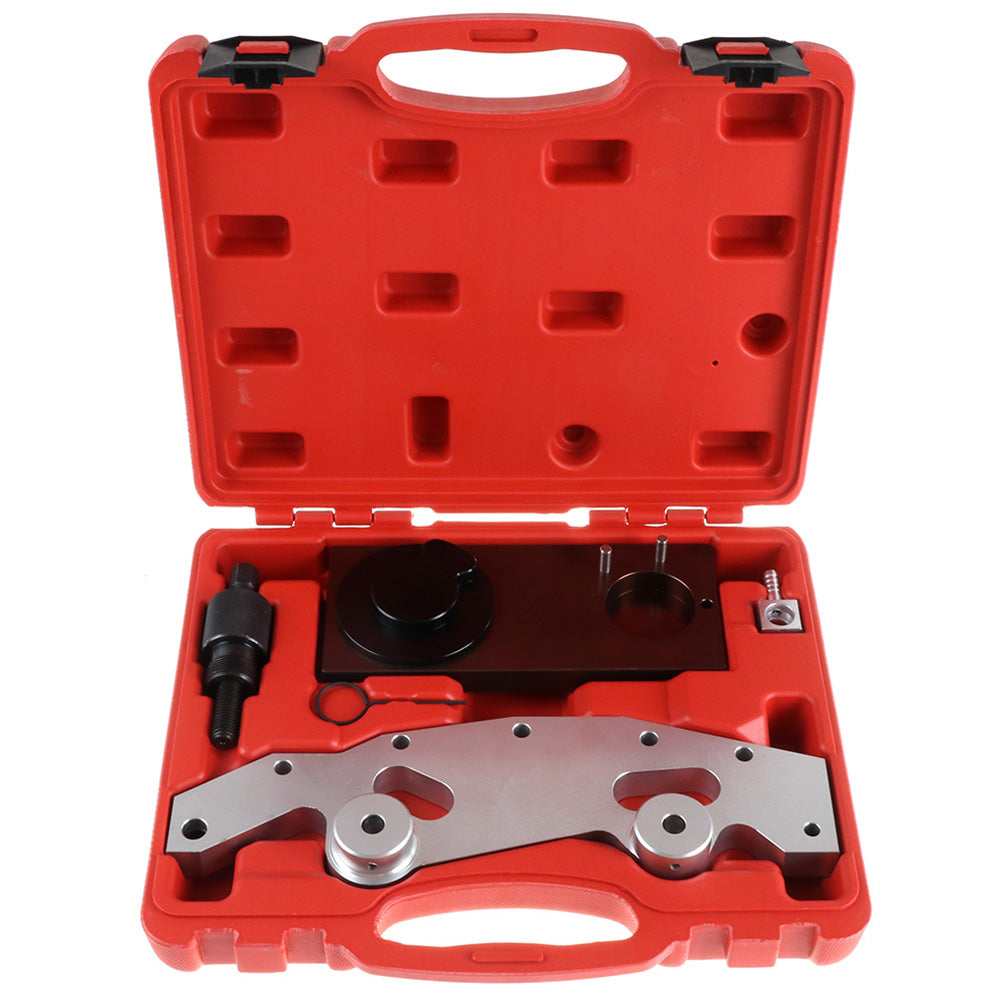

Includes

Tool Name OEM No. Details

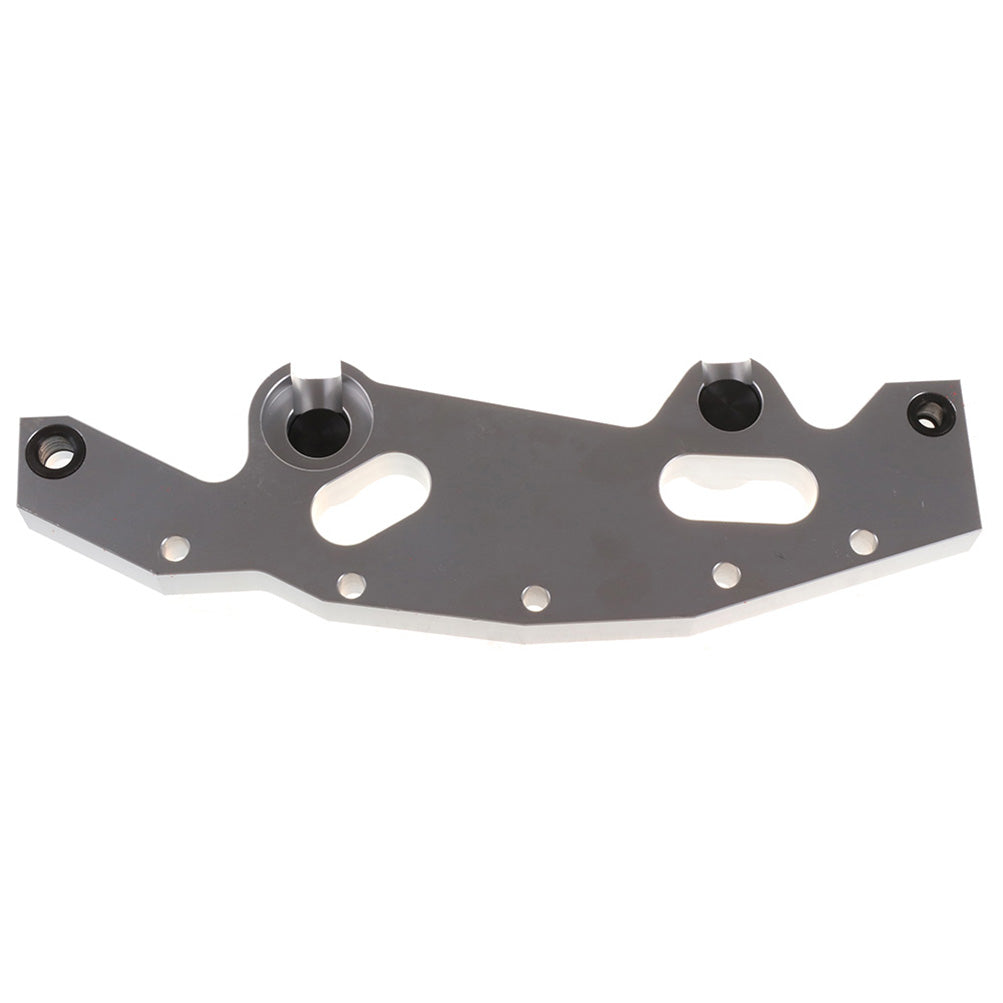

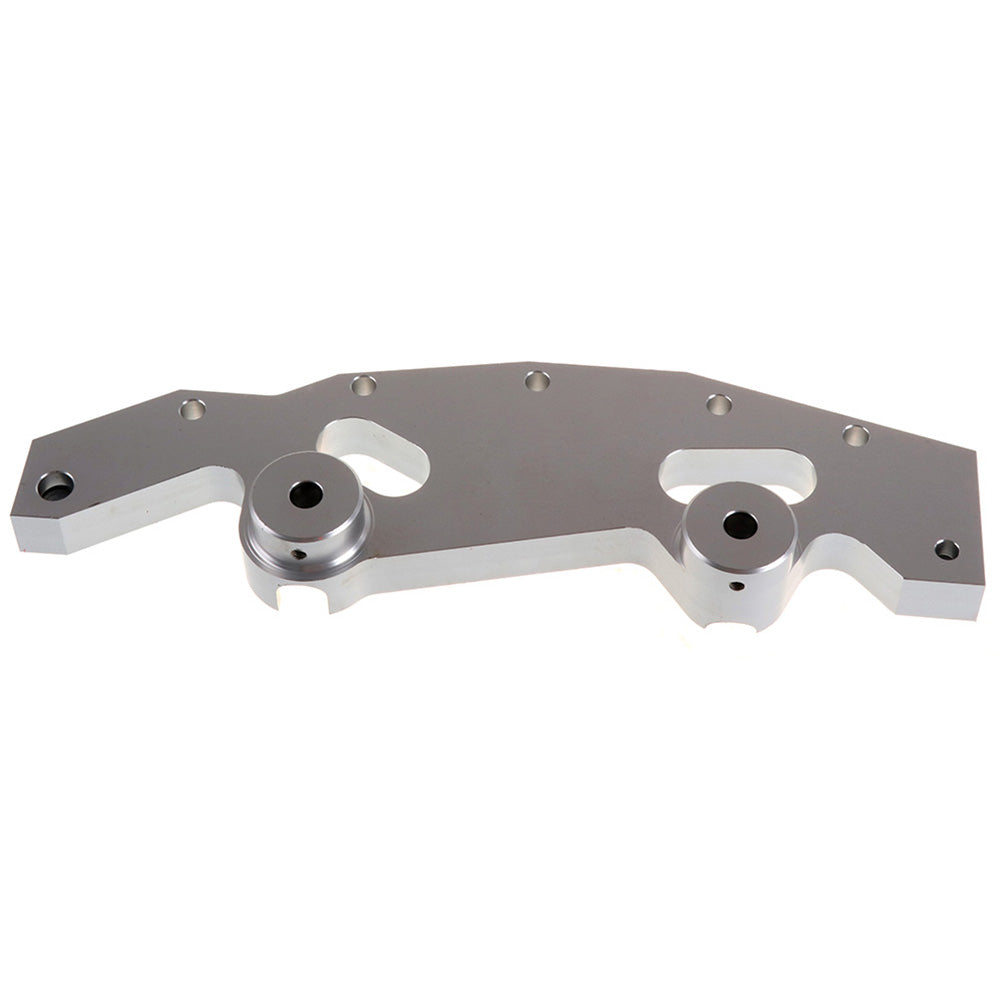

Alignment Jig 116150 Adjusting the plate for setting valve timing on engine with double Vanos

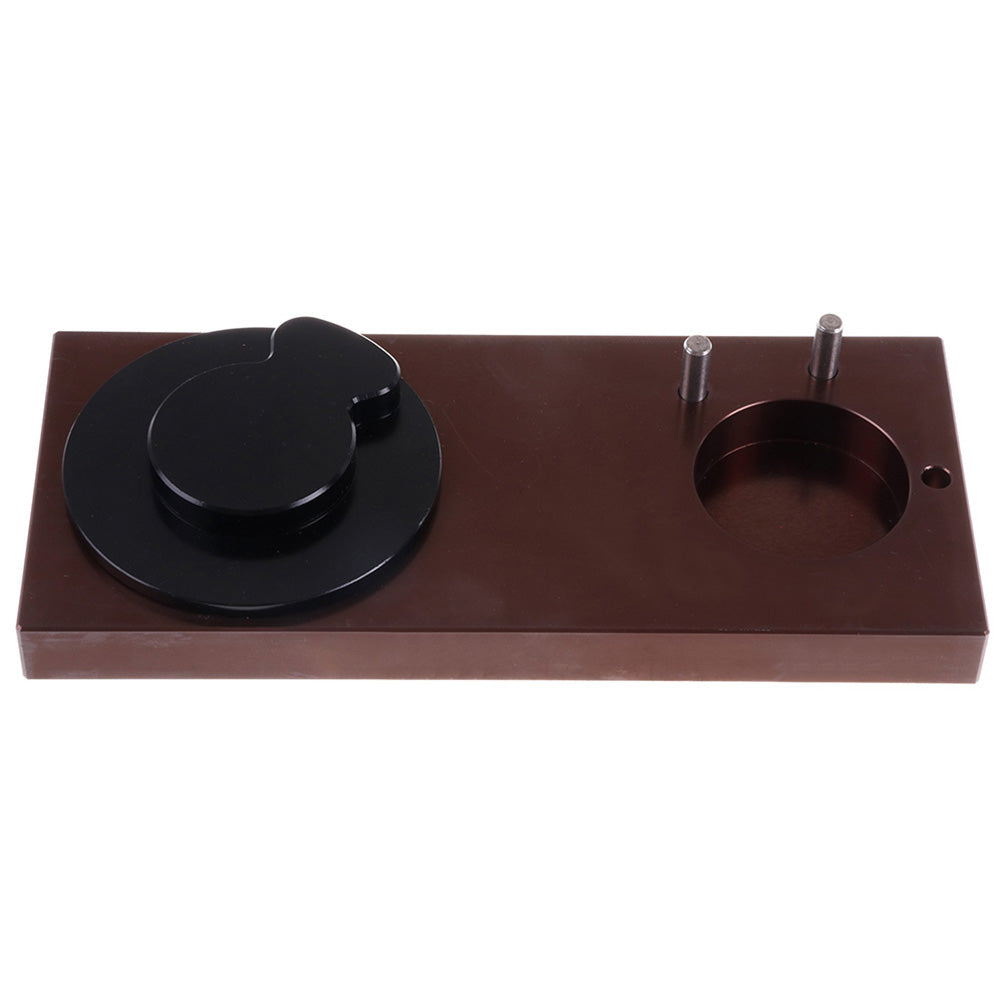

Sprocket Assembly Jig 116180 Used for preassembling secondary chain sprockets with chain on camshafts

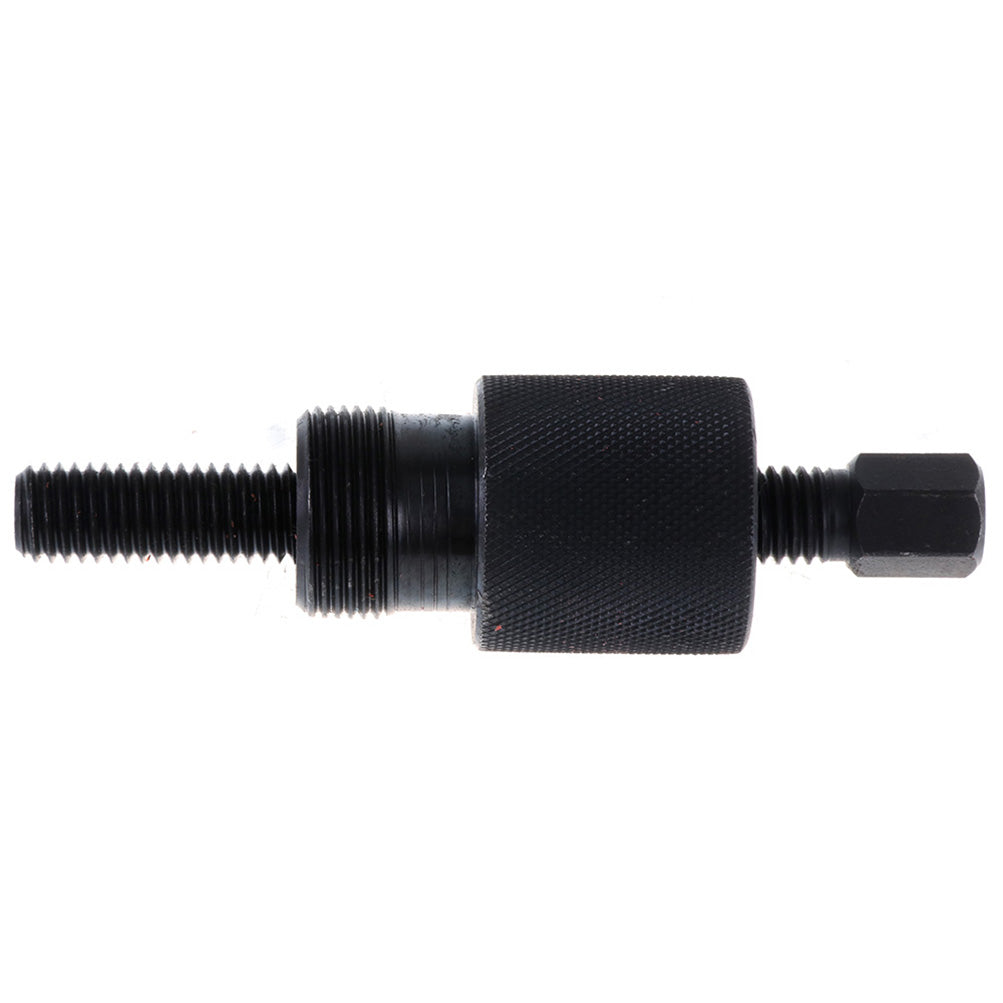

Rigid Chain Tensioner 114220 Used for tension primary chain

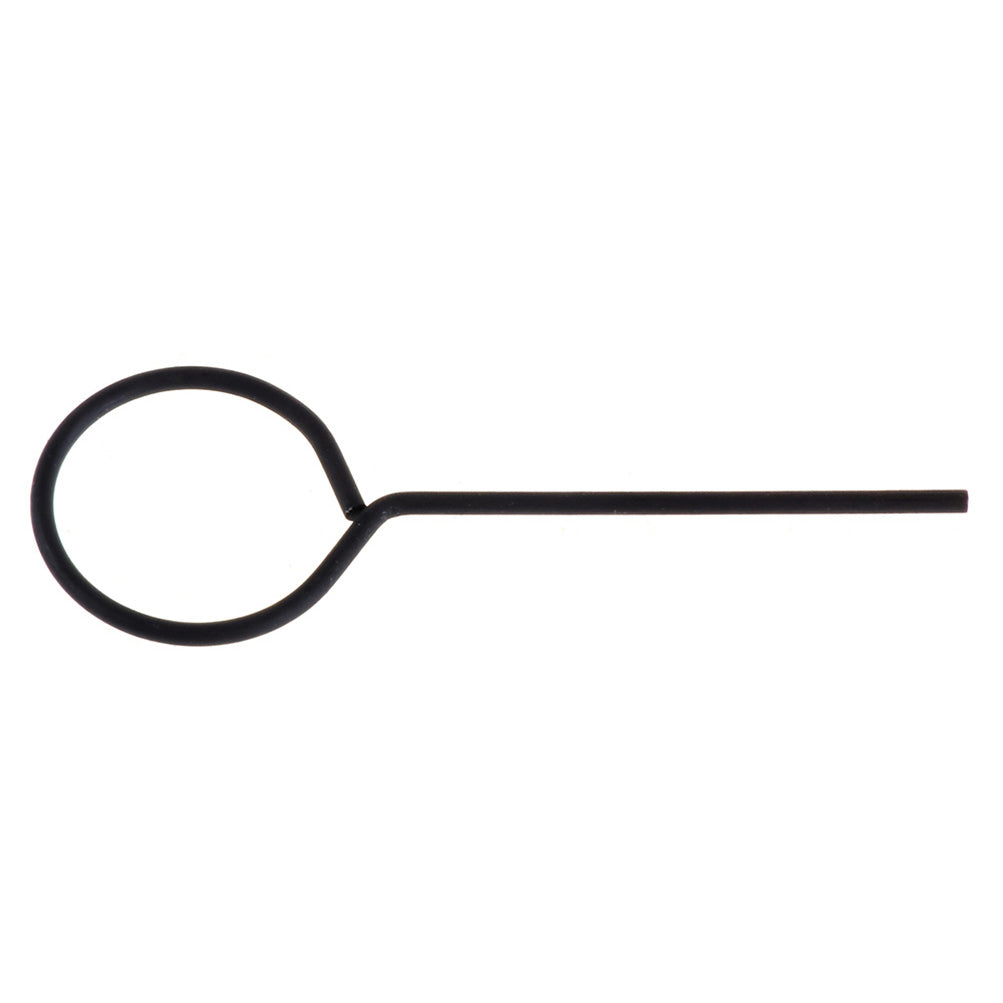

Chain Tensioner Lock Pin 113292 Locks chain tensioner during timing

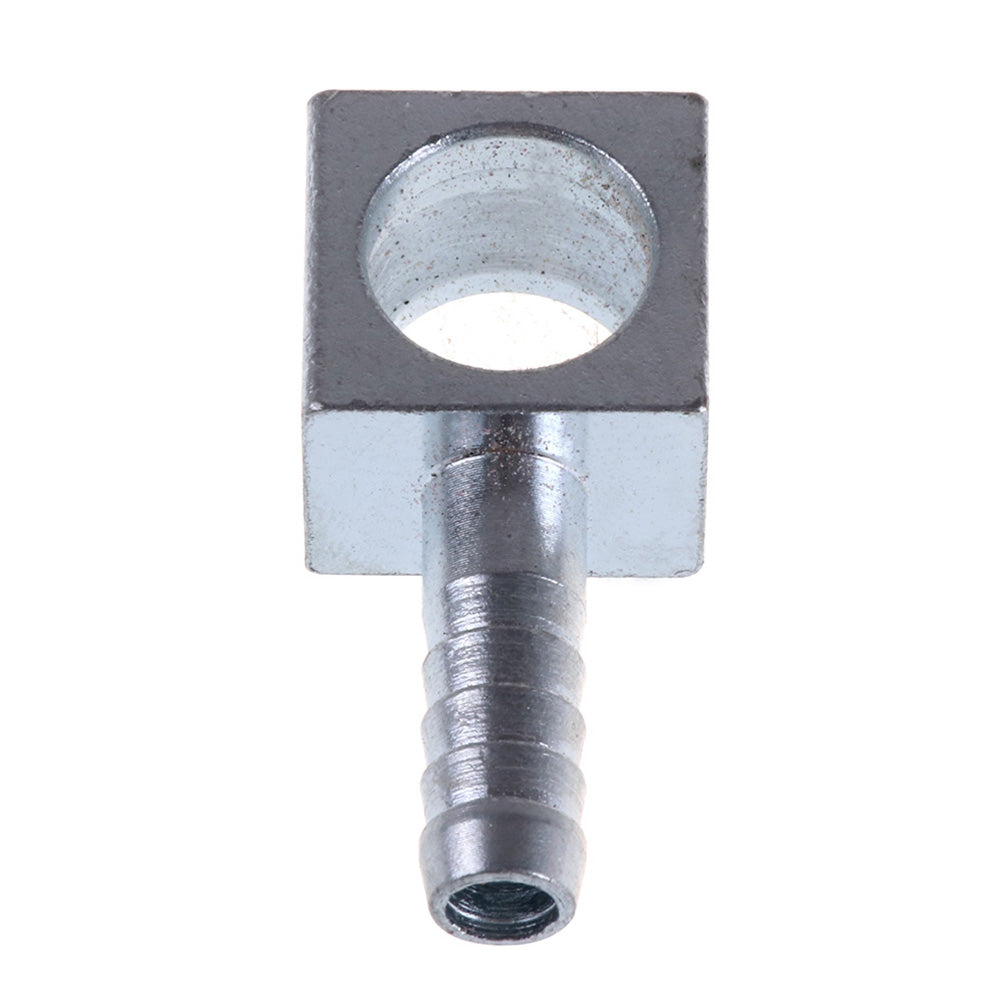

Vanos Compressed Air Connection 113450 Use to pressurize the single and double Vanos unit when checking, removing and replacing
