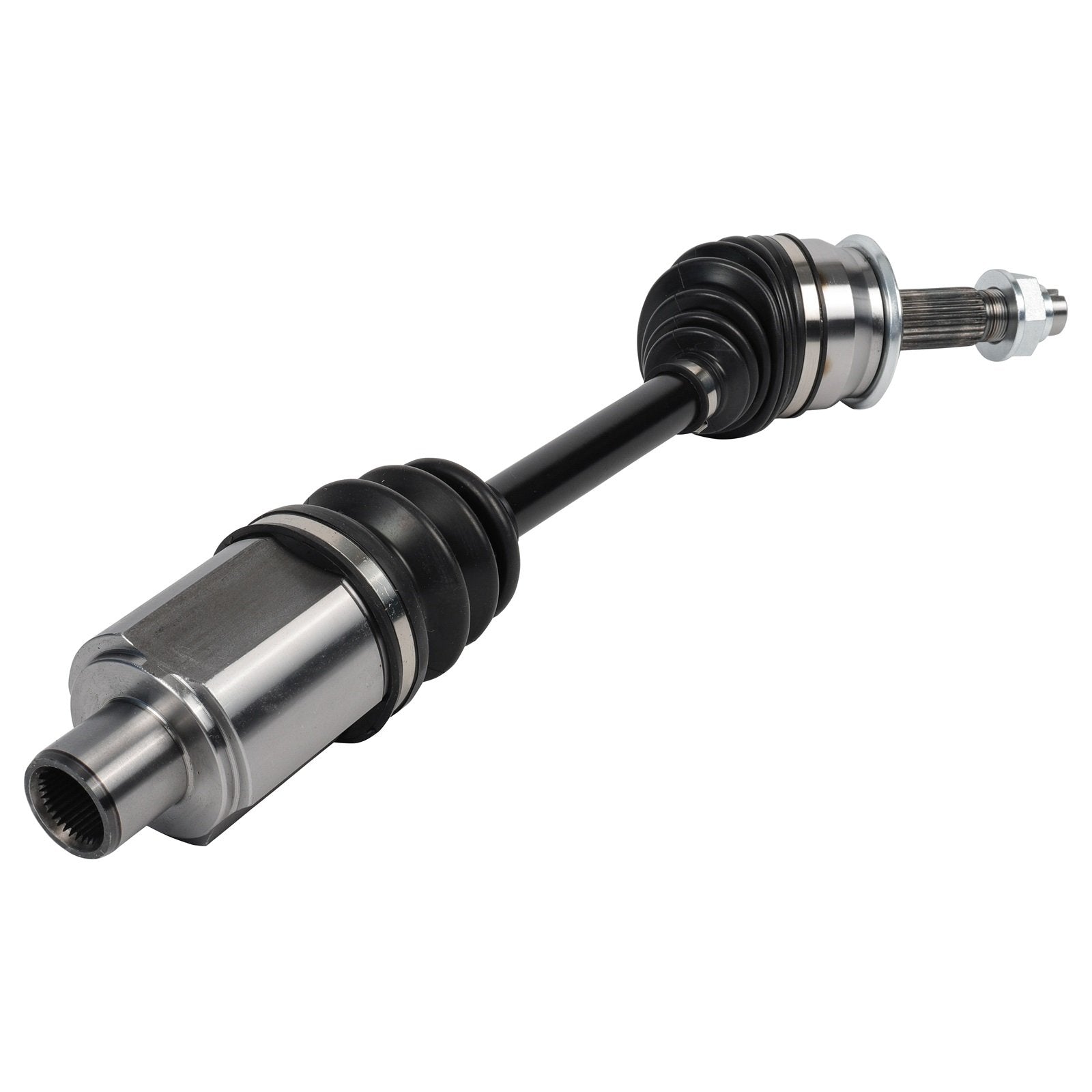

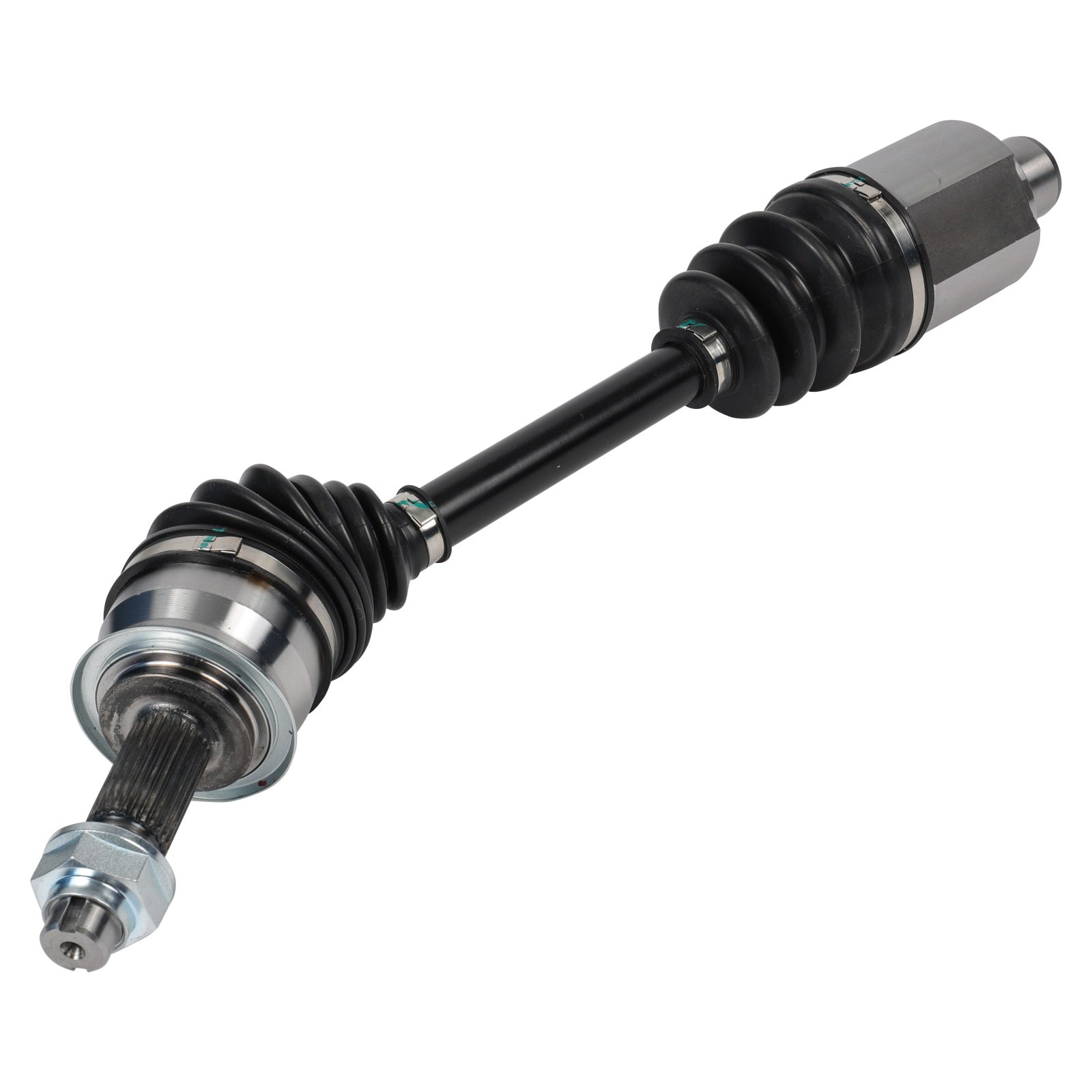

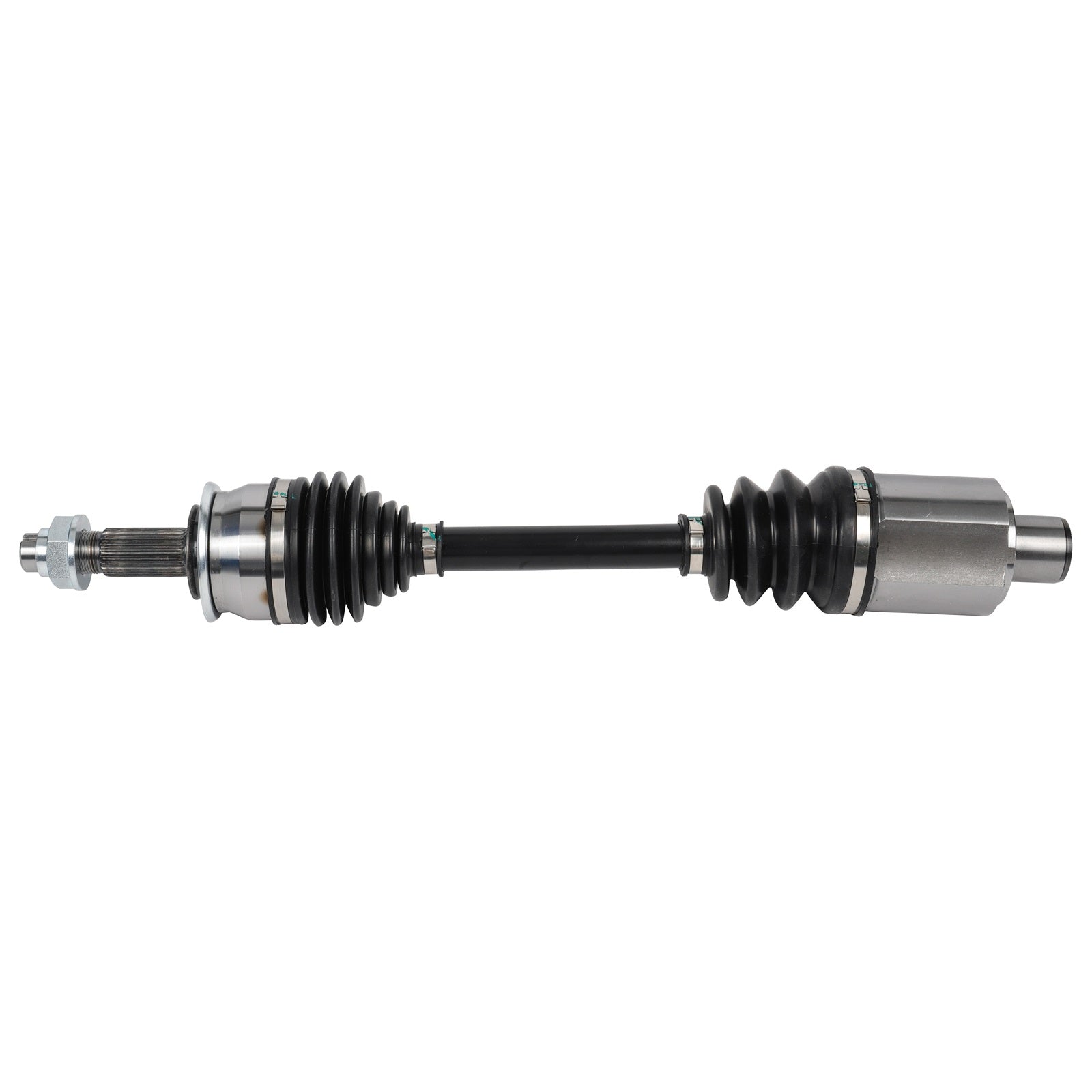

For 2012-2020 Chevrolet Sonic 1.4L Front Right CV Axle Assembly Automatic trans.

Product Specifics

• Type: CV Axle Assembly
• Buyer Notes: For Automatic Trans Only
• Placement on Vehicle: Front Right
• Model: For Sonic Sedan/Hatchback 4-Door
• Compressed Length: 21.26 in
• CV Shaft Assembly Working Principle: Connect the wheel, axle to the gearbox, cv joints shift torque at a controlled speed to the wheels, the up and down motions of the suspension system
• Engine: L4 1.4L
• Input Shaft Spline Count: 34
• Output Shaft Spline Count: 25
• Input Shaft Connection Style: Spline
• Output Shaft Connection Style: Spline
• Material: Rubber, Steel
• Axle Boot Material: Neoprene
• Weight: 6 kg / 13.224 lb
• Surface Finish: Black Coating
• Boot Color: Black
• ABS Ring Included: No
• Spindle Nut Included: Yes
• CV Axle Shaft Assembly Style: Factory
• Quantity: 1 item a lot
• Fitment Type: Direct Replacement
• Performance Part: Yes
• Universal Fitment: Yes
• Vintage Part: Yes
• Package Included: Front Passenger Side, CV Axle Shaft Assembly
• Manutacturer Warranty: 3 Years
• OE/OEM Part Number: 66-1615
• Interchange Part Number: 66-1615,661615,95262211
• Axle Nut Locking Type: Stake
• Features: OE-Certified, DOT-Certified, Factory CV Axle Shaft Assembly, SAE-Certified
• OE Spec or Performance/Custom: Performance/Custom
• Hardware Included: No
• Manutacturer Part Number: DYH182701CVA
• Fitment Notes): Verify this part fits your vehicle using the compatibility chart
