Buyer Notes: W/3.73 Axle Ratio, 2018-2019 Fit 9-Spd 9HP48 FWD/AWD Auto Trans

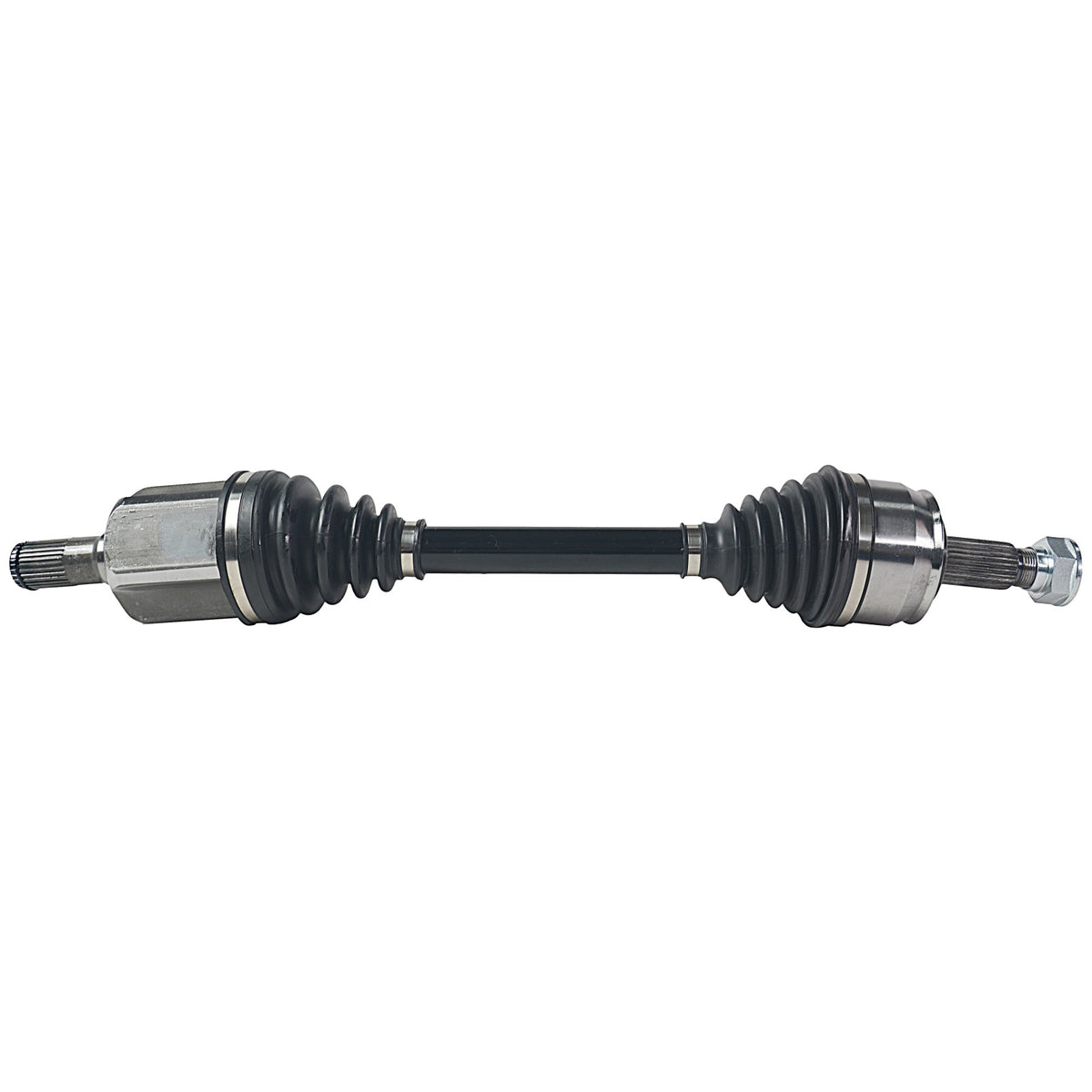

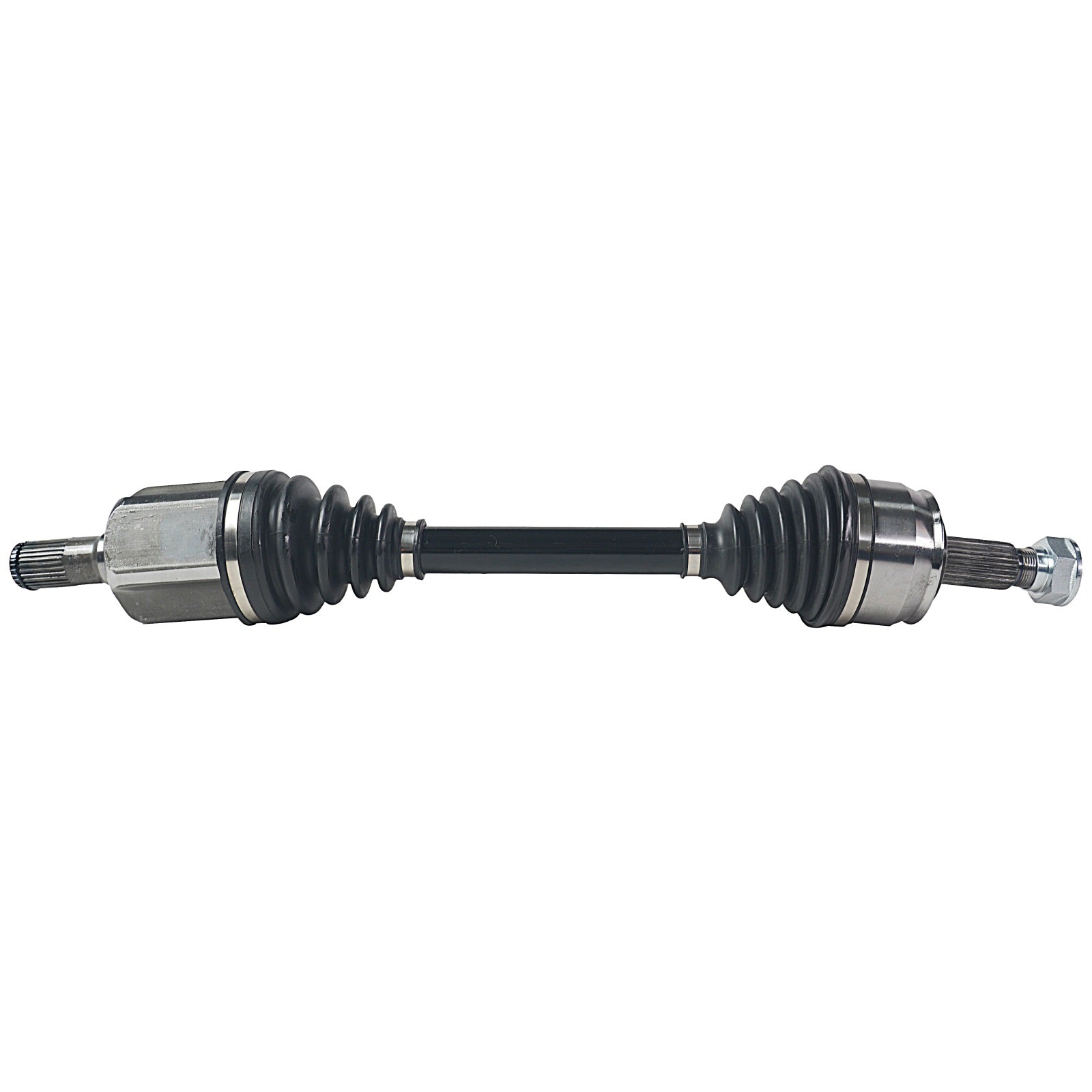

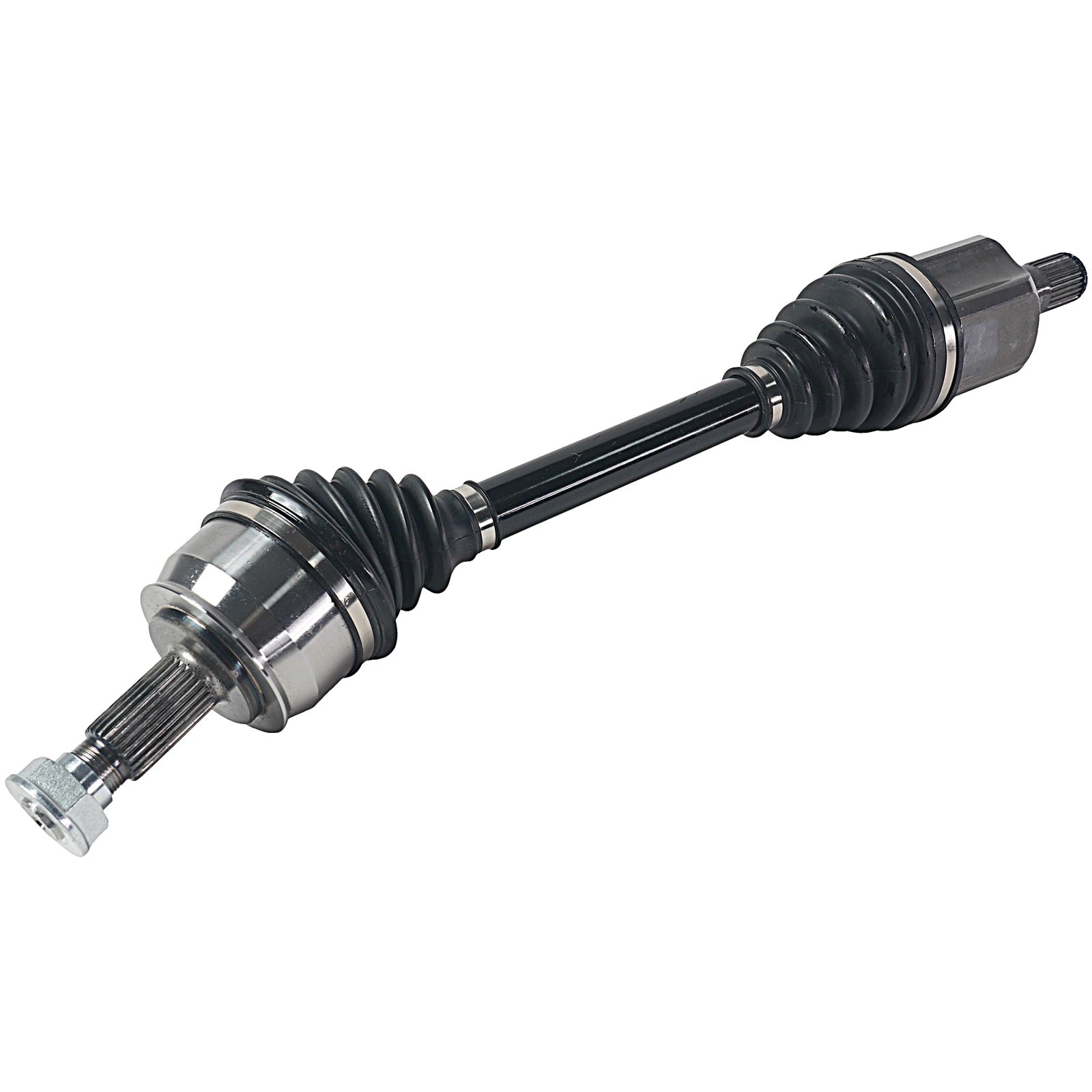

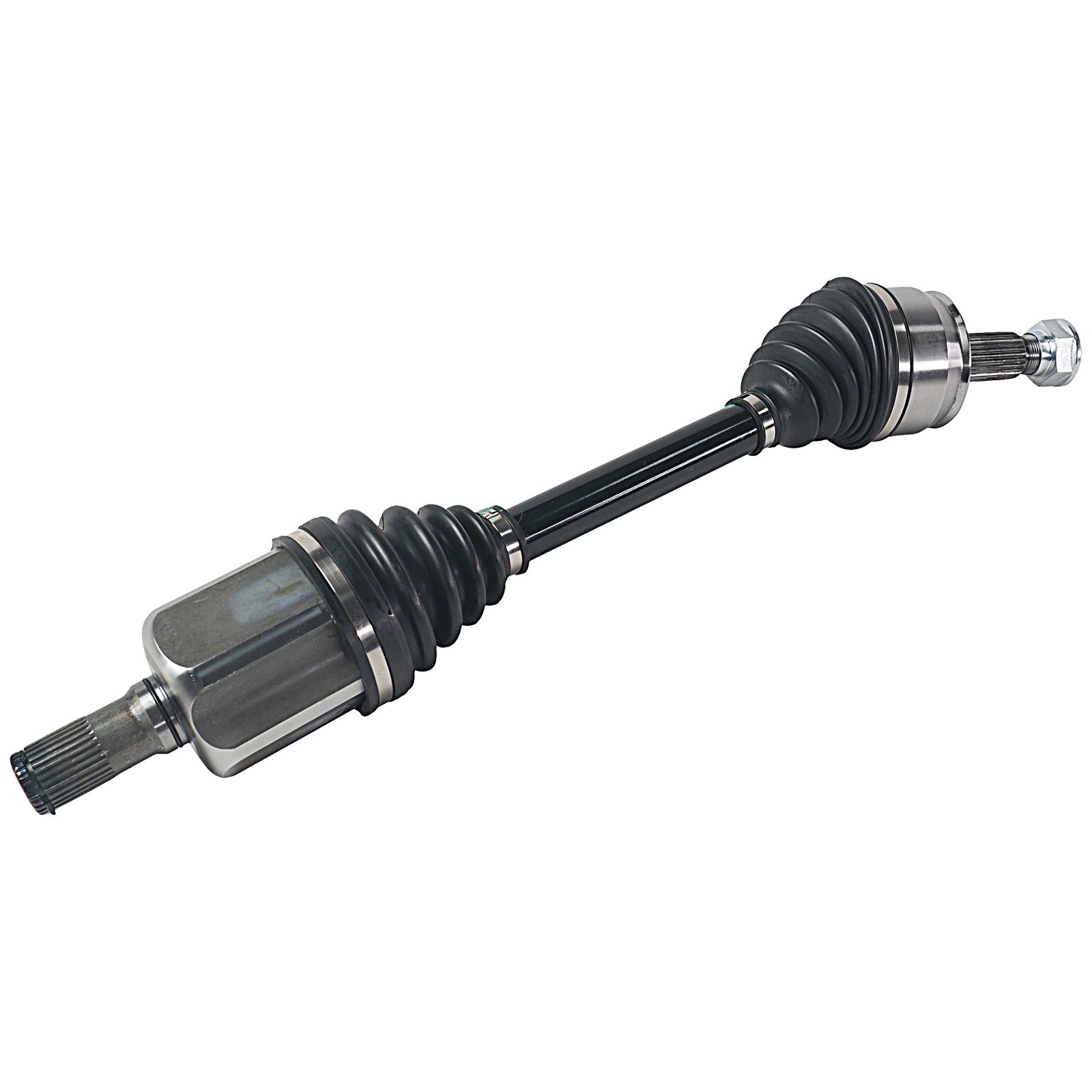

Type: CV Axle Assembly
Placement on Vehicle: Front, Left, Right
Model: For Compass Sport Utility 4-Door Only
Compressed Length: 23.58in
CV Shaft Assembly Working Principle: Connect the wheel, axle to the gearbox, cv joints shift torque at a controlled speed to the wheels, the up and down motions of the suspension system
Engine: L4 2.4L
Input Shaft Spline Count: 30
Output Shaft Spline Count: 27
Input Shaft Connection Style: Spline
Output Shaft Connection Style: Spline
Material: Rubber, Steel
Axle Boot Material: Neoprene
Weight: 6.947kg / 15.311188 lb
Surface Finish: Black Coating
Boot Color: Black
ABS Ring Included: No
Spindle Nut Included: Yes
CV Axle Shaft Assembly Style: Factory
Quantity: 1 item a lot
Fitment Type: Direct Replacement
Performance Part: Yes
Universal Fitment: Yes
Vintage Part: Yes
Package Included: Front Driver Side, Front Passenger Side, CV Axle Shaft Assembly
Manutacturer Warranty: 3 Years
Interchange Part Number: 68287865AA
OE Spec or Performance/Custom: Performance/Custom
Hardware Included: No
Manutacturer Part Number: DYH179638CVA
Fitment Notes): Verify this part fits your vehicle using the compatibility chart
