Buyer Notes: Only fit AWD(All Wheel Drive), 2011-2013 Toyota Highlander fit GAS only

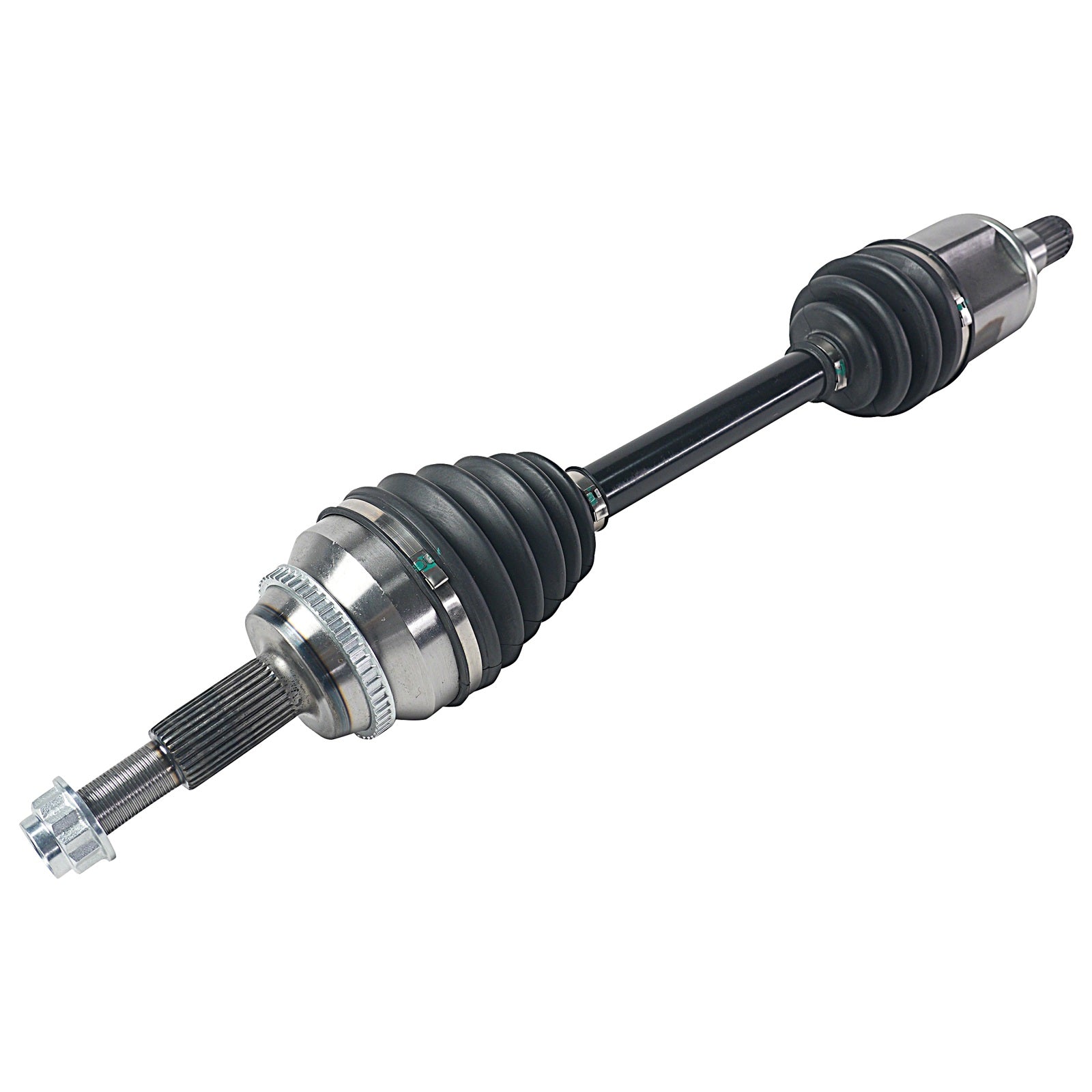

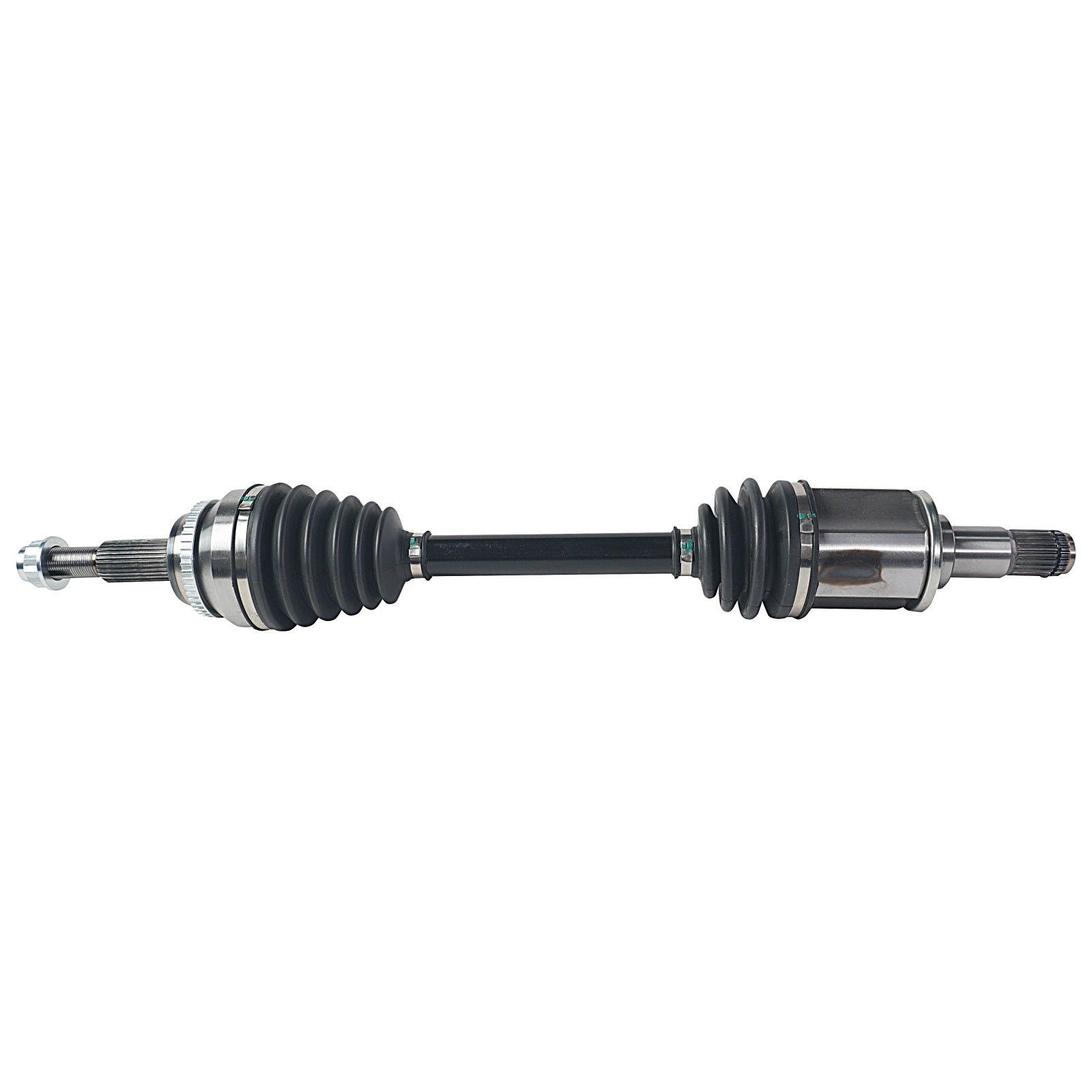

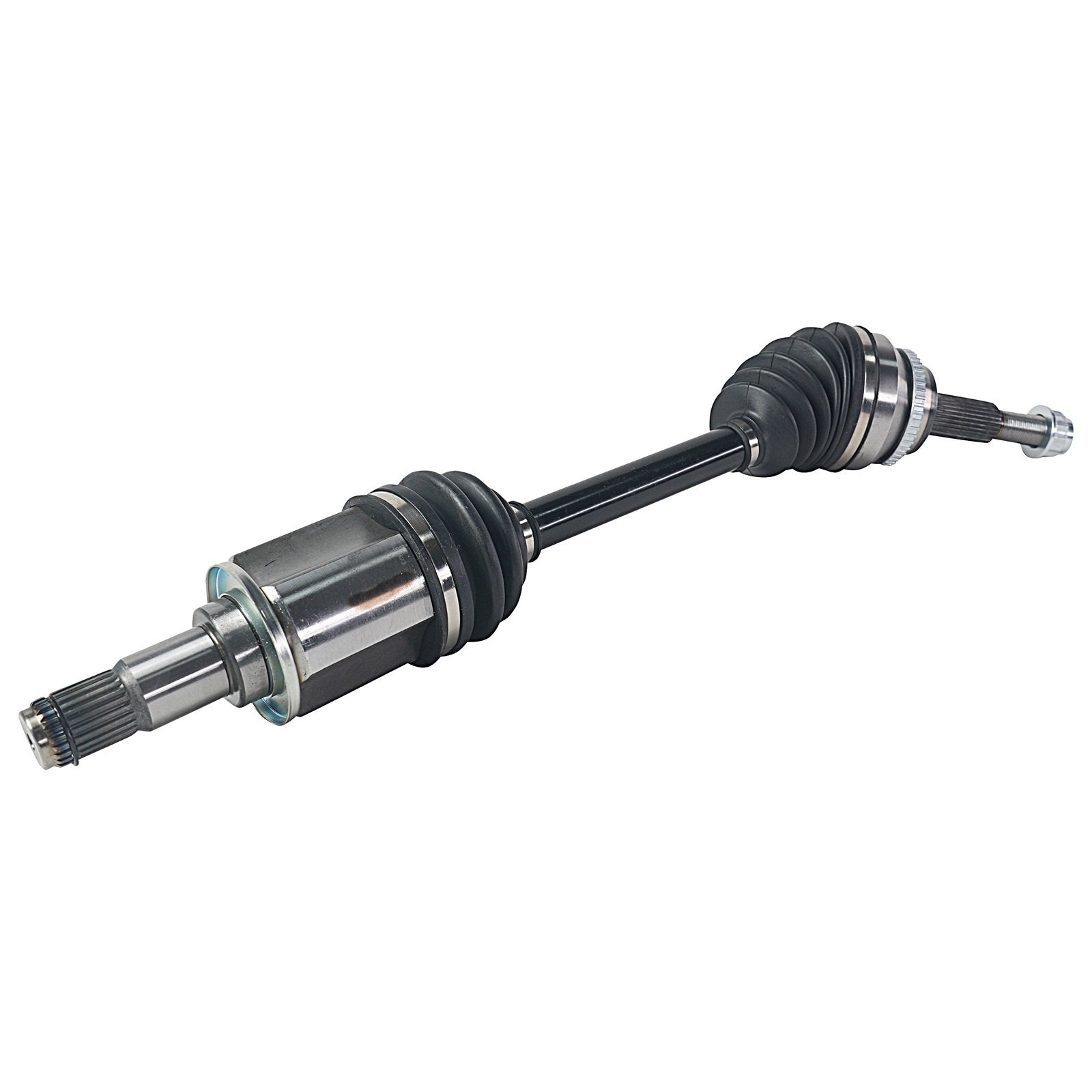

Type: CV Axle Assembly
Placement on Vehicle: Front, Left
Model: For Highlander Sport Utility 4-Door Only
Driver Type: AWD
Compressed Length: 25.62 in
CV Shaft Assembly Working Principle: Connect the wheel, axle to the gearbox, cv joints shift torque at a controlled speed to the wheels, the up and down motions of the suspension system
Spindle Nut Thread Size: M22 1.5
Engine: V6 3.5L, L4 2.7L
ABS Ring Tooth Quantity: 48
Input Shaft Spline Count: 23
Output Shaft Spline Count: 26
Input Shaft Connection Style: Spline
Output Shaft Connection Style: Spline
Material: Rubber, Steel
Axle Boot Material: Neoprene
Item Weight: 7.771kg / 17.127284 lb
Surface Finish: Black Coating
Boot Color: Black
ABS Ring Included: Yes
Spindle Nut Included: Yes
CV Axle Shaft Assembly Style: Factory
Quantity: 1 item a lot
Fitment Type: Direct Replacement
Performance Part: Yes
Universal Fitment: Yes
Vintage Part: Yes
Product Included: Front Driver Side, CV Axle Shaft Assembly
Manutacturer Warranty: 5 Years
Interchange Part Number: 66-5302
Axle Nut Locking Type: Threaded Slotted Lock
OE Spec or Performance/Custom: Performance/Custom
Hardware Included: No
Manutacturer Part Number: APL179614CVA
Fitment: Verify this part fits your vehicle using the compatibility chart
