Front Air Suspension Shock For Mercedes W164 ML320 ML350 X164 GL450 GL500 W/ADS
Fitment:
- Mercedes-Benz | GL320 | 2007~2009 | 3.0L
- Mercedes-Benz | GL350 | 2010~2012 | 3.0L
- Mercedes-Benz | GL450 | 2007~2009 | 4.7L
- Mercedes-Benz | GL500 | 2008~2012 | 5.5L
- Mercedes-Benz | GL550 | 2008~2012 | 5.5L
- Mercedes-Benz | ML320 | 2007~2009 | 3.0L
- Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
- Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | ML550 | 2008~2011 | 5.5L
- Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L
Item Specifications
Key Words: Front Air Suspension Shock Strut For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 GL-Class X164 GL320 GL350 GL450 GL550 With Adaptive Damping System
Product Specifics

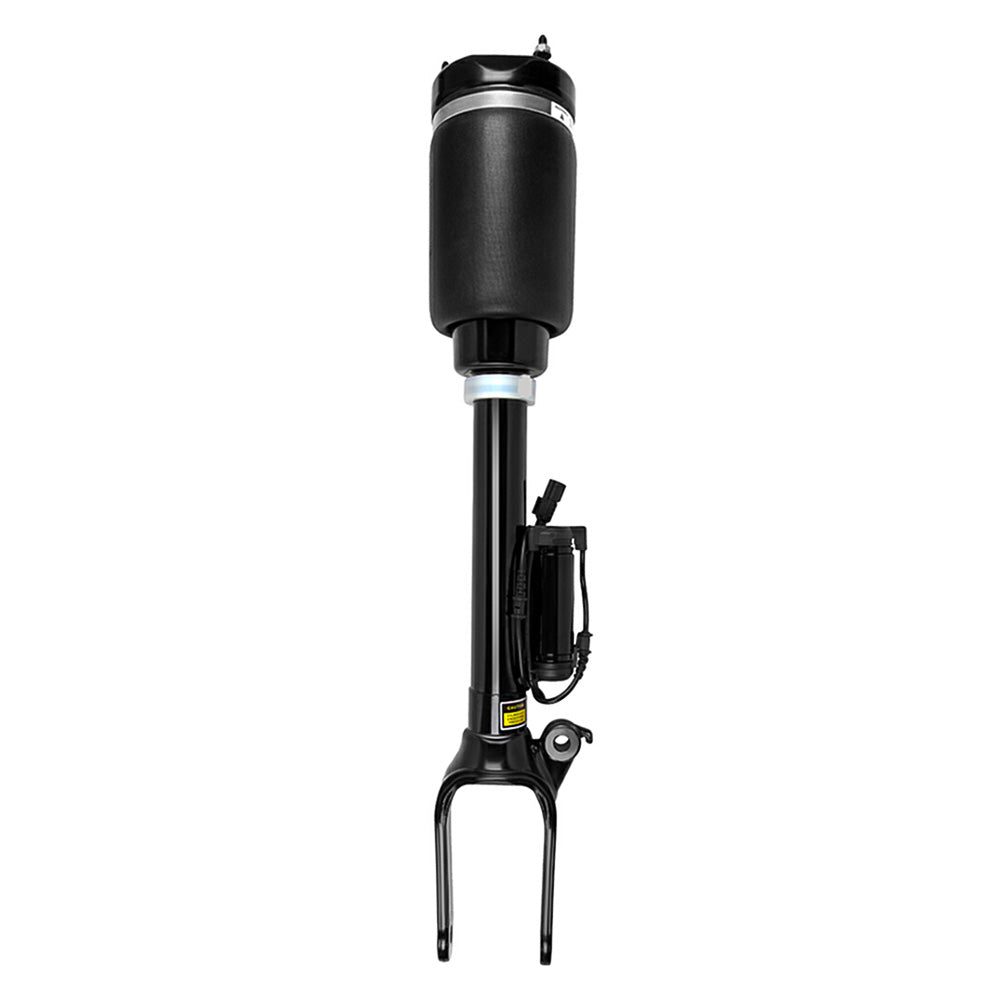

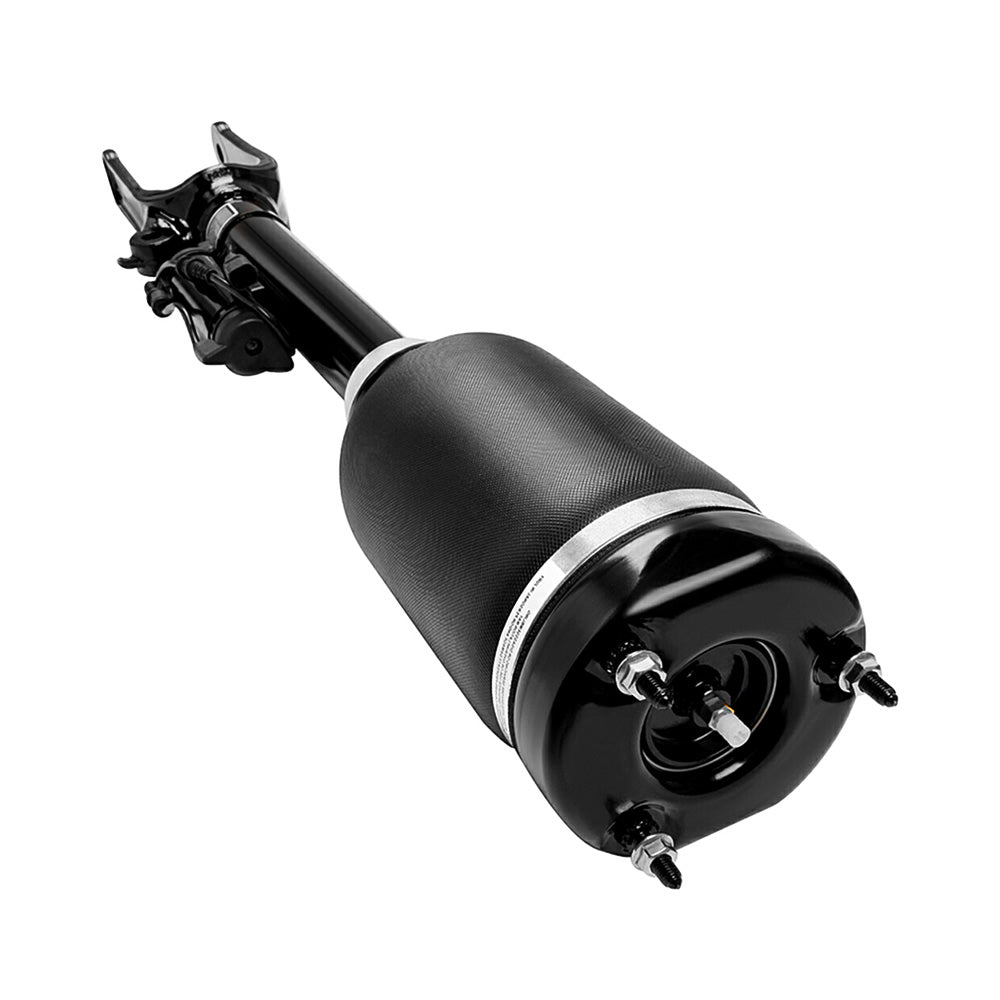

- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 92.50(Length)*17.00(Width)*16.00(Height)
- Single Weight(KG): 10.870
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90

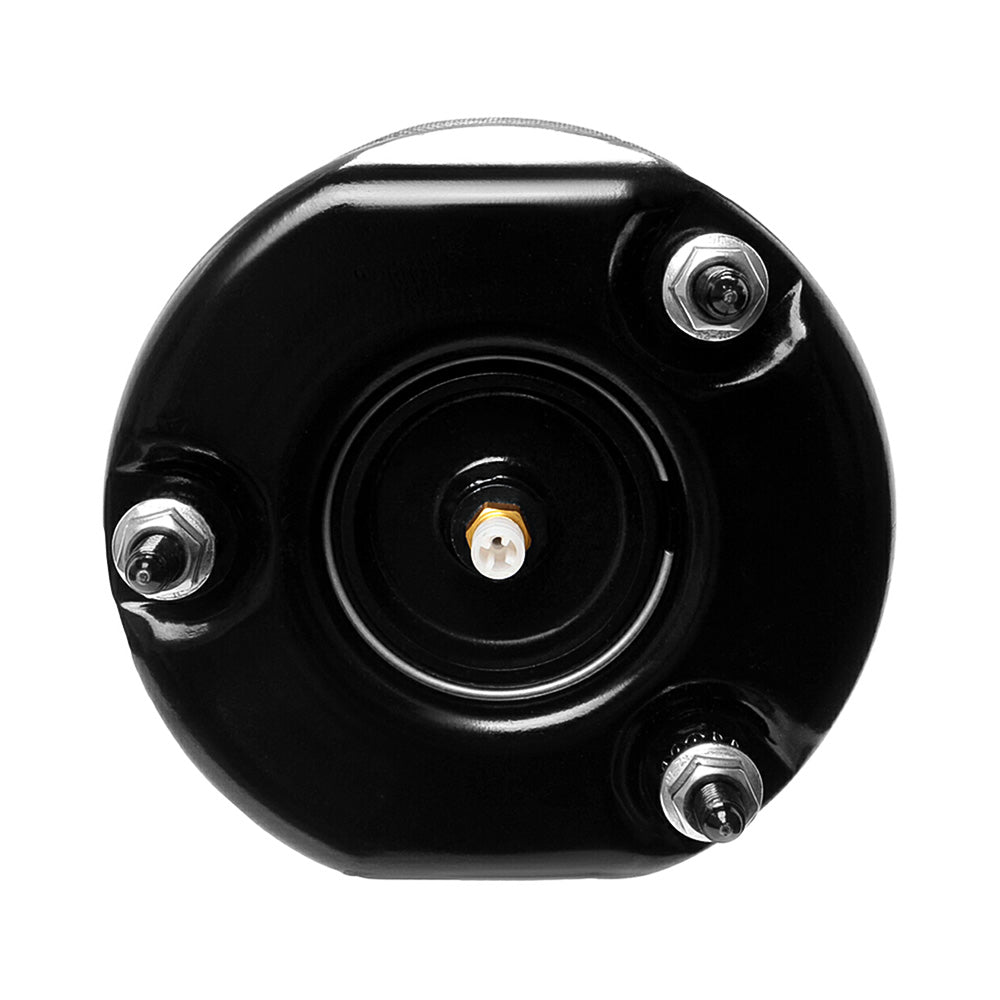

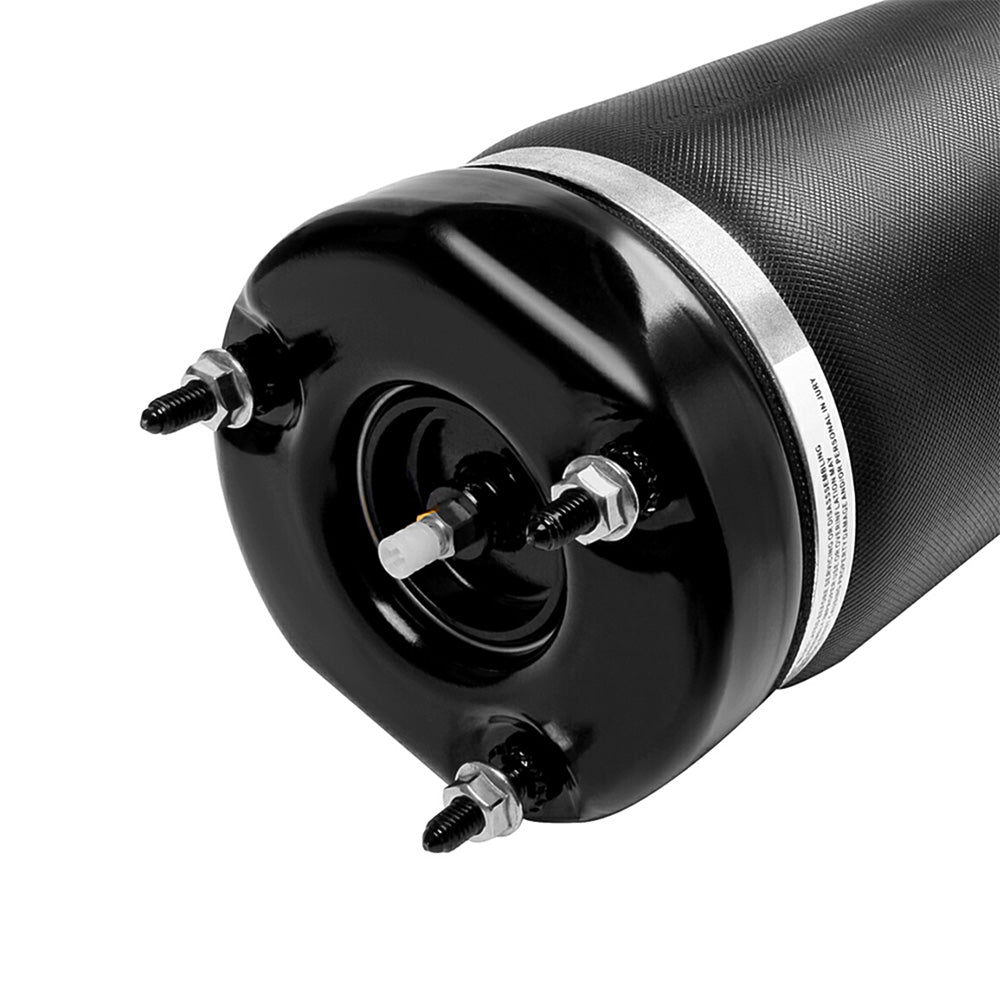

- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X164 W164
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Strut, Air Ride Shock Strut
- Superseded Part Number: 1643204613, 1643205813
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number:
1643204313,1643204413,
1643204613,1643205813,
1643205913,1643206013
*Removal & Installation Guideline
Overview of Airmatic suspension, shown on model 164.1 with Airmatic
(air suspension with level adjustment and adaptive damping system ADS)
1 Nuts
2 Pressure line connection
3 Front suspension strut
4 Cable tie
5 Brake hose bracket
6 Brake hose
7 Cable tie
8 ADS line
9 Nut
10 Nut
11 Nut

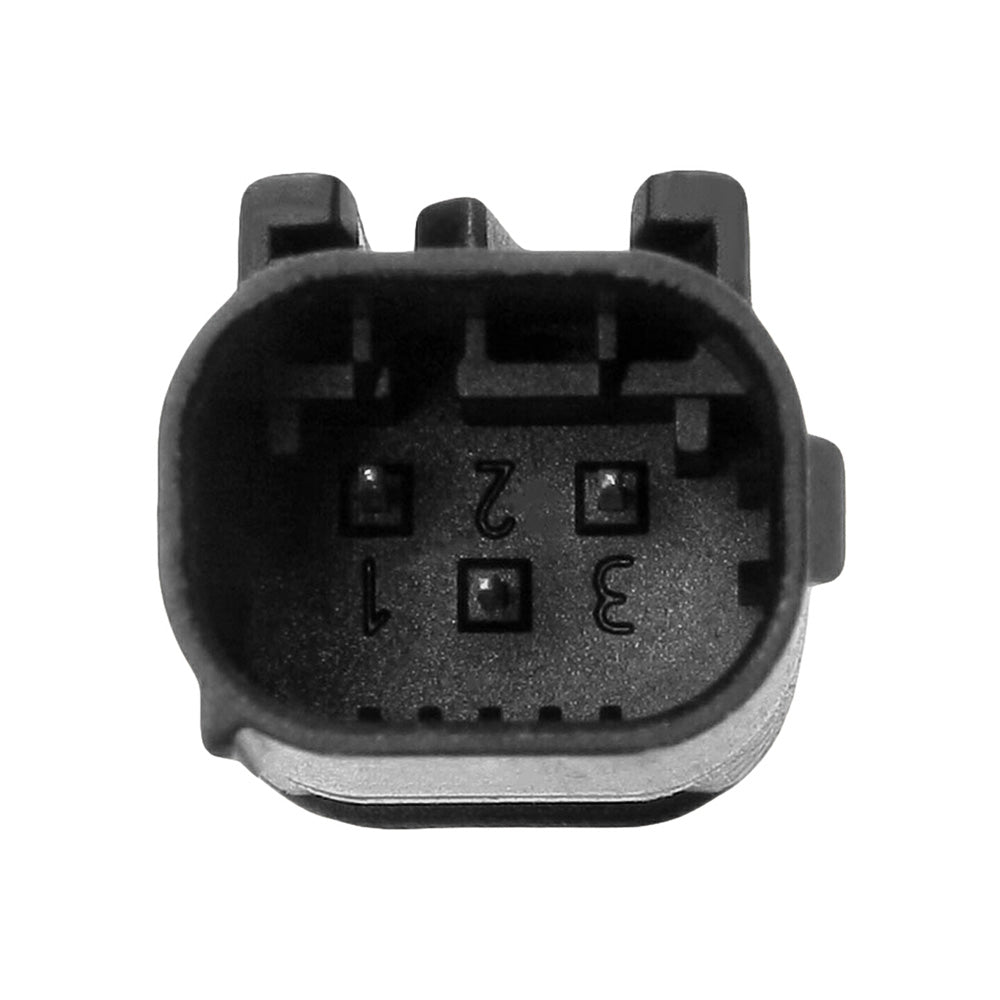

Y51x1 Left front axle damping valve unit connector
Y52x1 Right front axle damping valve unit connector
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes
Single for Front Left or Right Air Suspension Shock Strut
