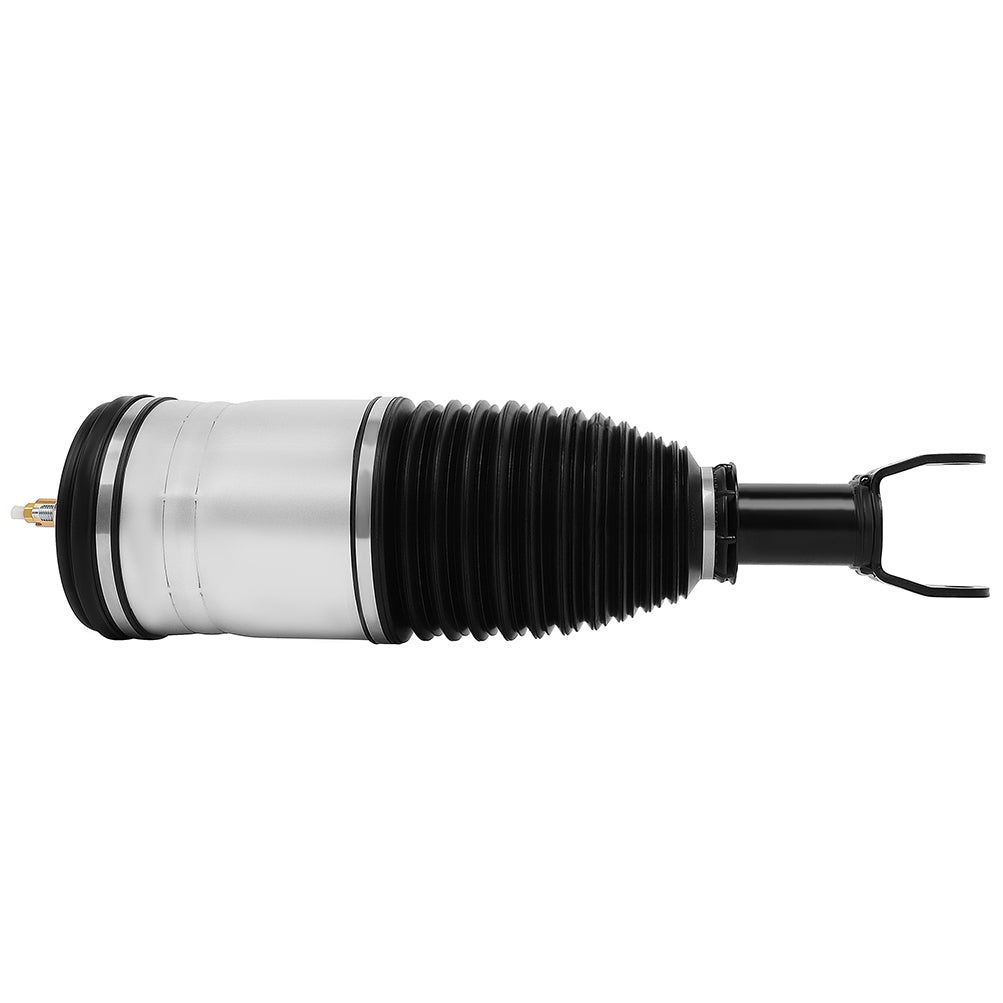

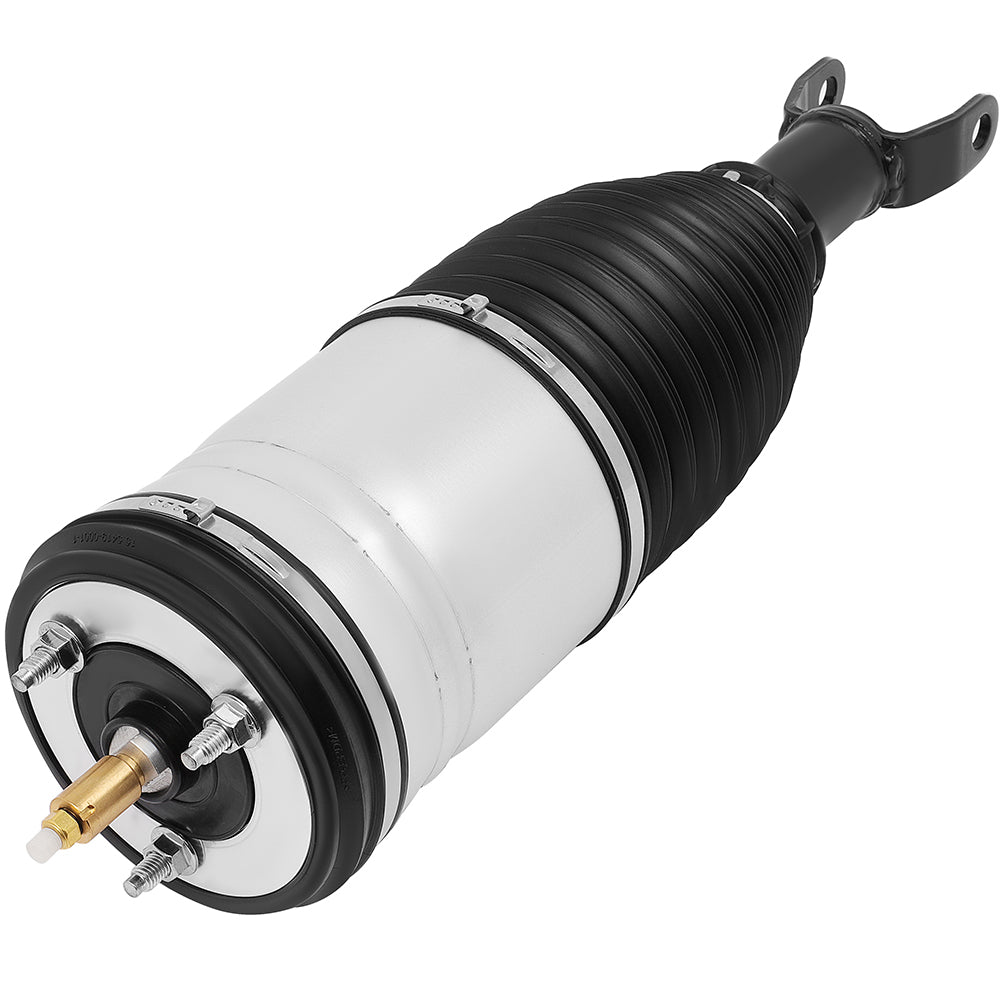

Front Air Suspension Shock Strut For Dodge Ram 1500 Limited Rebel 2013-2019
Fitment:
- Ram | 1500 | 2013~2019 | 3.0L/3.6L/5.7L
Item Specifications
Key Words: Front Air Suspension Strut For Dodge Ram 1500 Limited Rebel 2013-2019
Product Specifics
- Custom Bundle: No
- Interchange Part Number: 04877147AG, 04877147AD
- Adjustable: Yes
- Size: Single Dimension(CM) 75.00(length)*20.00(width)*20.00(height)
- Single Weight(KG): 6.650

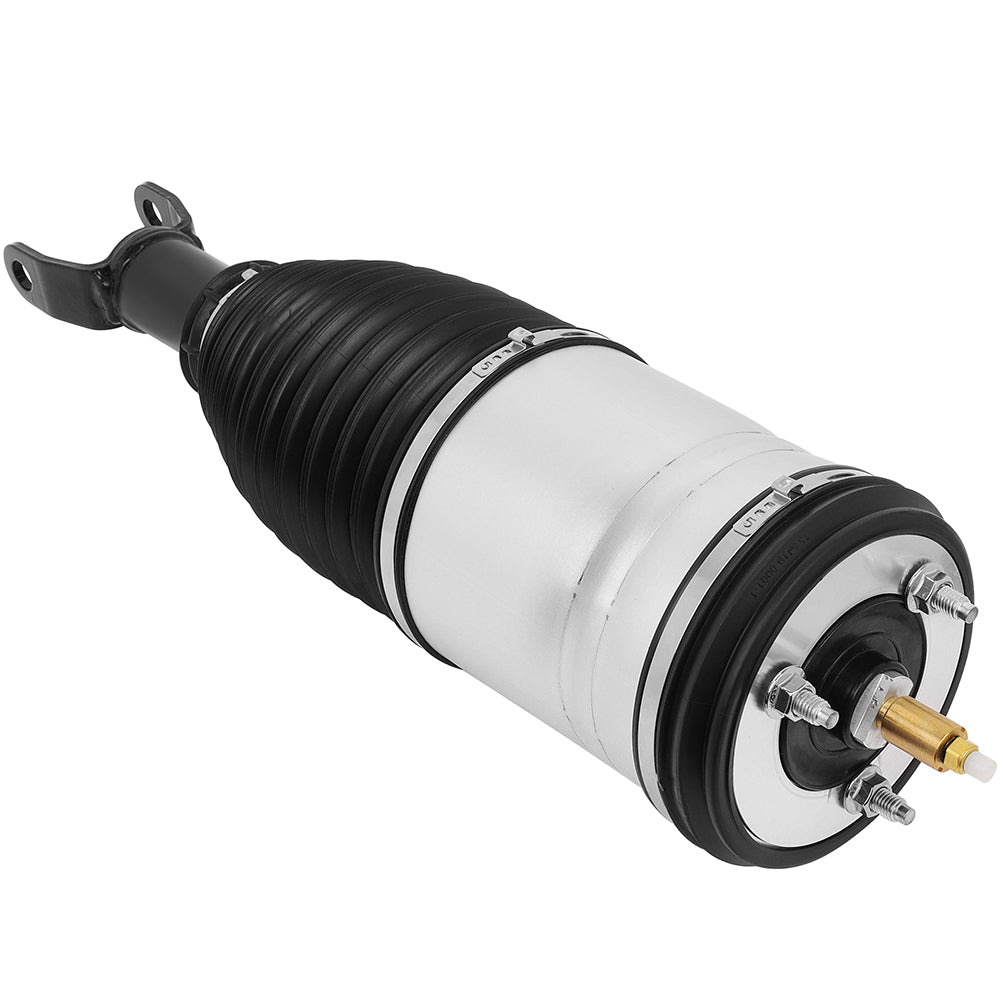

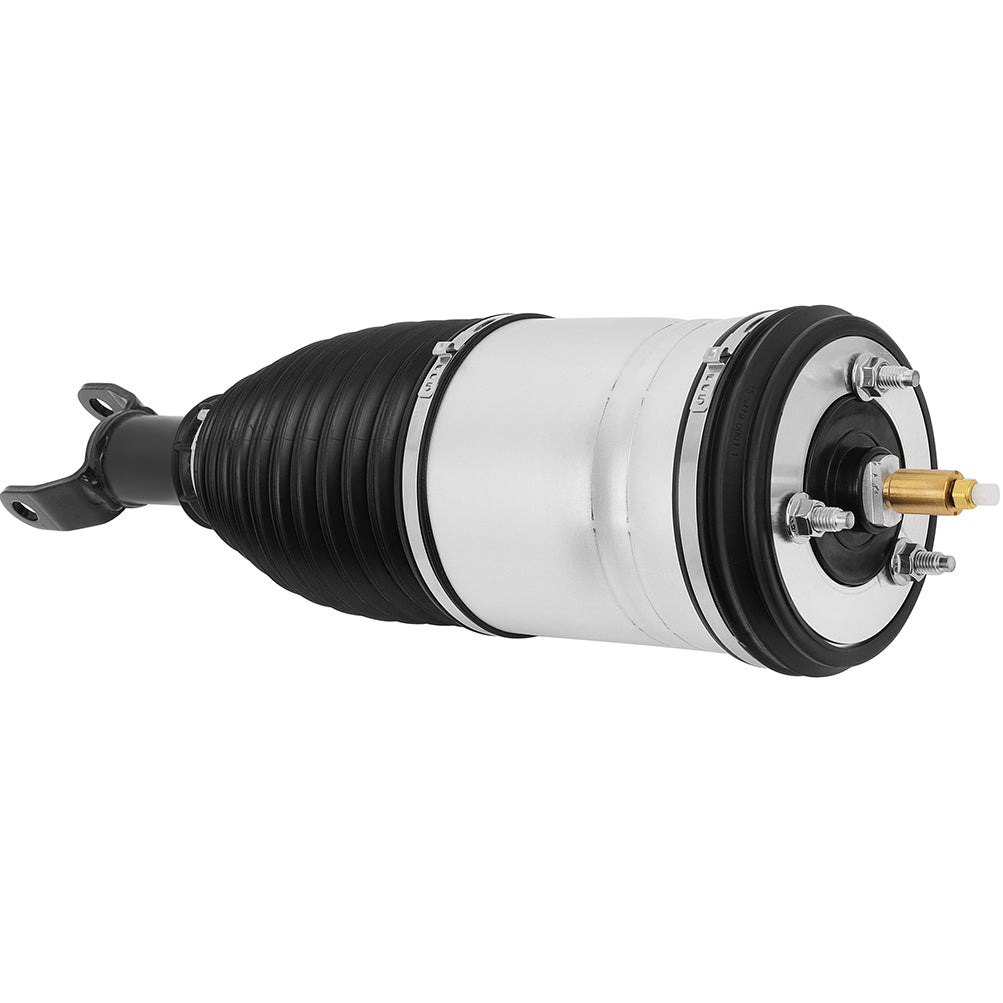

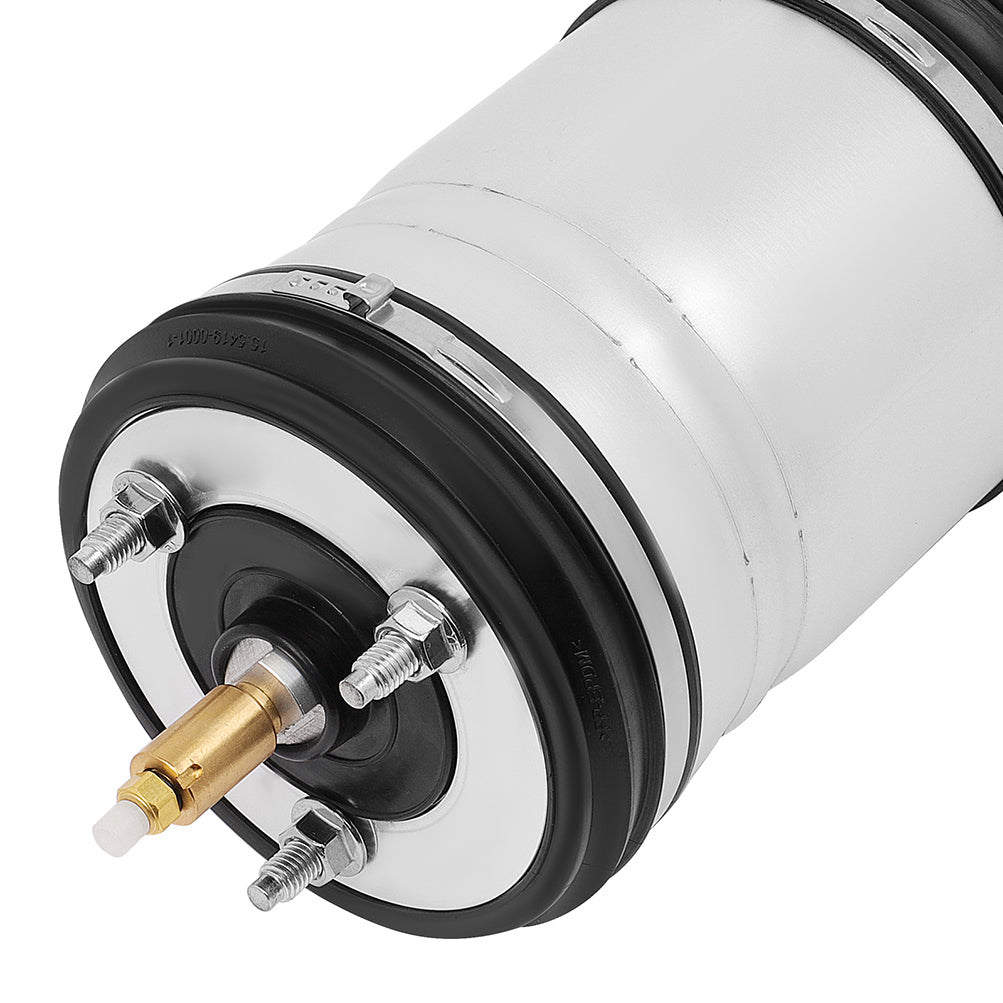

- Upper Mount Type: Stud

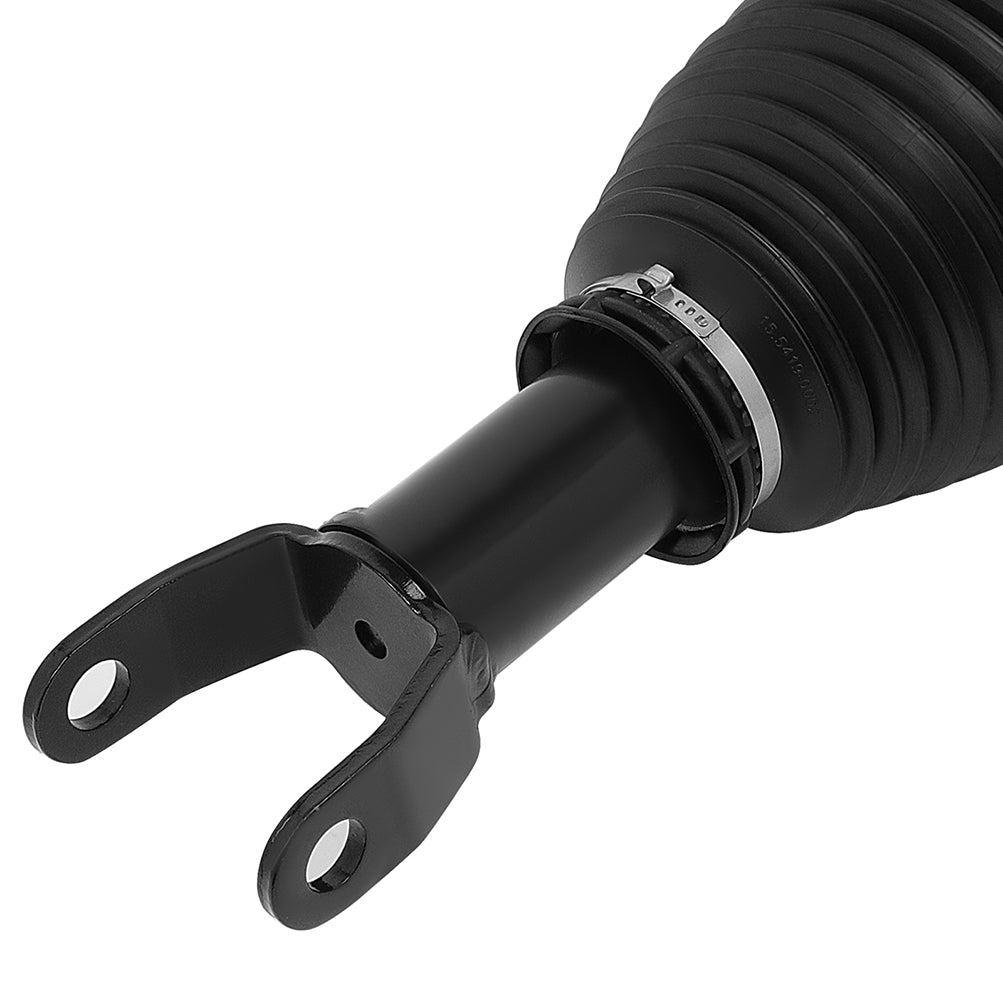

- Lower Mount Type: U-Bracket
- Drive Layout: Front Engine RWD/4WD
- Platform: DS/DJ/D2
- Greasable or Sealed: Sealed
- Part Type: Air Suspension Strut
- Included Hardware: None
- Material: Iron, Aluminium Alloy, Rubber
- Color: Silver
- OE Spec or Performance/Custom: OE Spec
- UPC: Does not apply
- Placement on Vehicle: Front
- Fitment Type: Direct Replacement
- Warranty: 1 Year
- *OEM Part Number:
04877147AF,04877147AC
04877147AG,04877147AD
04877147AB
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove applicable front wheel.(picture 1)
4.Loosen and remove the tie rod end nut.(picture 2)
5.Loose and remove the two sway bar end link nuts.(picture 3,4)
6.Loosen and remove the upper control arm nut.(picture 5)
7.Loosen and remove the nut and bolt from the bottom strut fork.(picture 6)
8.Loosen and remove the air fitting from the top of the strut.(picture 7)
9.Loosen and remove the three top strut mounting nuts.(picture 8)
10.Remove the strut.(picture 9)
11.Removal complete.
*Installation Guideline
12.Install the new strut into the vehicle.(picture 10)
13.Install the three top strut mounting nuts and tighten to manufacturer's specifications.(picture 11)
14.Remove the white shipping pin from the air strut and discard.(picture 12)
15.Remove the existing air line elbow, and then install the new elbow onto the air line.(pictures 13,14)
16.Install the air line until fully seated, pulling outward slightly to confirm engagement.(pictures 15,16)
17.Install the upper control arm nut and tighten to manufacturer's specifications.(picture 17)
18.Reinstall the strut's bottom nut and bolt and tighten to manufacturer's specifications.
19.Reinstall and tighten the two sway bar end link nuts to manufacturer's specifications.
20.Reinstall the tie rod end nut and tighten to manufacturer's specifications.
21.Re-install applicable front wheel.
22.Lower vehicle.
23.Installation complete.
Includes
Single for Front Left or Right Air Suspension Shock Strut
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
