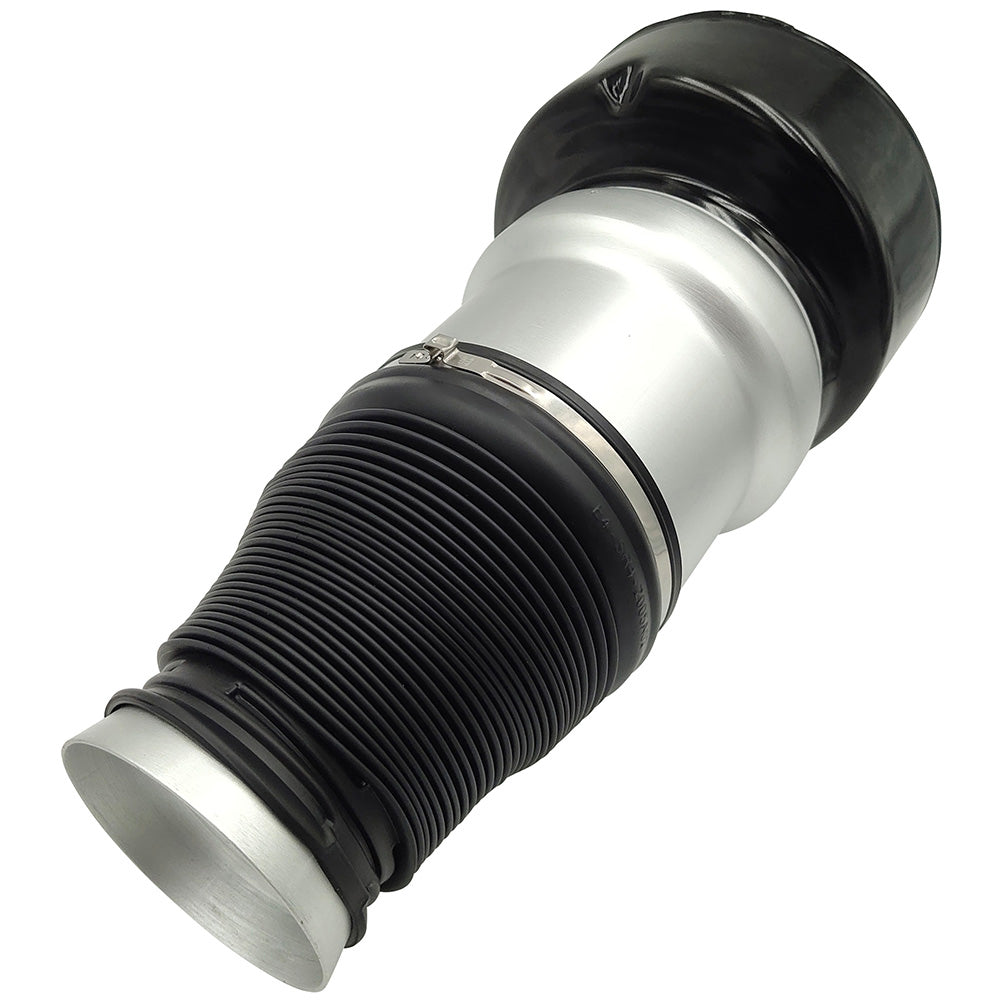

Front Air Suspension Spring Bag For Mercedes W221 RWD S350 S400 S550 CL500 CL550
Fitment:
- Mercedes-Benz | CL500 | 2007~2013 | 4.7L/5.5L
- Mercedes-Benz | CL550 | 2007~2008 | 5.5L
- Mercedes-Benz | CL600 | 2008~2014 | 5.5L
- Mercedes-Benz | CL63 AMG | 2009~2014 | 5.5L/6.0L/6.3L
- Mercedes-Benz | CL65 AMG | 2008~2014 | 6.0L/6.2L
- Mercedes-Benz | S350 | 2012~2013 | 3.5L
- Mercedes-Benz | S500 | 2007~2011 | 5.5L
- Mercedes-Benz | S550 | 2007~2011 | 5.5L
- Mercedes-Benz | S600 | 2007~2013 | 5.5L
- Mercedes-Benz | S63 AMG | 2008~2013 | 5.5L/6.0L/6.2L/6.3L
- Mercedes-Benz | S65 AMG | 2007~2013 | 6.0L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 41(Length)*18(Width)*18(Height)
- Single Weight(KG): 4.5
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Included Hardware: None
- Drive Layout: Front Engine RWD/2WD
- Platform: W221
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 2213204913 2213200038 2213205113,2213209313A
- Superseded Part Number: 2213207413
- Return Policy: 30 Days Free Return Or Exchange
- Surface Finish: High Quality
- Replacement Part Number:
2213204913
2213200038
2213205113
2213209313
2213209713
2213207313
2213207413
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Lift vehicle and remove rear right wheel.
3.Remove the brake caliper clip.
4.Remove the two(2)bolts holding the brake caliper.Remove the brake caliper and suspend to prevent damage to brake lines.
5.Remove the fasteners and inner wheel liner to expose the rear air strut's wiring block.
6.Remove the metal clip and plug for the rear air strut's dampening coil.
7.Remove the lower sway bar end link nut and separate.(
8.Remove the lower air strut mounting nut.
9.Remove the lower control arm nut.
10.Remove the rear dash cover from inside of the vehicle.
11.Pull back the foam insulation to expose the air strut top mount.
12.Remove the air line.
13.Remove the three(3)top mounting nuts.
14.Remove the lower control arm bolt and the lower air strut mounting bolt.
15.Pull down on the lower control arm and remove the air strut from the vehicle.
16.Removal complete.
Installation Guideline
Installation is in reverse order of air strut removal.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Notes : This is only a repair kit and cannot be used in its entirety.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Single for Front Left or Right Air Suspension Shock Strut
