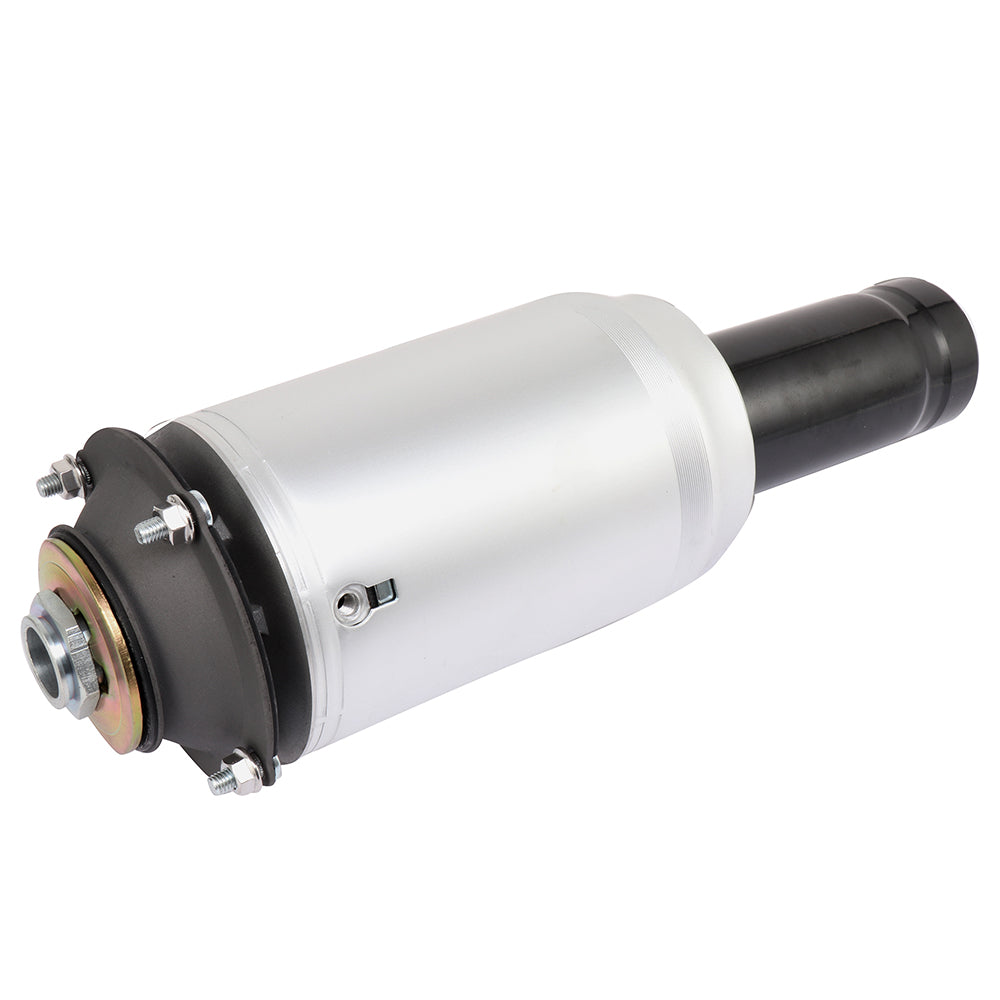

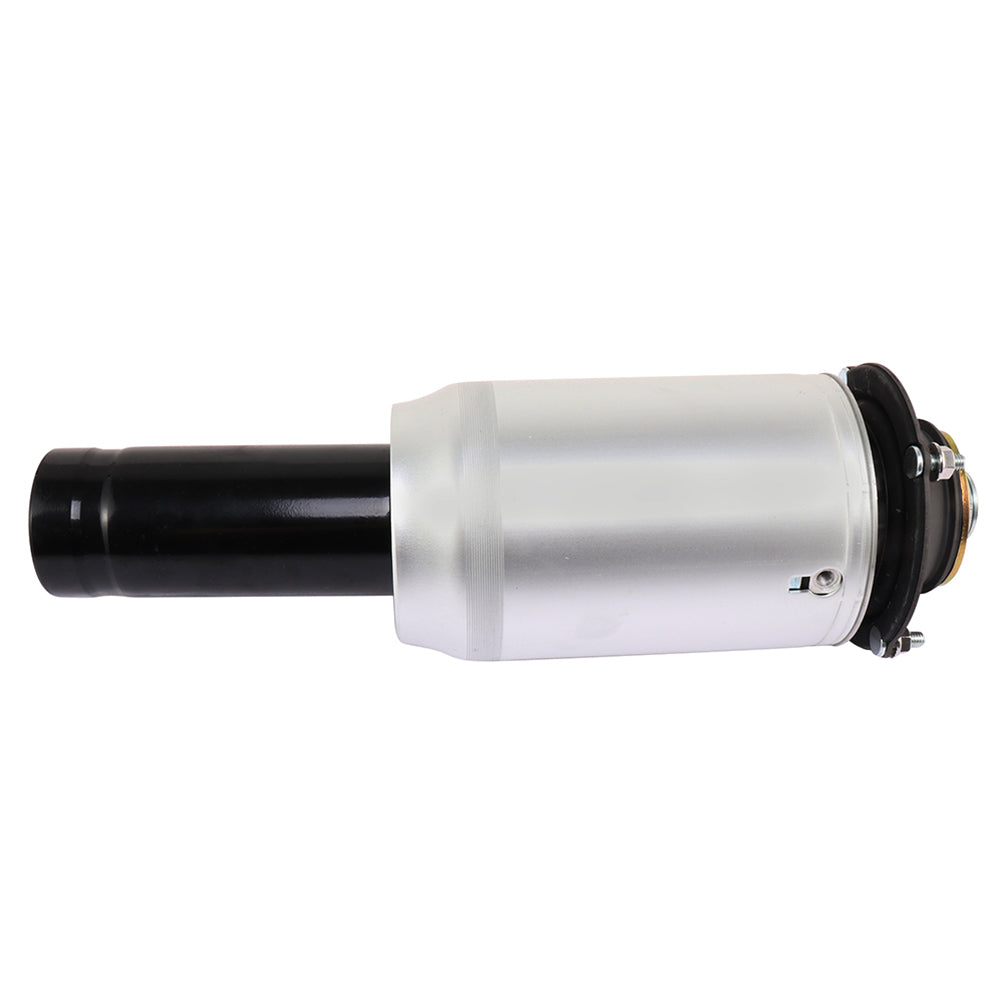

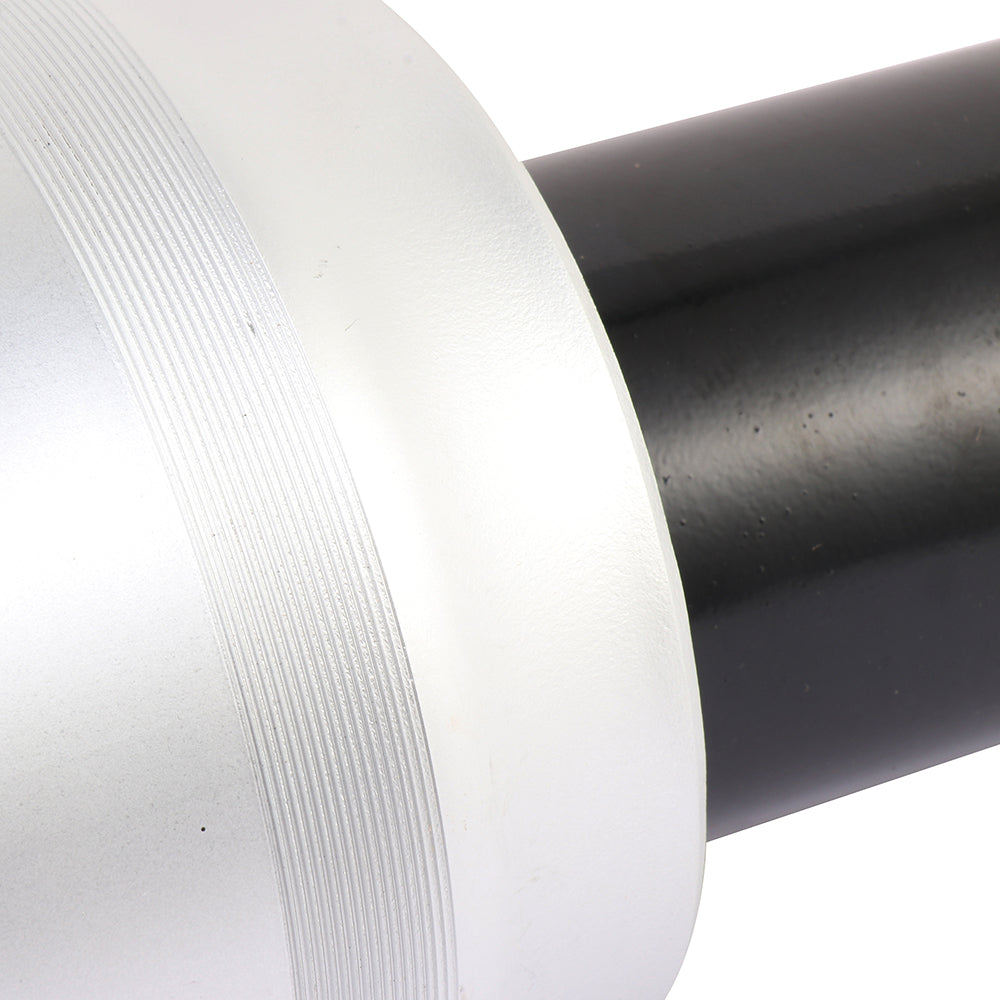

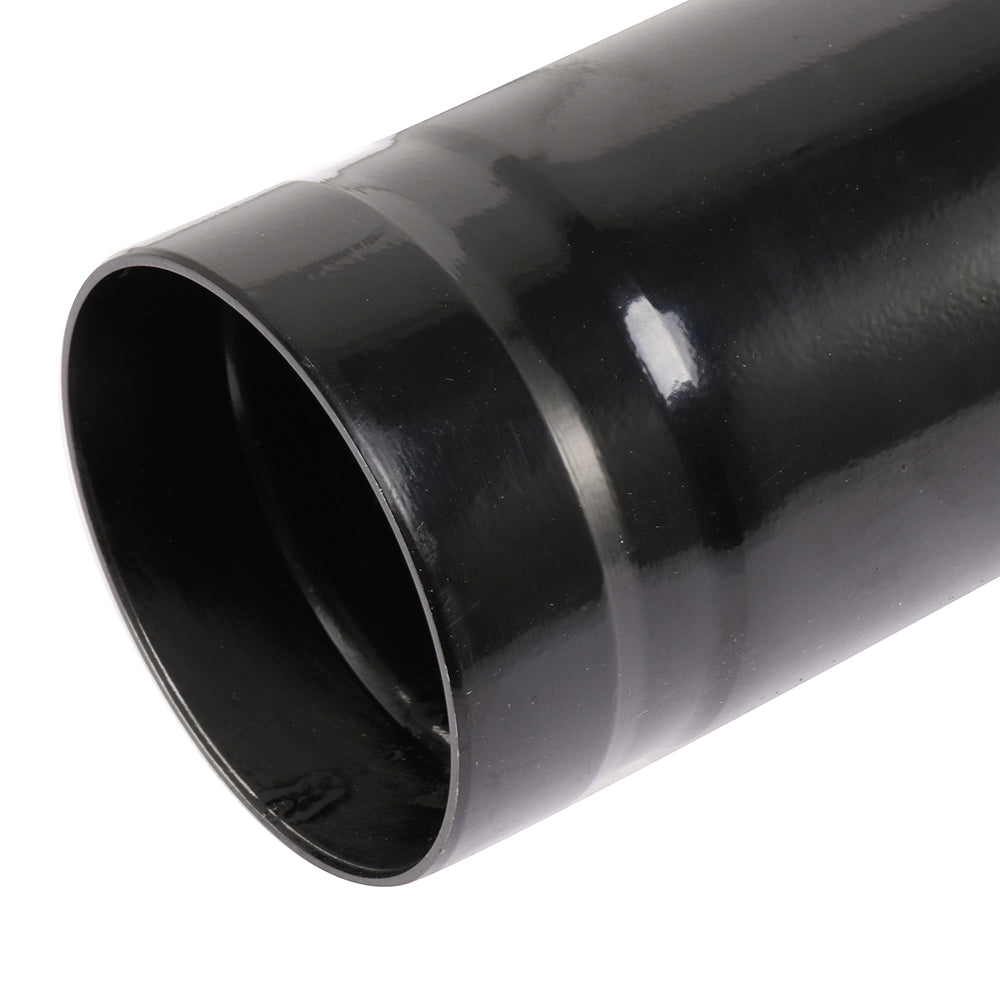

Front Left Air Suspension Bag For VW Phaeton, Bentley Continental GT GTC
Fitment:
- Bentley | Continental | 2003~2013 | 4.0L/6.0L/6.8L
- Volkswagen | Phaeton | 2004~2006 | 4.2L/6.0L
Item Specifications
Key Words: Front Left Air Suspension Spring For Volkswagen Phaeton V8 2004-2006 W12 2004-2006 Bentley Continental Flying Spur 2006-2012 GT 2003-2012 GTC 2007-2012 Supersports 2010-2012
Product Specifics
- Part Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 45.00(Length)*18.00(Width)*18.00(Height)
- Single Weight(KG): 5.000
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required

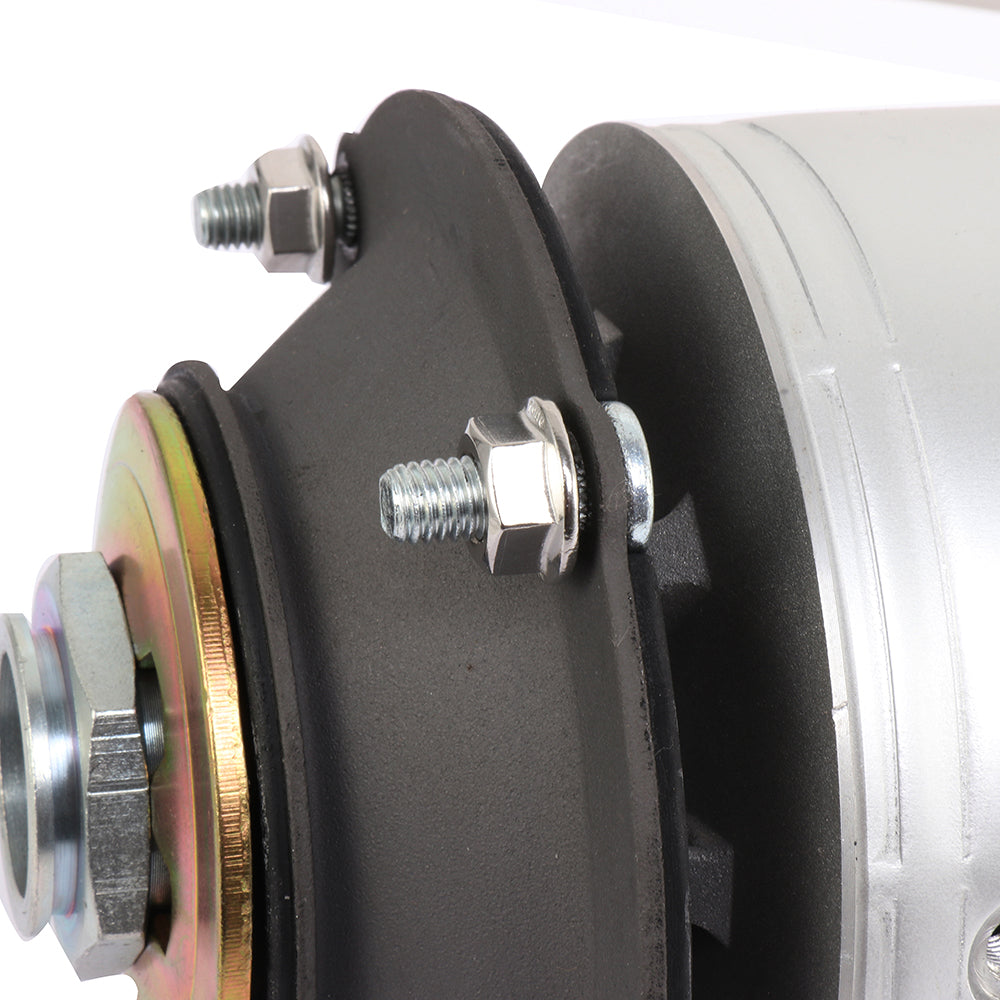

- Upper Mount Type: Stud
- Lower Mount Type: Base Cup
- Included Hardware: Connector Fitting
- Drive Layout: Front Engine RWD & 4WD
- Platform: D1
- Custom Bundle: No
- Material: Iron,Aluminium Alloy,Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Spring Bag, Air Ride Spring Bag
- Superseded Part Number: 3W0616039, 3W5616039, 3W7616039
- *Platform Drive Layout:
Bentley Continental
Front-Engine, Rear-Wheel-Drive Layout
Volkswagen Phaeton
F4 Front-Engine Longitudinally-Mounted, 4Motion Four-Wheel Drive - *OEM Part Number:
3D0616039,3D5616039,3D7616039,
3W0616039,3W5616039,3W7616039
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.(picture 1)
4.Loosen and remove air line. Remove the air line fitting from the air hose and discard.(picture 2)
5.Loosen and remove the top pinch nut/bolt from the spindle/ball joint assembly.(picture 3,4)
6.Loosen the lower strut mounting nut/bolt.(picture 5)
7.Raise the hood and disconnect the air strut¡¯s electrical plug.(picture 6)
8.Remove the weather strip and plastic cover to access the three(3)top mounting bolts.(picture 7,8)
9.Loosen and remove the three(3)top mounting bolts.(picture 9,10)
10.Remove the lower air strut mounting bolt.(picture 11)
11.Remove the air strut assembly from the vehicle.(picture 12)
12.Remove the four(4)top nuts to separate the air strut from the top mount.(picture 13,14)
13.Removal complete.
*Installation Guideline
Installation is in reverse order of air spring removal, with the exception of the Secured reservoir hose.

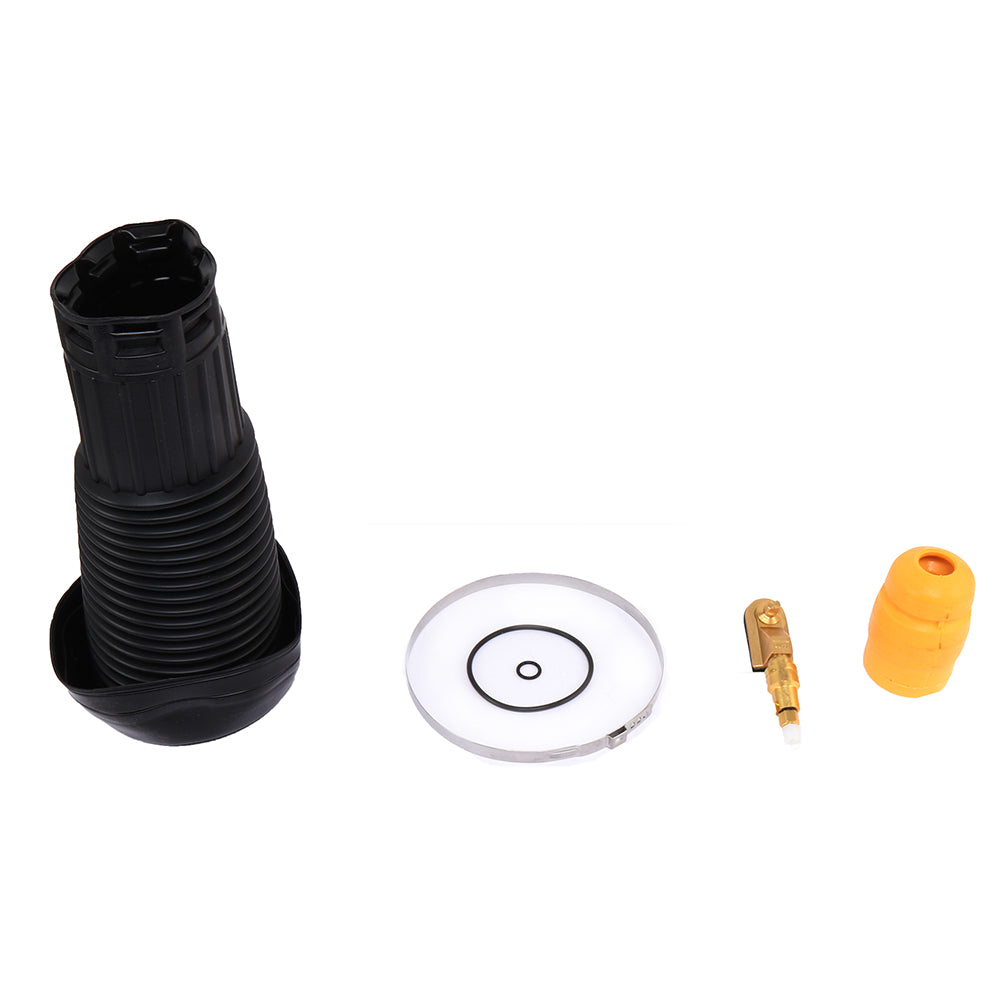

Includes
Single for Front Left Air Suspension Spring Bag
Notes : Please double confim the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
