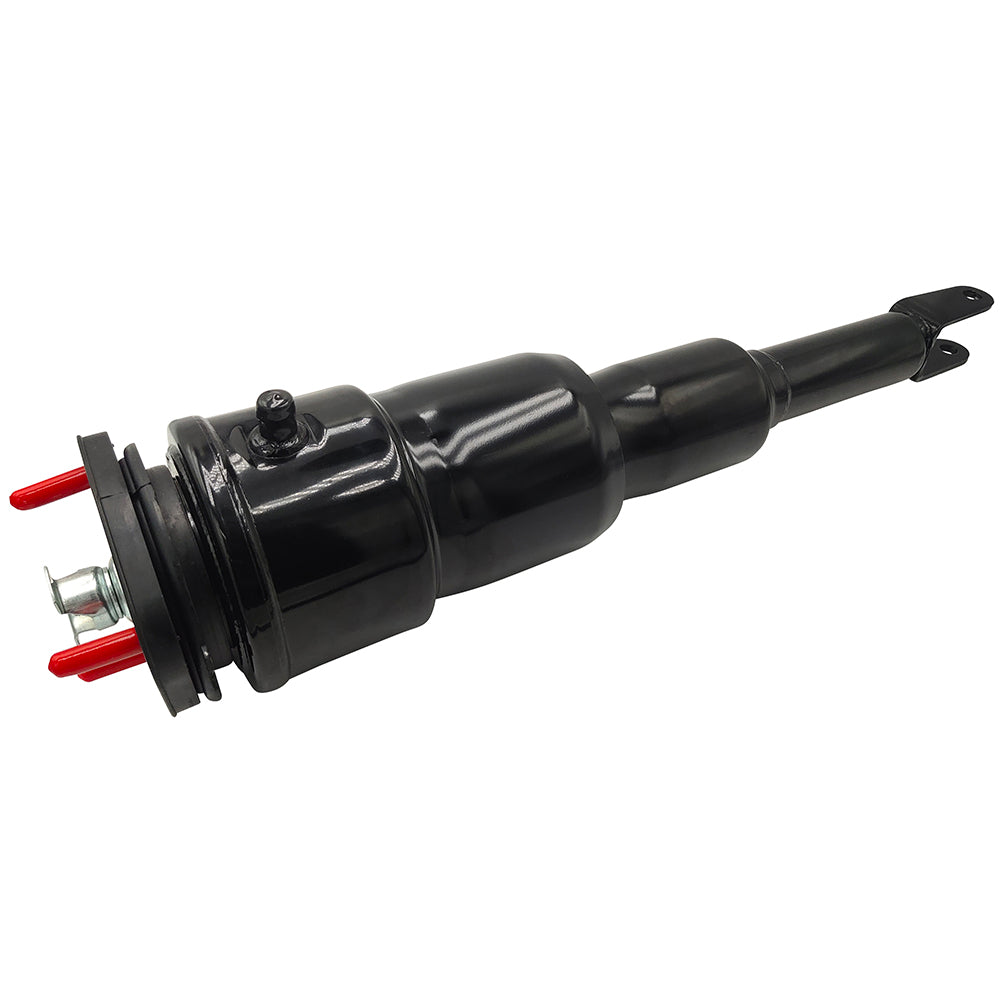

Front Left Air Suspension Shock For 2007-2012 Lexus LS460 LS470 RWD 4802050150

Fitment:

• Lexus | LS460 | 2007~2012 | 4.6L

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.Set steeringto straight ahead.

2.Raise vehicle.

3.Remove front wheel.

4.Remove applicable engine bay trim to access the shock tower beneath.

5.Locate the shock tower and begin by removing the 3 nuts securing the actuator cover In place.

6.Carefully disconnect the actuator¡¯s electrical connection and set the cover aside.

7.Remove the actuator by rotating counter-clockwise and lifting out of position.

8.Next, remove the three nuts retaining the top of the strut to the strut tower.

9.Move to the underside of the vehicle to loosen and remove the lower shock mounting bolt located on the lower control arm.

10.Locate and remove the air line by pushing in on the retention clip to dislodge the air line connection.

11.Locate and remove the fasteners retaining the brake hose bracket to the inside of the spindle assembly.

12.Locate and remove the cotter pins retaining the castle nuts that secure the upper control arms to the spindle assembly.

13.With cotter pins removed, loosen and remove the castle nuts.

14.With a ball joint separation tool or other means, dislodge the upper control arms from the spindle assembly.

15.Carefully manuever the shock over the lower control arm and out away from the vehicle.

16. Removal complete.

Installation Guideline

Tighten all nuts and bolts to manufacturer's specifications during the installation process.

Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white shipping pin from the new air fitting and insert the air line until fully seated.

1.Installation is in the reverse order of air strut removal. adhere to all manufacture¡¯s specifications for torque values.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Includes

Single for Front Left Air Suspension Shock Strut
