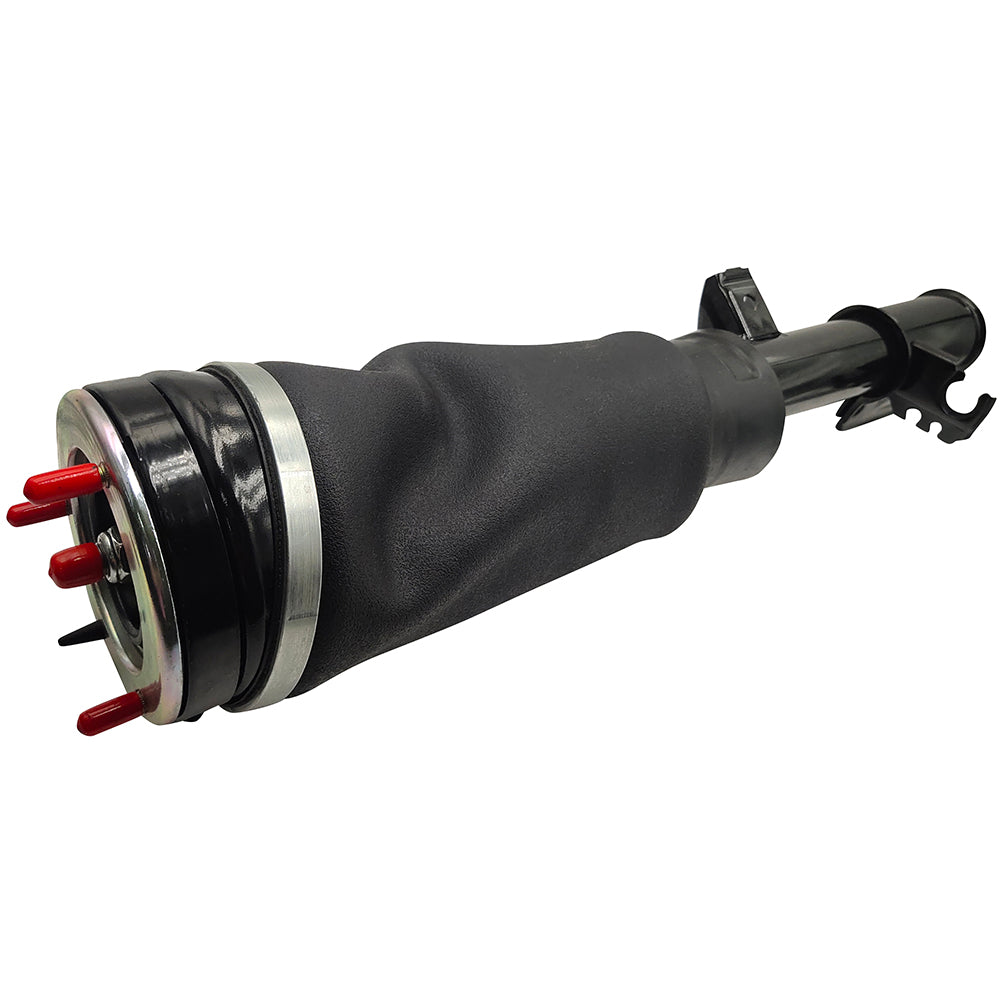

Front Left Air Suspension Shock For 2010-2012 Land Rove Rang Rover L322 with VDS

Fitment:

• Land Rover | Range Rover | 2010~2012 | 5.0L

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise the hood to access the air strut's top damper.

3.Remove the two (2) bolts holding the damper to the top of the air strut.

4.Remove the damper from the wire.

5.Remove the electrical plug from the top of the shock rod by pressing in on the two (2) sides and pulling up.

6.Raise vehicle and remove front left wheel.

7.Remove the brake hose and abs sensor wire from the retention bracket on the strut.

8.Removethe sensor from the small plastic clip at the bottom of the shock.

9.Disconnect the sway bar link by removing the nut holding the ball joint to the strut. you may need to hold the ball joint from spinning by placing a wrench on the two flats of the ball joint on the back side of the bracket.

10.Remove the three (3) upper mount nuts.

11.Remove the two large bolts that hold the strut to the spindle assembly. (figure d) with the nuts and bolts removed from the spindle assembly, pull the spindle outward while pushing the strut.

12.With the air strut removed you can now gain access to its hose connection, slowly remove the fitting to deflate and free the assembly. remove the air line fitting from the air hose and discard.

13.Removal complete.

Installation Guideline

Installation is in reverse order of removal.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

Single for Front Left Air Suspension Shock Strut
