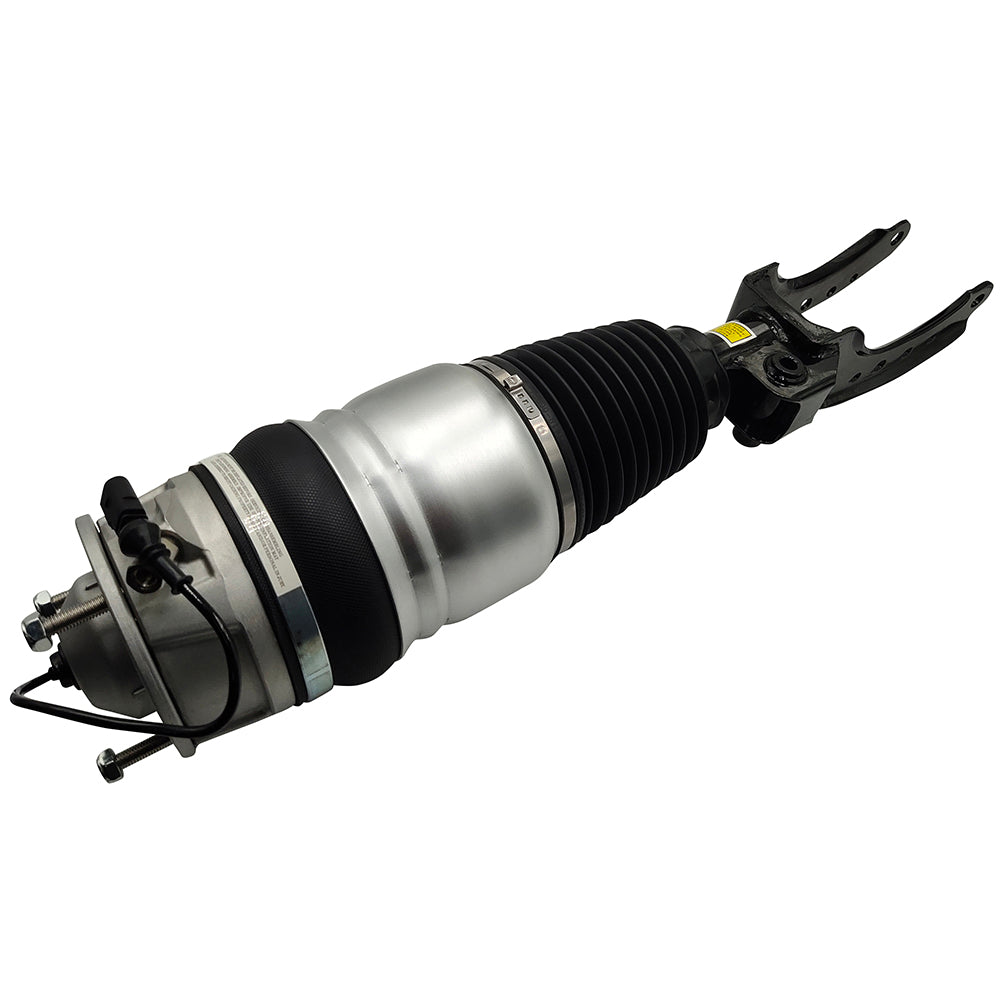

Front Left Air Suspension Shock For 2010-2018 Audi Q7 VW Touareg Porsche Cayenne

Fitment

• Porsche | Cayenne | 2011~2018 | 3.0L/3.6L/4.2L/4.8L
• Volkswagen | Touareg | 2011~2018 | 3.0L/3.6L/4.2L

Product Specifics

• Type: Air Suspension Strut
• Fitment Type: Direct Replacement
• Size: Single Dimension(CM) 78.5(Length)*20.5(Width)*20.5(Height)
• Single Weight(KG): 9.6
• Maximum Operating Pressure (psi): 160
• Minimum Operating Pressure (psi): 90
• Package: Box
• Modified Item: No
• Included Hardware: None
• Drive Layout: Front Engine RWD & 4WD
• Platform: 4M
• Custom Bundle: No
• Material: Iron+Aluminium Alloy+Rubber
• Quantity: 1 PC
• Manufacturer Warranty: 1 Year
• OE Spec or Performance/Custom: OE Spec
• Adjustable: Yes
• Features: Sealed
• UPC: Does not apply
• Interchange Part Number: 7P6616039K,7P6616039N,95535803900,95535803911A
• Other Part Number: 95535803901,95535803910,95535803911
• Superseded Part Number: 95834304350,95834304550,95834304750
• Return Policy: 30 Days Free Return Or Exchange
• Surface Finish: High Quality
• Replacement Part Number:
  7P6616039K,7P6616039N,95535803900
  95535803901,95535803910,95535803911
  95834304350,95834304550,95834304750
  95835803900,95835803901,95835803903
  95835803910,95835803911,95835803914
  95835803920

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove front wheel.

4.Remove air line fitting from the air valve. Remove the air line fitting from the air line and discard.

5.Remove the lower shock-mounting nut and bolt.

6.Remove the ball joint nut from the spindle assembly and separate.

7.Remove the sway bar end link to shock mounting bolt.

8.Disconnect the ride height sensor connector.

9.Lift hood and remove the three(3)mounting bolts that secure the air strut's upper mount. Remove plastic cover to gain access to the third bolt.

10.Remove strut assembly from the vehicle.

Installation Guideline

Installation is in reverse order of air spring removal, with the exception of the Secured reservoir hose.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

Single for Front Left Air Suspension Shock Strut
