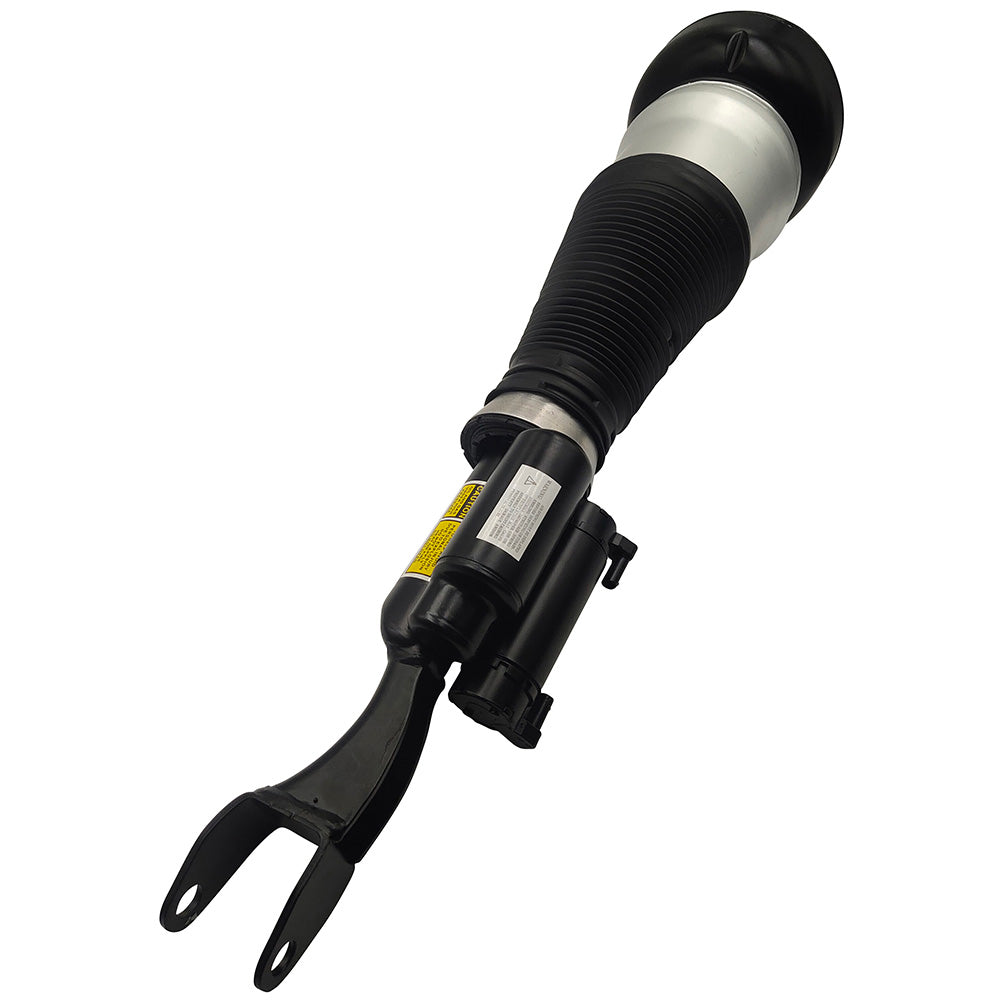

Front Left Air Suspension Shock For Mercedes 4MATIC W222 S500 S560 S550 S450 AWD

Fitment:

• Mercedes-Benz | Maybach S550 | 2017 | 4.7L
• Mercedes-Benz | Maybach S560 | 2018~2020 | 4.0L
• Mercedes-Benz | S450 | 2018~2020 | 3.0L
• Mercedes-Benz | S500 | 2016 | 4.7L
• Mercedes-Benz | S550 | 2015~2017 | 4.7L
• Mercedes-Benz | S560 | 2018~2020 | 4.0L
• Mercedes-Benz | S63 AMG | 2017~2020 | 4.0L/5.5L

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Raise vehicle at lifting points prescribed by manufacturer

2. Remove applicable engine baytrimto gain accesstothetop strut mount.

3.Slowly disconnect air line fitting fromthetop ofthe strut.

4.Remove used air line fitting from the air line and discard. use the figure below as an example.

5.Remove front left wheel.

6.Disconnect the two (2) electrical connectors from the strut.

7.Unroute the lines and disconnect the strut wire harness from the lower mount of the

strut.

8.Remove lower strut bolt and nut.

9.Remove the three (3) top mount nuts.

10.Remove bolt and nut from spindle and disconnect.

11.Remove the strut from the vehicle.

12.Remove top mount plate from the strut. this will be reused in the installation.

13.Removal complete.

Installation Guideline

1.Removethe shipping plug fromthe check valve and install the voss fitting from the provided accessory kit on to the arnott air strut. remove the shipping pin from the voss fitting.

2.Install the top mount plate on to the new strut.

3.Install the arnott strut in the vehicle.

4.Reconnect the spindle to install the bolt and nut. tighten to manufacturer¡¯s

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

Single for Front Left Air Suspension Shock Strut
