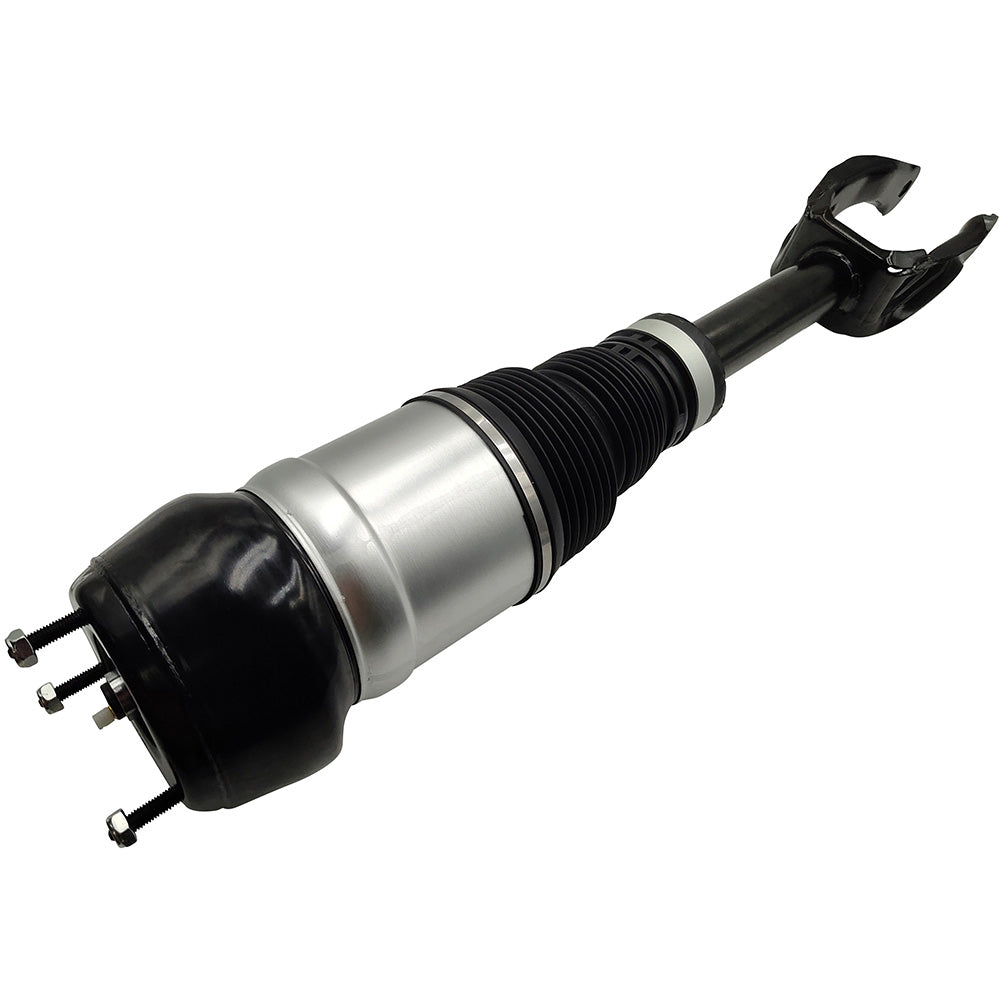

Front Left Air Suspension Shock For Mercedes X166 GL450 GL350 GL550 GL63 w/oADS
Fitment:
- Mercedes-Benz | GL450 | 2013 | 4.7L
- Mercedes-Benz | GLE300d | 2016~2017 | 2.1L
- Mercedes-Benz | GLE350 | 2016~2018 | 3.5L
- Mercedes-Benz | GLE350d | 2016 | --/3.0L
- Mercedes-Benz | GLE400 | 2016~2017 | --/3.0L
- Mercedes-Benz | GLE43 AMG | 2017~2018 | 3.0L
- Mercedes-Benz | GLE450 AMG | 2016~2017 | --/3.0L
- Mercedes-Benz | GLE500 | 2016~2018 | 3.0L/4.7L
- Mercedes-Benz | GLE550 | 2016~2018 | 4.7L
- Mercedes-Benz | GLE63 AMG | 2016~2018 | 5.5L
- Mercedes-Benz | GLE63 AMG S | 2016~2018 | 5.5L
- Mercedes-Benz | GLS450 | 2017 | 3.0L
- Mercedes-Benz | ML250 | 2015 | 2.1L
- Mercedes-Benz | ML350 | 2012~2015 | 3.0L/3.5L/4.7L
- Mercedes-Benz | ML400 | 2015 | 3.0L
- Mercedes-Benz | ML500 | 2012~2015 | 4.7L
- Mercedes-Benz | ML550 | 2012~2015 | 4.7L
- Mercedes-Benz | ML63 AMG | 2012~2015 | 5.5L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 100(Length)*19(Width)*19(Height)
- Single Weight(KG): 11.3
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X166
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 166320496680 1663202513 1663204866,166320496680A
- Superseded Part Number: 166-3202513,166-3207313,166-3204966
- Return Policy: 30 Days Free Return Or Exchange
- Surface Finish: High Quality
- Replacement Part Number:
166320496680,1663202513
1663204866,1663204966
1663207313 ,166-320-4966-80,
166-320-2513,166-320-7313
166-320-4966,166 320 4966 80,
166 320 2513,166 320 7313,
166 320 4966, A166320496680, A166320A2513,
A1663207313, A1663204966, A166-320-4966-80, A166-320-A2513,
A166-320-7313, A166-320-4966, A166 320 4966 80,
A166 320 A2513, A166 320 7313, A166 320 4966
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove the applicable front wheel.
4.Open the hood.
5.Remove the rubber trim as depicted.
6.Disconnect the air line from the strut assembly.
7.Remove the three shock top mount nuts.
8.Remove the electrical wires from the wire routing harness.
9.Remove the wire routing harness from the strut body.
10.Loosen and remove the axle nut and seperate the axle from the wheel hub.
11.Remove the sway bar end link nut.
12.Remove the control arm nut and seperate the upper control arm from the spindle assembly.
13.Pull down on the lower control arm to seperate the sway bar end link from the lower control arm control arm.
14.Remove the bottom mounting bolt.
15.Remove the axle from the wheel hub.
16.Carefully remove the strut assembly.
17.Removal complete.
Installation Guideline
1.Install the shock into the vehicle.
2.Insert the axle into the wheel hub.
3.Install the bottom nut and bolt and tighten to manufacturer's specifications.
4.Reattach the sway bar end link to the control arm and reinstall the sway bar end link nut. tighten to manufacturer's specifications.
5.Reinstall the control arm nut.
6.Reattach the axle to the wheel hub and reinstall the axle nut.
7.Reattach the wire routing harness.
8.Reroute the electrical wires in the wire harness.
9.Install the three top shock mount nuts.
10.Reinstall the air line. see provided tsb.
11.Close the hood.
12.Reinstall the wiper cowl and seal.
13.Reinstall the wheel.
14.Installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Single for Front Left Air Suspension Shock Strut
