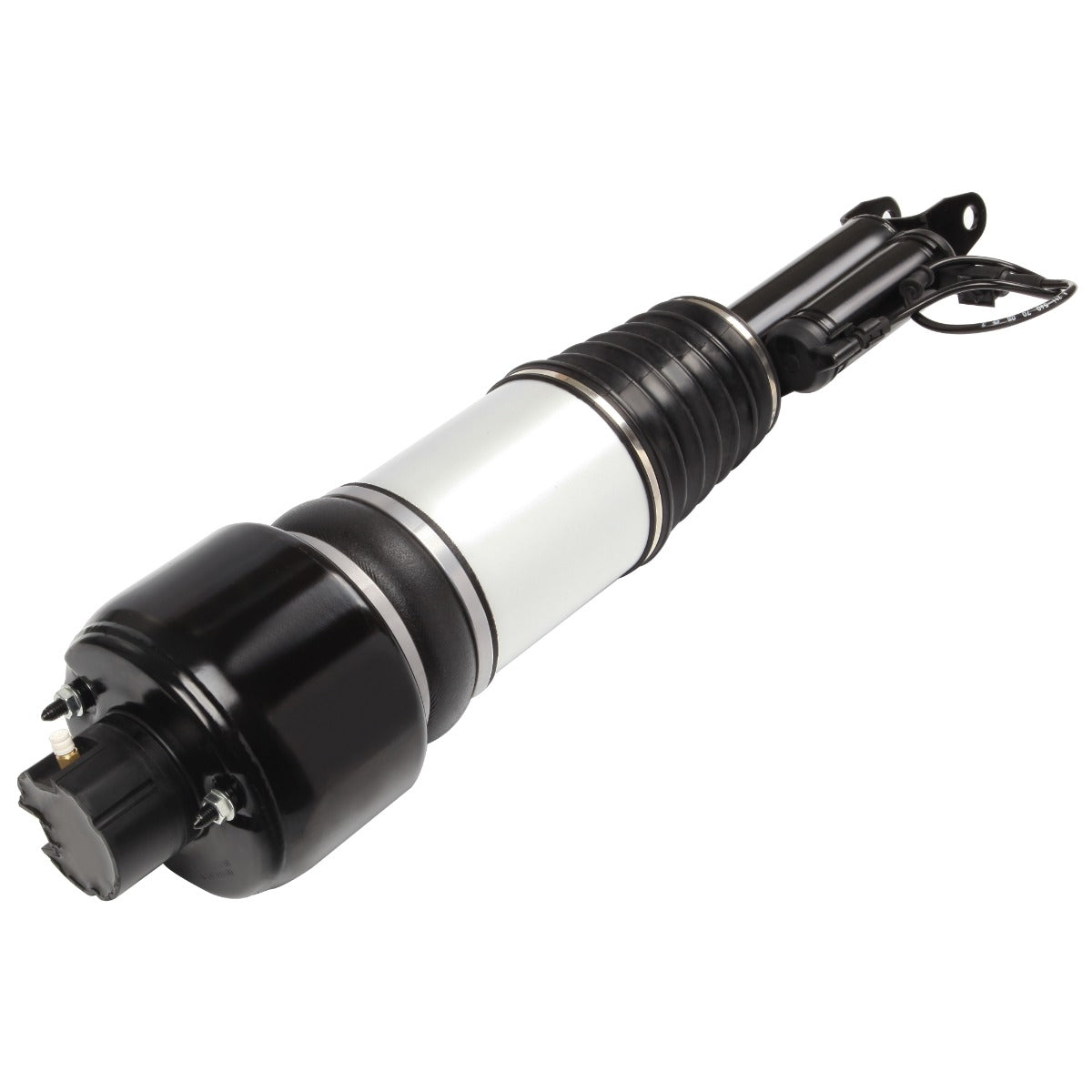

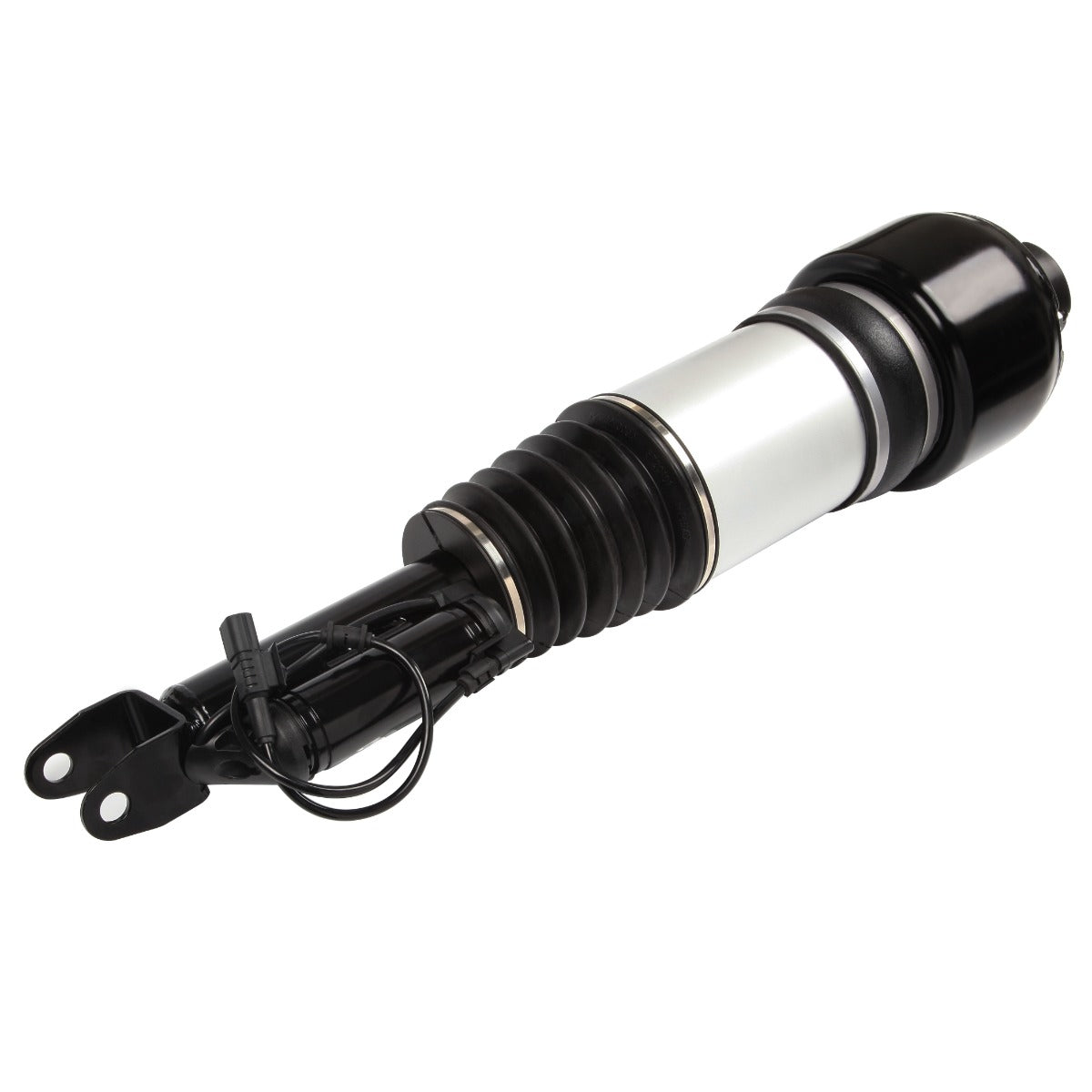

Front Left Air Suspension Strut For Mercedes W219 CLS500 CLS550 E350 E500 E550

Fitment:

• Mercedes-Benz | CLS350 | 2007~2011 | 3.5L/5.5L
• Mercedes-Benz | CLS500 | 2005~2009 | 5.0L/5.5L
• Mercedes-Benz | CLS550 | 2007~2010 | 5.5L
• Mercedes-Benz | E280 | 2007~2009 | 3.0L
• Mercedes-Benz | E320 | 2003~2009 | 3.0L/3.2L
• Mercedes-Benz | E350 | 2006~2007/2009 | 3.5L
• Mercedes-Benz | E500 | 2003~2009 | 5.0L/5.5L
• Mercedes-Benz | E550 | 2007~2009 | 5.5L

Item Specifications

Key Words: Front Left Air Suspension Shock Strut For Mercedes E-Class W211 E280 E320 E350 E500 E550 2003-2009 Excludes Vehicles With 4Matic & E55 AMG & E63 AMG CLS-Class W219 CLS350 CLS500 CLS550 2005-2011 Excludes Vehicles With CLS55 AMG & CLS63 AMG

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise the vehicle.

3.Remove front wheel. (picture 1, 2)

4.Locate and remove upper control arm ball joint nut. (picture 3, 4)

5.Separate ball joint from spindle assembly. (picture 5)

6.Remove sensor lines from brackets. (picture 6)

7.Remove inner fender well screws. (picture 7, 8)

8.Locate and disconnect electrical plug. (picture 9)

9.Loosen lower shock mounting bolt. (picture 10)

10.Disconnect the air line from the top of the strut. (picture 11)

11.Unplug electrical connector. (picture 12)

12.Remove three(3) top mounting bolts. (picture 13, 14, 15)

13.Remove lower shock mounting bolt. (picture 16, 17)

14.Remove shock assembly from vehicle. (picture 18)

15.Removal complete.

*Installation Guideline

1.Installation is in reverse order of air strut removal.

Frequently Asked Questions

How to prevent the damage of air springs/How to extend the service life of air springs/struts etc.?

An air strut with separable air springs

If your vehicle offers a separable air suspension (Audi Allroad A6 C5, Mercedes-Benz W164, BMW X5, etc.), you should regularly (about once a week) lift the car to the maximum position, and remove dirt with a high-pressure cleaner (keep the cleaner at a distance to the air spring about 30 cm/12 inches, otherwise water pressure can damage the air spring). The highest position may vary depending on your model and regulation options. Therefore, please test this by trying the different modes available to you (Sport, comfort, dynamic, off-road) and choose the one that sets your vehicle to the highest position. The dirt will most likely be found under the fold of the pneumatic chambers. If you find a frozen layer of bitumen on the piston guide (the part of a strut on which the air spring is installed), it is recommended to clean it as well. Whenever possible, avoid riding on fresh asphalt, as fresh bitumen mixed with sand immediately results in a build-up of abrasives on the piston and in turn contributes to accelerated wear and tear of the air spring.

A complete air suspension shock

Many cars such as Mercedes W220 or W211 are set up with a complete air strut - shock absorber and air spring visually form a complete spare part. In many cases, you can easily recognize these by the metal cups with which the air spring is tightly mounted. To best avoid any damage, we highly recommend to regularly check the condition of the dust protection seals of the air strut.

What is the difference between an air spring and an air strut?

The air spring is a part of the air strut. Some vehicles (e.g. Mercedes ML) allow you to change the air spring separately. At our online shop you have the opportunity to buy either the whole air strut or only the air spring. For some type of vehicles it is not possible to change the air spring separately. In this case the whole air strut should be replaced.

Which side of my car is the Right and Left?

The right and left sides of an automobile are determined as if sitting in the car facing forward. Thus, the left side is on the left when sitting in the car facing forward, and the right side is on the right. For American cars, the driver’s side is on the left, and the passenger sits to the right of the driver. For cars in Japan, Britain, Ireland, the Bahamas and some other former British colonies -- where they drive on the left side of the road -- the passenger sits on the left side, and the driver (along with all the driving controls) is on the right.

What does 4MATIC mean?

4MATIC is the marketing name of a four-wheel drive system developed by Mercedes-Benz. It is designed to increase traction in slippery conditions.

What does AIRMATIC mean?

AIRMATIC is a Mercedes-Benz trademark for vehicles with air suspension systems. Compared with a conventional steel suspension, the AIRMATIC air suspension provides advantages in terms of handling safety and ride comfort. The AIRMATIC air suspension automatically adjusts the damping force on each wheel according to the current state of the road.

Includes

Single for Front Left Air Suspension Shock Strut

Notes : Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.
