Front Lower Control Arm Sway Bar Suspension Kit For 2003 04 05-2014 Volvo xC90

Fitment

• Volvo | XC90 | 2003~2014 | 2.5L/2.9L/3.2L/4.4L

Product Specifics

• UPC: Does not apply
• Placement on Vehicle: Front+Lower+Right+Left
• Universal Fitment: No
• Manufacturer Warranty: 10 Years
• Features: Greasable
• Items Included: Mounting Hardware
• Custom Bundle: No
• Type: Control Arm Kit
• Interchange Part Number: K640446,K640447,K80501
• OE/OEM Part Number: control arm car,suspension arm,front and lower control arm
• Superseded Part Number: anti sway bar linkage car,stabilizer bar linkage,anti roll bar
• Control Arm Construction: Forged
• Adjustable: Yes
• Performance Part: No
• Cotter Pin Hole: Yes
• Material: Alloy Steel
• Mounting Style: Bolt-On
• Finish: Coated

Warning:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter.

2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen.

3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.

Picture(C)

4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.

5.Loosen and remove the control arm fixing screws.

6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller).

7.Remove the old control arm.

Picture(D)

8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.

Picture(E)

9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.

Picture(F)

10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm.

While driving, the following signs may indicate a faulty sway bar stabilizer link

(1).Rattling and thumping noises on rough roads.

(2).Imprecise vehicle handling.

(3).Stronger inclination of the vehicle during cornering.

If the sway bar stabilizer link is found to be defective, it should be replaced as described below.

Note

1.Please check the Compatible Fitment Chart above before payment making sure all the suspension parts listed on this page are compatible with your automobile.

2.Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts.

3.Please contact our customer services for targeted discount after all the items are received if you have reached any targeted discount thresholds, the terms of which is at the bottom of this page.

Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.

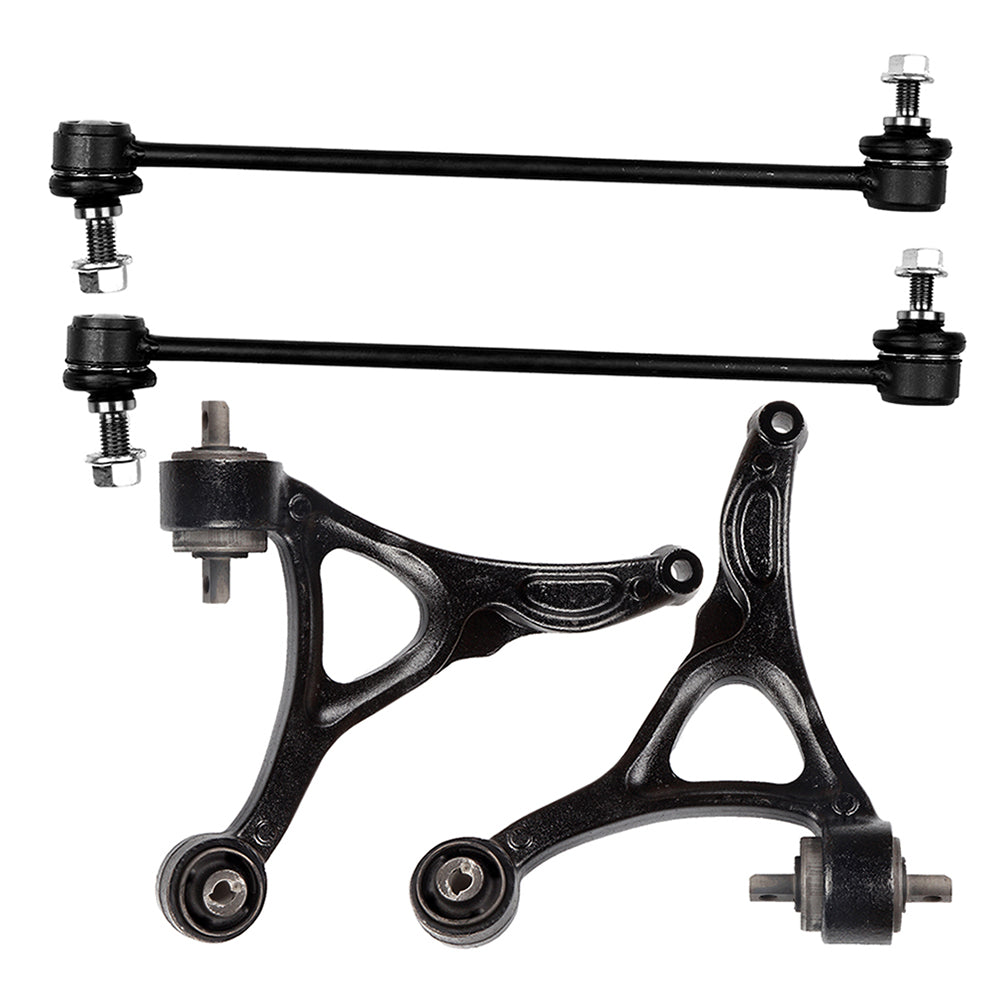

Package Includes

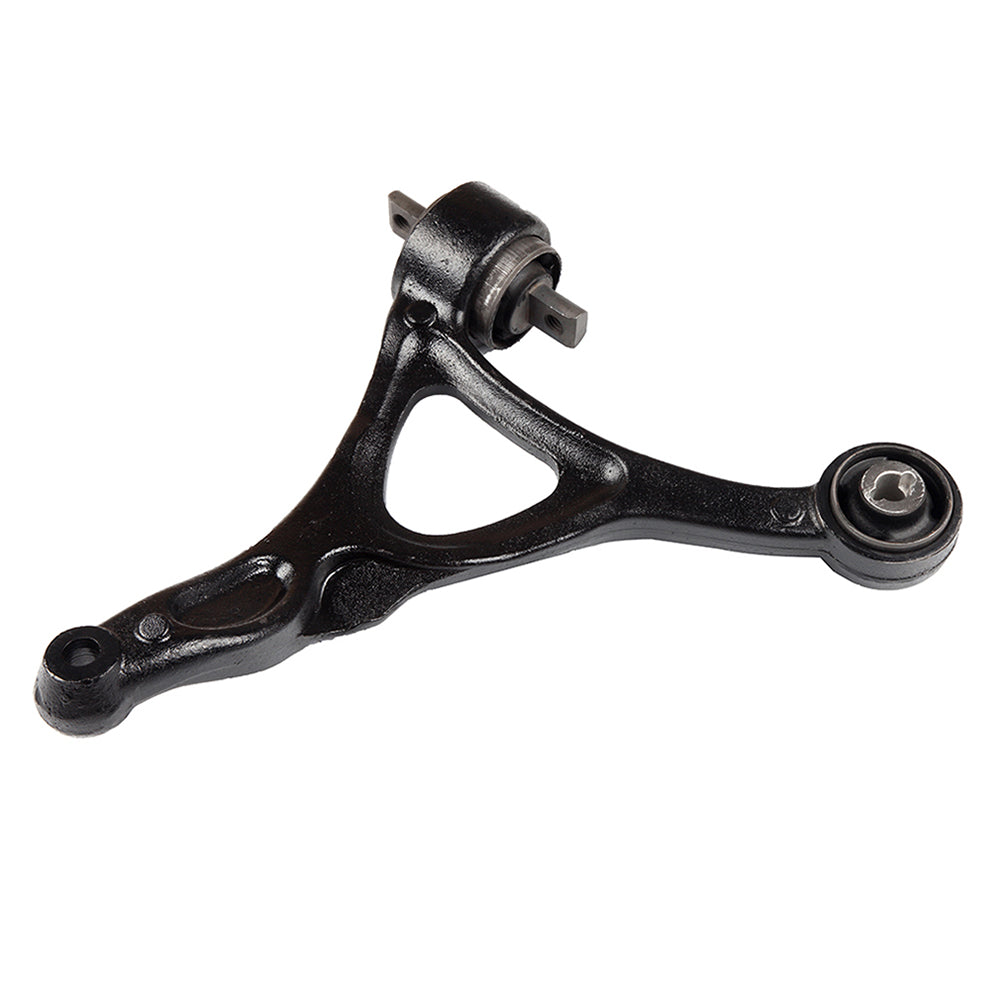

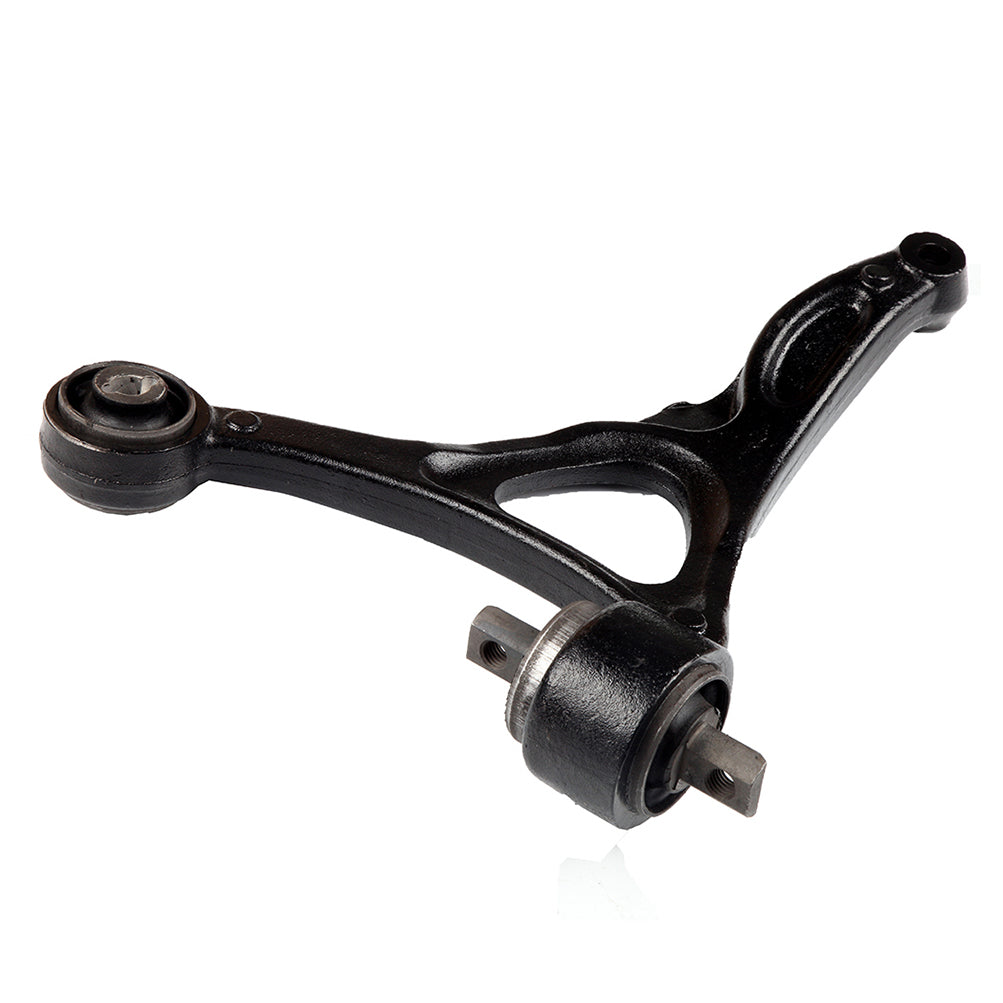

1x Front Lower Control Arm - Passenger Side -K640446

1x Front Lower Control Arm - Driver Side -K640447

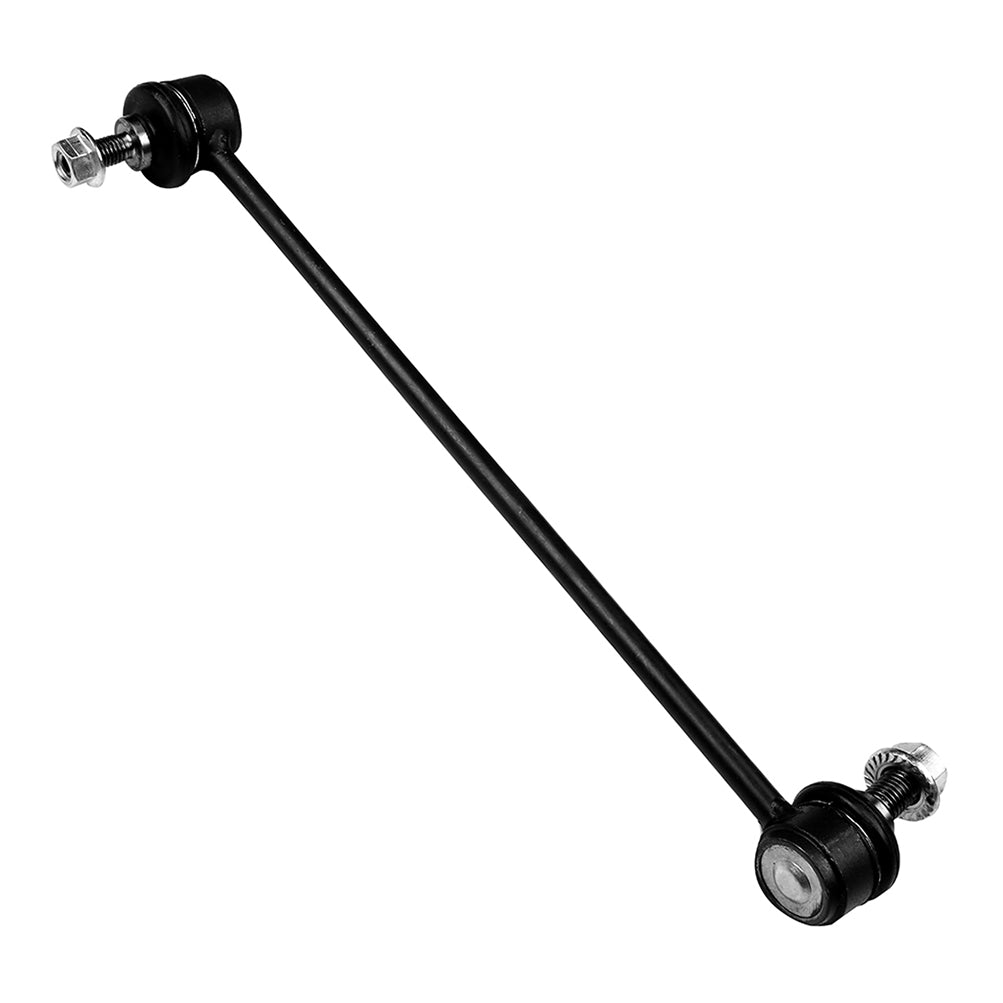

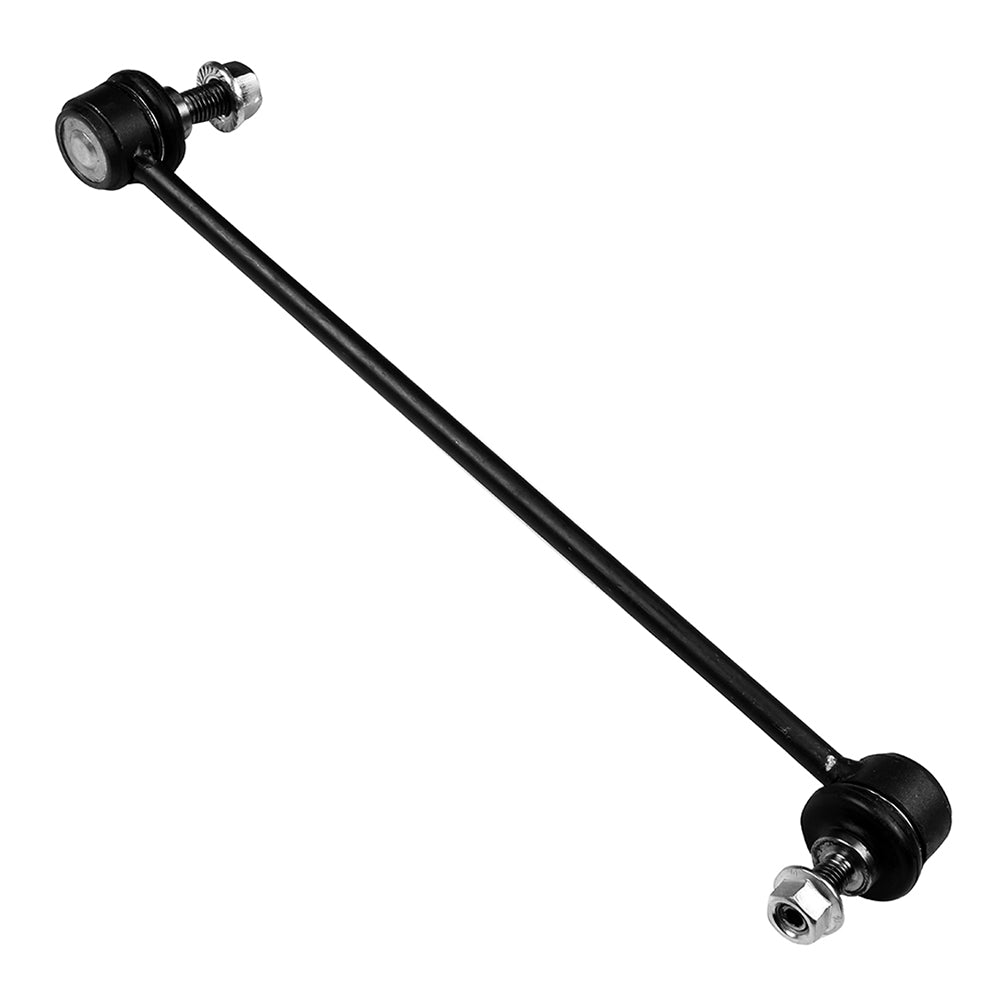

2x Front Sway Bar End Link -K80501
