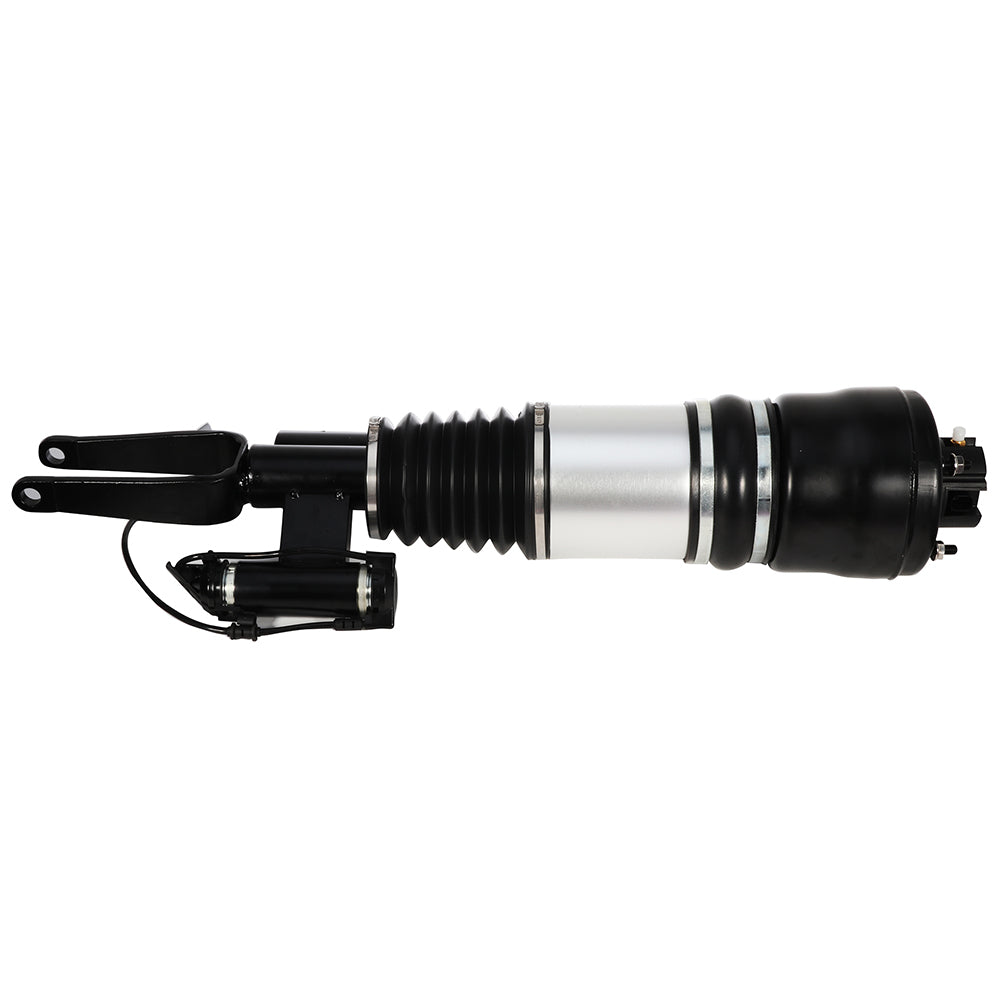

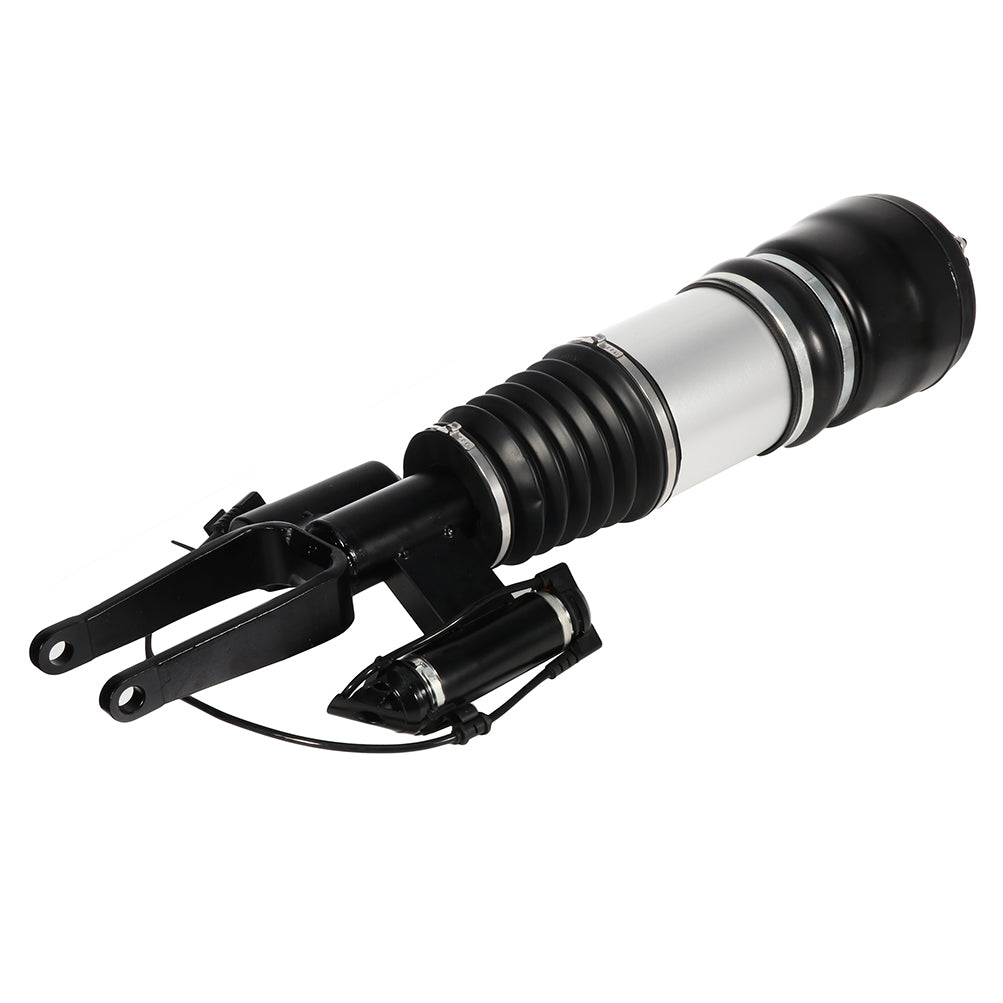

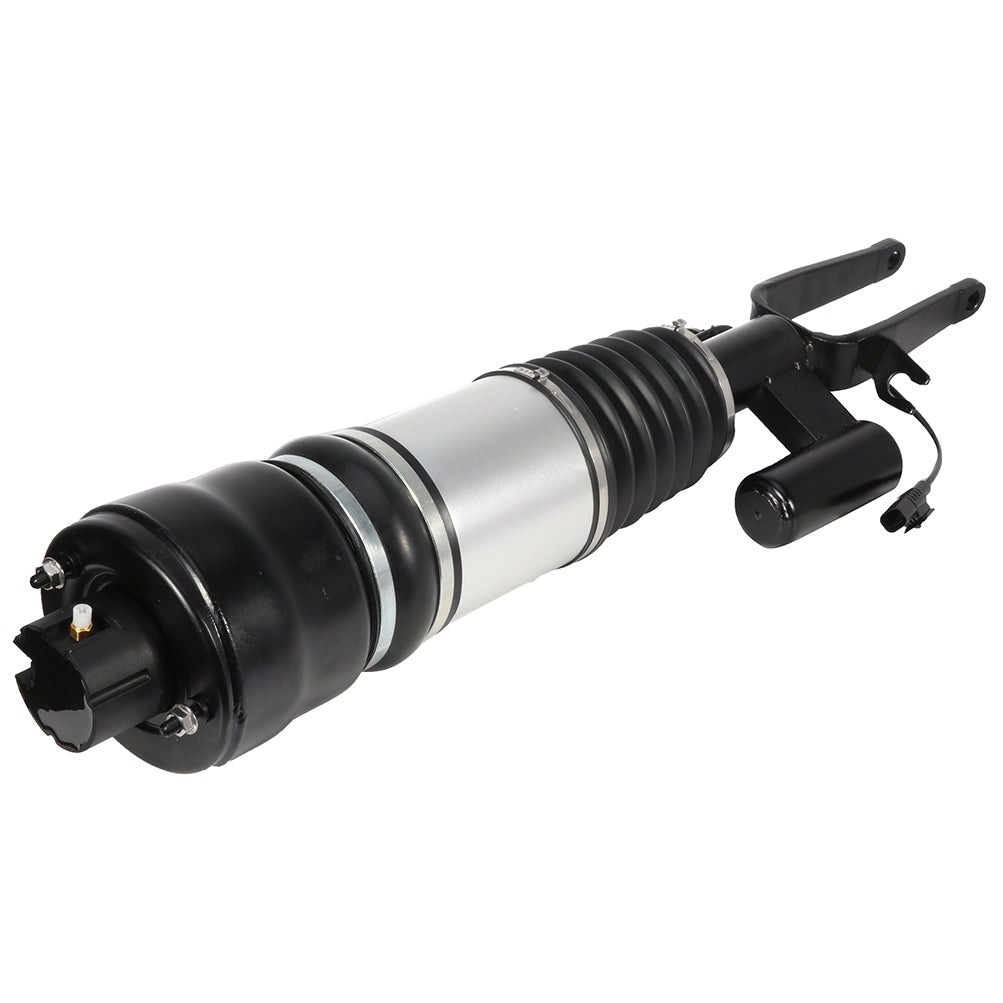

Front Pair Air Suspension Shock For 4Matic Mercedes W211 E280 E300 E350 E500 AWD
Fitment:
- Mercedes-Benz | E280 | 2007 | 3.0L
- Mercedes-Benz | E300 | 2008~2009 | 3.0L
- Mercedes-Benz | E320 | 2003~2005 | 3.2L
- Mercedes-Benz | E350 | 2006~2009 | 3.5L
- Mercedes-Benz | E500 | 2004~2006 | 5.0L
- Mercedes-Benz | E550 | 2007~2009 | 5.5L
Item Specifications
Key Words: Front Pair Air Suspension Shock Struts For 4matic Mercedes E-Class W211 E280 E300 E320 E350 E500 E550 2003-2009
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 85.00(Length)*20.00(Width)*20.00(Height)
- Single Weight(KG): 10.500
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90

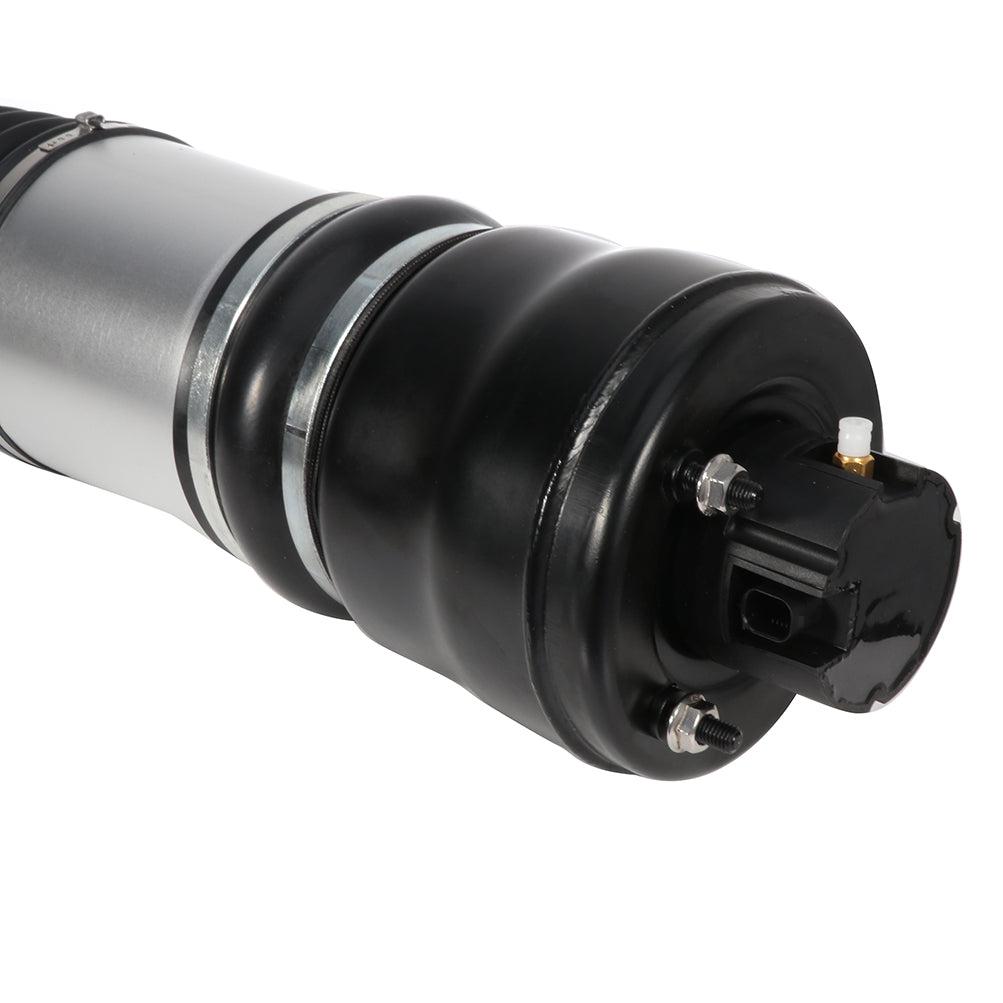

- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: W211
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 2113202713, 2113202813
- *Platform Drive Layout: 4Matic-Four Wheel Drive Layout
- *OEM Part Number:
2113201938,2113202713,
2113209513,2113202038,
2113202813,2113209613
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove the applicable wheel.(picture 1)
4.Remove the air line.(picture 2)
5.Disconnect the electrical connection.(picture 3)
6.Remove the three top mounting nuts from the strut.(picture 4)
7.Remove the wires from the wire clip on the sway bar end link.(picture 5,6)
8.Follow the wiring from theshock and disconnect at the junction.(picture 7)
9.Remove the brake line isolator.(picture 8)
10.Remove the sway bar end link nut.(picture 9)
11.Loosen the bottom mount bolt.(picture 10)
12.Remove the bottom mount bolt.(picture 11)
13.Remove the control arm nut.(picture 12)
14.Remove the axle bolt.(pictures 13,14)
15.Remove the axle.(pictures 15,16)
16.Remove the strut from the vehicle.(picture 17)
17.Removal complete.
*Installation Guideline
1.Installation is in reverse order of air strut removal.
Includes

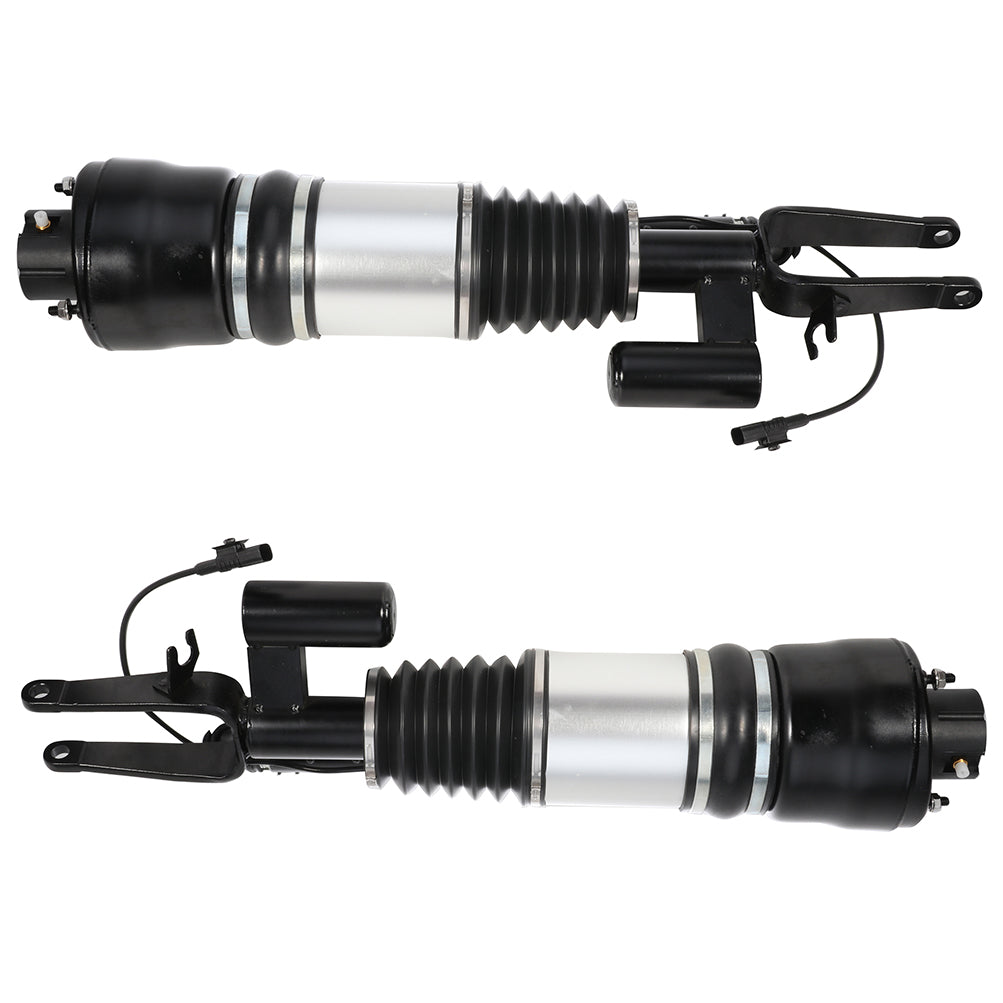

Pair for Front Left & Right Air Suspension Shock Struts
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
