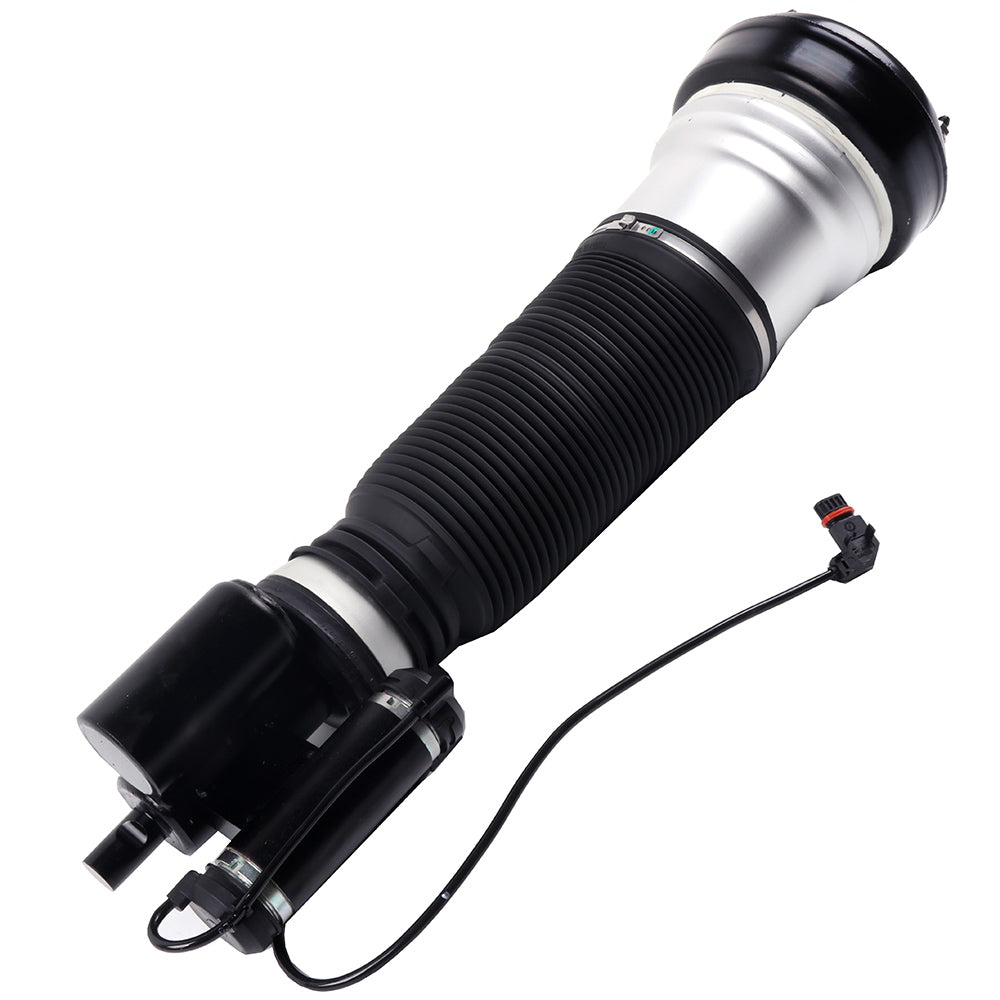

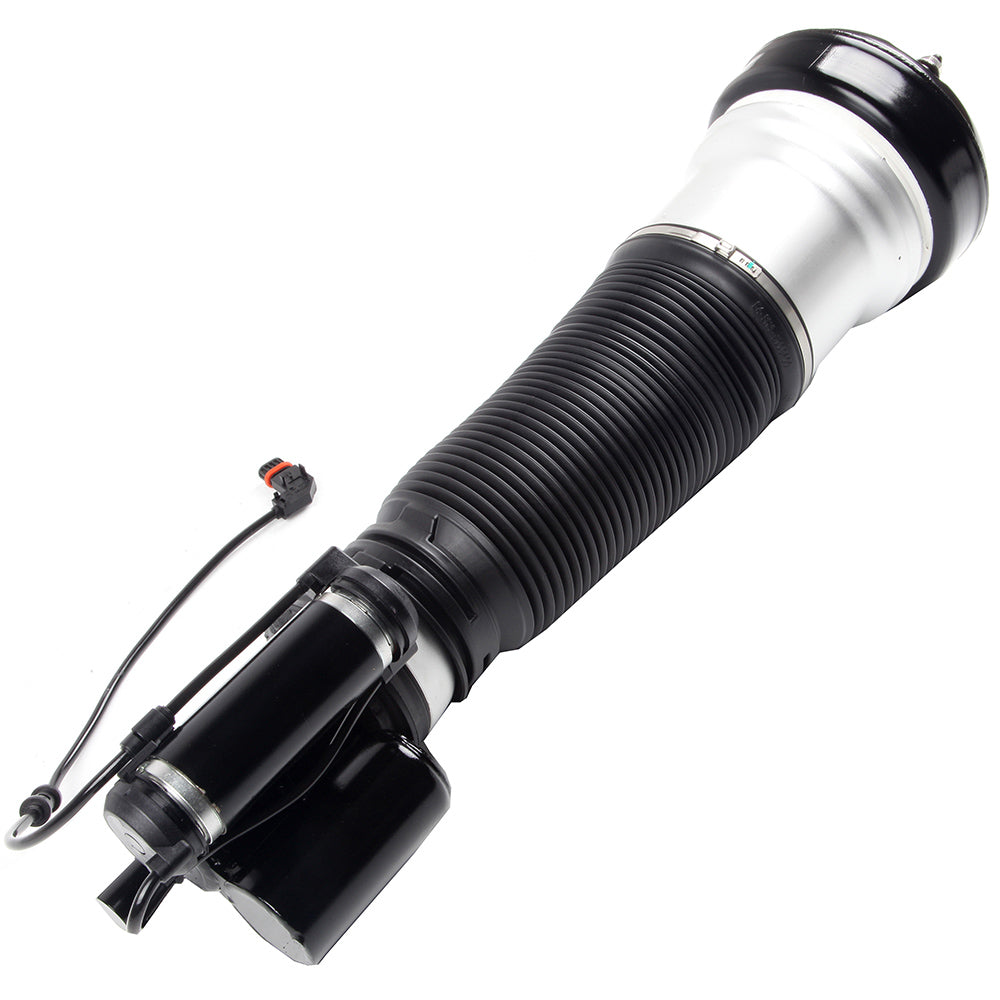

Front Pair Air Suspension Shock Struts For 4Matic Mercedes W220 S430 S500 03-06
Fitment:
- Mercedes-Benz | S430 | 2003~2006 | 4.3L
- Mercedes-Benz | S500 | 2003~2004 | 5.0L
Item Specifications
Key Words: Front Pair Air Suspension Shock Struts For 4MATIC Mercedes S-Class W220 S430 S500 2003-2006
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 73.00(Length)*20.00(Width)*20.00(Height)
- Single Weight(KG): 8.400
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: W220
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 2203202138, 2203202238
- *Platform Drive Layout: 4Matic Front Engine-Four Wheel Drive Layout
- *OEM Part Number:
2203201338,2203202138,
2203201438,2203202238
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove front wheel.

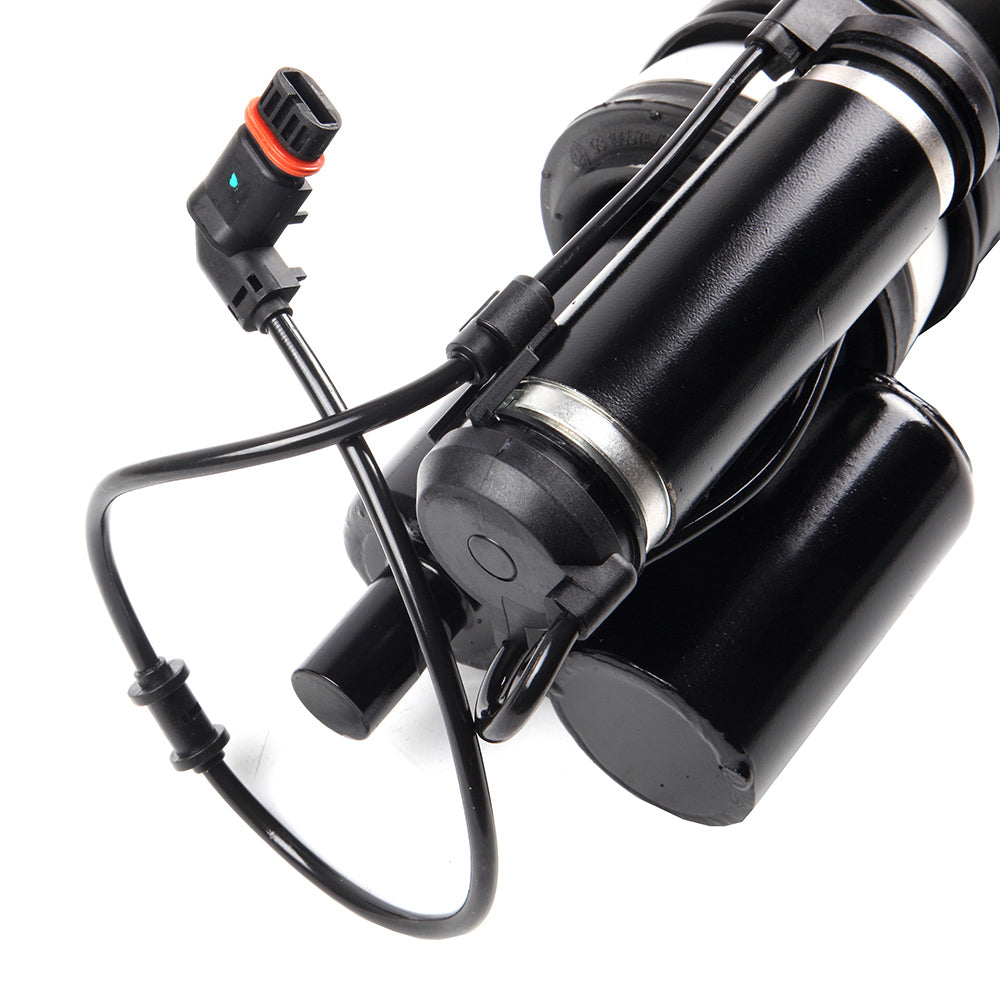

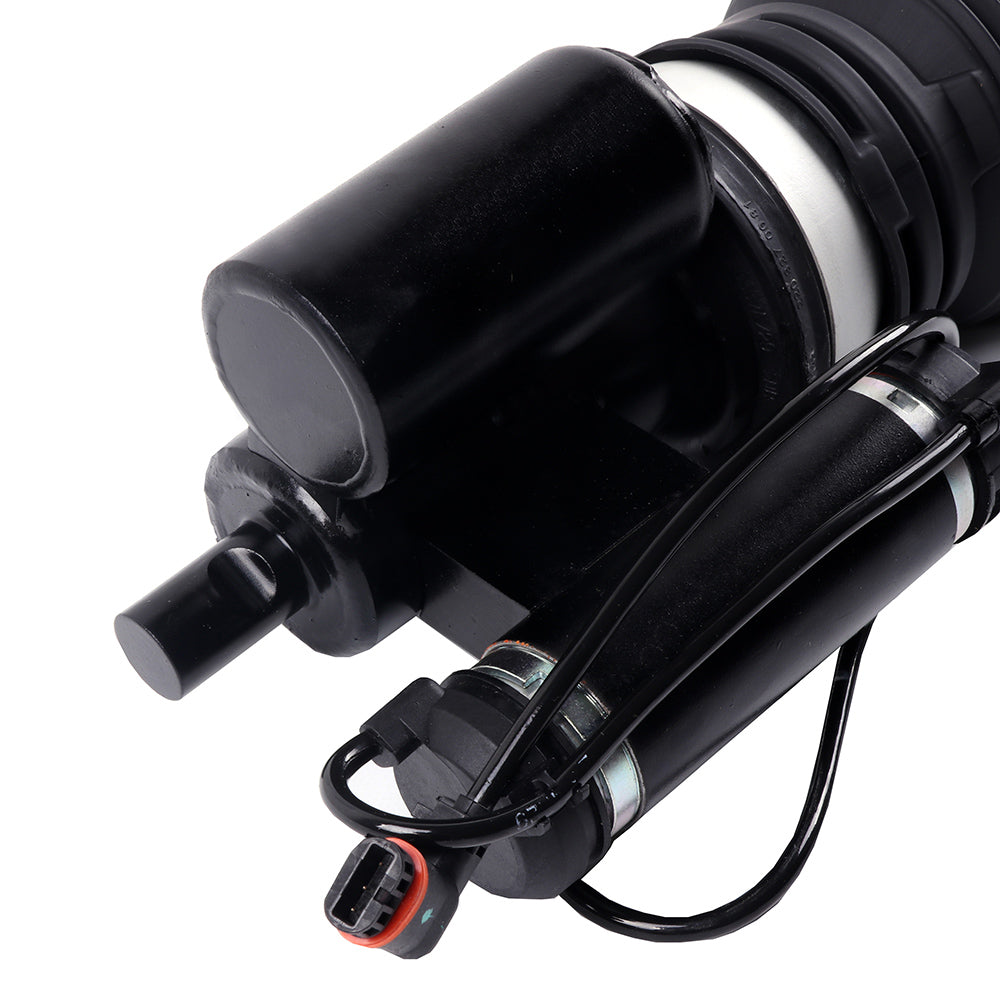

4.Disconnect the shock control cable connector located in the fender well.(picture 1,2,3)
5.Loosen and remove the two(2)bolts holding the bottom of the air strut to the lower bracket.(pictures 4,5)
6.Raise hood and disconnect the air line from the shock assembly.(picture 6)
7.Remove the three(3)nuts holding the top mount of the shock.(picture 7)
8.Separate upper control arm ball joint from the spindle assembly and remove the air strut.(picture 8)
9.Removal complete.
*Installation Guideline
1.Installation is in reverse order of air strut removal.
Includes

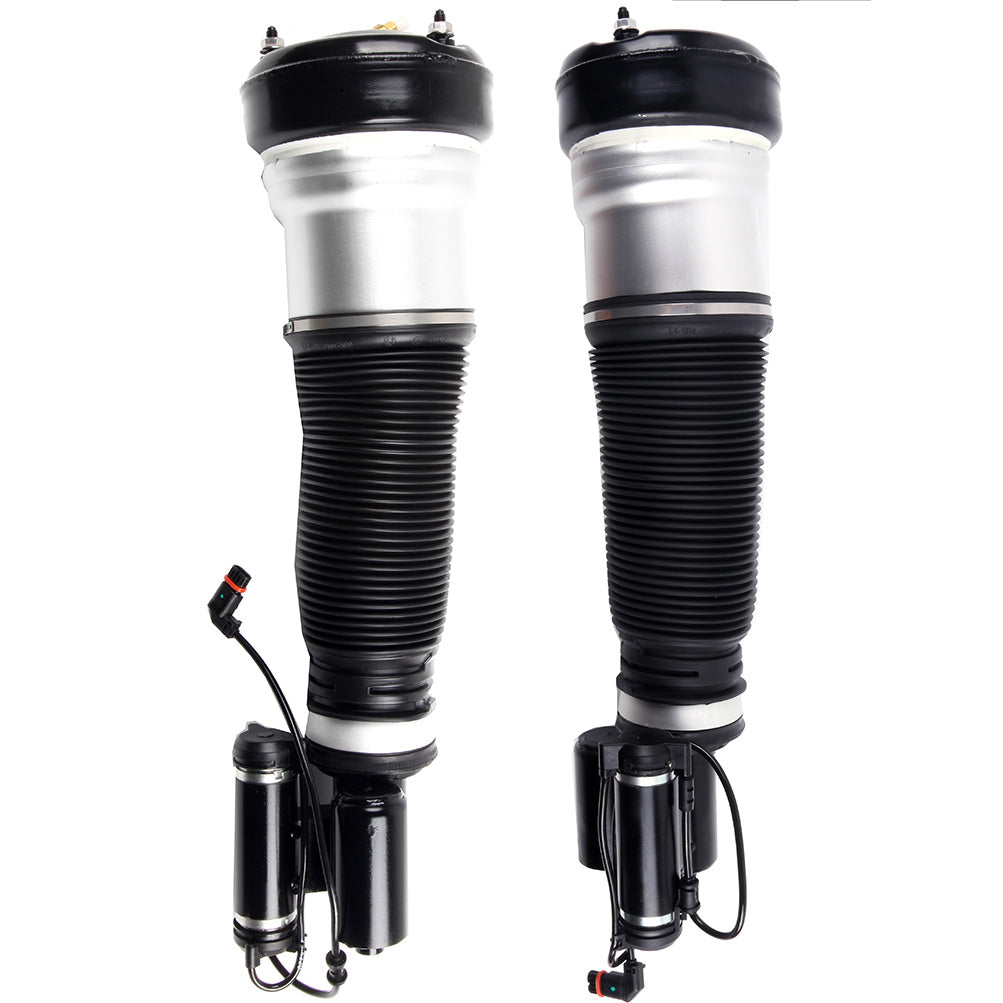

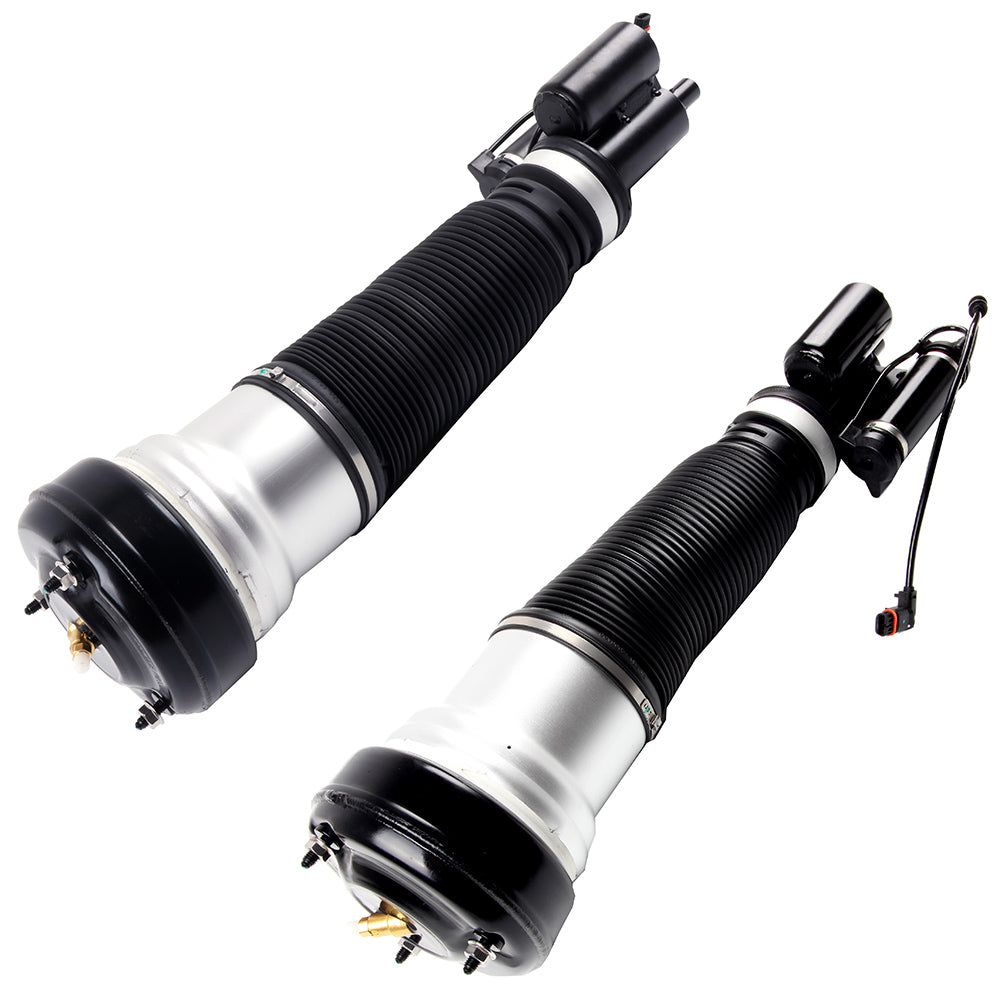

Pair for Front Left & Right Air Suspension Shock Struts
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
