Front Pair air suspension shock struts For Audi Q7 Porsche Cayenne VW Touareg
Fitment:
- Porsche | Cayenne | 2011~2018 | 3.0L/3.6L/4.2L/4.8L
- Volkswagen | Touareg | 2011~2018 | 3.0L/3.6L/4.2L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 78.5(Length)*20.5(Width)*20.5(Height)
- Single Weight(KG): 19.2
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Gas Charged Shock: Yes
- Drive Layout: Front Engine RWD & 4WD
- Platform: 4M
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 7P6616039K,7P6616039N,95535803900,7P6616040K,95535804000
- Superseded Part Number: 95834304350,95834304550,95834304750,95535804001,95535804010,
- Handling time: 1 Day
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
7P6616039K,7P6616039N,95535803900
95535803901,95535803910,95535803911
95834304350,95834304550,95834304750
95835803900,95835803901,95835803903
95835803910,95835803911,95835803914
95835803920
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.
4.Remove air line fitting from the air valve. Remove the air line fitting from the air line and discard.
5.Remove the lower shock-mounting nut and bolt.
6.Remove the ball joint nut from the spindle assembly and separate.
7.Remove the sway bar end link to shock mounting bolt.
8.Disconnect the ride height sensor connector.
9.Lift hood and remove the three(3)mounting bolts that secure the air strut's upper mount. Remove plastic cover to gain access to the third bolt.
10.Remove strut assembly from the vehicle.
Installation Guideline
Installation is in reverse order of air spring removal, with the exception of the Secured reservoir hose.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes

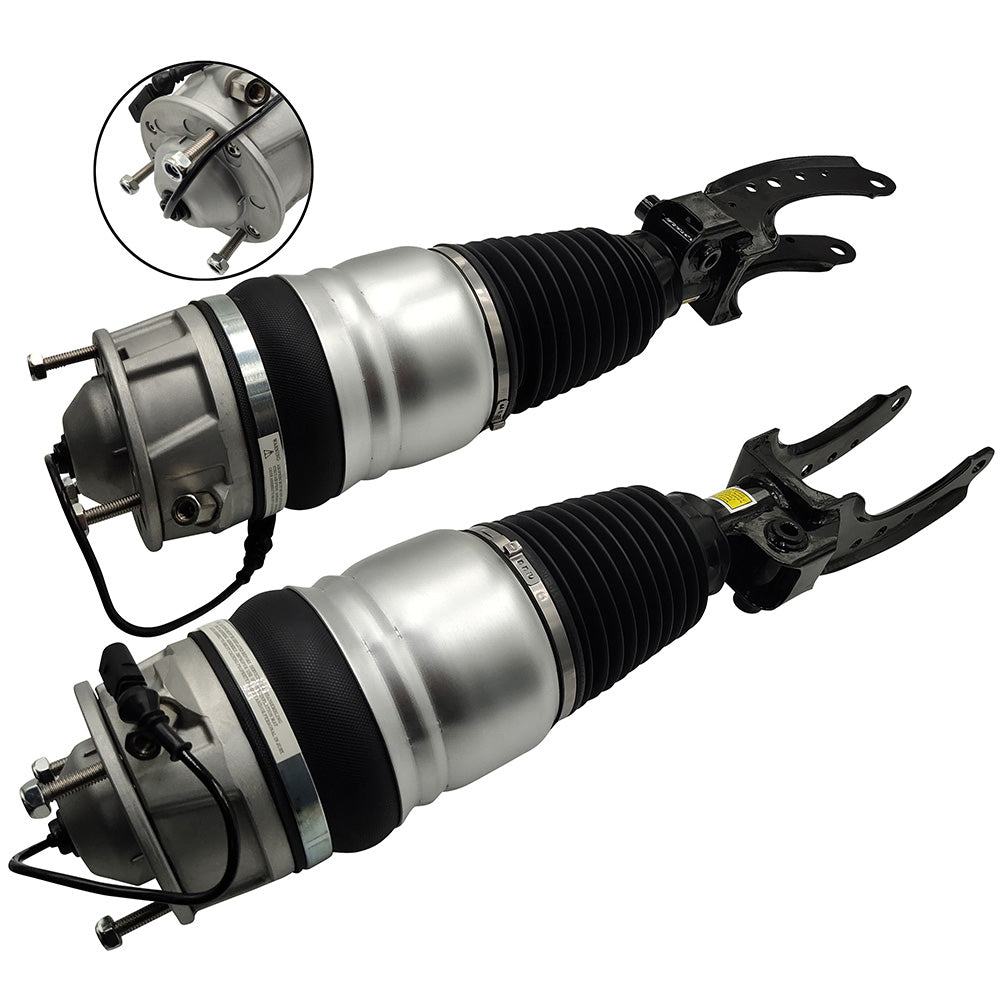

Pair for Front Left and Right Air Suspension Shock Struts
