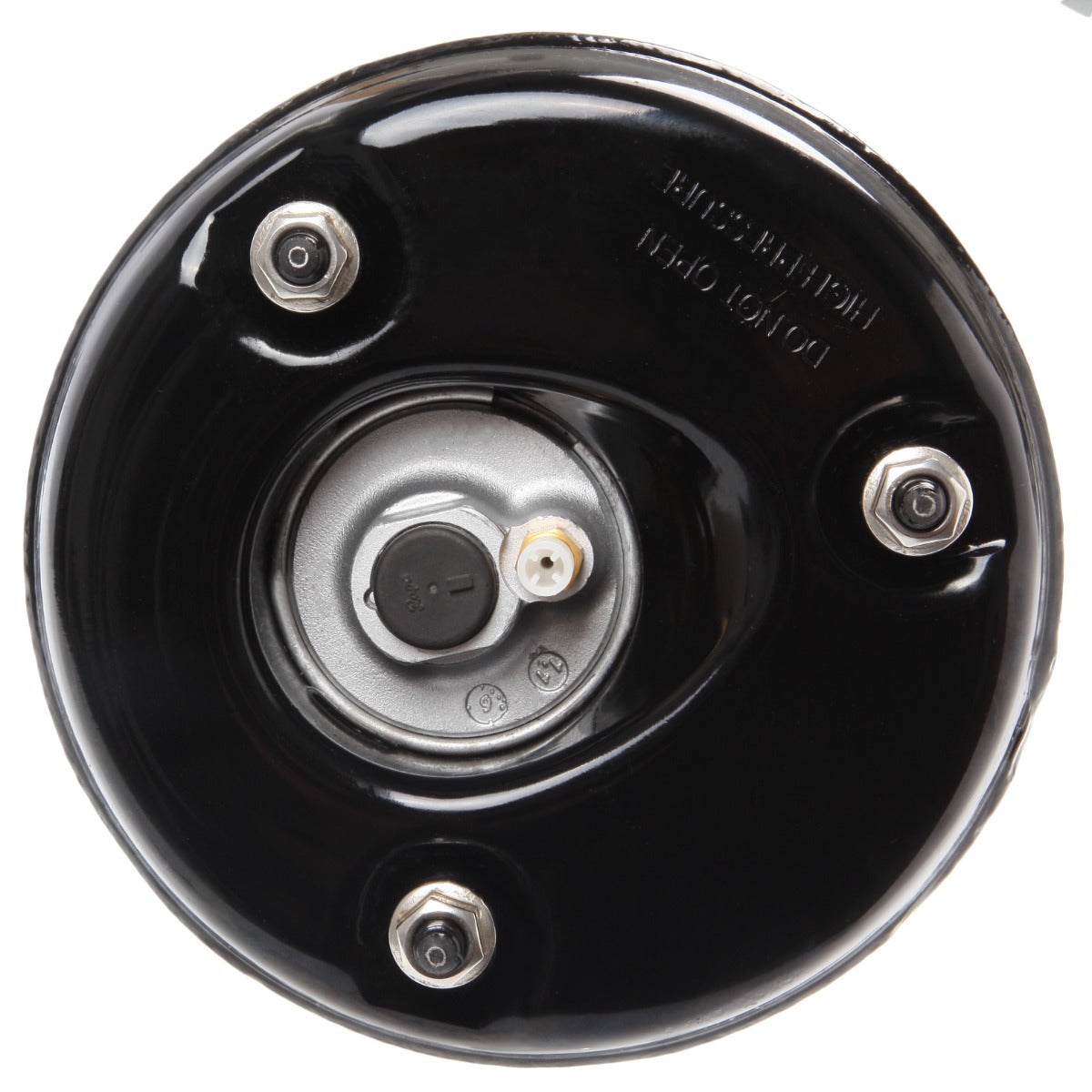

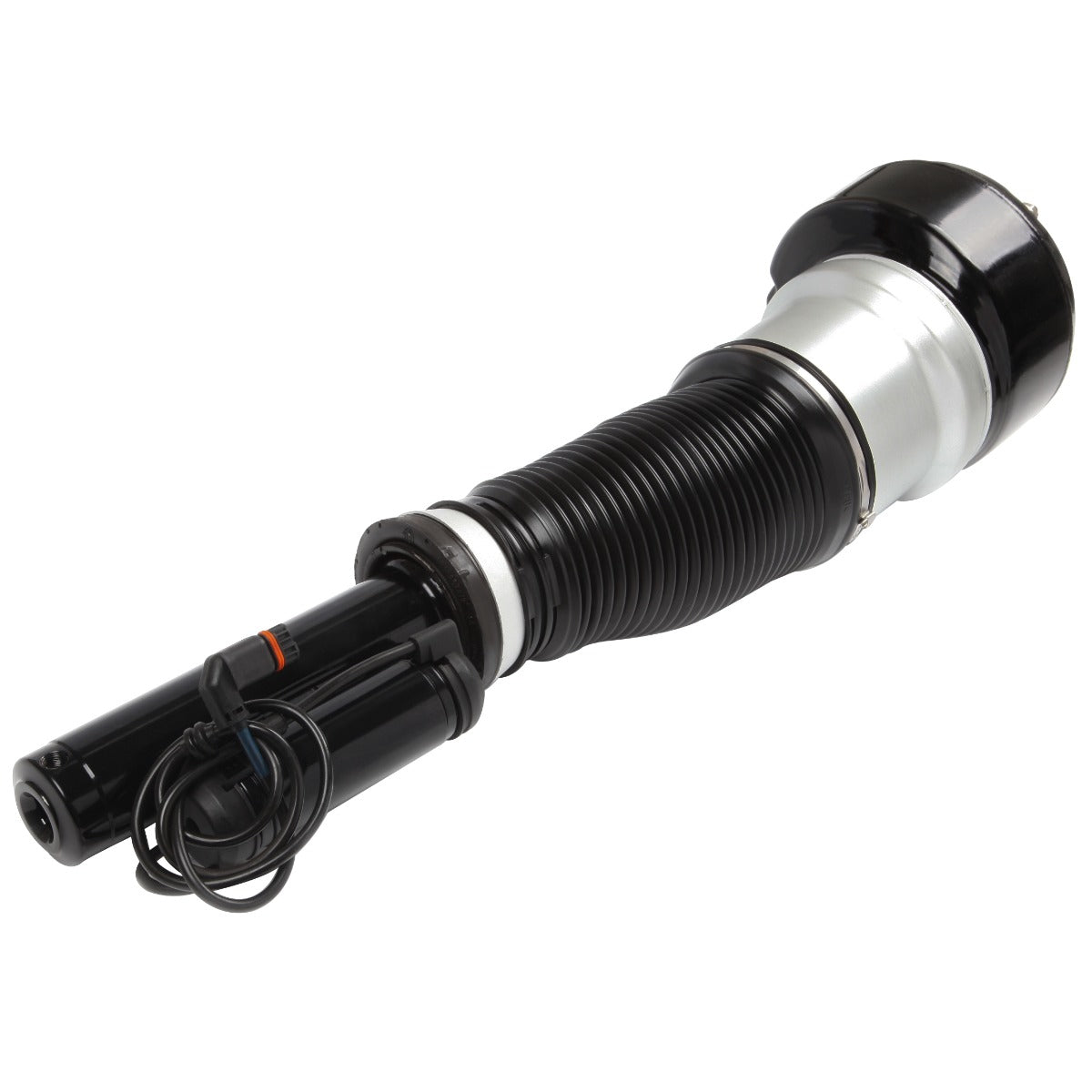

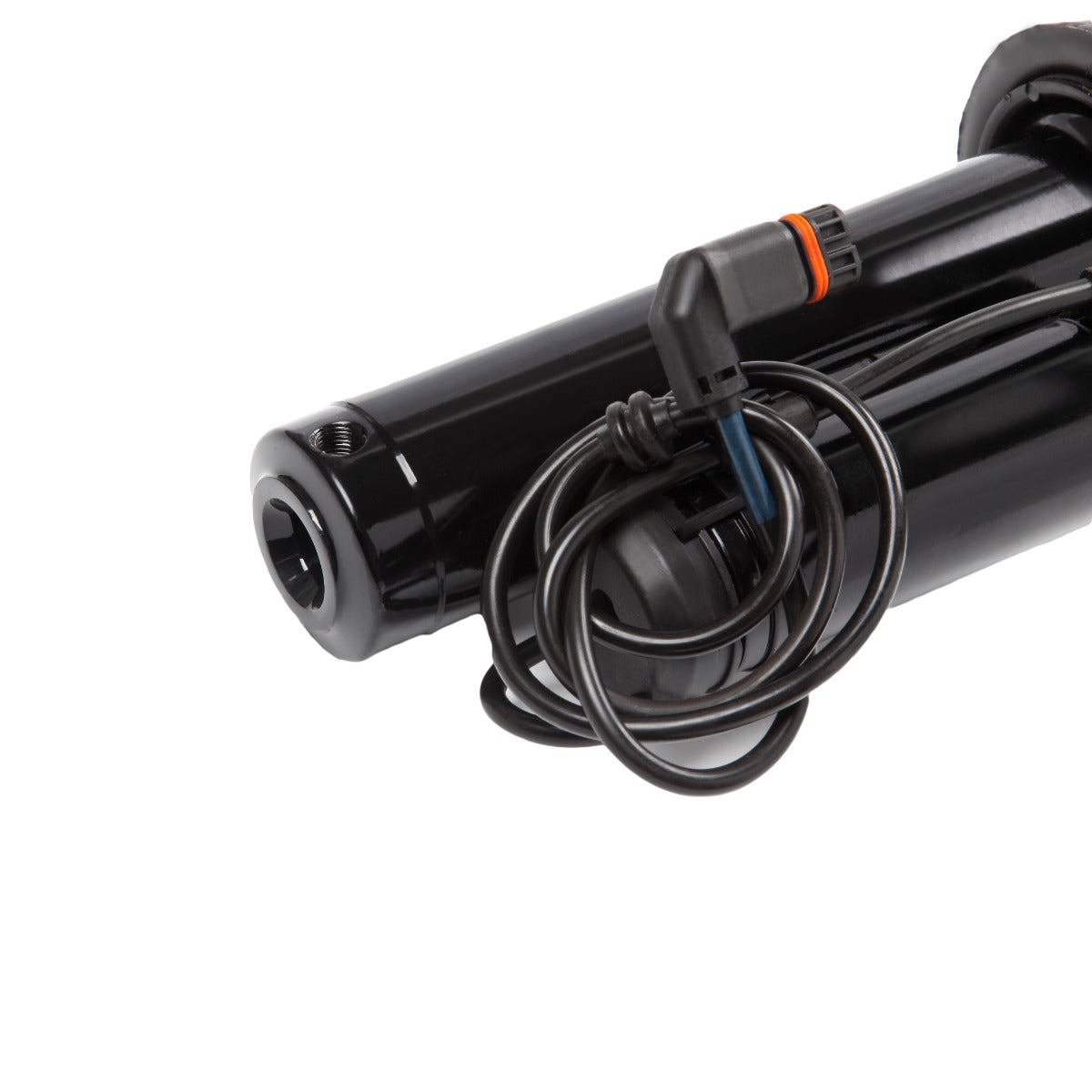

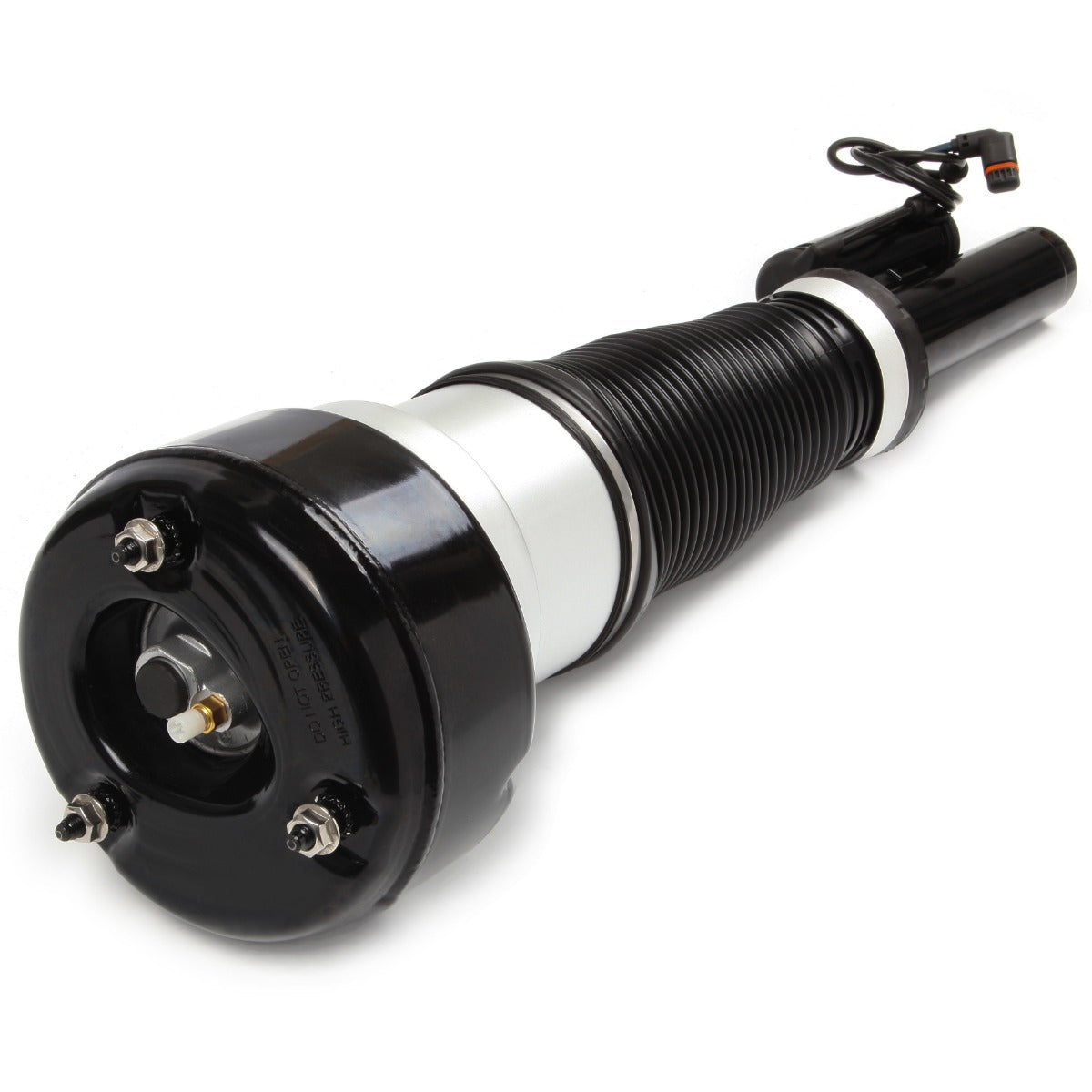

Front Pair Air Suspension Shocks For Mercedes C216 CL550 S350 S550 S600 S63 S65
Fitment:
- Mercedes-Benz | CL500 | 2007~2013 | 4.7L/5.5L
- Mercedes-Benz | CL550 | 2007~2008 | 5.5L
- Mercedes-Benz | CL600 | 2008~2014 | 5.5L
- Mercedes-Benz | CL63 AMG | 2009~2014 | 5.5L/6.0L/6.3L
- Mercedes-Benz | CL65 AMG | 2008~2014 | 6.0L/6.2L
- Mercedes-Benz | S350 | 2012~2013 | 3.5L
- Mercedes-Benz | S500 | 2007~2011 | 5.5L
- Mercedes-Benz | S550 | 2007~2011 | 5.5L
- Mercedes-Benz | S600 | 2007~2013 | 5.5L
- Mercedes-Benz | S63 AMG | 2008~2013 | 5.5L/6.0L/6.2L/6.3L
- Mercedes-Benz | S65 AMG | 2007~2013 | 6.0L
Item Specifications
Key Words: Front Pair Air Suspension Shock Struts For Mercedes S-Class W221 S350 S400 S500 S550 S600 S63 AMG S65 AMG 2007-2013 Excludes Vehicles With 4Matic or ABC Suspension CL-Class C216 CL500 CL550 CL600 CL63 AMG CL65 AMG 2006-2013 Excludes Vehicles With 4Matic or ABC Suspension
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 74.00(Length)*19.00(Width)*19.00(Height)
- Single Weight(KG): 7.750
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine RWD/2WD
- Platform: W221
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 2213205113, 2213207313, 2213207413
- *Platform Drive Layout: Base Model-Rear Wheel Drive Layout
- *OEM Part Number:
2213203513,2213204613,2213204913,
2213205113,2213207313,2213207413,
2213209113,2213209213,2213209313
*Installation Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Remove front wheel.(pictures 1,2)
3.Remove airline and three(3)upper mount nuts.(pictures 3,4)
4.Locate the air strut's electrical connector and remove retaining clip.(picture 5)
5.Disconnect and separate the two(2)electrical connectors.(pictures 6,7)
6.Cut cable ties and remove brake line bracket and bottom clip.(pictures 8,9,10,11)
7.Locate and loosen lower mount set screws.(picture 12)
8.Loosen upper control arm nut.(picture 13)
9.Separate the upper control arm from the spindle assembly.(pictures 14,15)
10.Pull down on the spindle assembly, and remove the air strut from the vehicle.(pictures 16,17)
11.Removal complete.
*Installation Tip
Installation is in reverse order of air strut removal.
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes
Pair for Front Left & Right Air Suspension Shock Struts
