Front Pair Air Suspension Shocks For Mercedes W164 ML320 ML350 X164 GL350 GL450
Fitment:
- Mercedes-Benz | GL320 | 2007~2009 | 3.0L
- Mercedes-Benz | GL350 | 2010~2012 | 3.0L
- Mercedes-Benz | GL450 | 2007~2012 | 4.7L
- Mercedes-Benz | GL500 | 2008~2012 | 5.5L
- Mercedes-Benz | GL550 | 2008~2012 | 5.5L
- Mercedes-Benz | ML320 | 2007~2009 | 3.0L
- Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
- Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | ML550 | 2008~2011 | 5.5L
- Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L
Item Specifications
Key Words: Front Pair Air Suspension Shock Struts For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 2005-2011 GL-Class X164 GL320 GL350 GL450 GL550 2007-2012 Without Adaptive Damping
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 97.00(Length)*16.50(Width)*16.00(Height)
- Single Weight(KG): 10.300
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X164 W164
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 1643206113
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number: 1643204513,1643206113
*Air Strut Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.
4.Disconnect the sway bar linkage.(picture 1)
5.Remove the nut from the ball joint and separate from the spindle assembly.(picture 2)
6.Cut the cable tie securing the wire harness mount, then remove the wire harness mount from shock.(picture 3)
7.Disconnect the air line by unscrewing the brass fitting from the strut's top mount.(picture 4)
8.Remove the three(3)upper mount flange nuts.(picture 5)
9.Remove the lower shock mount nut, followed by the bolt and remove the strut from the vehicle.(picture 6)
*Air Strut Installation Guideline
1.Install the replacement strut onto the vehicle in the same orientation as removed.
2.Install the lower shock mount bolt and nut, tighten to manufacture's specification.(picture 7, 8)
3.Reattach the spindle assembly and install the nut onto the ball joint, tighten to manufacture's specification.(picture 9,10)
4.Using the supplied cable tie, secure the wire harness mount to the shock.(picture 11,12)
5.Using the supplied hardware, install and tighten the top mounting nuts to manufacture's specification.(picture 13)
6.Remove the air line fitting. To do so, spread the collet open and the remaining fitting will slide off of the air hose.(picture 14)
7.Remove the plastic shipping pin from the air inlet fitting, push the air hose in until fully seated into place(air line will not pull out when inserted properly).(picture 15)
8.Installation complete.
Includes

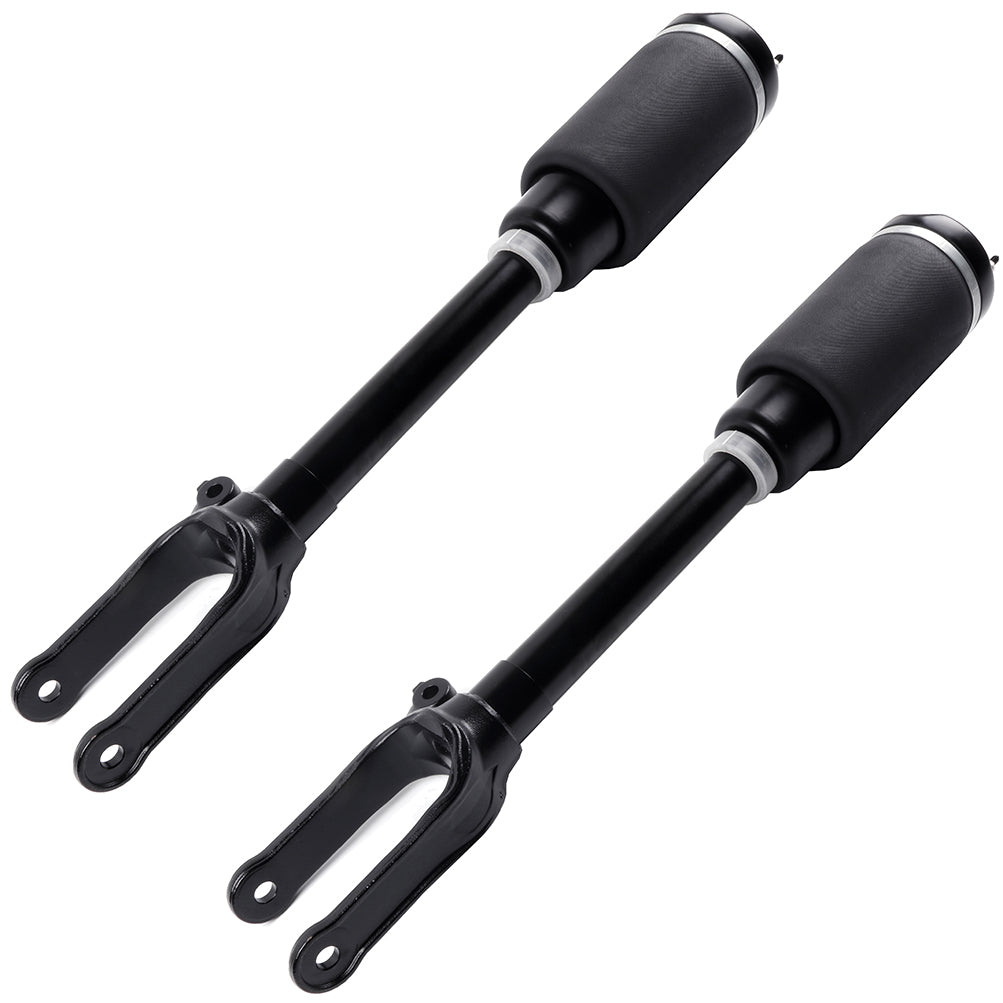

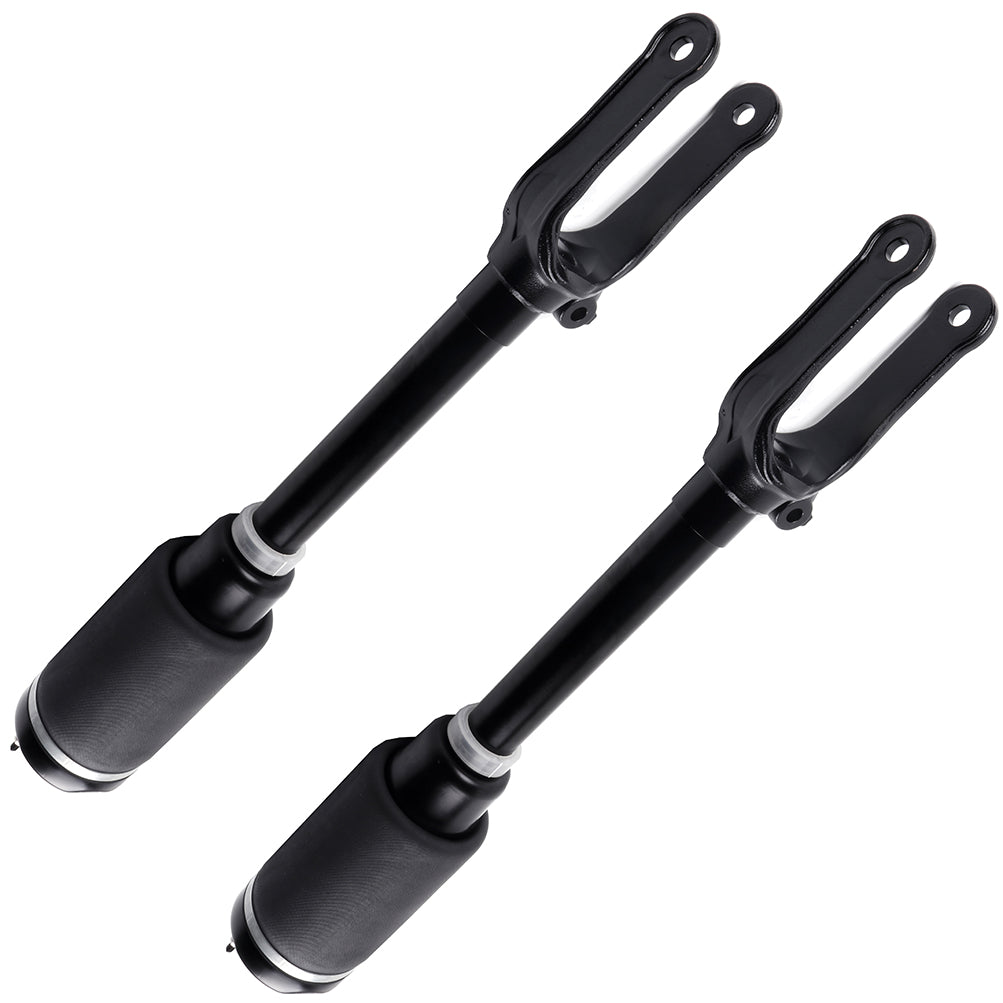

Pair for Front Left & Right Air Suspension Shock Struts
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
