Front Pair Air Suspension Shocks For Mercedes W166 ML350 ML550 X166 GL450 GL550
Fitment:
- Mercedes-Benz | GL350 | 2013~2015 | 3.0L
- Mercedes-Benz | GL450 | 2015 | 3.0L
- Mercedes-Benz | GL500 | 2014~2015 | 4.7L
- Mercedes-Benz | GL63 AMG | 2013~2015 | 5.5L
- Mercedes-Benz | GLE300d | 2016~2017 | 2.1L
- Mercedes-Benz | GLE350 | 2016~2018 | 3.5L
- Mercedes-Benz | GLE350d | 2016 | --/3.0L
- Mercedes-Benz | GLE400 | 2016~2017 | --/3.0L
- Mercedes-Benz | GLE43 AMG | 2017 | 3.0L
- Mercedes-Benz | GLE450 AMG | 2016~2017 | --/3.0L
- Mercedes-Benz | GLE500 | 2016~2017 | 3.0L/4.7L
- Mercedes-Benz | GLE63 AMG | 2016~2018 | 5.5L
- Mercedes-Benz | GLE63 AMG S | 2016~2018 | 5.5L
- Mercedes-Benz | ML250 | 2015 | 2.1L
- Mercedes-Benz | ML350 | 2012~2015 | 3.0L/3.5L/4.7L
- Mercedes-Benz | ML400 | 2015 | 3.0L
- Mercedes-Benz | ML500 | 2012~2015 | 4.7L
- Mercedes-Benz | ML63 AMG | 2012~2015 | 5.5L
Item Specifications
Key Words: Mercedes GL-Class X166 GL350 GL450 GL500 GL550 GL63 AMG 2013-2015 M-Class W166 ML250 ML350 ML400 ML500 ML550 ML63 AMG 2012-2015
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 96.52(Length)*20.32(Width)*20.32(Height)
- Single Weight(KG): 11.000
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X166 W166
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 1663205166, 1663205266
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number:
1663204166,1663205166,1663206913,
1663204266,1663205266,1663207013
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove the applicable front wheel.
4.Open the hood.
5.Remove the rubber trim as depicted.(picture 1,2)
6.Remove the hvac air intake cover.(picture 3)
7.Unclip the hvac air box.(picture 4)
8.Remove the hvac air box.(picture 5)
9.Disconnect the air line from the strut assembly.(picture 6)
10.Remove the three top strut mount nuts.(picture 7)
11.Disconnect the damping coil.(picture 8)
12.Disconnect the wheel speed sensor.(picture 9)
14.Remove the wire routing harness from the strut body.(picture 10)
15.Loosen and remove the axle nut and separate the axle from the wheel hub.(picture 11,12)
16.Remove the sway bar end link nut.(picture 13)
17.Remove the control arm nut and separate the upper control arm from the spindle assembly.(picture 14)
18.Pull down on the sway bar to separate the sway bar end link from the spindle assembly.(picture 15)
19.Remove the bottom strut mounting bolt.(picture 16)
20.Remove the axle from the wheel hub.(picture 17)
21.Carefully remove the strut assembly.(picture 18)
22.Removal complete.
*Installation Guideline
Installation is in reverse order of air spring removal.
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes

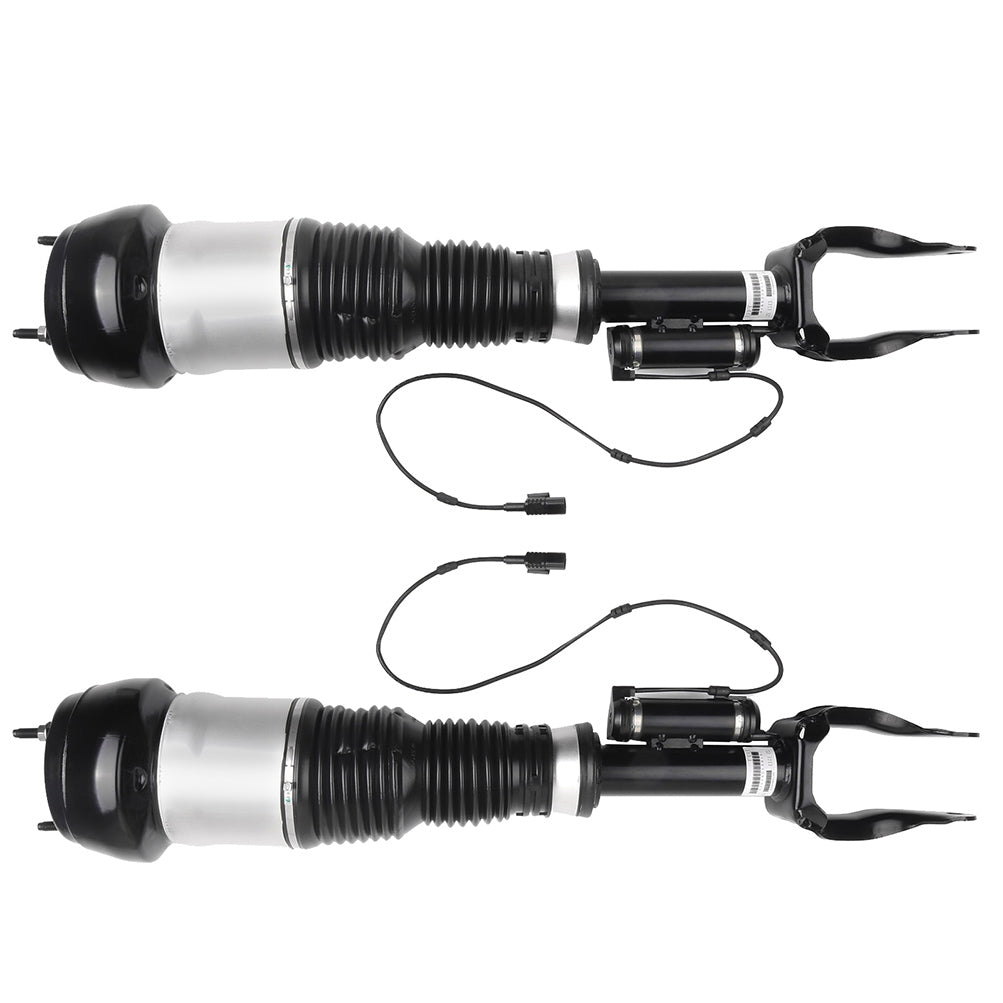

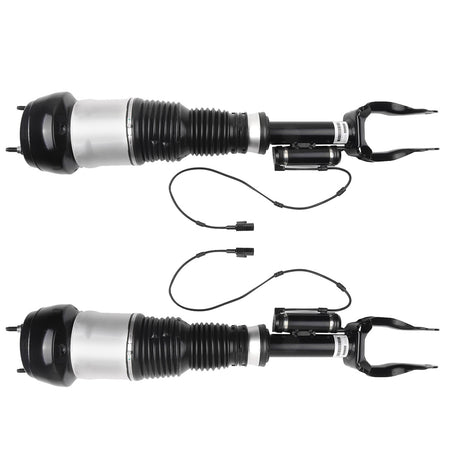

Pair for Front Left & Right Air Suspension Shock Struts
