Front Pair Air Suspension Spring Bags For Audi A6 C6 S6 Quattro Avant 2004-2011

Fitment:

• Audi | A6 | 2005~2010 | 2.8L/3.0L/3.2L
• Audi | A6 Quattro | 2006~2011 | 3.0L/3.2L/4.2L
• Audi | S6 | 2007~2011 | 5.2L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Strict quality requirements

During the entire production process, all our parts are subject to strict quality control. In each step of production, a number of quality control checks are performed to ensure that each part can be used for many years.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Lift vehicle and remove wheel.

3.Locate and remove the seal and plastic cover in the engine compartment.

4.Locate and remove the three(3)top mounting bolts.

5.Locate and remove the air line. Remove the air line fitting from the air hose and discard.

6.Locate and disconnect the electrical plug from the bottom of the shock.

7.Loosen and remove the pinch bolt holding the upper control arms to the spindle assembly.

8.Loosen and remove the lower mounting nut and bolt.

9.Remove the air strut from the vehicle.

10.Remove the four(4)top mounting nuts to separate the o.e.Air strut from the top mount assembly.

11.Removal complete.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

This is a repair kit, it is part of the Air Suspension Strut and cannot be used alone.

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

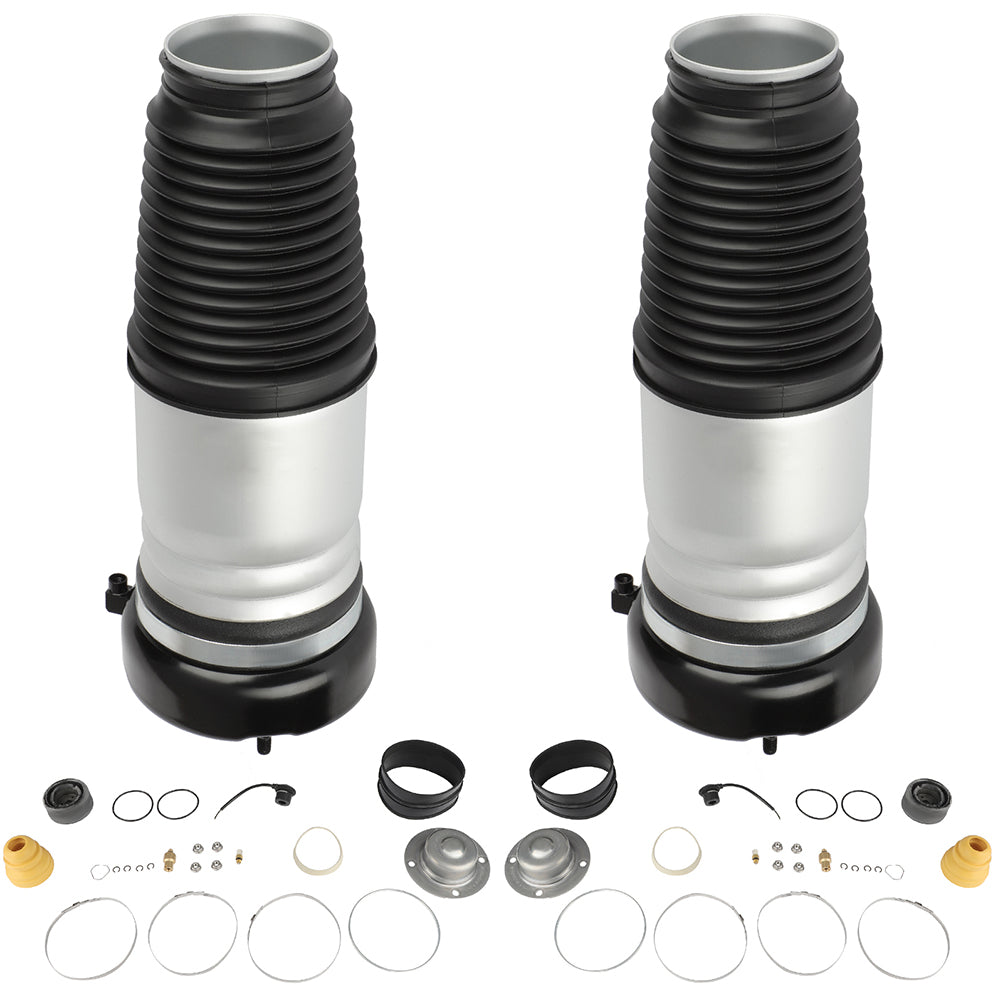

Pair for Front Left & Right Air Suspension Spring
