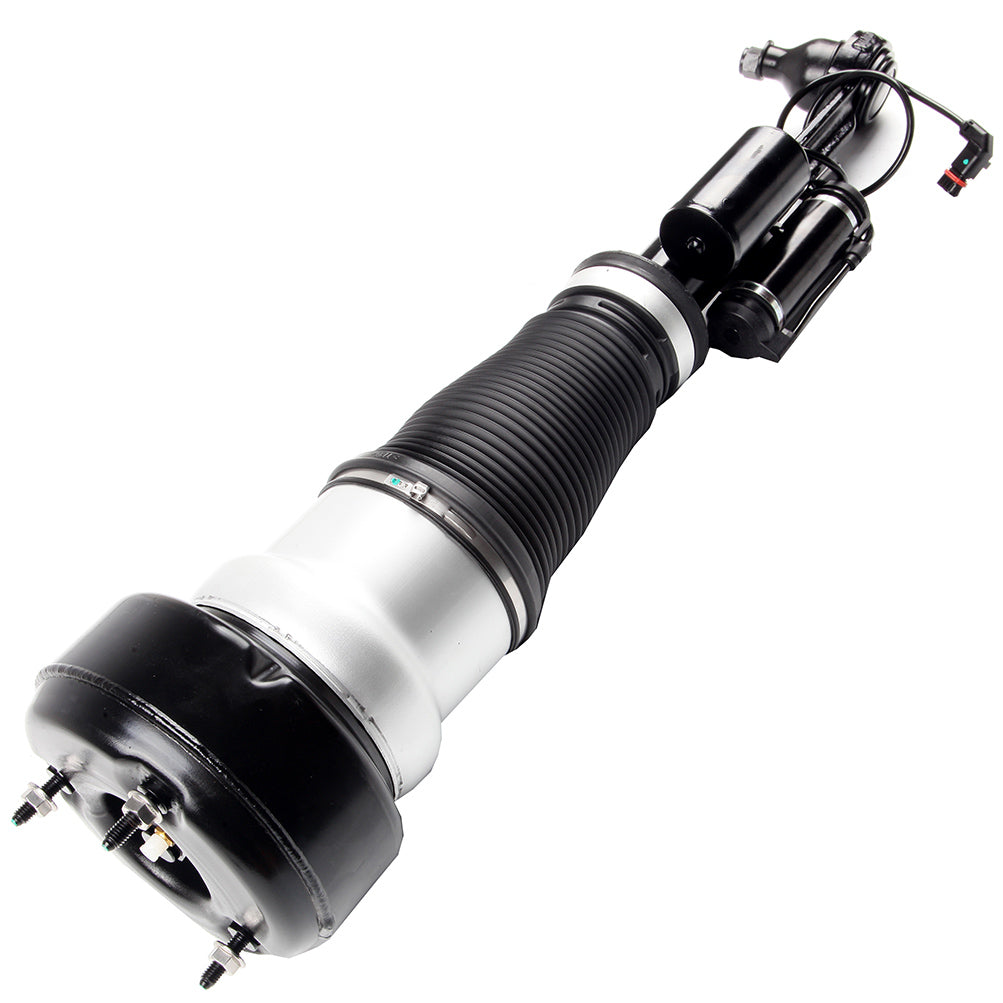

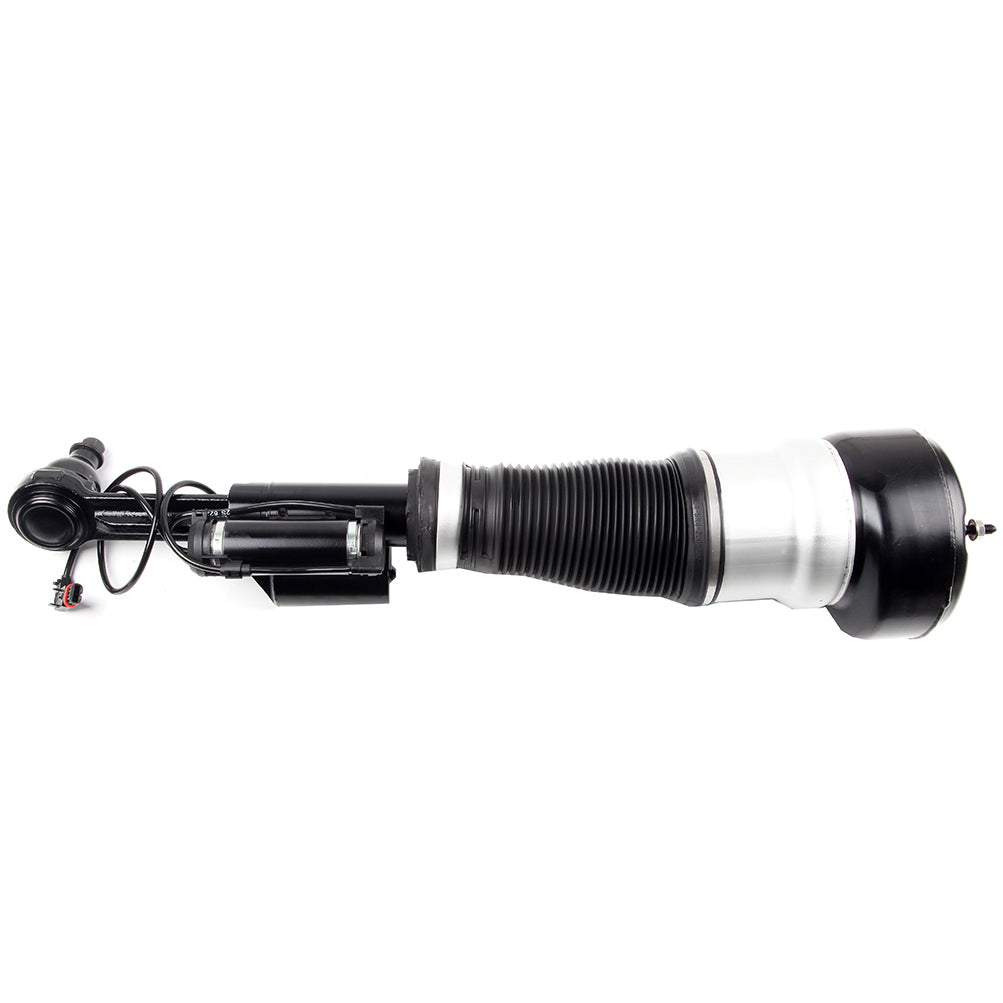

Front Right Air Suspension Shock For 4Matic Mercedes C216 CL500 CL550 S500 S550
Fitment:
- Mercedes-Benz | CL550 | 2009~2014 | 4.7L/5.5L
- Mercedes-Benz | S350 | 2012 | 3.0L/3.5L
- Mercedes-Benz | S450 | 2008~2009 | 4.7L
- Mercedes-Benz | S550 | 2008~2013 | 4.7L/5.5L
Item Specifications
Key Words: Front Right Air Suspension Shock Strut For 4Matic Mercedes S-Class W221 S350 S450 S550 2008-2013 4Matic CL-Class C216 CL550 2009-2013
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 85.00(Length)*20.00(Width)*20.00(Height)
- Single Weight(KG): 10.600
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90

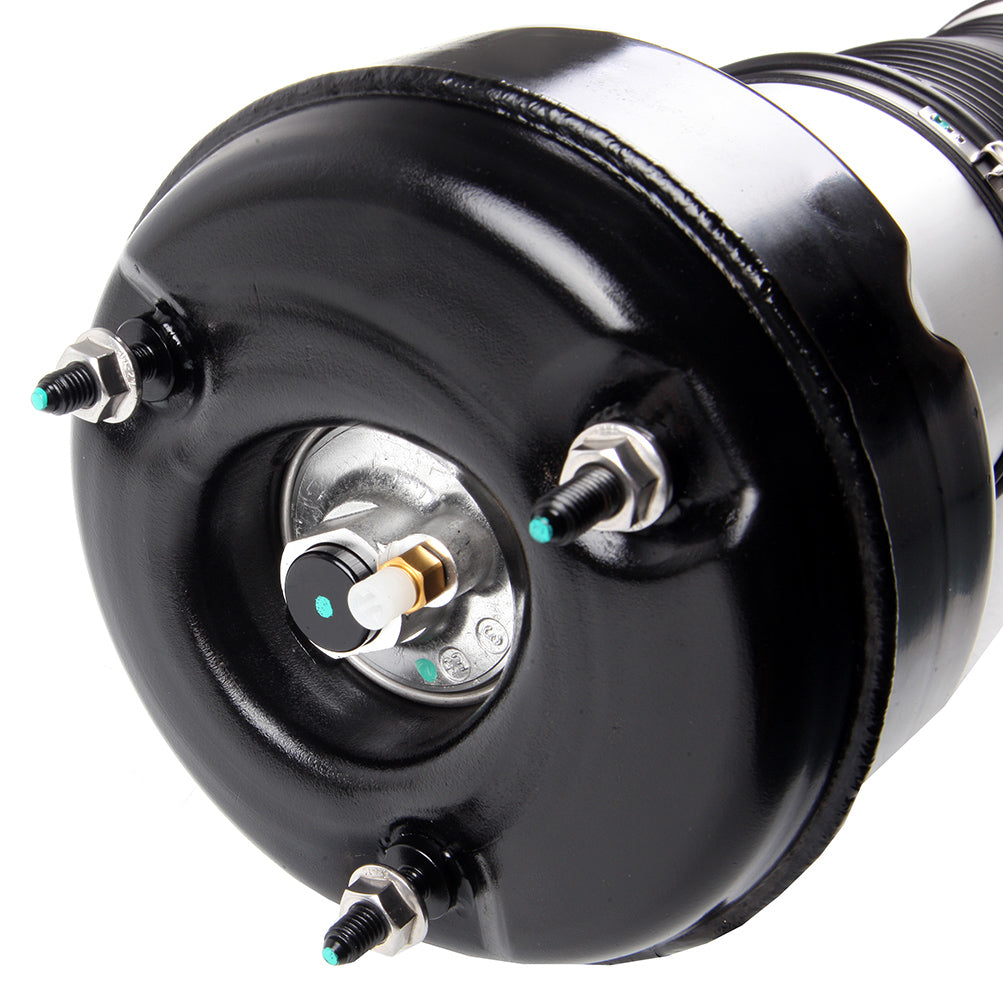

- Upper Mount Type: Stud
- Lower Mount Type: Stud
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: W221
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Strut, Air Ride Shock Strut
- Superseded Part Number: 2213201838
- *Platform Drive Layout: 4Matic Model-Four Wheel Drive Layout
- *OEM Part Number: 2213200538,2213201838,2213205413
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove front left or right wheel.(picture 1)

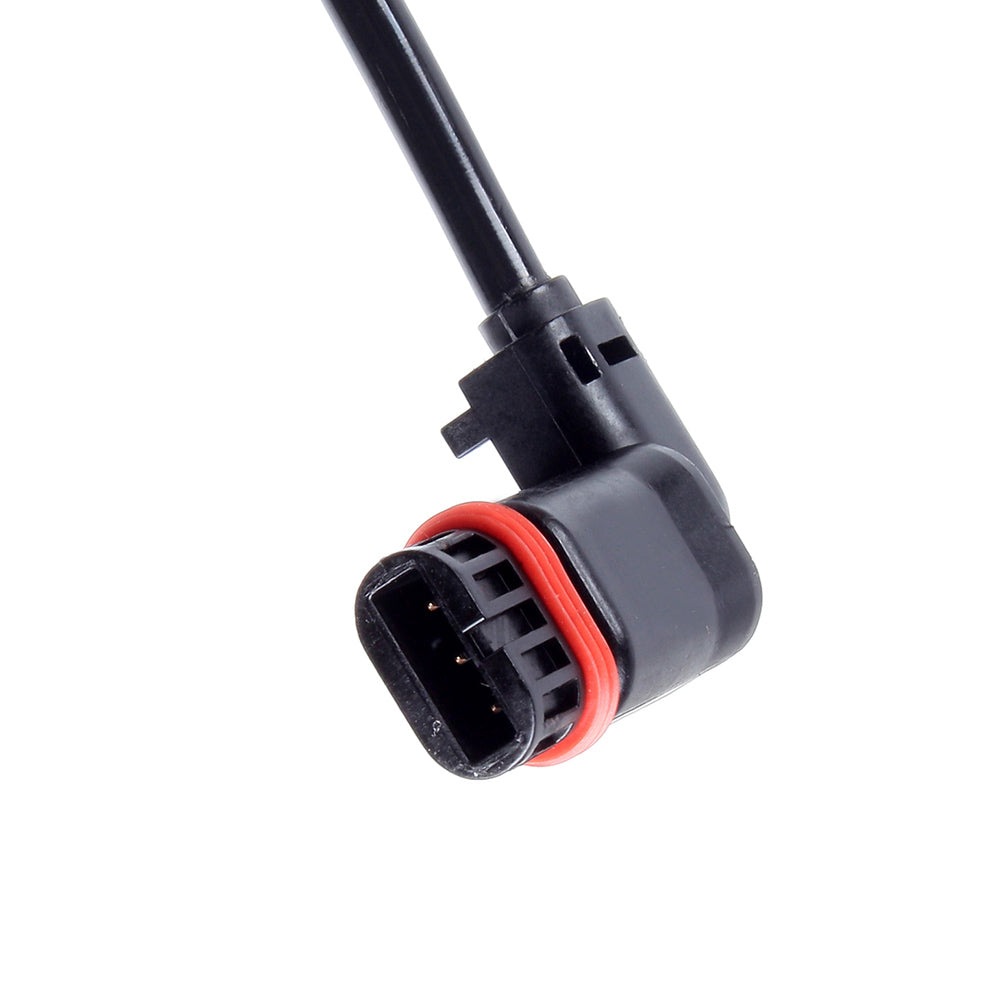

4.Locate the air strut's wiring block inside the wheel well. Remove the metal retaining clip and the two(2)electrical plugs.(pictures 2,3)
5.Cut the cable tie and remove the wiring bracket from the air strut.(pictures 4,5)
6.Loosen and remove the lower mounting nut.(picture 6)
7.Separate the lower ball joint from the lower control arm.(picture 7)
8.Loosen and remove the air line from the top of the air strut.(picture 8)
9.Loosen and remove the three(3)top mounting nuts.(picture 9)
10.Remove the air strut from the vehicle.(picture 10)
11.Remove the offset plate from the top of the air strut.(picture 11)
12.Removal complete.
*Installation Guideline
Installation is in reverse order of air strut removal.
Includes
Single for Front Right Air Suspension Shock Strut
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
