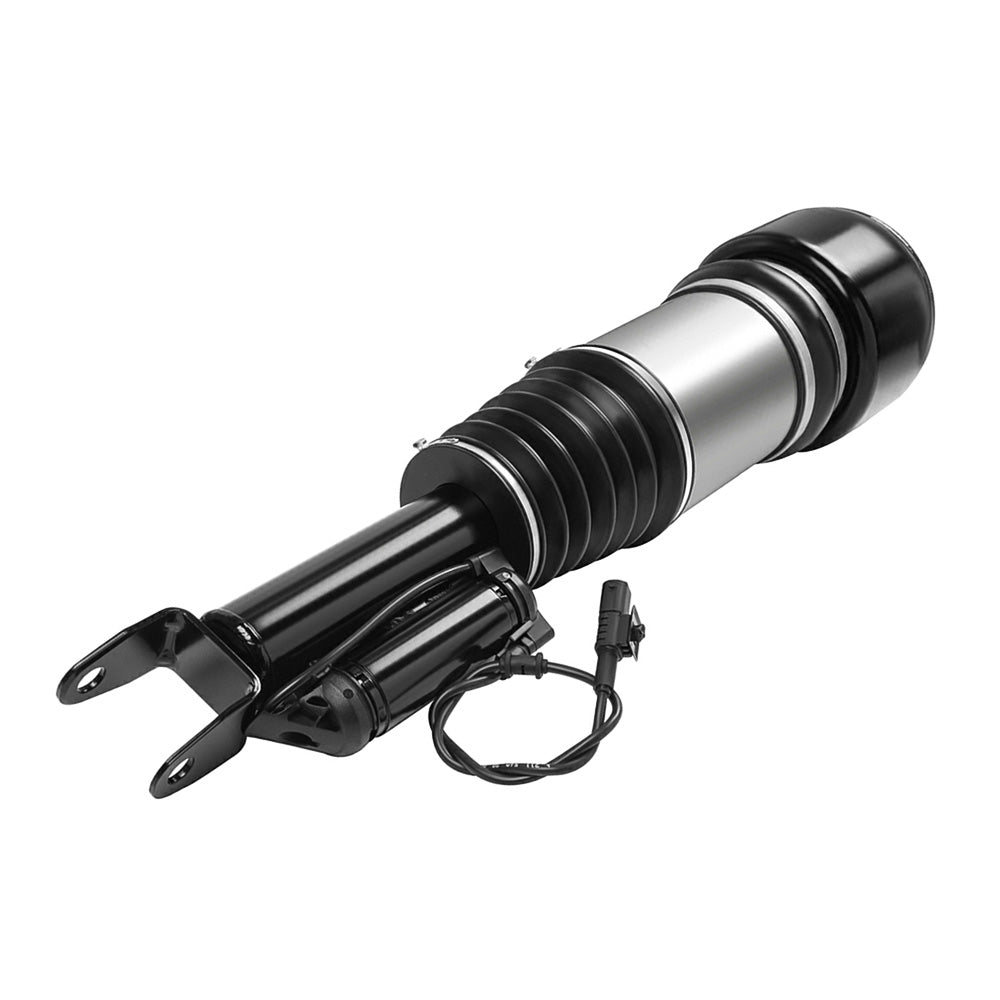

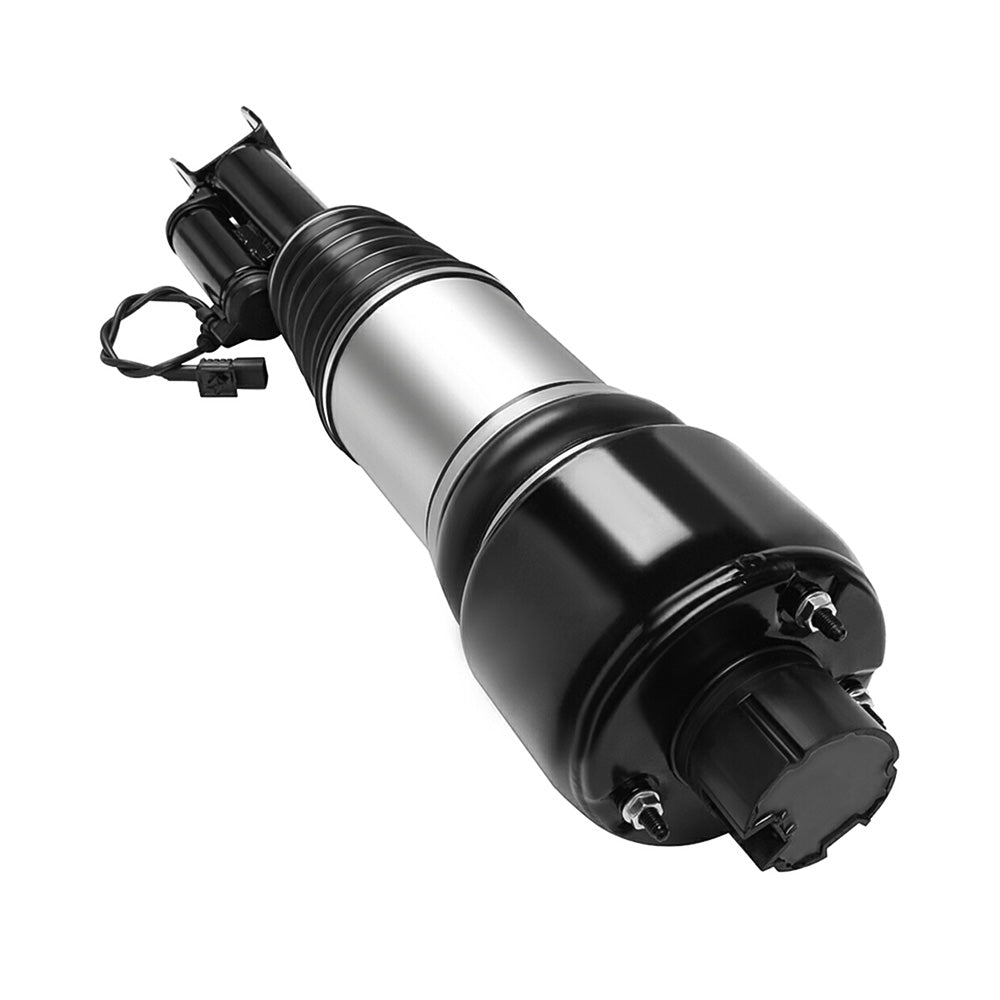

Front Right Air Suspension Strut For Mercedes W219 CLS500 CLS550 E350 E500 E550
Fitment:
- Mercedes-Benz | CLS350 | 2007~2011 | 3.5L/5.5L
- Mercedes-Benz | CLS500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | CLS550 | 2007~2010 | 5.5L
- Mercedes-Benz | E280 | 2007~2009 | 3.0L
- Mercedes-Benz | E320 | 2003~2009 | 3.0L/3.2L
- Mercedes-Benz | E350 | 2006~2007/2009 | 3.5L
- Mercedes-Benz | E500 | 2003~2009 | 5.0L/5.5L
- Mercedes-Benz | E550 | 2007~2009 | 5.5L
Item Specifications
Key Words: Front Right Air Suspension Shock Strut For Mercedes E-Class W211 E280 E320 E350 E500 E550 2003-2009 Excludes Vehicles With 4Matic & E55 AMG & E63 AMG CLS-Class W219 CLS350 CLS500 CLS550 2005-2011 Excludes Vehicles With CLS55 AMG & CLS63 AMG
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 84.00(Length)*21.00(Width)*21.00(Height)
- Single Weight(KG): 9.950
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90

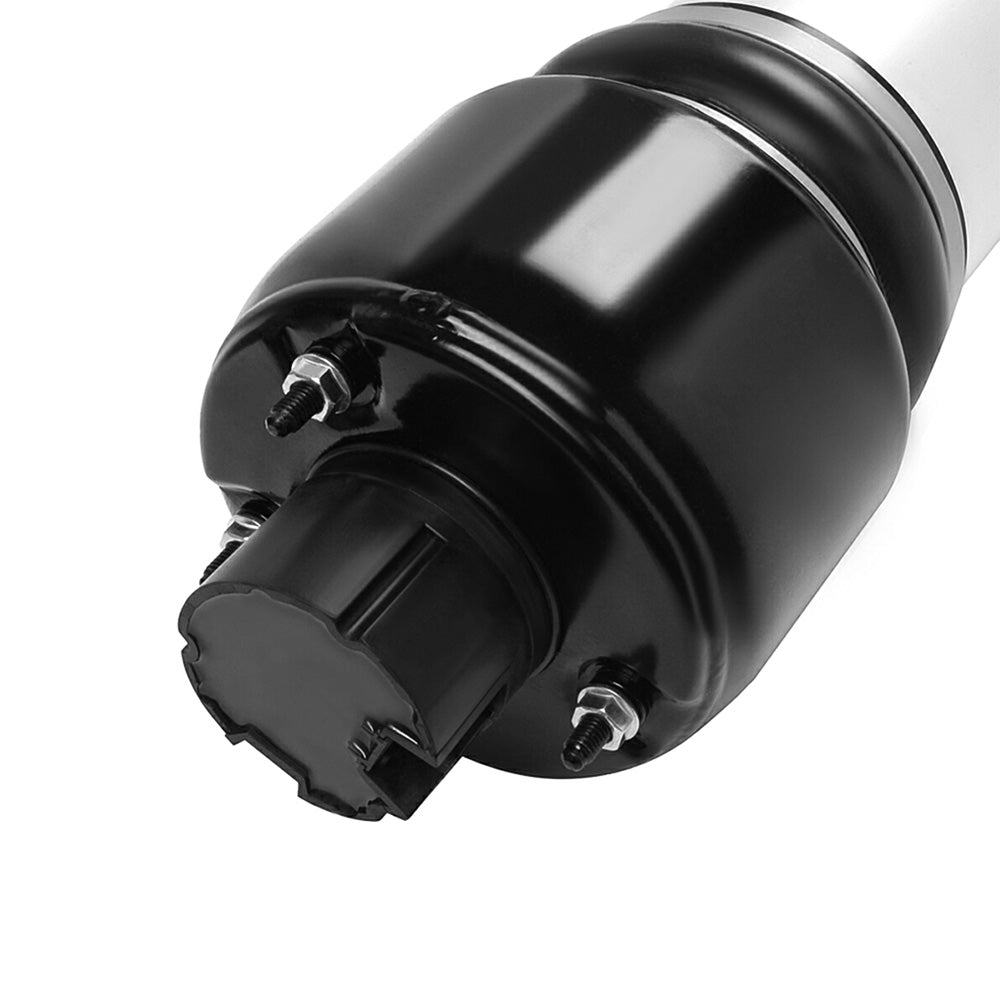

- Upper Mount Type: Stud

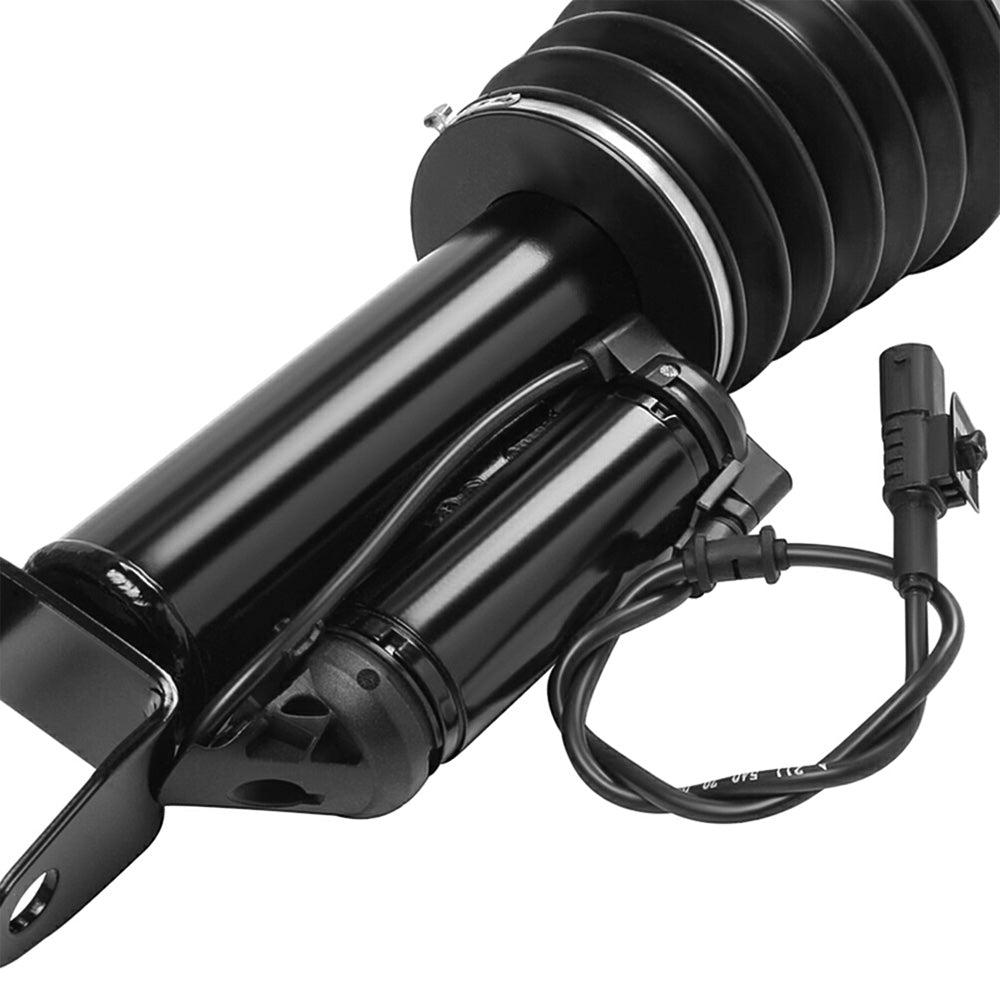

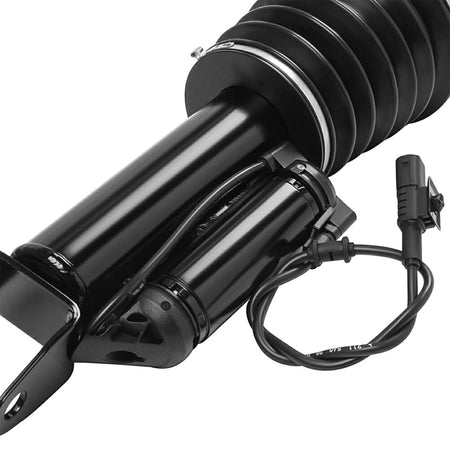

- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD/2WD
- Platform: W211
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Strut, Air Ride Shock Strut
- Superseded Part Number: 2113209413
- *Platform Drive Layout: Base Model-Rear Wheel Drive Layout
- *OEM Part Number:
2113205413,2113206013,
2113209413,2193201213
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise the vehicle.
3.Remove front wheel. (picture 1, 2)
4.Locate and remove upper control arm ball joint nut. (picture 3, 4)
5.Separate ball joint from spindle assembly. (picture 5)
6.Remove sensor lines from brackets. (picture 6)
7.Remove inner fender well screws. (picture 7, 8)
8.Locate and disconnect electrical plug. (picture 9)
9.Loosen lower shock mounting bolt. (picture 10)
10.Disconnect the air line from the top of the strut. (picture 11)
11.Unplug electrical connector. (picture 12)
12.Remove three(3) top mounting bolts. (picture 13, 14, 15)
13.Remove lower shock mounting bolt. (picture 16, 17)
14.Remove shock assembly from vehicle. (picture 18)
15.Removal complete.
*Installation Guideline
1.Installation is in reverse order of air strut removal.
Includes
Single for Front Right Air Suspension Shock Strut
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
