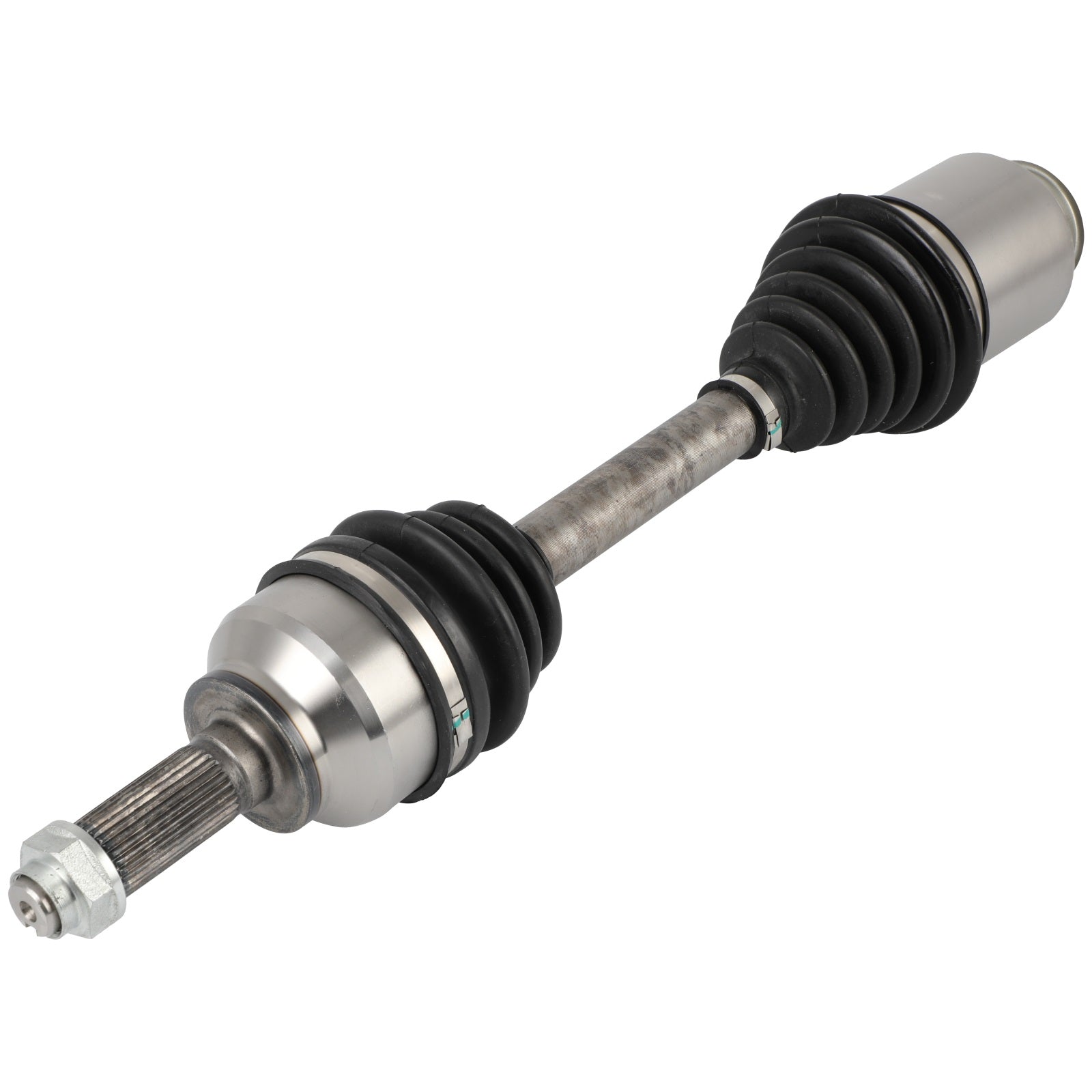

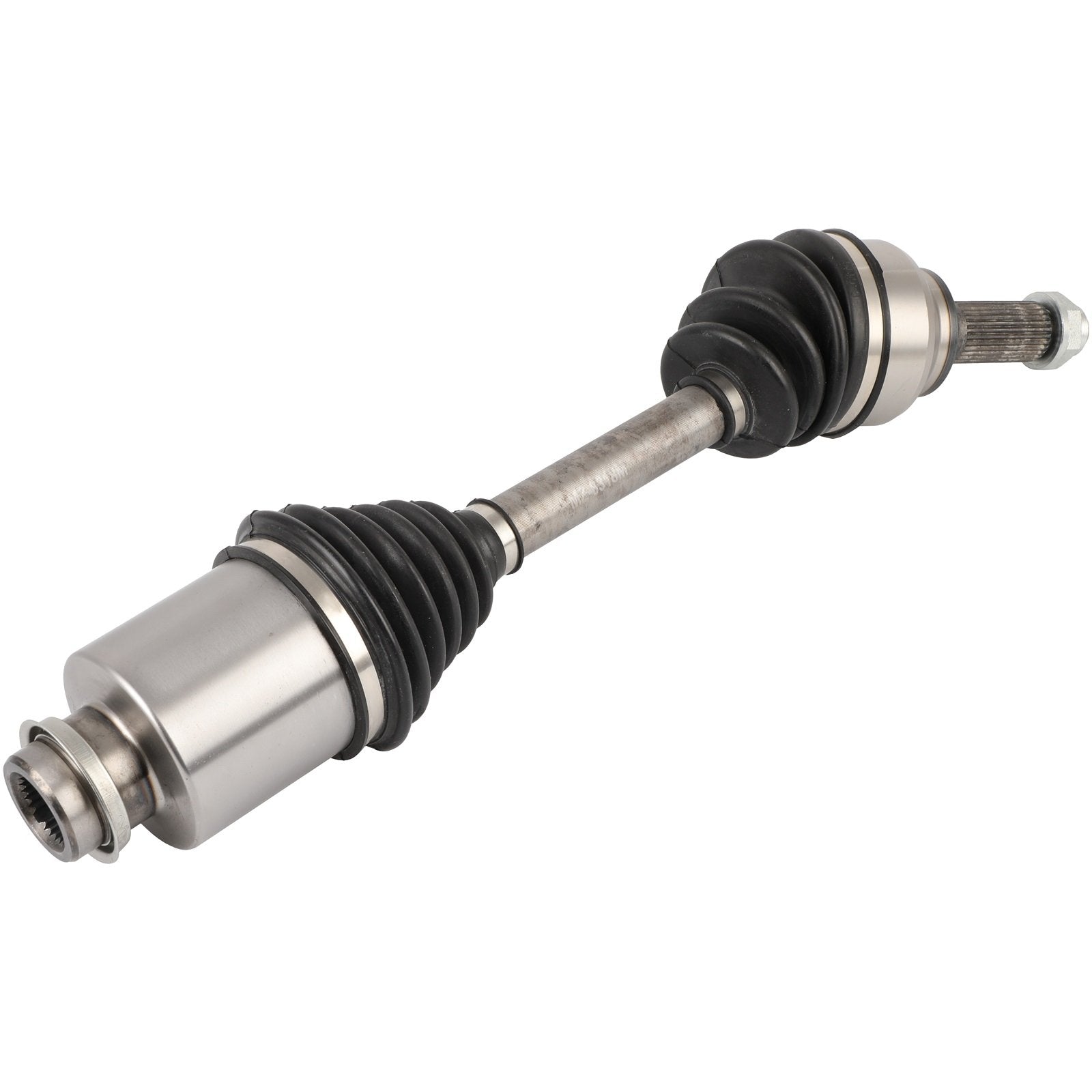

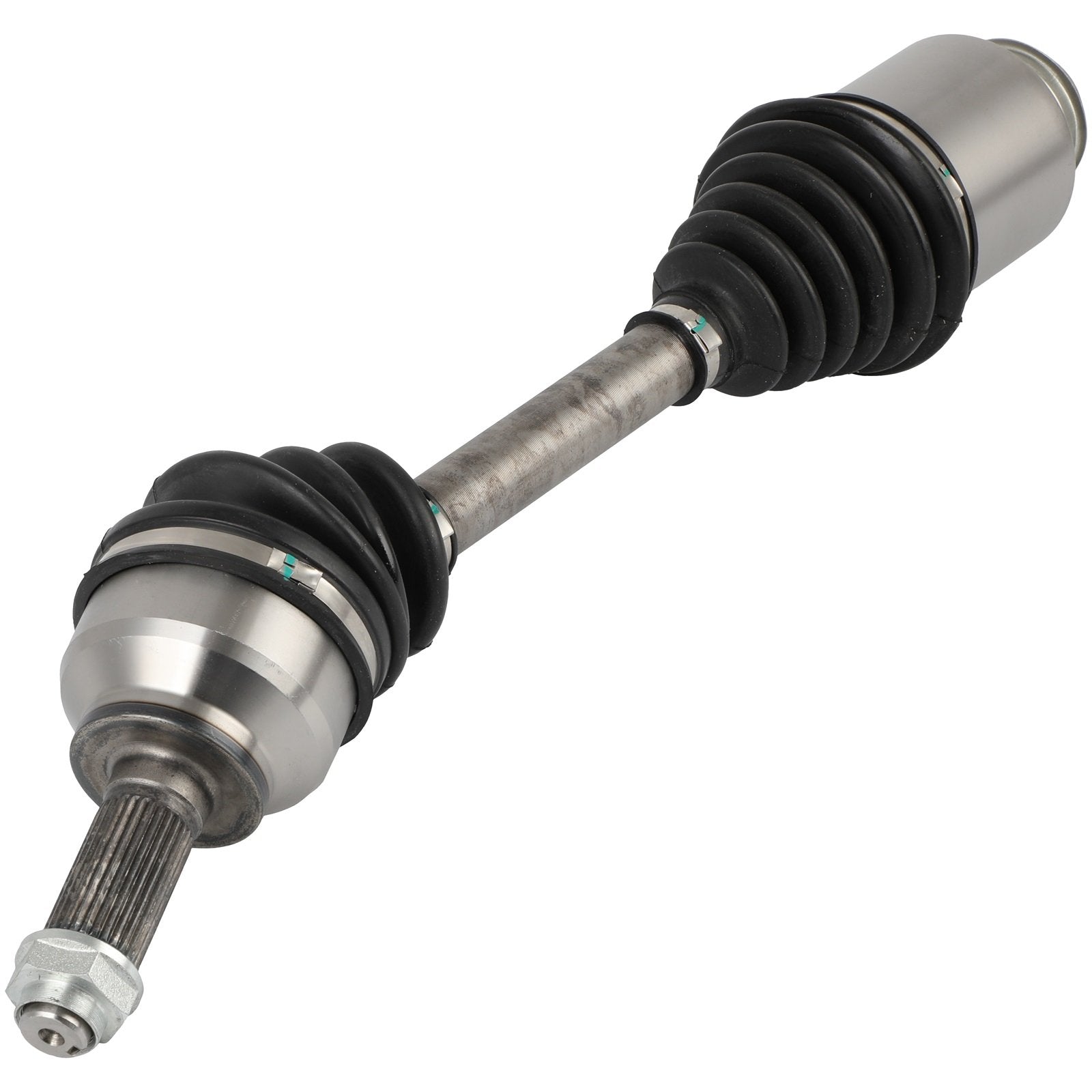

Front Right CV Axle For Mazda 3 2.0L 2005-2009 3 2.3L 2007-2009 Automatic trans.

Product Specifics

• ABS Ring Included: No
• Axle Boot Material: Neoprene
• Axle Nut Hex Size: 1.26 in / 32 mm
• Axle Nut Included: Yes
• Axle Nut Locking Type: Self-Lock
• Axle Nut Thread Size: M22 x 1.5
• Boot Color: Black
• Cotter Pin Included: No
• Fitment Type: Direct Replacement
• Grease Type: Molybdenum Disulfide Lithium Grease
• Hardware Included: No
• Hazardous Material: No
• Inboard Clip Included: No
• Input Shaft Connection Style: Spline
• ISO Specification: ISO 16949
• Items Included: N/A
• Number of Inboard Splines: 26+, 2 Teeth
• Number of Outboard Splines: 28 Teeth
• Output Shaft Connection Style: Spline
• Overall Compressed Length: 21.77 in / 553 mm
• Shaft Material: 40CR
• Surface Finish: Black Coating
• Placement on Vehicle: Front, Right
• Interchange Part Number: 60-8171
• Fitment: Verify this part fits your vehicle using the compatibility chart
