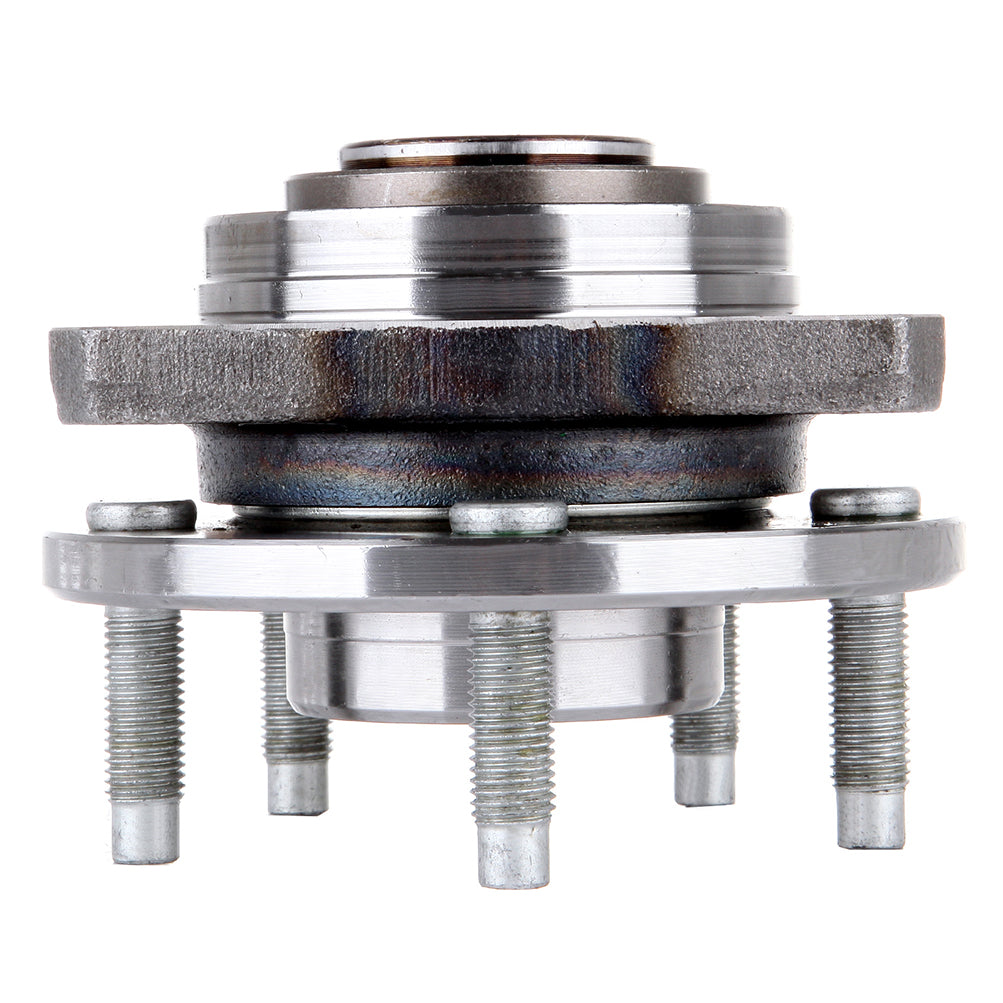

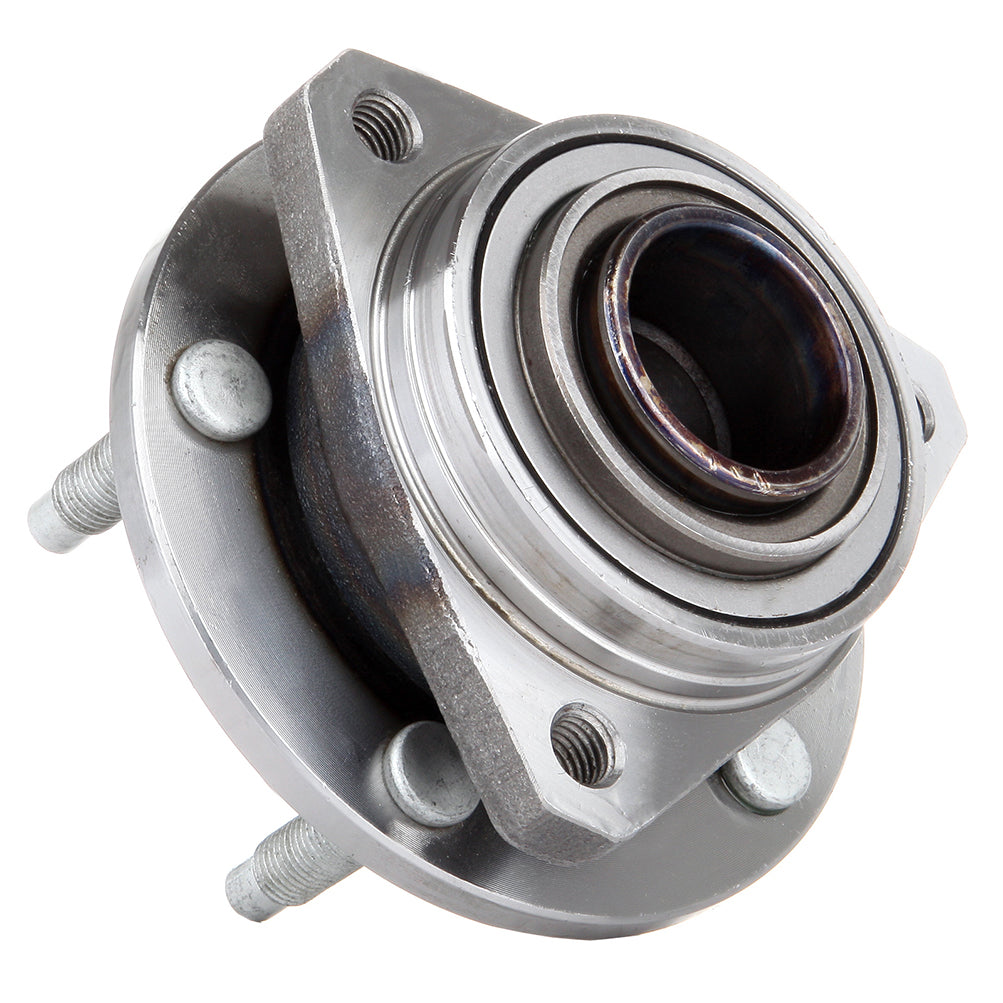

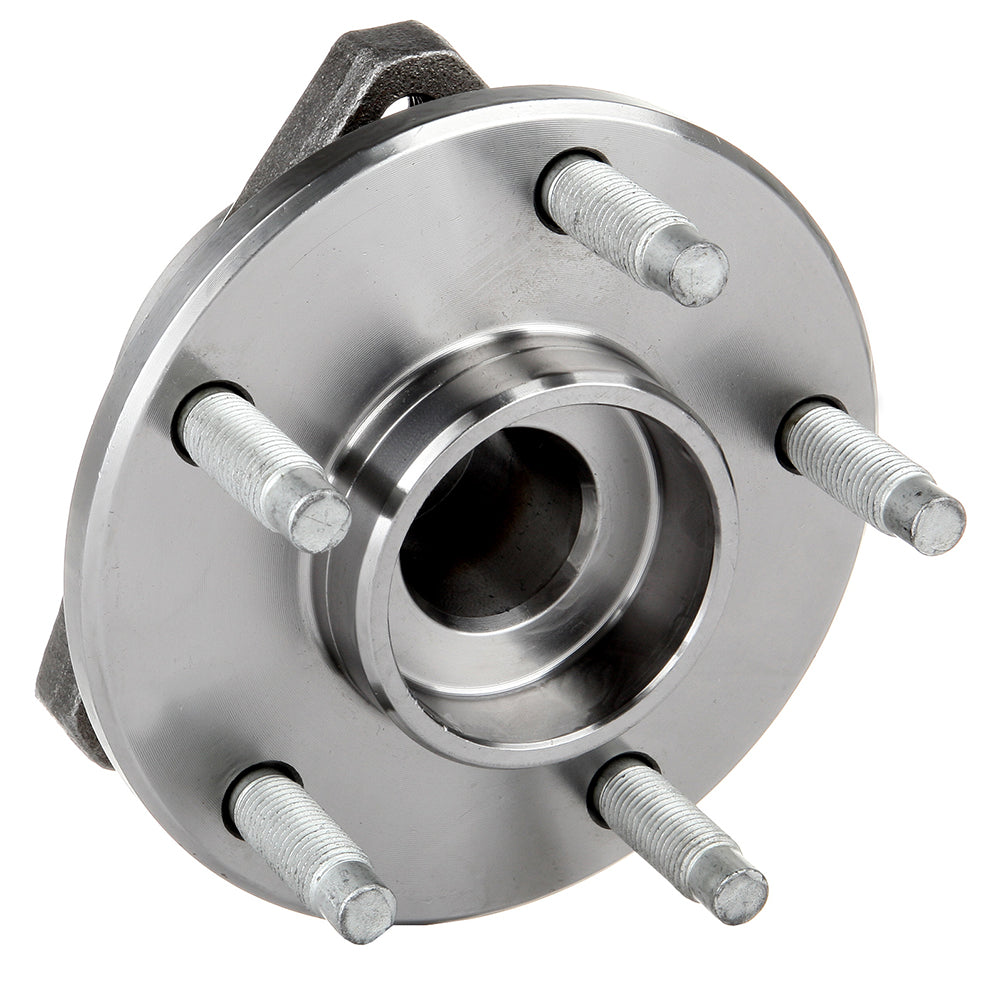

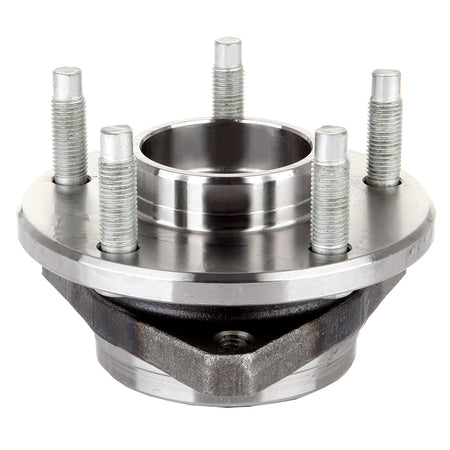

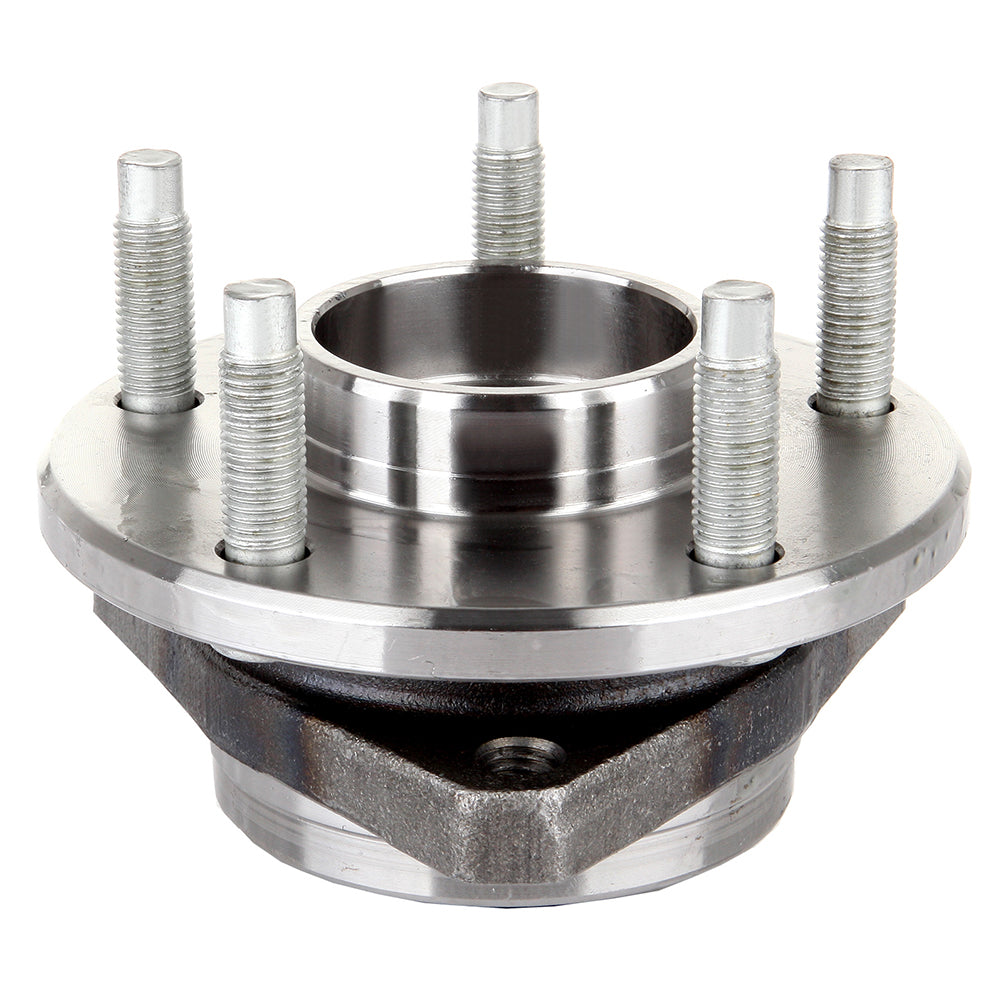

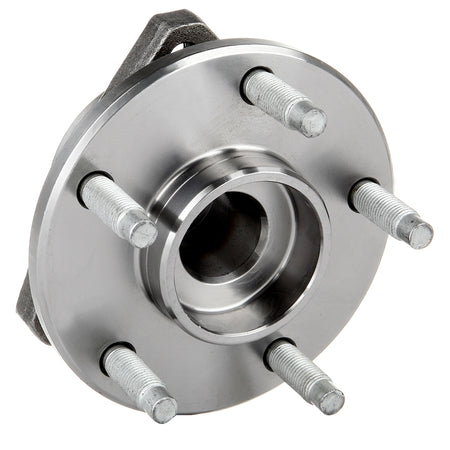

Front Wheel Bearing Assembly For 04-08 Chevrolet Malibu 05-07 Pontiac G6

Fitment

• Chevrolet | Malibu | 2004~2007 | 2.2L/3.5L
• Pontiac | G6 | 2005~2007 | 2.4L/3.5L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Not has an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 30
• Bolt Circle Diameter: 4.29 In
• Wheel Pilot Diameter: 2.54 In
• Brake Pilot Diameter: 2.55 In
• Flange Diameter: 5.34 In
• Flange Shape: Modified
• Flange Offset: 1.52 In
• Hub Pilot Diameter: 3.42 In
• Other Part Numbers: 12413087, 12413088, 12413167, 22706425, 7467597
• Material: steel
• Weight: 15LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513215,713215,12413087, 12413088, 12413167, 22706425, 7467597

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

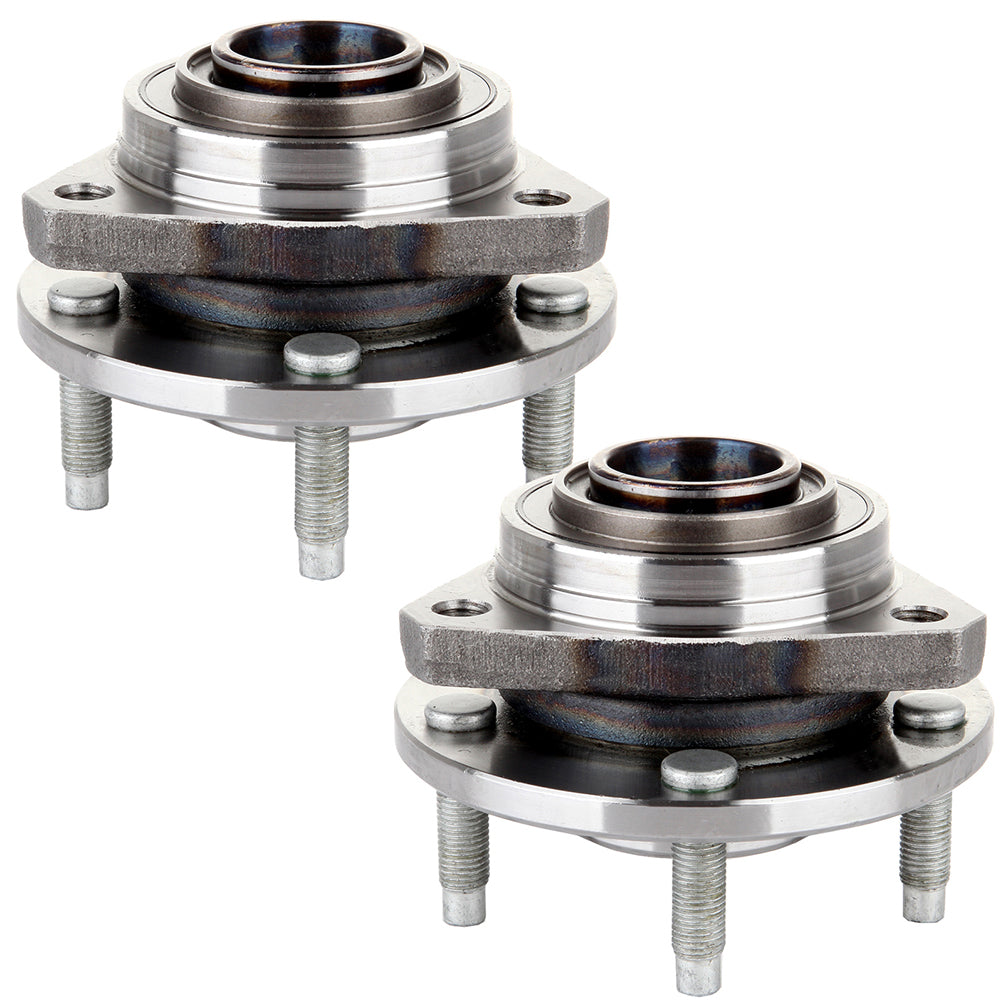

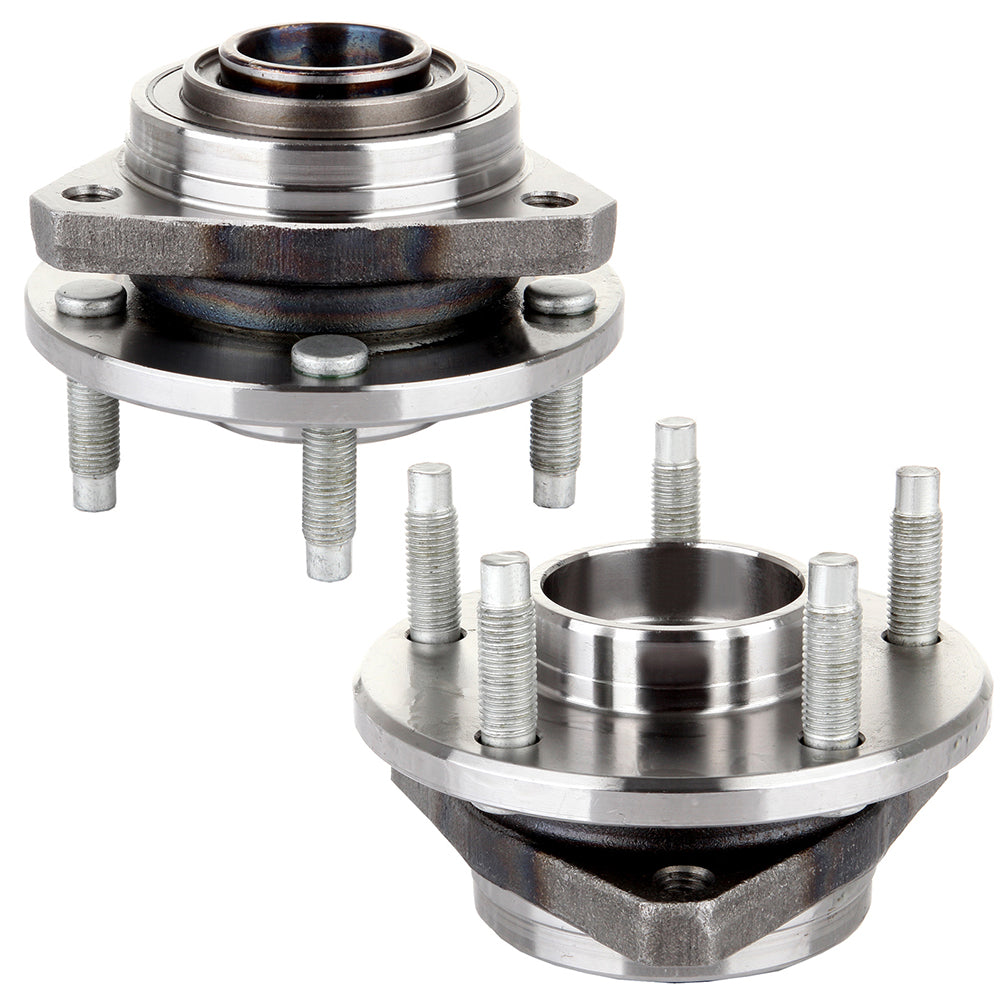

2 Pcs wheel hub bearing
