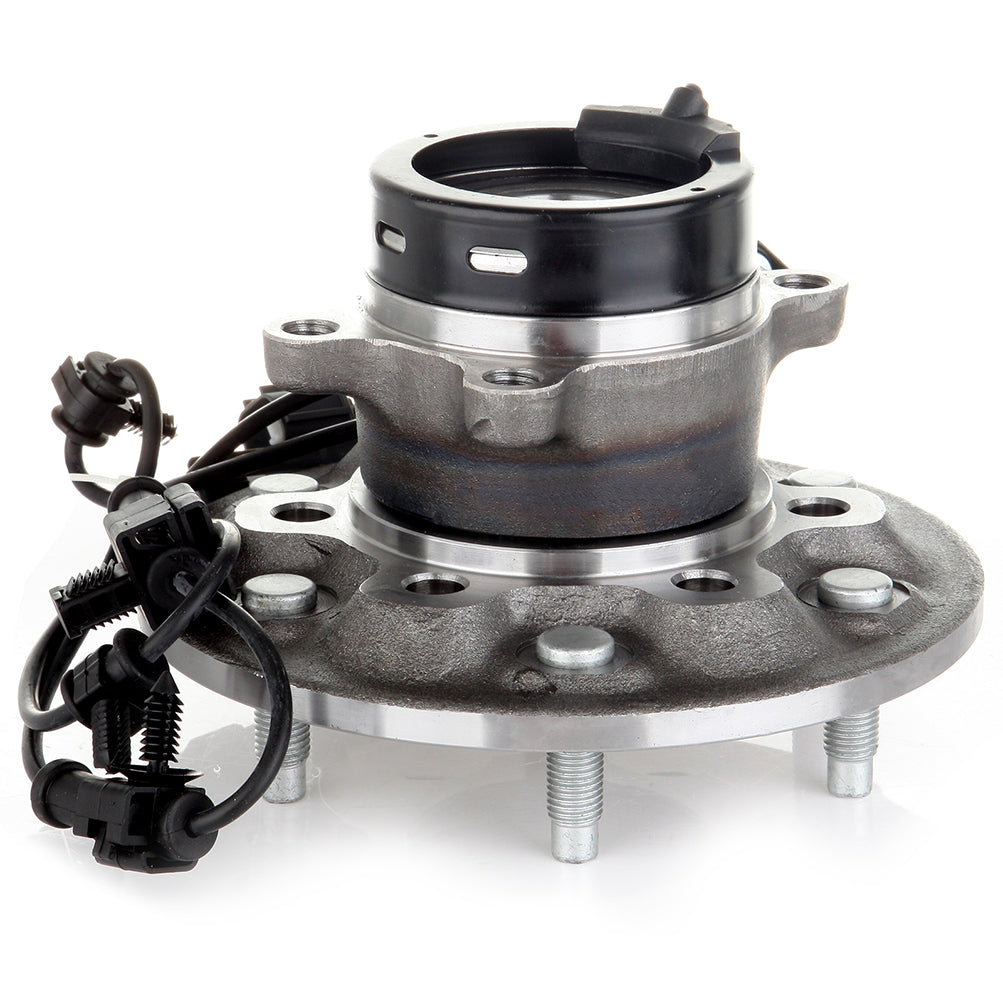

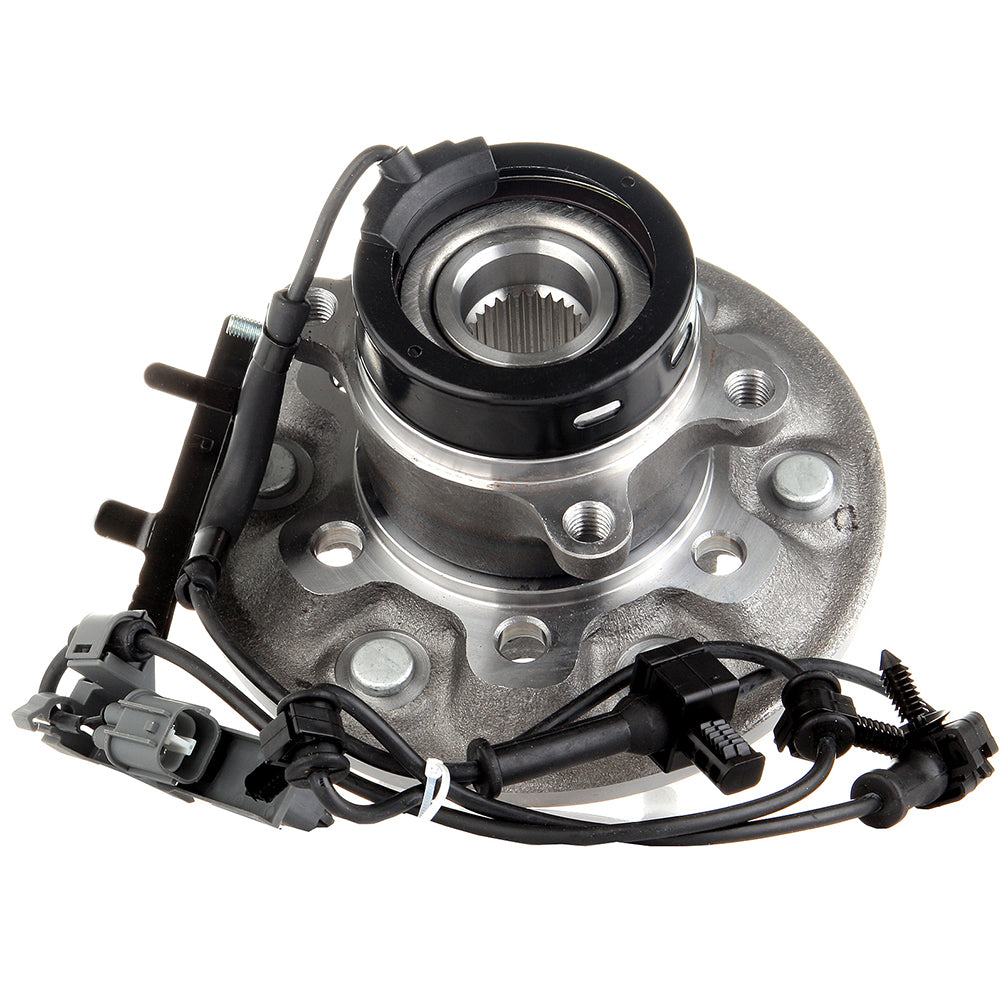

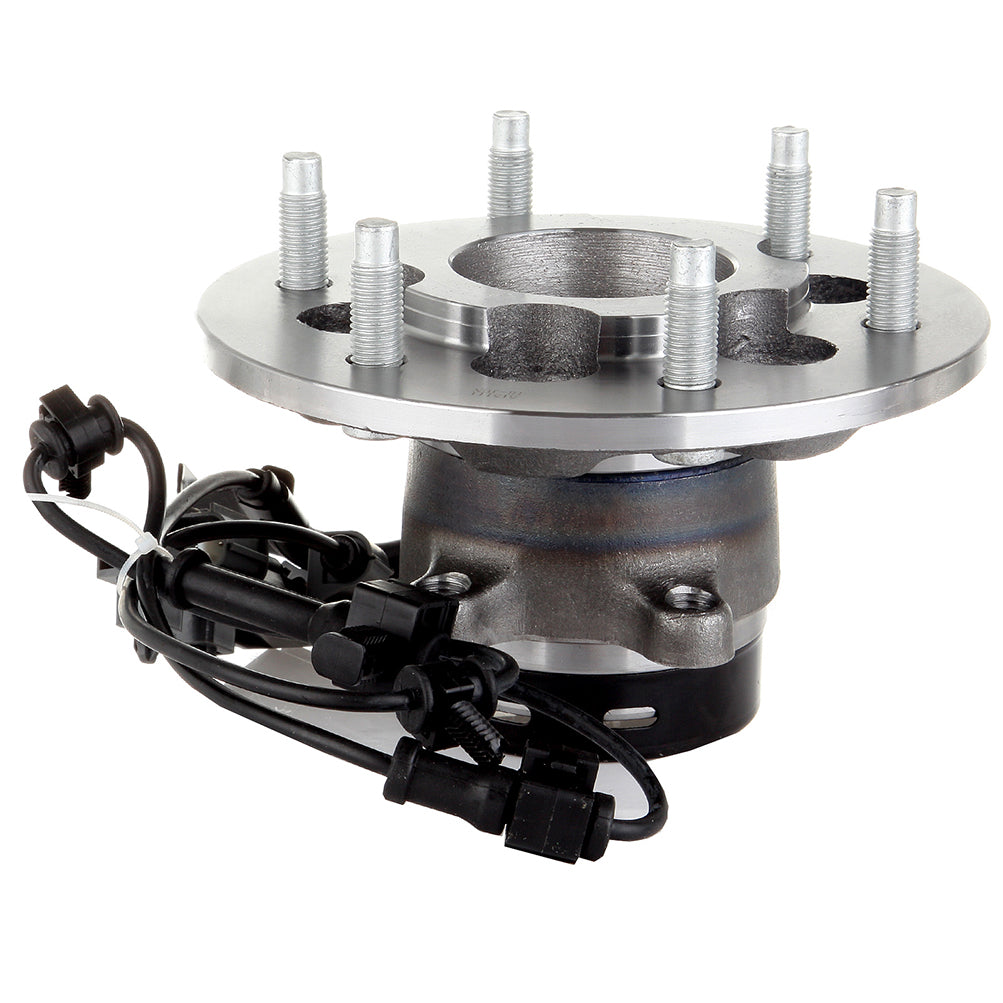

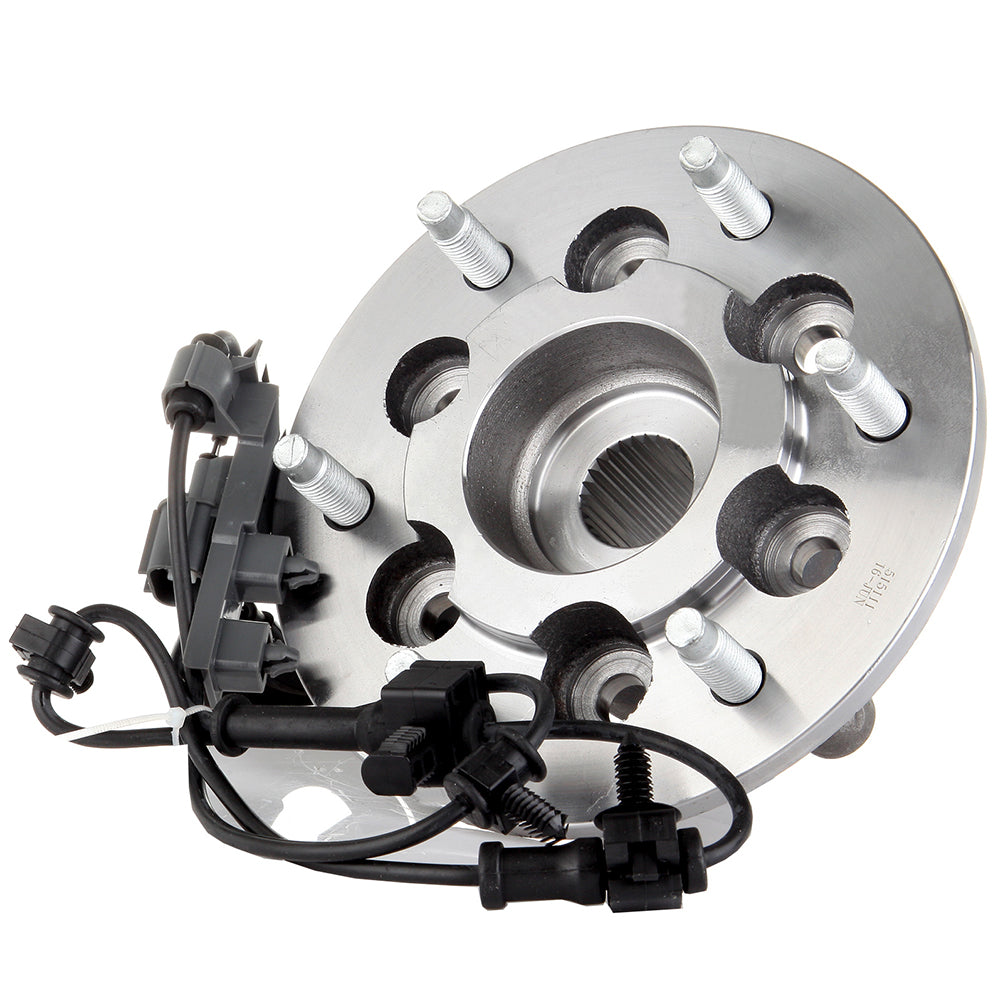

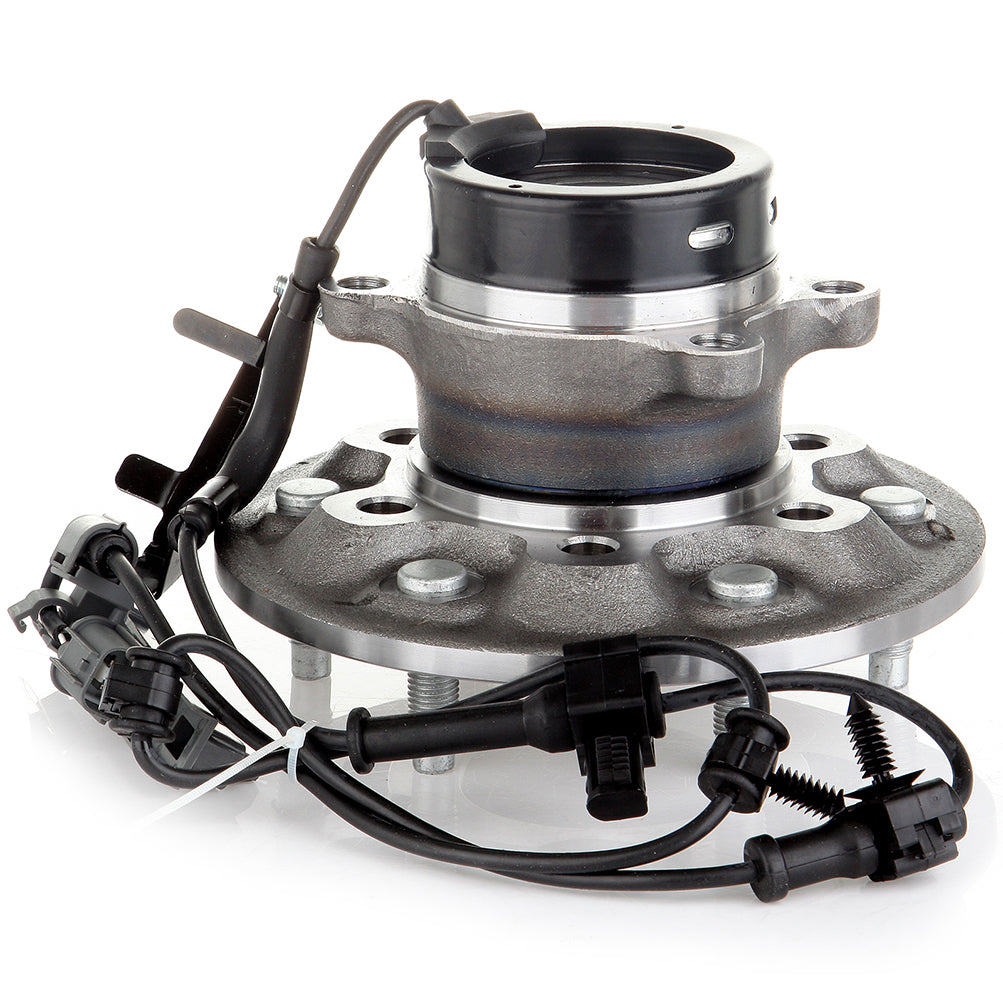

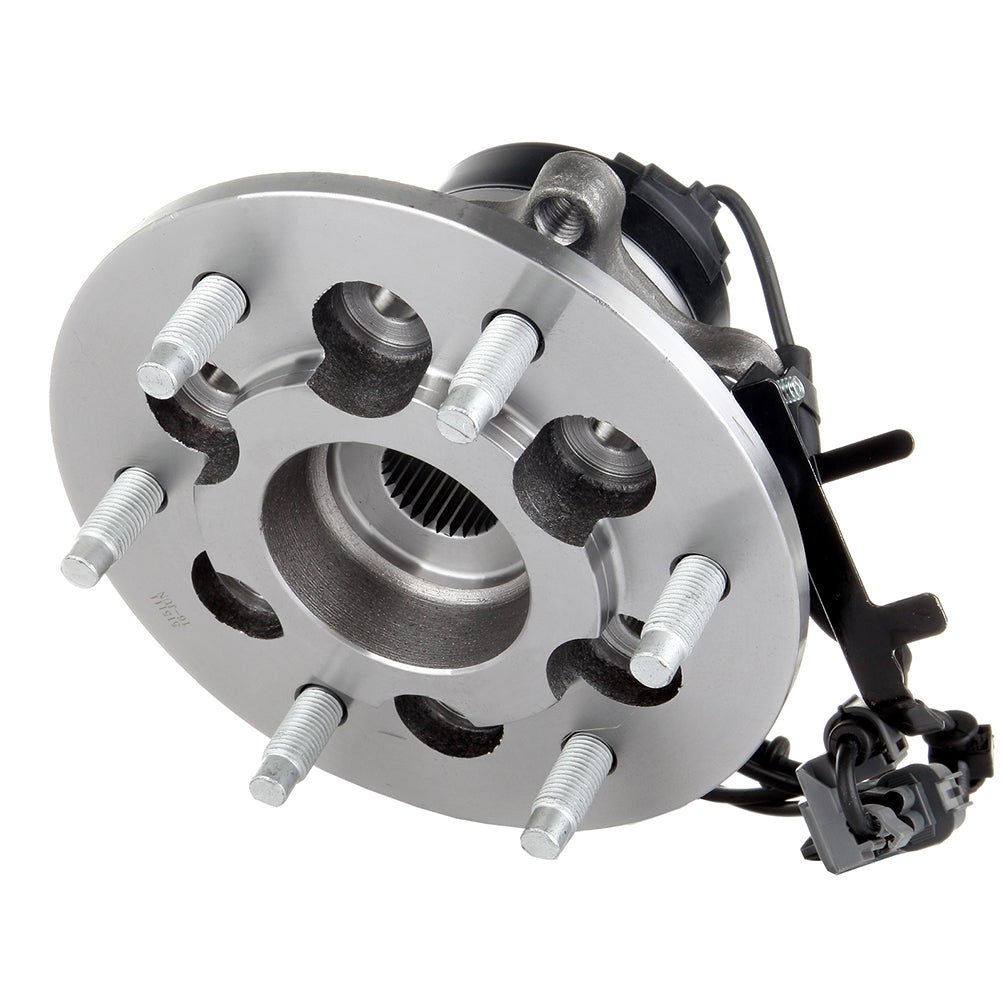

Front Wheel Bearing Assembly For 04-08 GMC Canyon Chevrolet Colorado

Fitment

• Chevrolet | Colorado | 2004~2008 | 2.8L/2.9L/3.5L/3.7L
• GMC | Canyon | 2004~2008 | 2.8L/2.9L/3.5L/3.7L
• Isuzu | i-350 | 2006 | 3.5L
• Isuzu | i-370 | 2007~2008 | 3.7L

Product Specifics

• Position: Passenger Side Front
• Include ABS sensor: Yes(Has ABS with tegral Sensor)
• Qty: 1 x wheel hub bearing
• Product Material: steel
• Spline Quantity: 27
• Flange Bolt Hole Quantity: 4
• Lug Quantity: 6 Lugs
• Weight: 13LB
• Flange Diameter: 7.25In.
• Flange Offset: 2.65In.
• Bolt Circle Diameter: 5.5In.
• Brake Pilot Diameter: 3.94In.
• Hub Pilot Diameter: 3.35In.
• Wheel Pilot Diameter: 3.92In.
• Flange Shape: Rectangle
• Alternate/OEM Part Number(s): 15100274 15176997 8151002740
• Weight: 13LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 15100274, 15176997, 8151002740,15100274, 15176997, 8151002740,29515111

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
