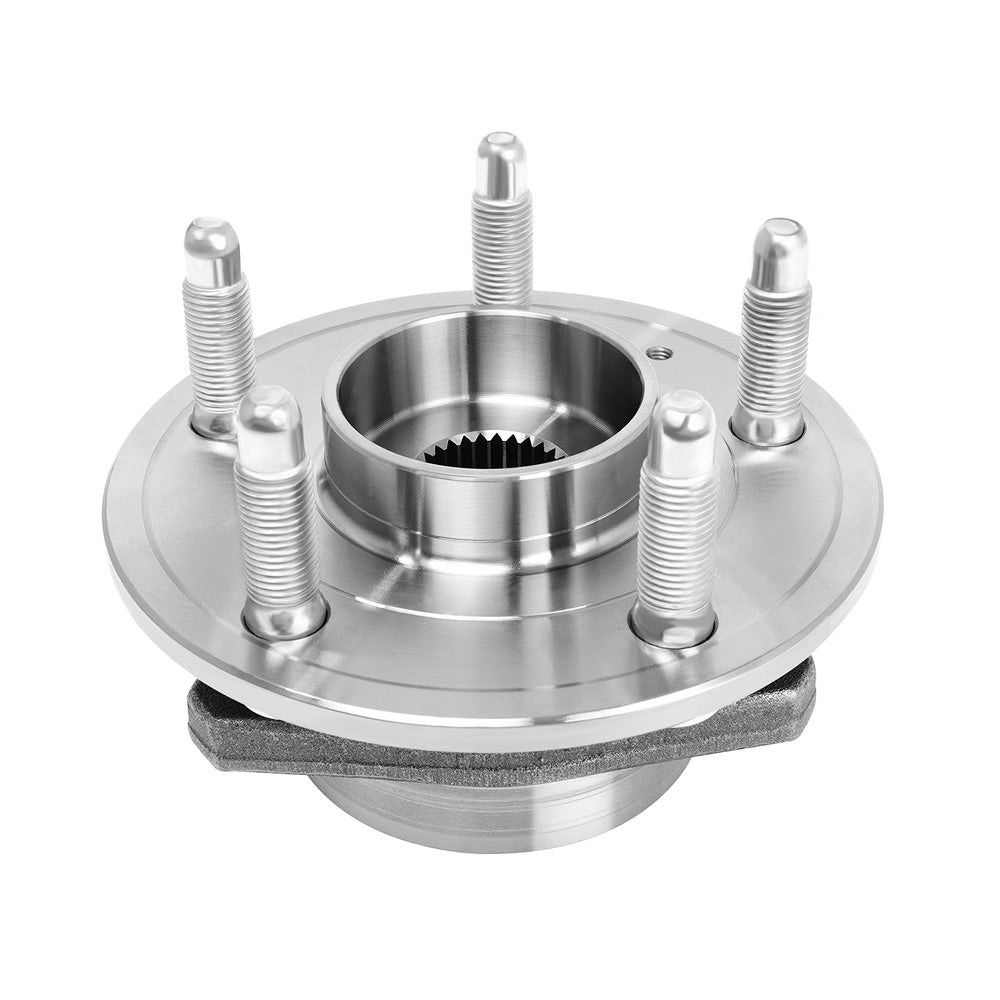

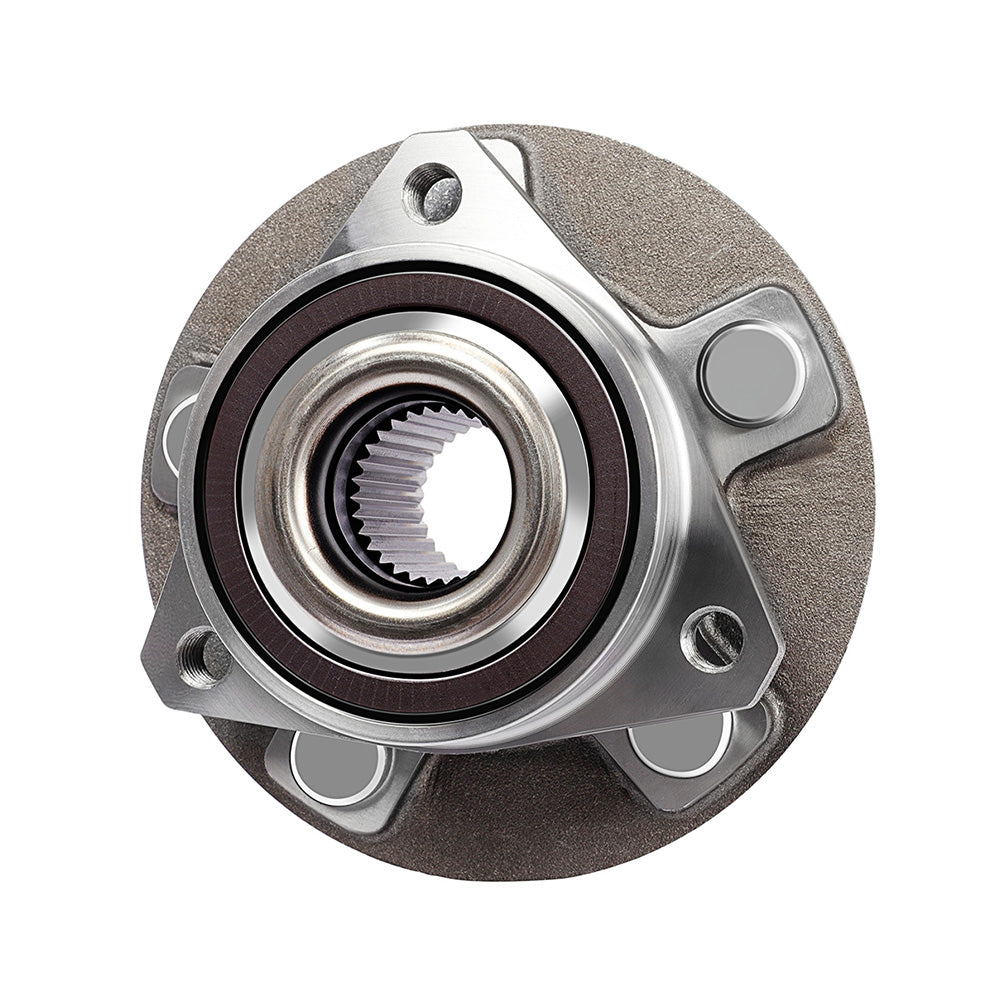

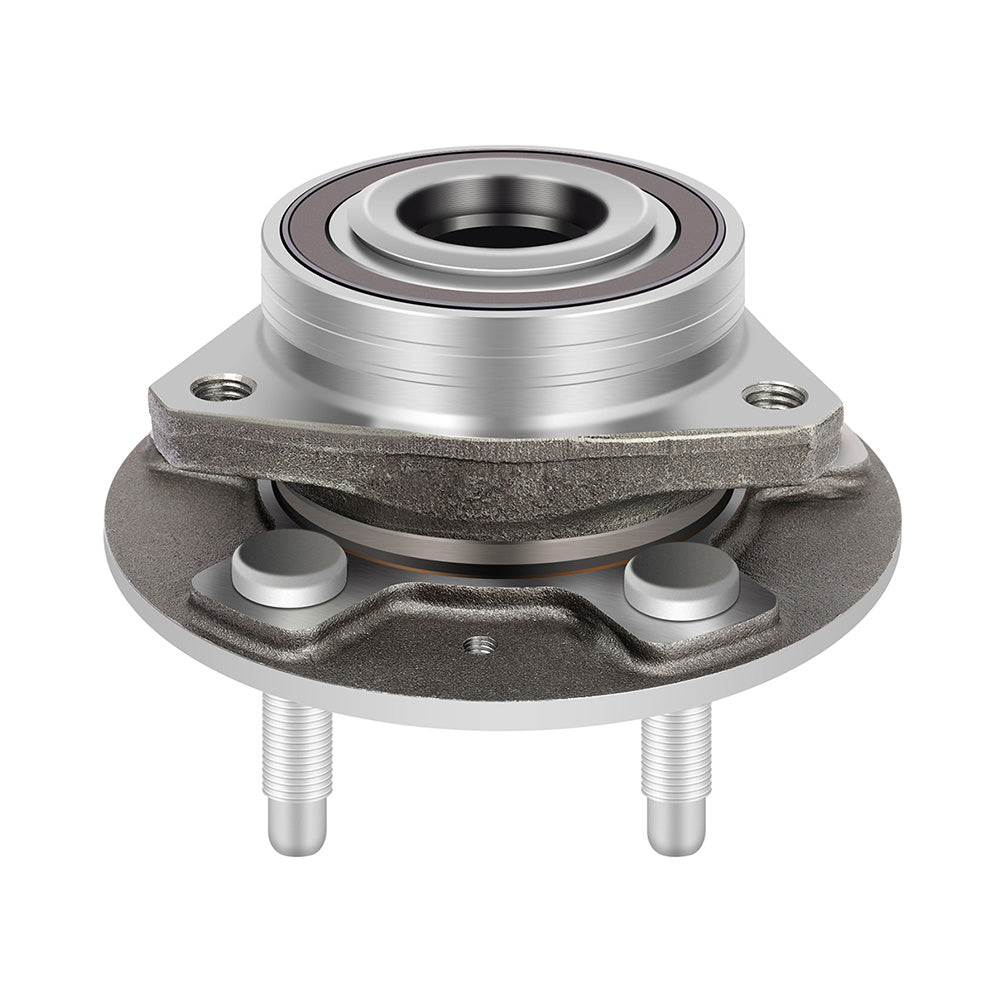

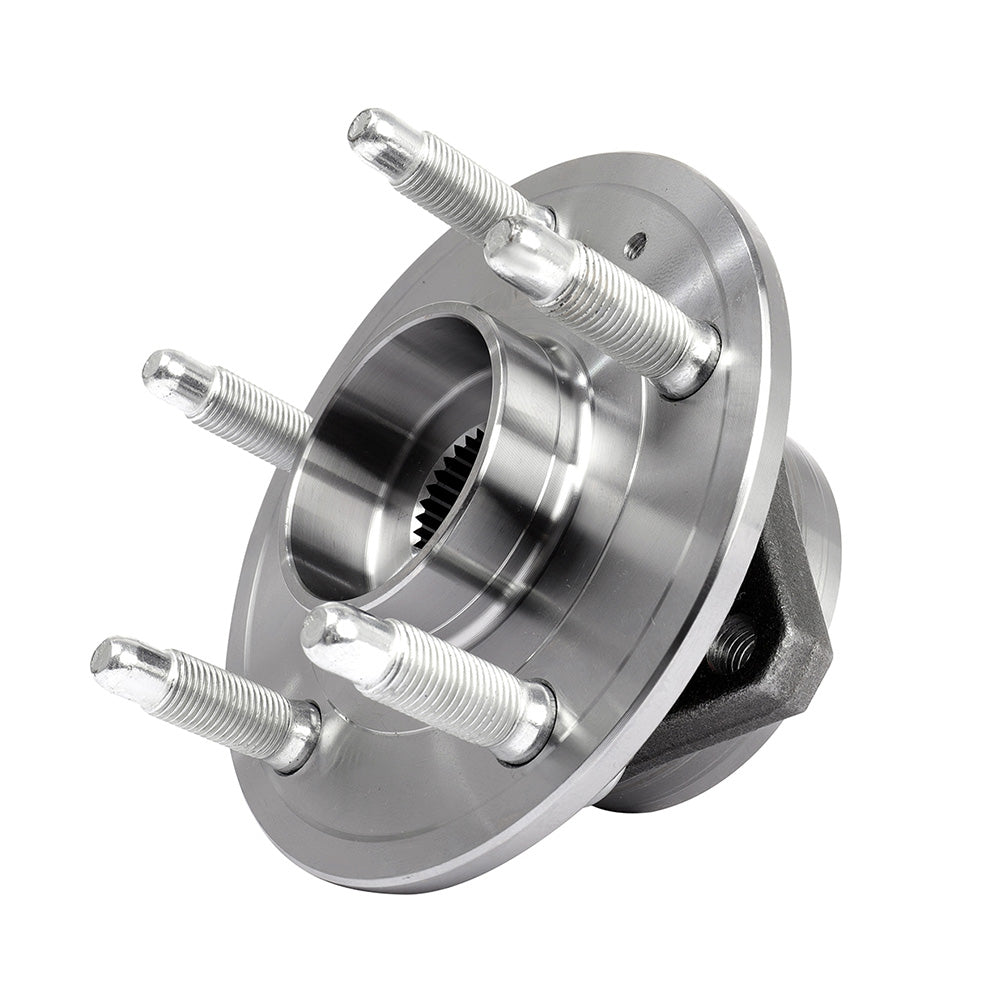

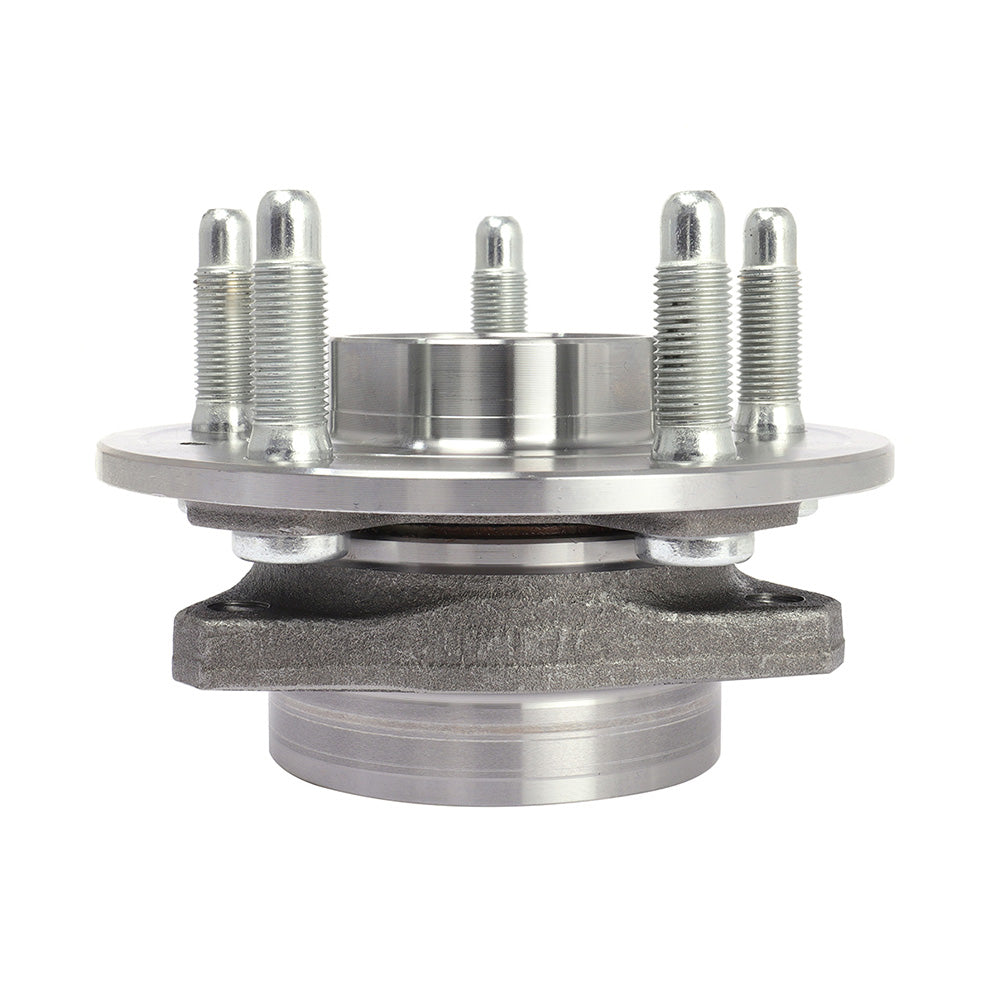

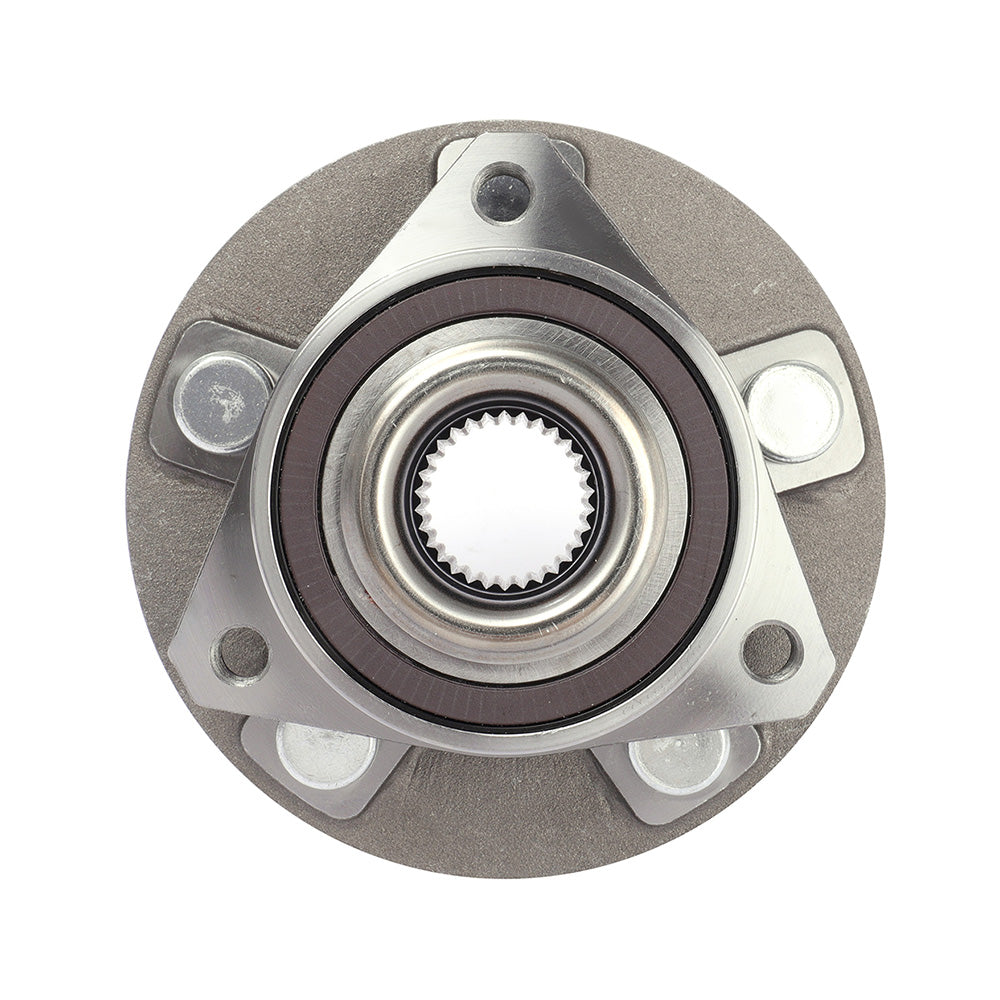

Front Wheel Bearing Assembly For 08-16 Cadillac CTS 10-15 Chevrolet Camaro

Fitment

• Cadillac | CTS | 2008~2016 | 2.0L/3.0L/3.6L/6.2L
• Cadillac | XTS | 2018~2019 | 3.6L
• Chevrolet | Camaro | 2010~2015 | 3.6L/6.2L
• Chevrolet | Impala | 2018~2019 | 2.5L/3.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front+Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 30
• Bolt Circle Diameter: 4.68 In
• Wheel Pilot Diameter: 2.61 In
• Brake Pilot Diameter: 2.6286 In
• Flange Diameter: 6.13 In
• Flange Shape: Modified
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.56 In
• Other Part Numbers: 13502216, 13504970, 13580685, 15851077
• Material: steel
• Weight: 9LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513282,29513282,713282

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
