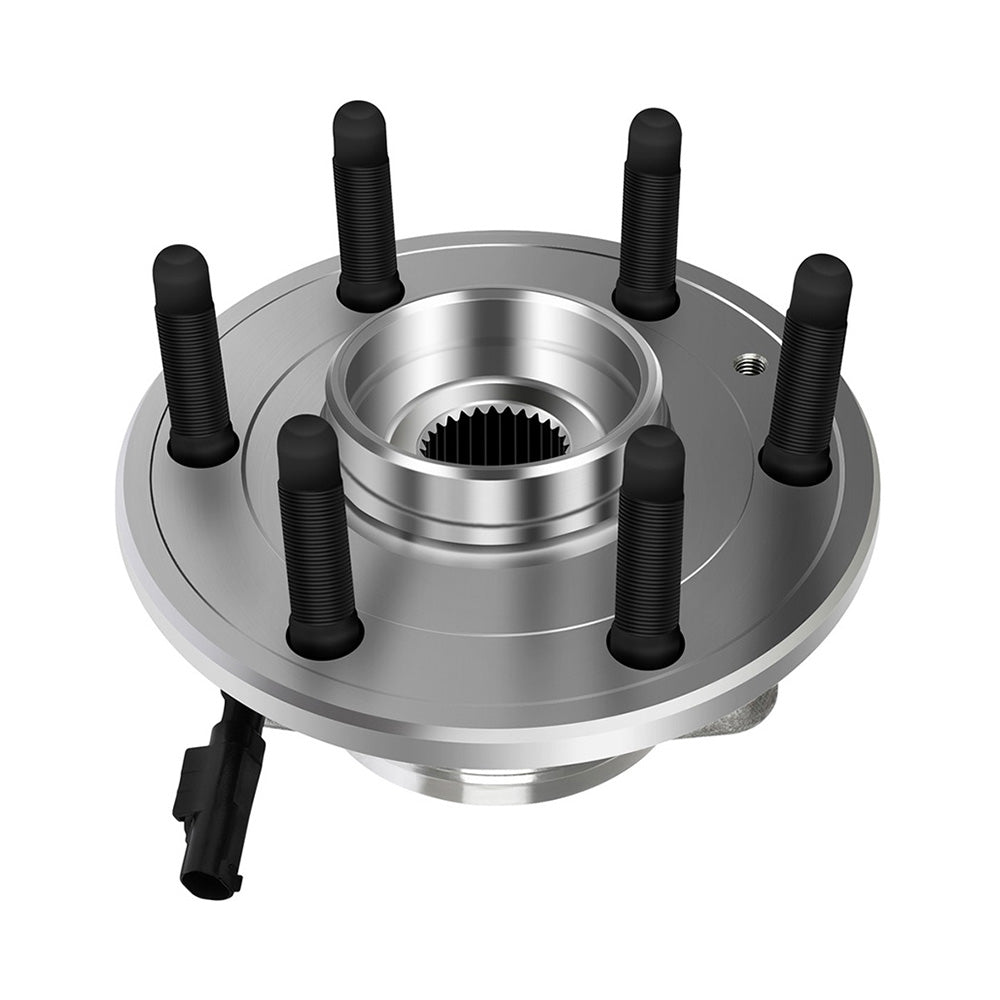

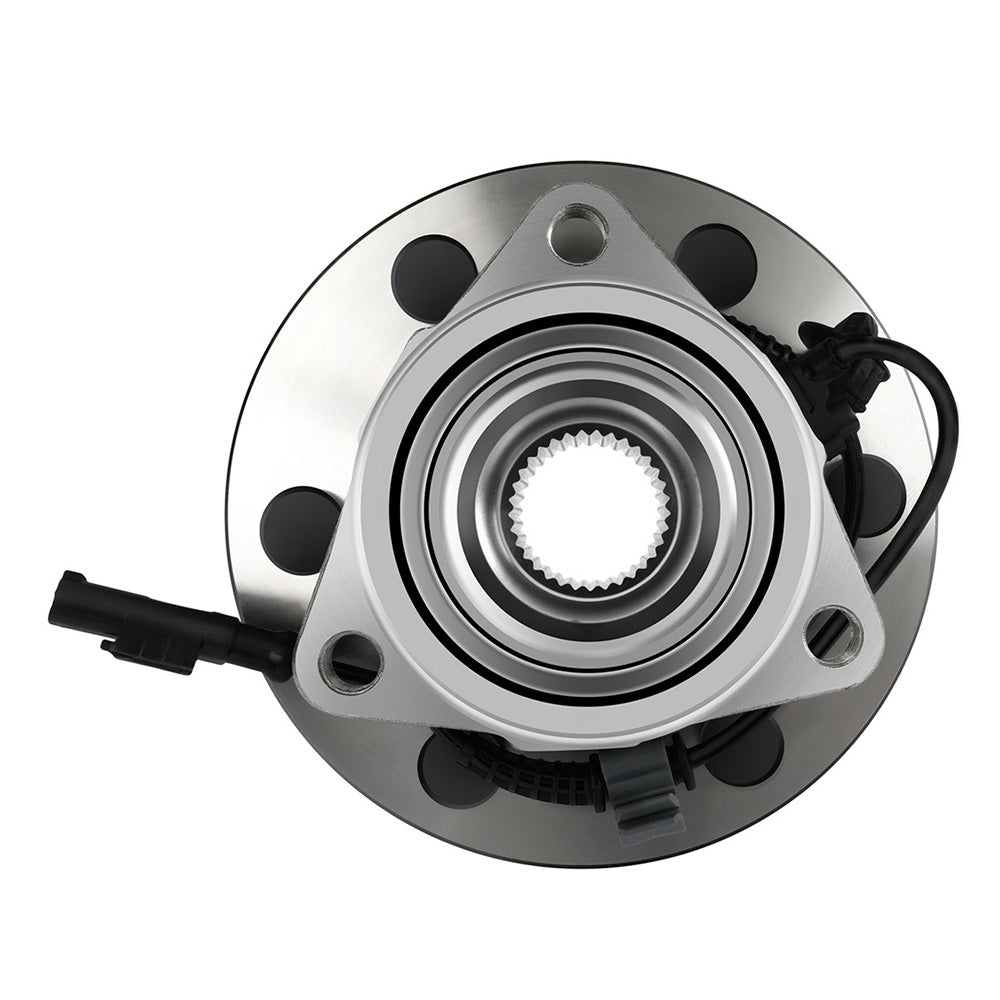

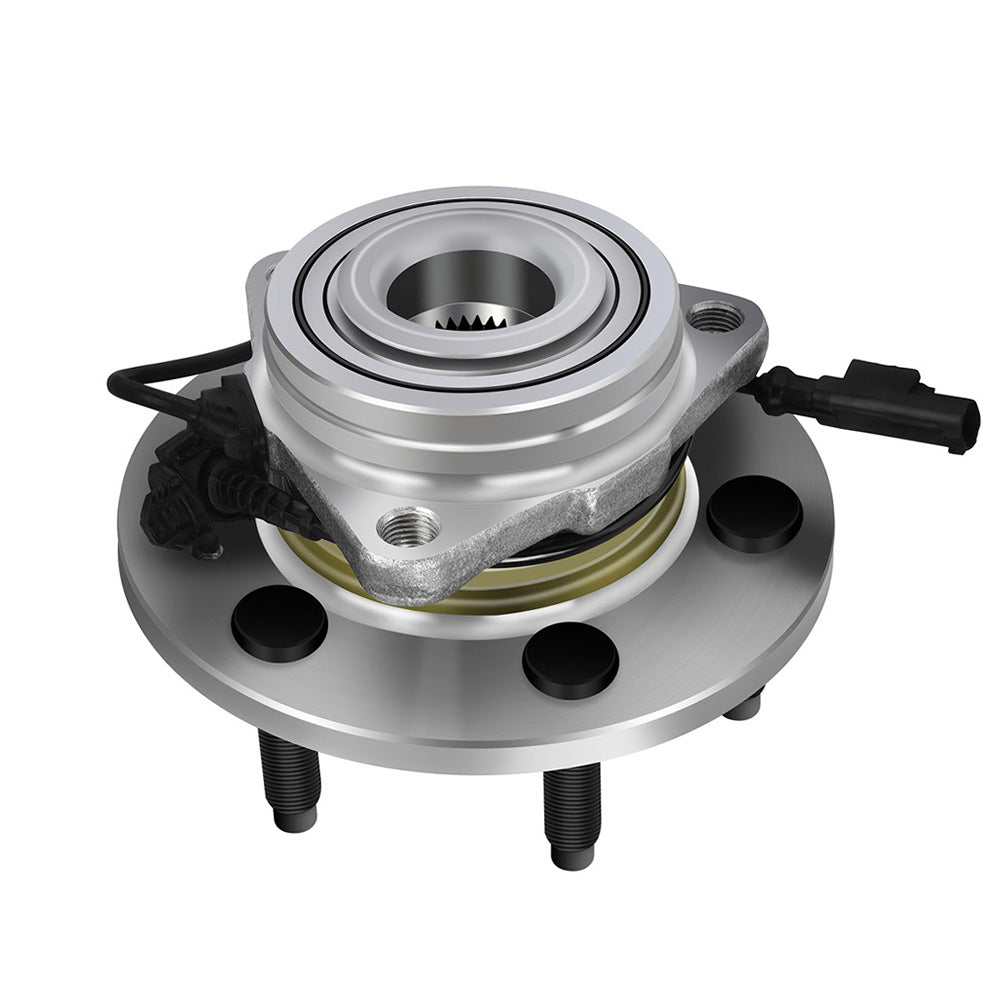

Front Wheel Bearing & Hub 07-14 Cadillac Escalade 07-13 Cadillac Escalade EXT

Fitment

• Cadillac | Escalade | 2007~2014 | 6.2L
• Cadillac | Escalade ESV | 2007~2014 | 6.2L
• Cadillac | Escalade EXT | 2007~2013 | 6.2L
• Chevrolet | Avalanche | 2007~2013 | 5.3L/6.0L
• Chevrolet | Silverado 1500 | 2007~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Suburban 1500 | 2007~2014 | 5.3L/6.0L
• Chevrolet | Tahoe | 2007~2014 | 4.8L/5.3L/6.2L
• GMC | Sierra 1500 | 2007~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Yukon | 2007~2014 | 4.8L/5.3L/6.2L
• GMC | Yukon XL 1500 | 2007~2014 | 5.3L/6.0L/6.2L

Product Specifics

• Spline Quantity: 33
• Flange Bolt Hole Quantity: 3
• Flange Shape: Triangle

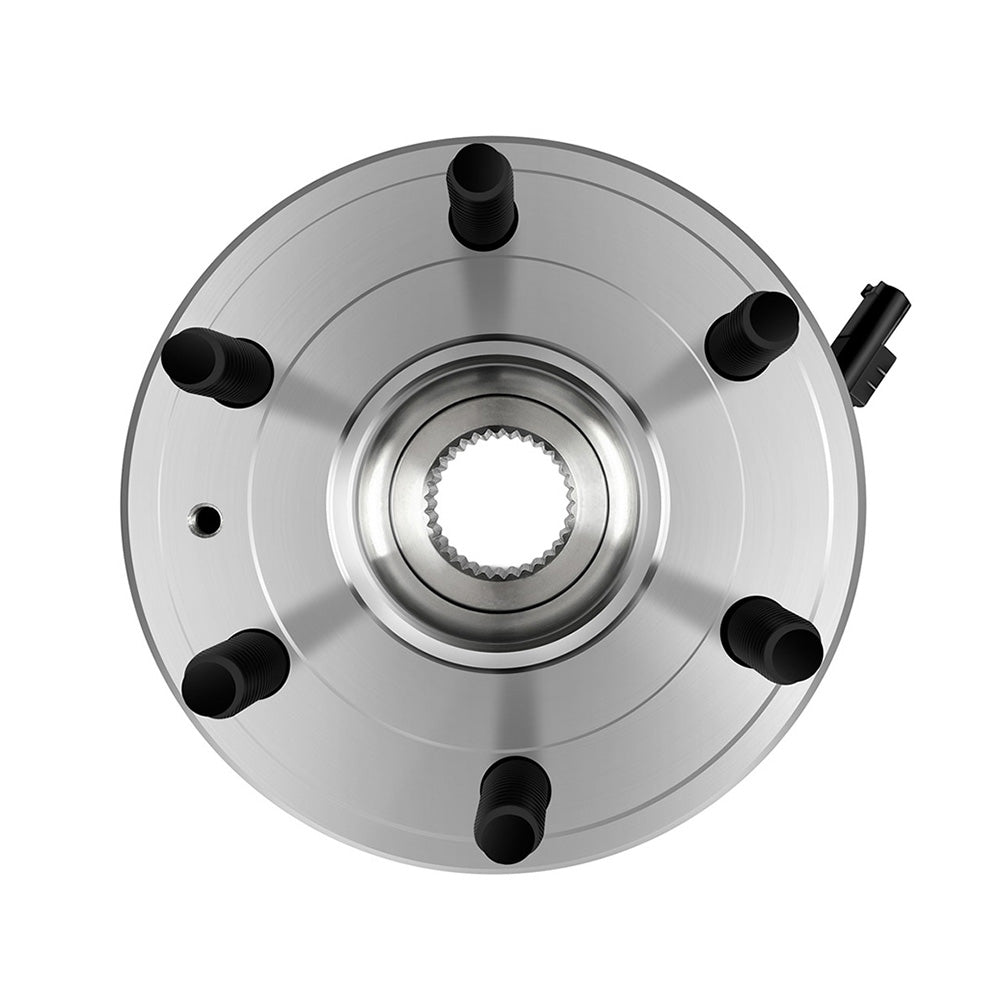

• Wheel Stud Quantity: 6
• Flange Bolt Size: M14 x 1.5

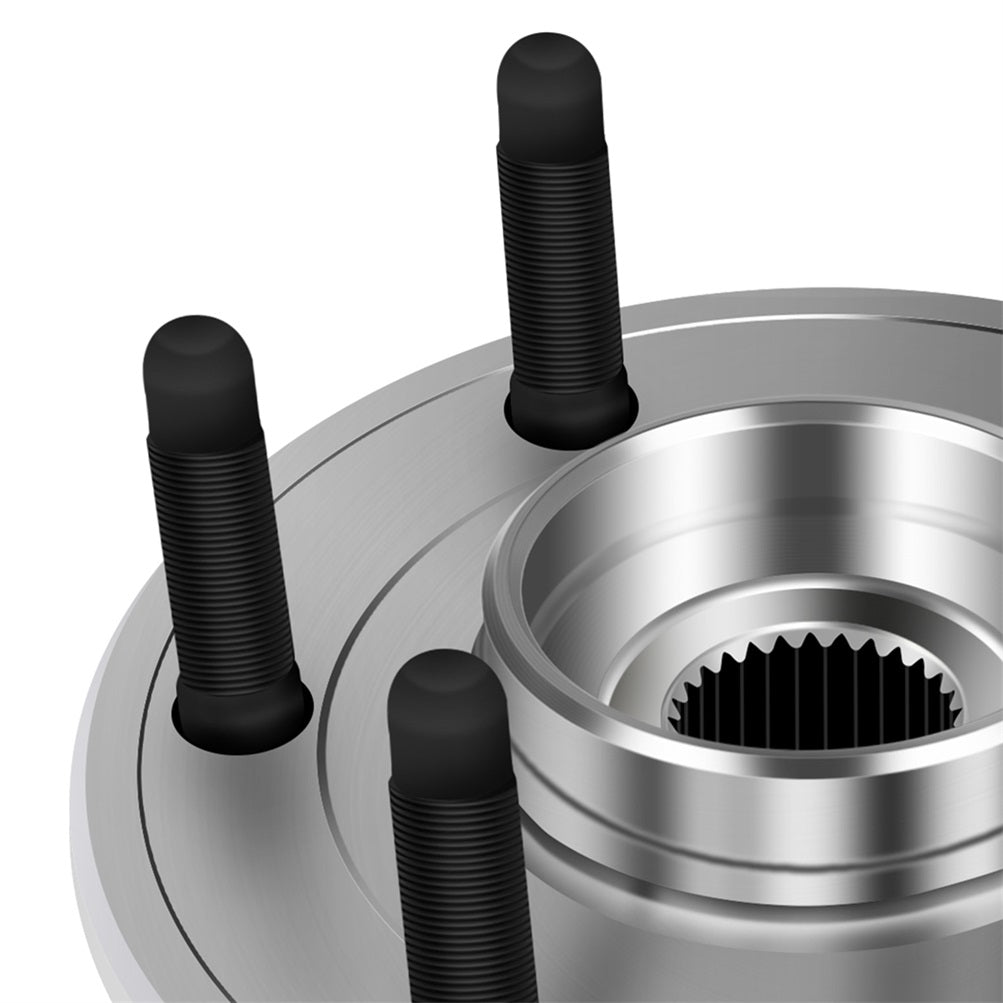

• Wheel Stud Size: M14 x 1.5
• Product Material: Steel
• Position: Driver Side or Passenger Side Front

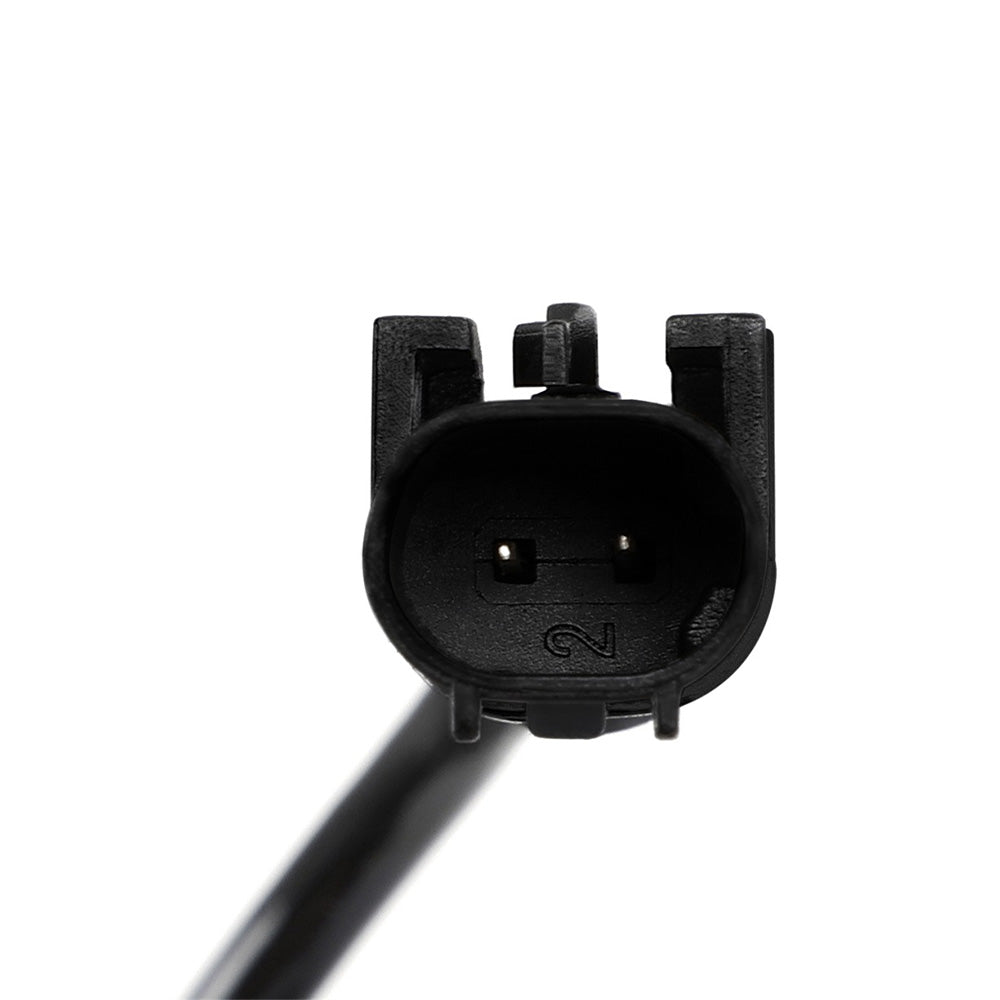

• Include ABS sensor: Yes(Has ABS with integral Sensor)
• Warranty: 12 months

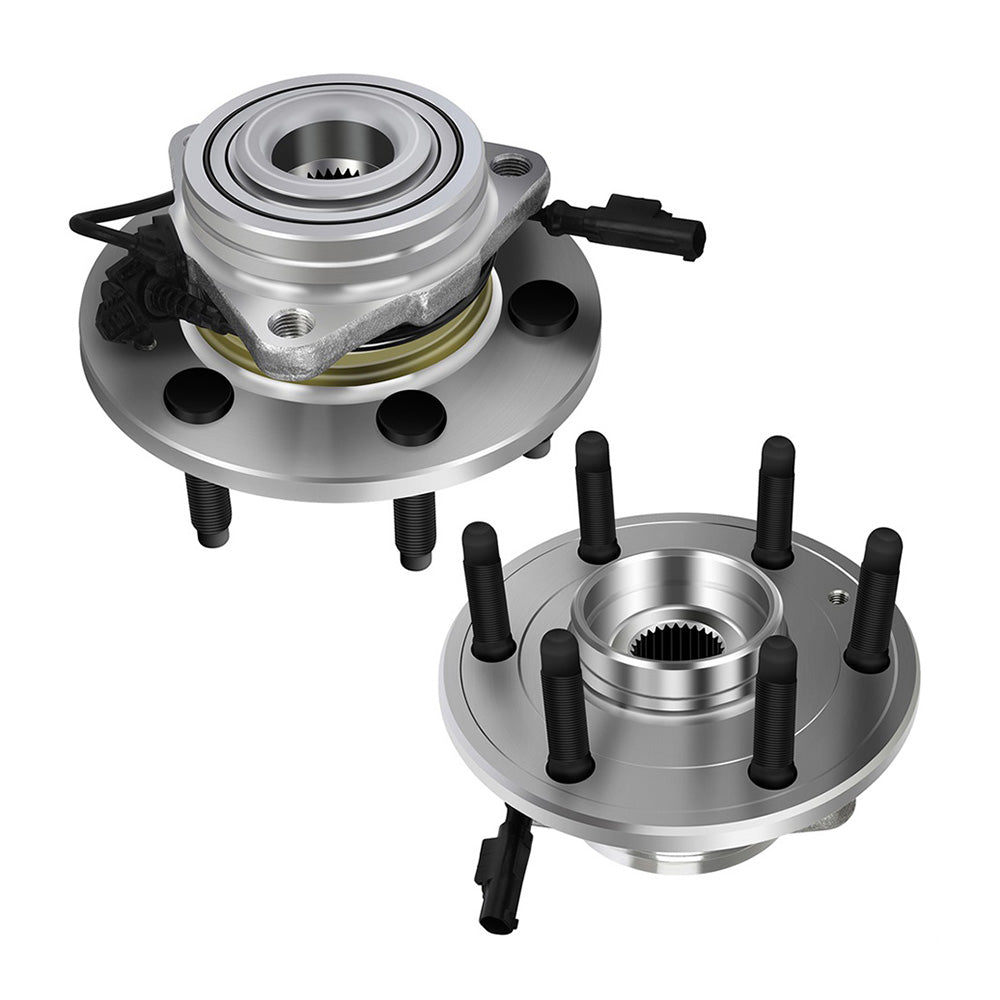

• Qty: 2 x wheel hub bearing
• Surface Finish: Polished, Rust Protected
• Weight: 11.06kg
• Bolt Circle Diameter: 139.7MM
• Brake Pilot Diameter: 78.1MM
• Flange Diameter: 178.7MM
• Flange Offset: 49.4MM
• Wheel Pilot Diameter: 77.7MM
• Hub Pilot Diameter: 98.6MM
• Alternate/OEM Part Number(s): 25976819 10393171 25918329
• Replaces dealer part numbers: 515096 BR930661, 10393171, 25918329, 25976819

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
