Fitment:
- Jaguar | S-Type | 2000~2008 | 3.0L/4.0L/4.2L
- Jaguar | XF | 2009~2014 | 2.0L/3.0L/4.2L/5.0L
- Jaguar | XJ8 | 2004~2005 | 4.2L
- Jaguar | XJR | 2004~2005 | 4.2L

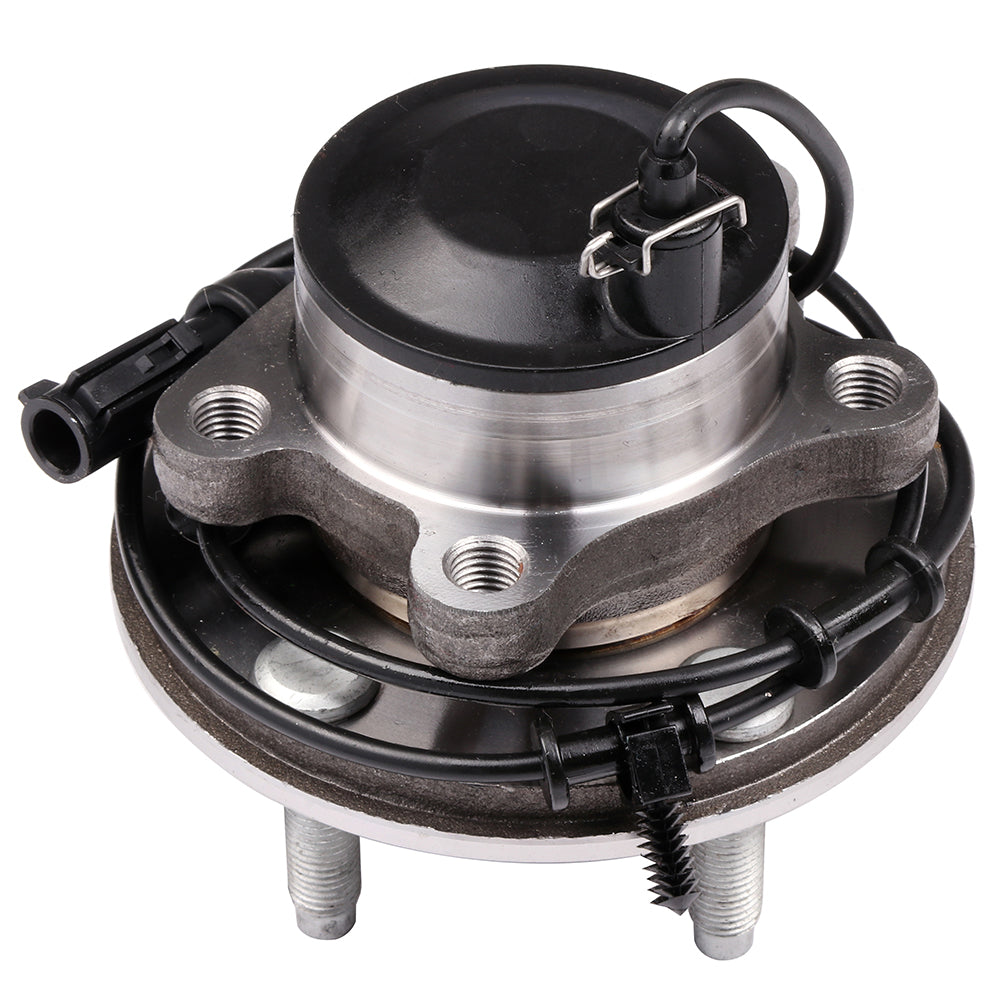

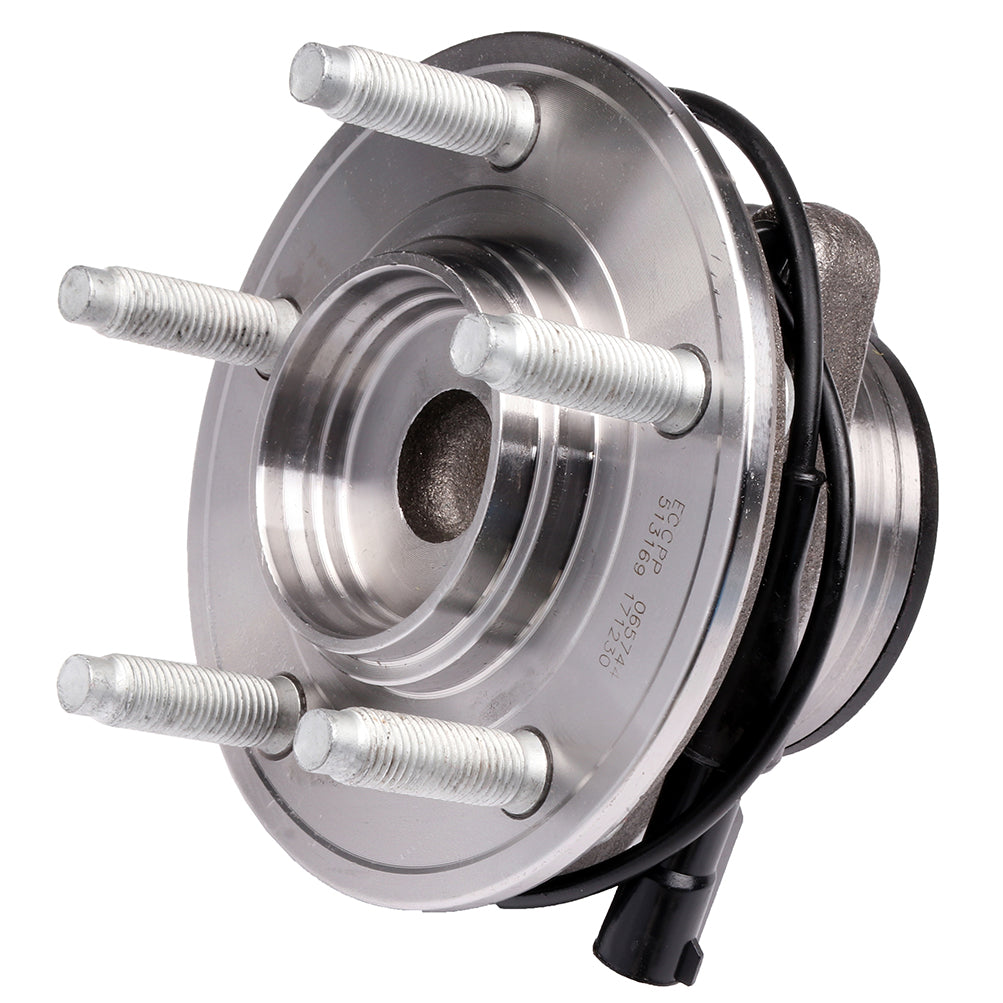

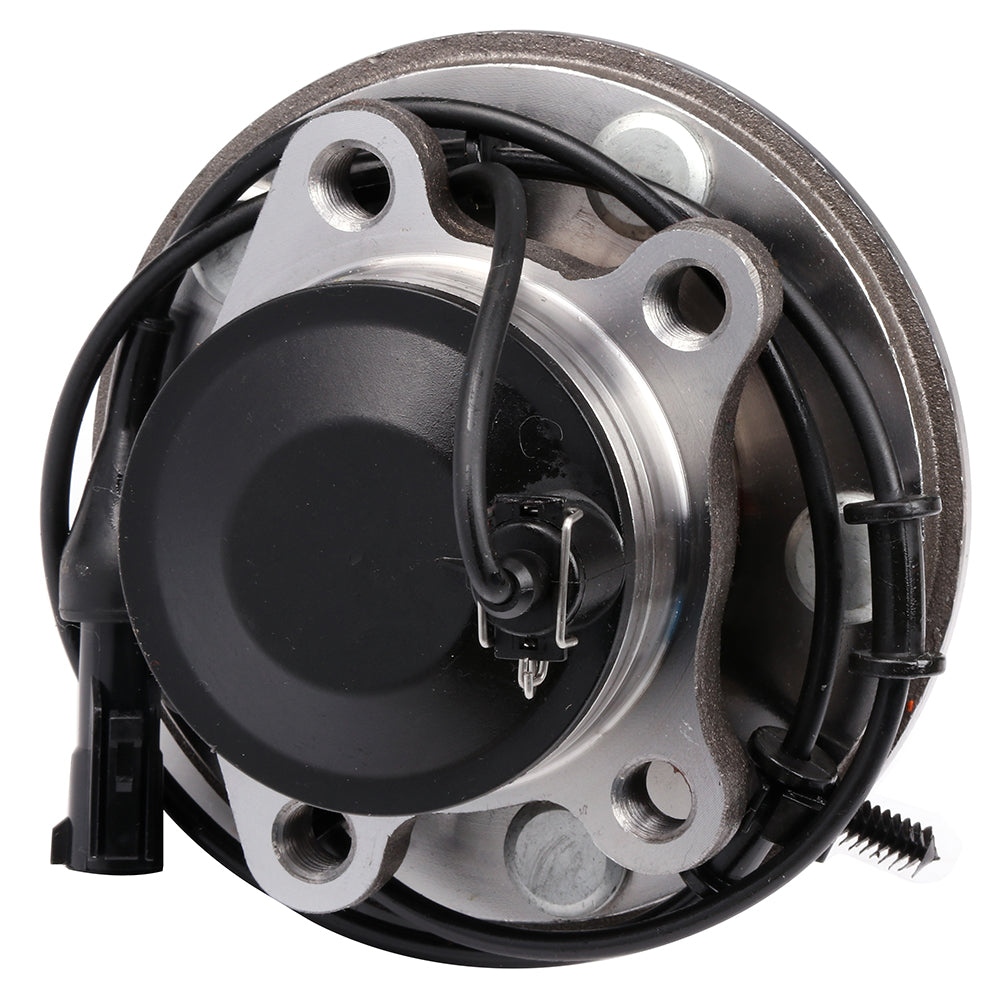

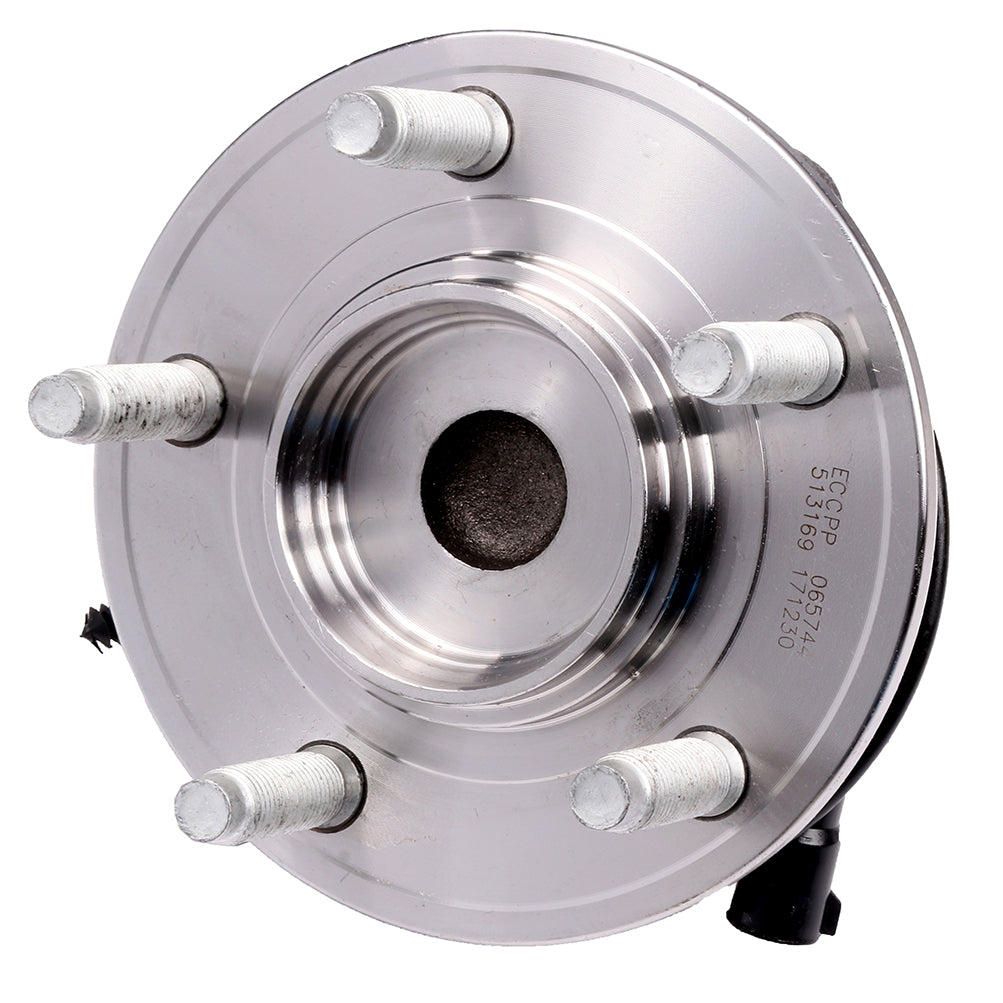

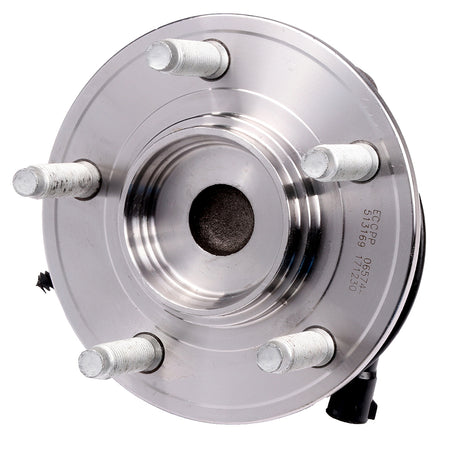

Front Wheel Bearing & Hub For 00-08 Jaguar S-Type 09-14 Jaguar XF
Keep your vehicle in top condition by choosing high-quality wheel hub replacements here at autoparts.com. We¡¯ve got a wide range of wheel hubs for different locations that are available per piece, in sets, or as part of a kit. Get the perfect part for your vehicle today.
Features
- Right for your vehicle and lifestyle
- Made from high-quality materials for ultimate durability
- Designed to deliver trouble-free, consistent performance
- Manufactured to meet or exceed strict quality requirements
Product Specifics
- Placement on Vehicle: Driver Side or Passenger Side Front
- Interchange Part Number: 513169 wheel bearings
- Fitment: For Jaguar

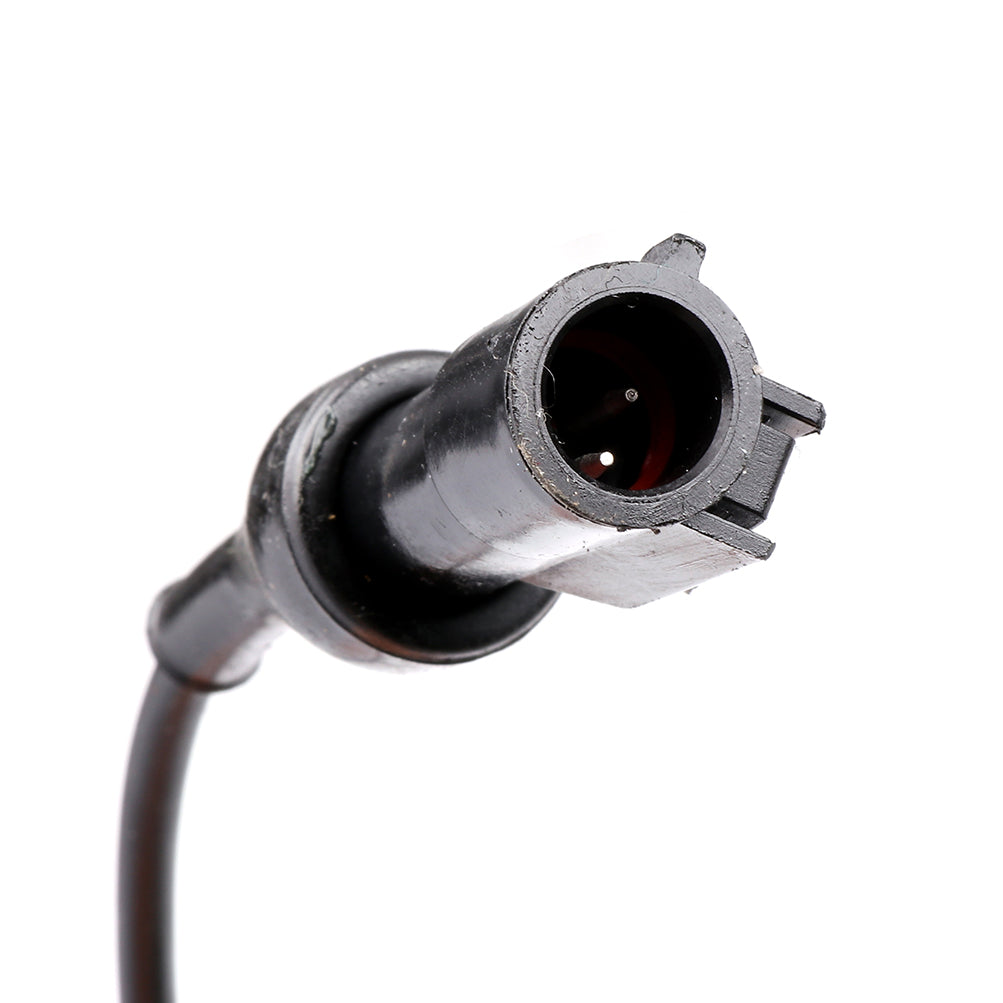

- ABS Sensor: Has ABS with integral Sensor
- Warranty: 1 Year
- Surface Finish: Polished, Rust Protected
- UPC: Does not apply
- Bolt Quantity: 5
- Flange Bolt Hole qty: 4
- Spline Quantity: N/A
- Bolt Circle Diameter: 4.21 In
- Wheel Pilot Diameter: 2.47 In
- Brake Pilot Diameter: 2.8 In
- Flange Diameter: 5.47 In
- Flange Shape: Modified
- Flange Offset: 1.75 In
- Hub Pilot Diameter: 2.99 In
- Material: steel
- Fitment Type: Direct replacement
- Weight: 8LB
- Package includes: 1 X wheel bearing
- Replaces dealer part numbers: 513169,C2C 22824, C2C19585, C2C22824, HA590224, XR848149, XR855936,713169
Note
- Do not pull on the wheel sensor harness.
- Pull out the front wheel sensor, being careful to turn it as little as possible.
- Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
- Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.
Package Include
1 Pcs wheel hub bearing.
