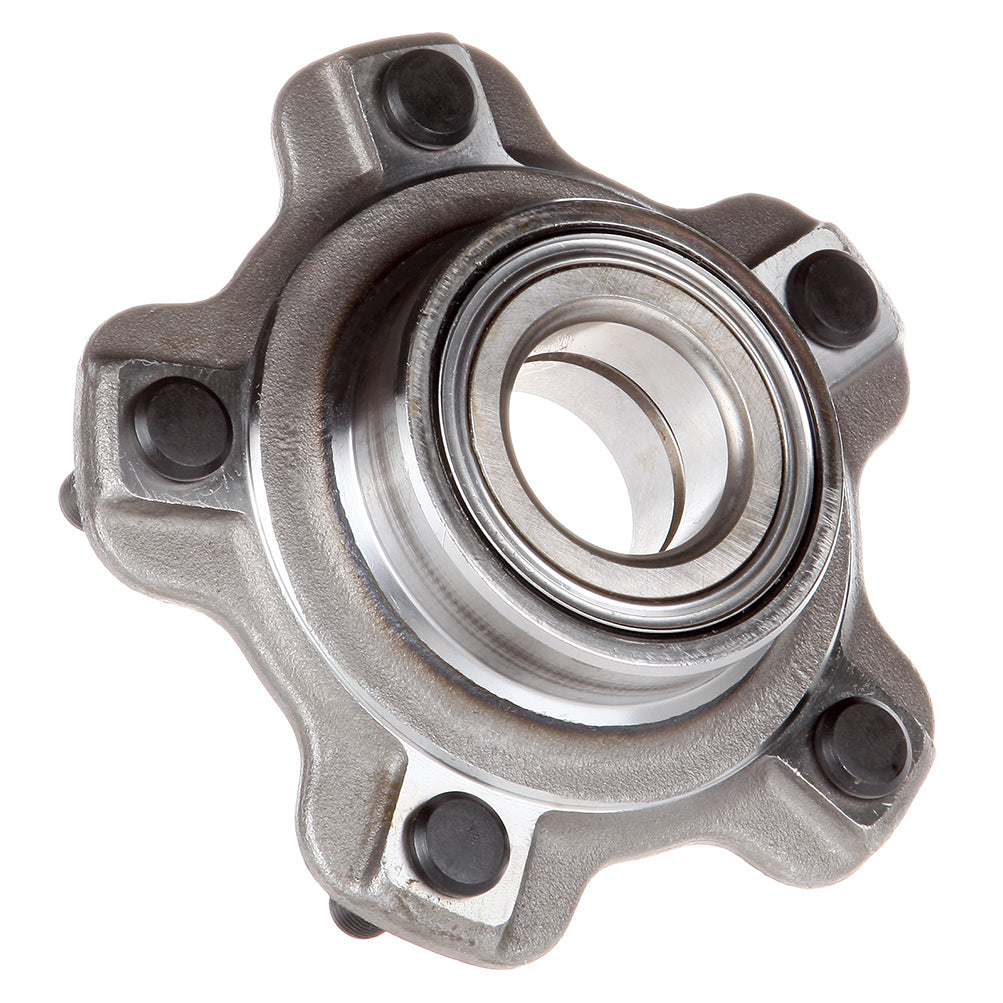

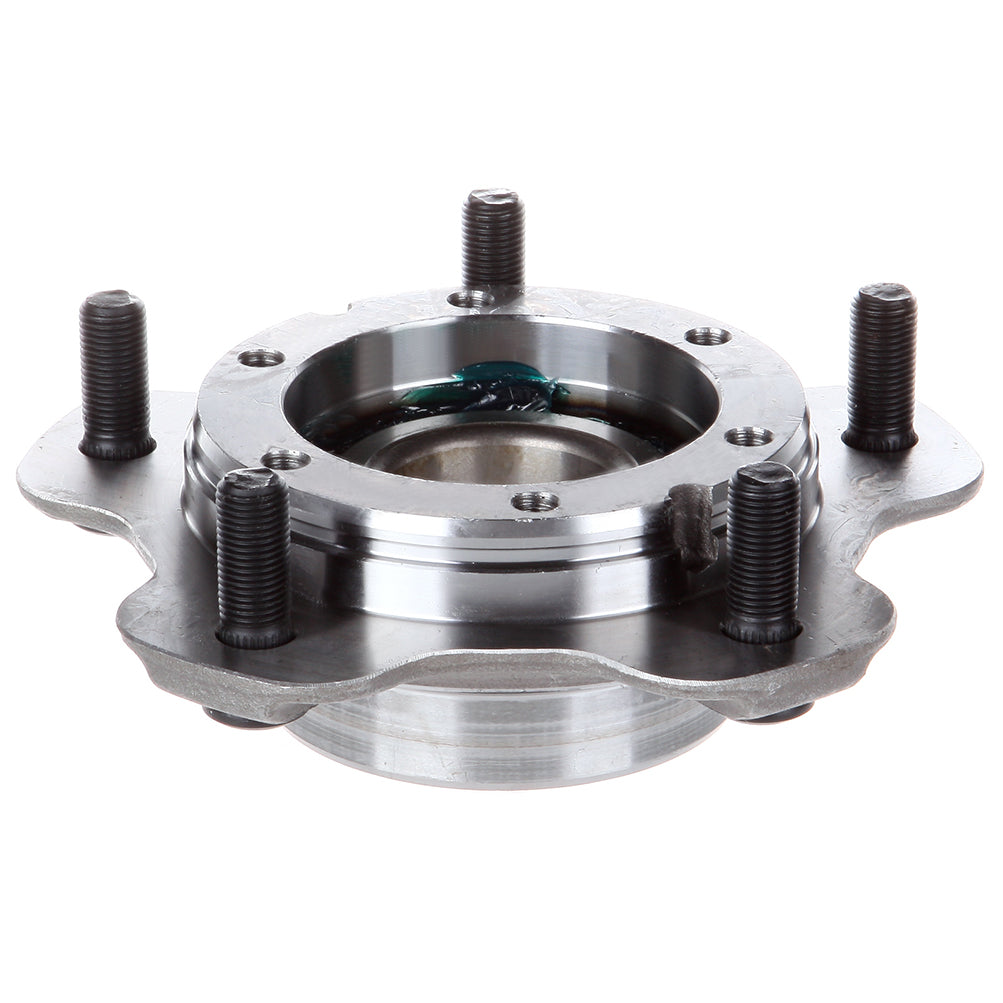

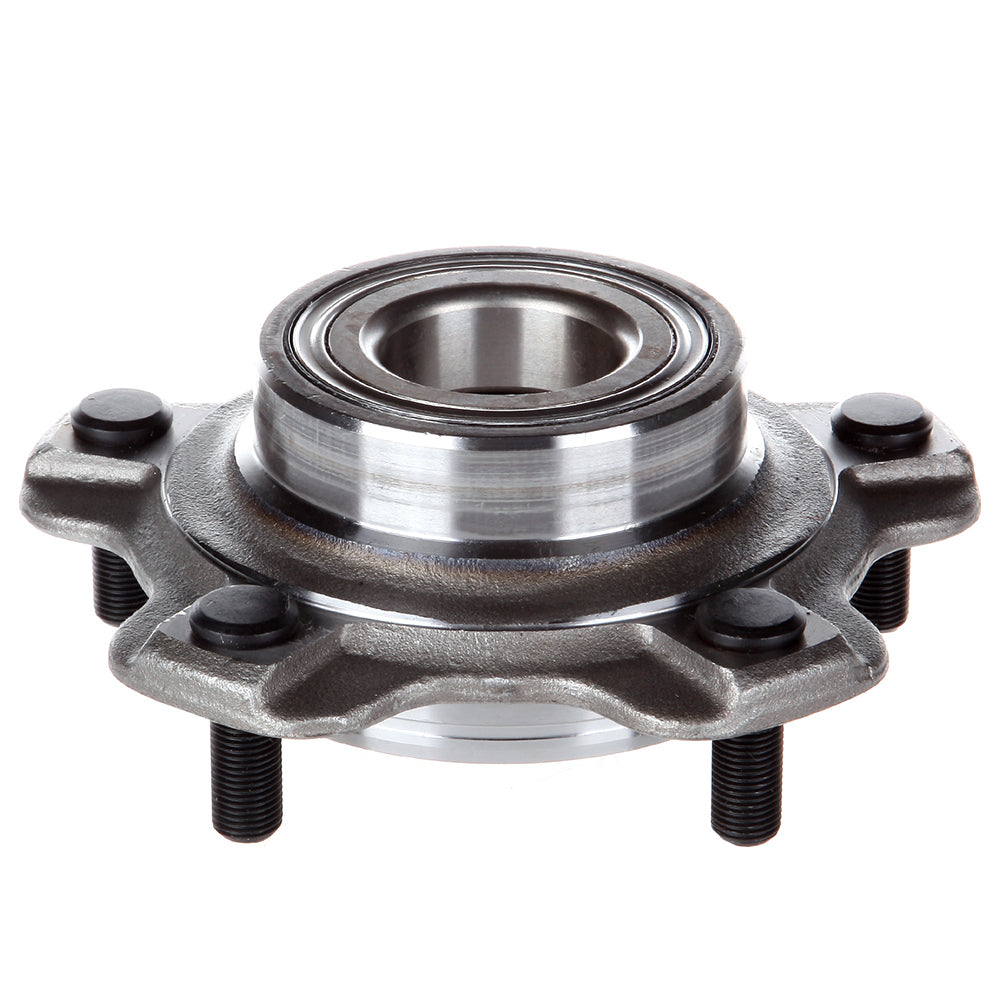

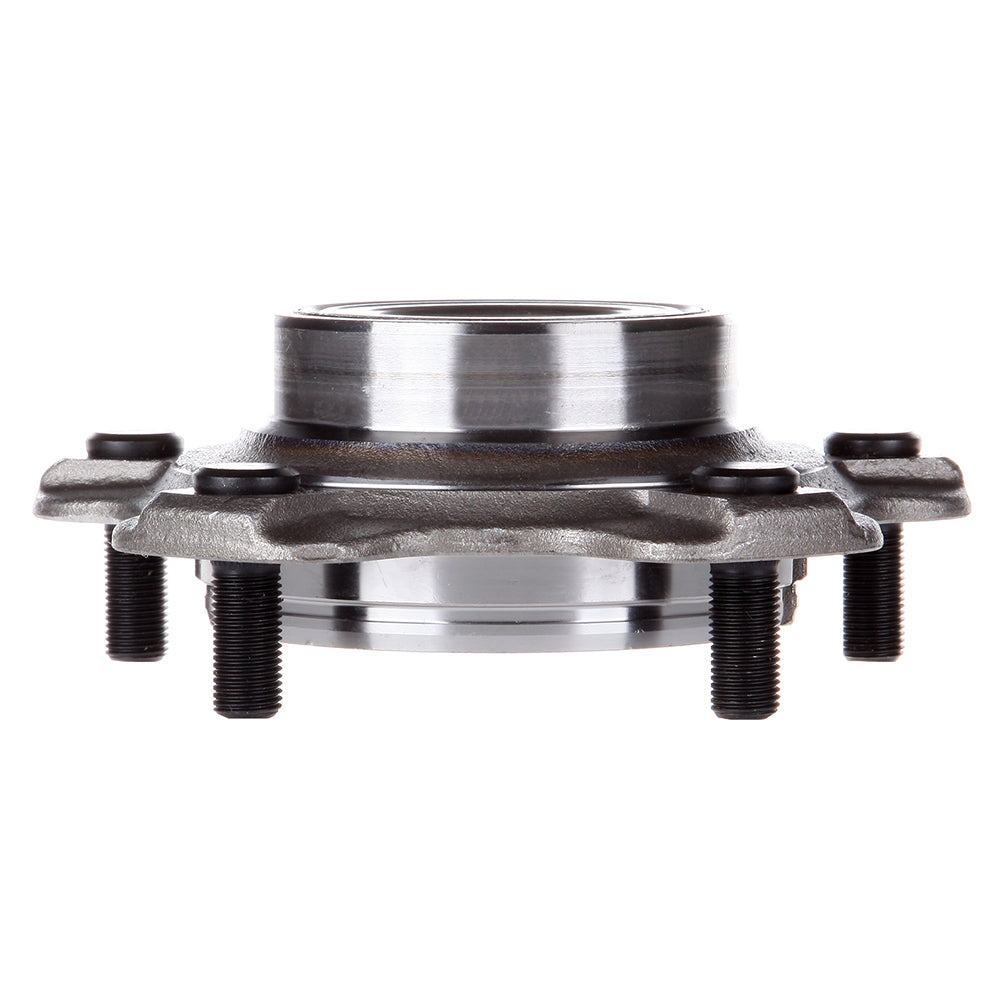

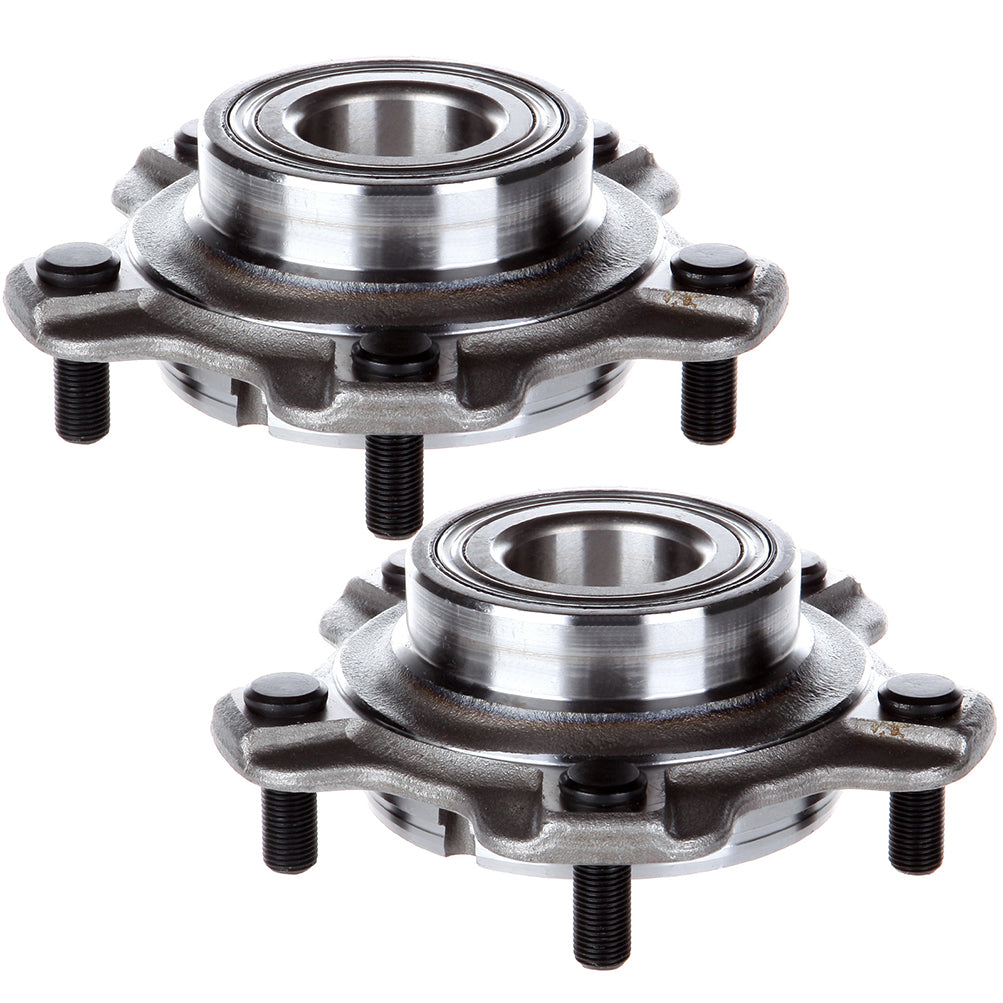

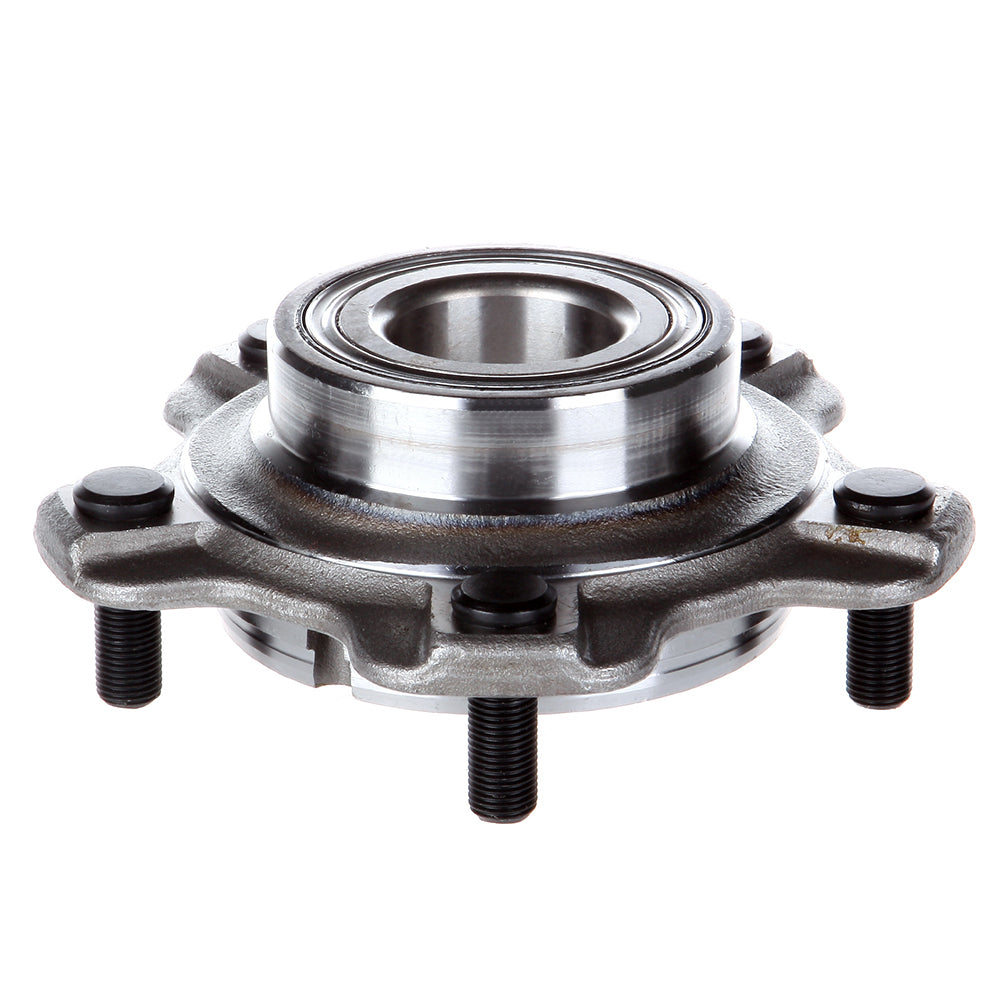

Front Wheel Bearing & Hub For 01-05 Suzuki Grand Vitara 01-04 Suzuki Vitara

Fitment

• Chevrolet | Tracker | 2001~2004 | 1.6L/2.0L/2.5L
• Suzuki | Grand Vitara | 2001~2005 | 2.5L/2.7L
• Suzuki | Vitara | 2001~2004 | 1.6L/2.0L/2.5L
• Suzuki | XL-7 | 2002~2006 | 2.7L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: N/A
• Spline Quantity: N/A
• Bolt Circle Diameter: 5.45 In
• Wheel Pilot Diameter: 4.09 In
• Brake Pilot Diameter: 4.2198 In
• Flange Diameter: 6.61 In
• Flange Shape: Rectangular
• Hub Pilot Diameter: 3.31 In
• Other Part Numbers: 30025890, 30025891, 4340165D00, 4340165D10
• Material: steel
• Weight: 12LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513193,wa513193,29513193

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

2 Pcs wheel hub bearing
