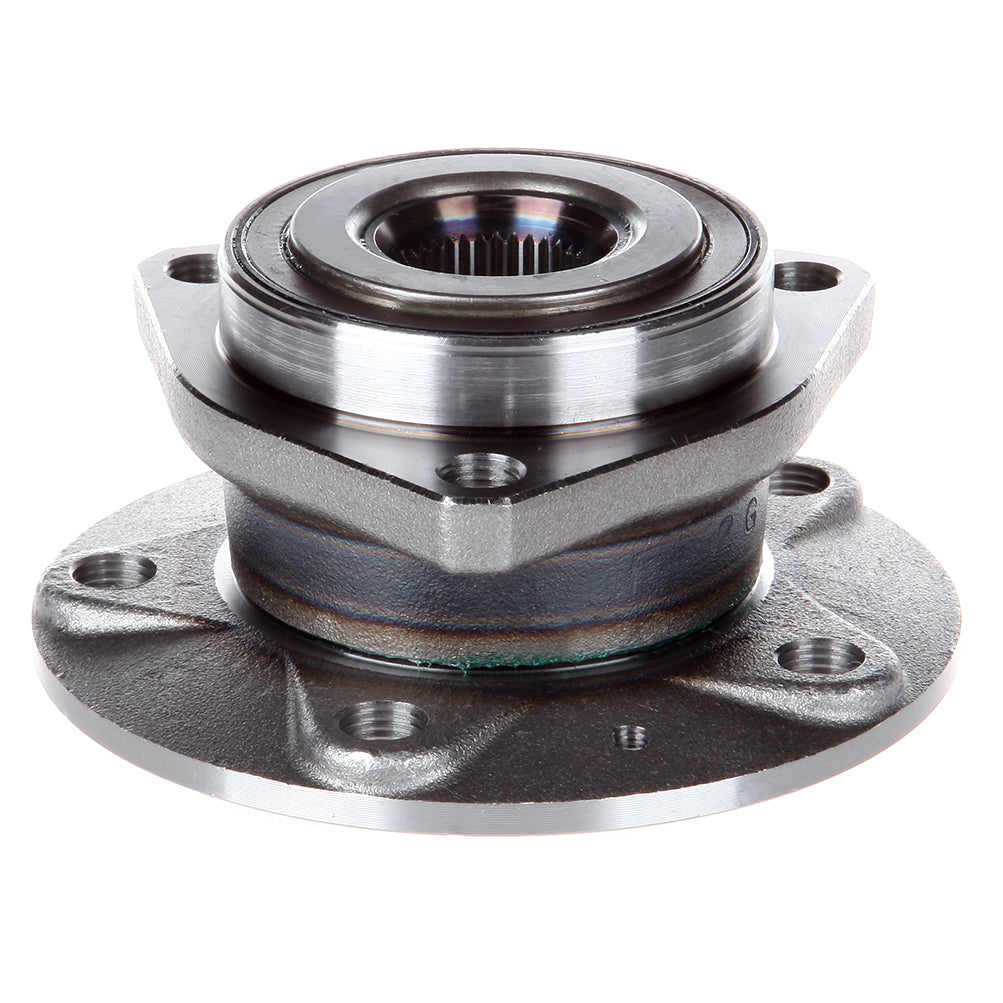

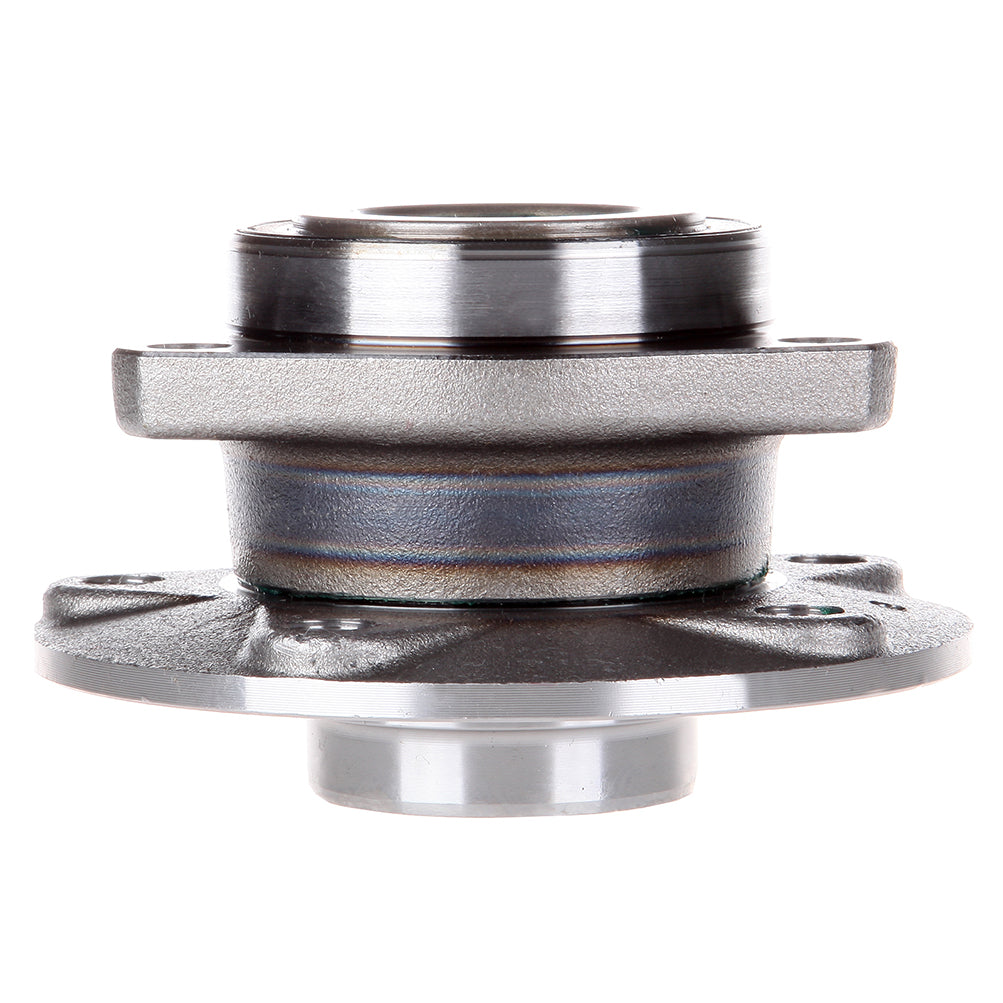

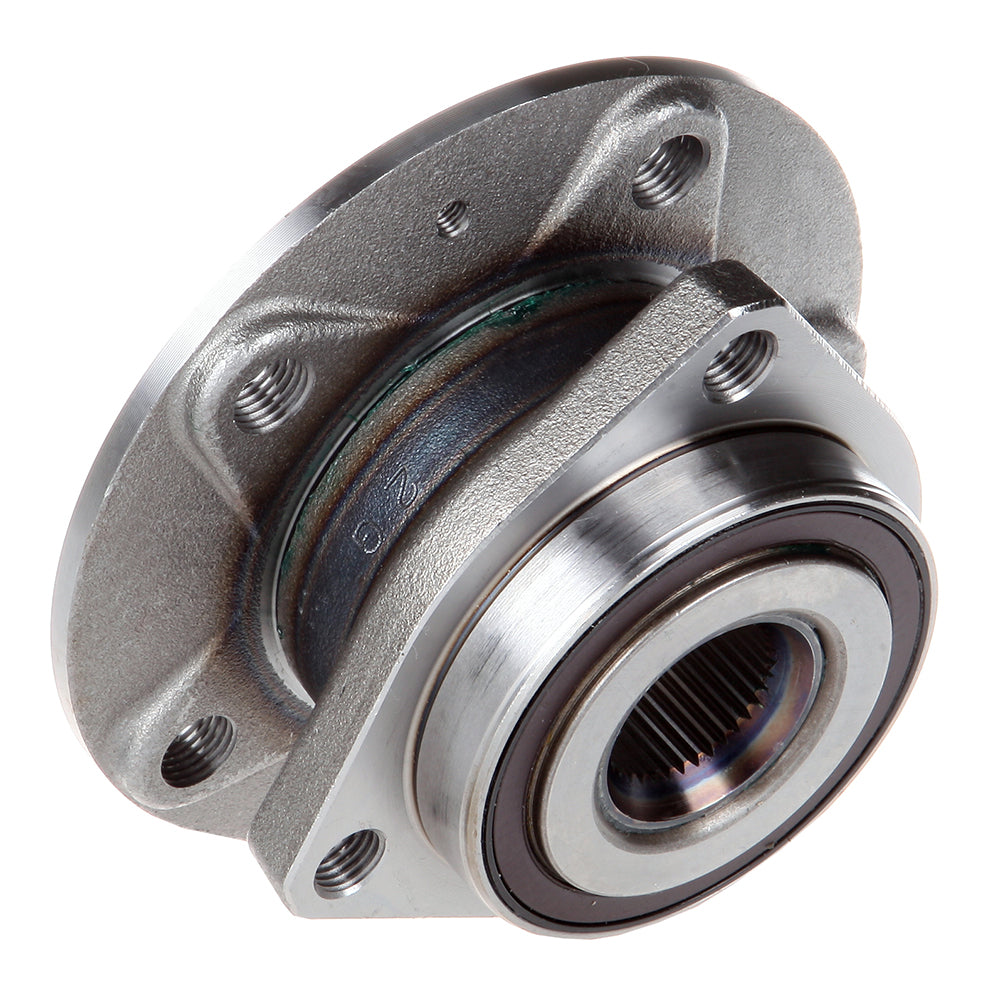

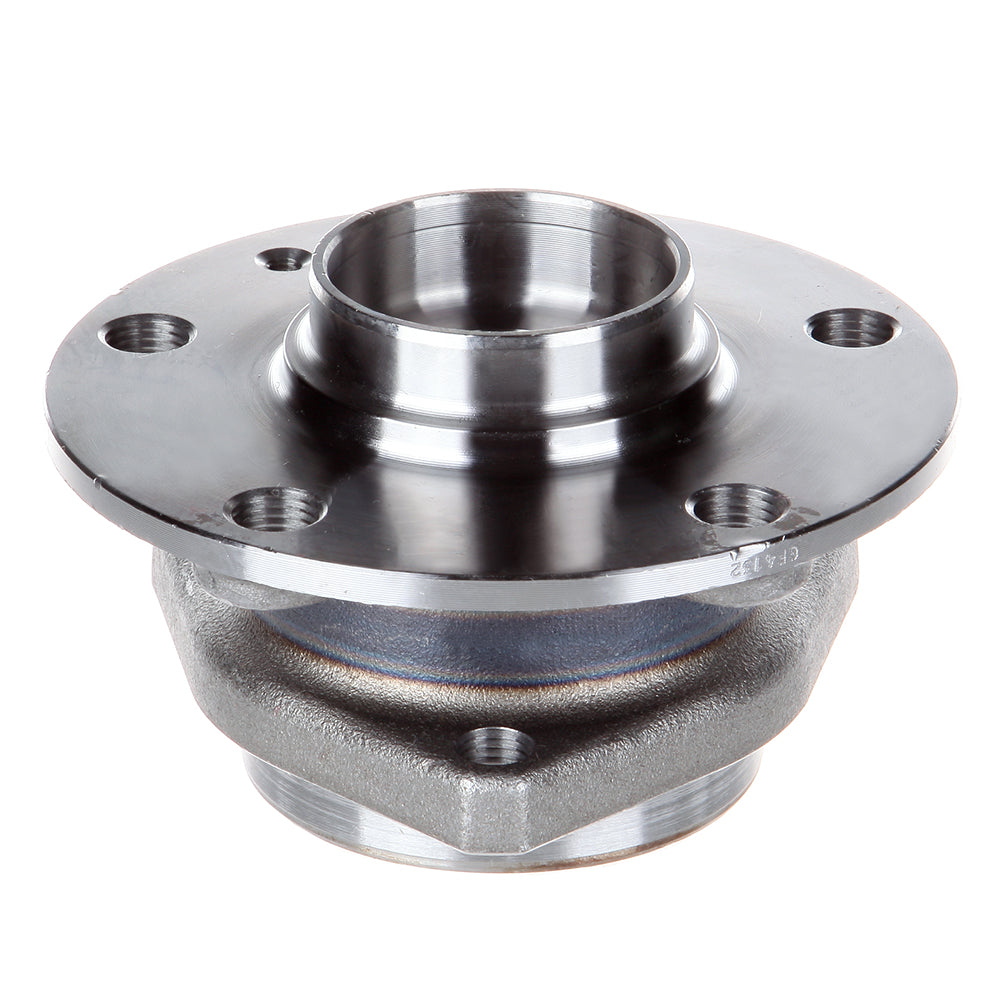

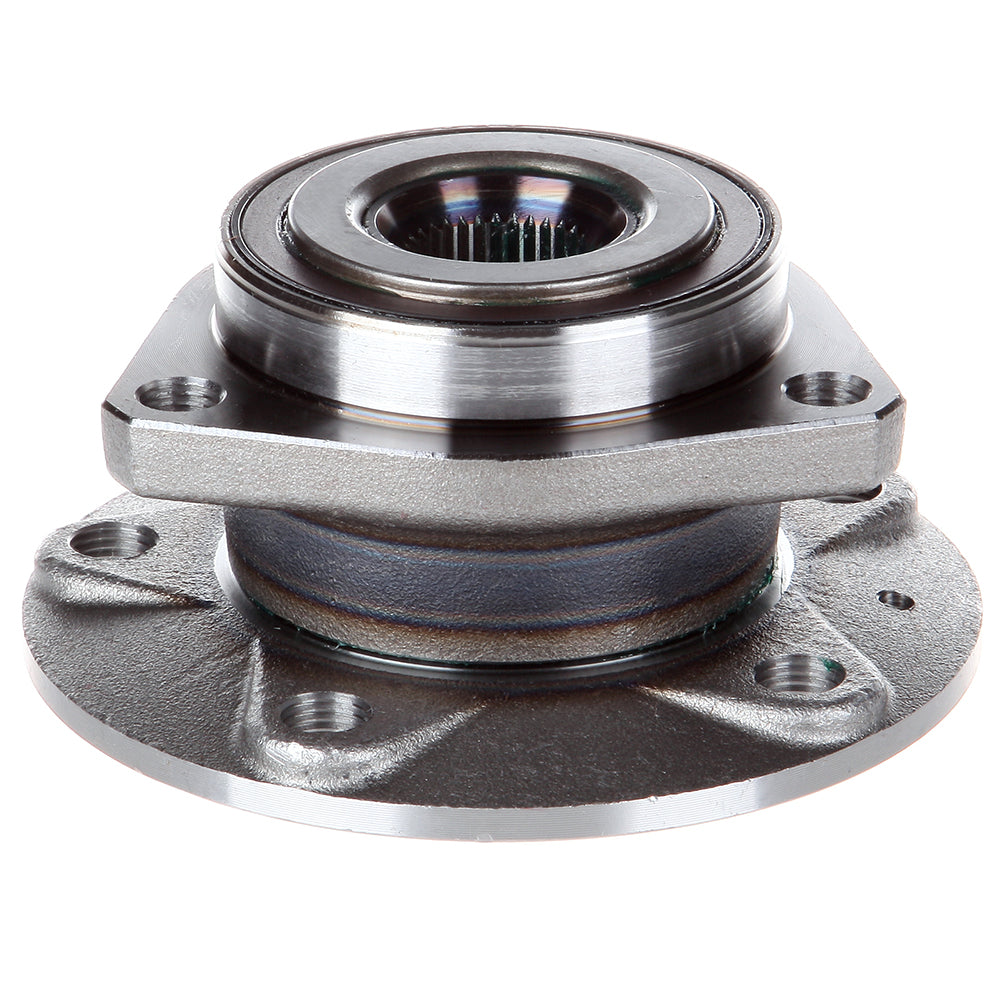

Front Wheel Bearing Hub For 2006-2009 Volkswagen GTI 2006 Volkswagen Golf

Fitment

• Audi | A3 | 2006~2008 | 1.4L/1.8L/2.0L
• Volkswagen | Eos | 2007~2012 | 2.0L/3.2L
• Volkswagen | GTI | 2006~2009 | 2.0L
• Volkswagen | Golf | 2006 | 1.8L/1.9L/2.0L
• Volkswagen | Golf City | 2007~2009 | 2.0L
• Volkswagen | R32 | 2008 | 3.2L
• Volkswagen | Rabbit | 2006~2009 | 2.5L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 36
• Bolt Circle Diameter: 4.39 In
• Wheel Pilot Diameter: 2.22 In
• Brake Pilot Diameter: 2.54 In
• Flange Diameter: 5.32 In
• Flange Shape: Modified
• Flange Offset: 1.87 In
• Hub Pilot Diameter: 3.12 In
• Other Part Number: 1K0407621D, 1K0407621E, 1K0498621, 8V0498625
• Material: steel
• Weight: 13LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513262 HA590198 BR930623 FW9262 C465 R15461 CR2317

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

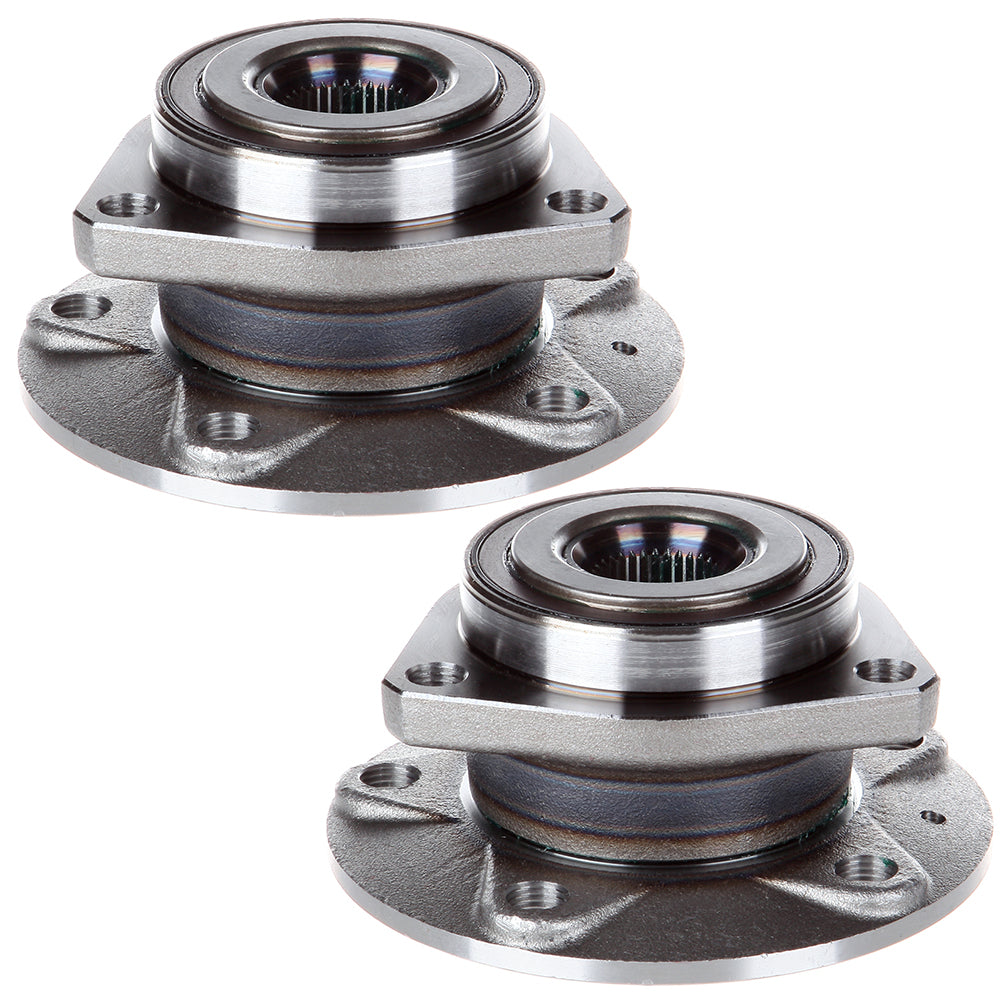

2 Pcs wheel hub bearing
